Description
- Advanced 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

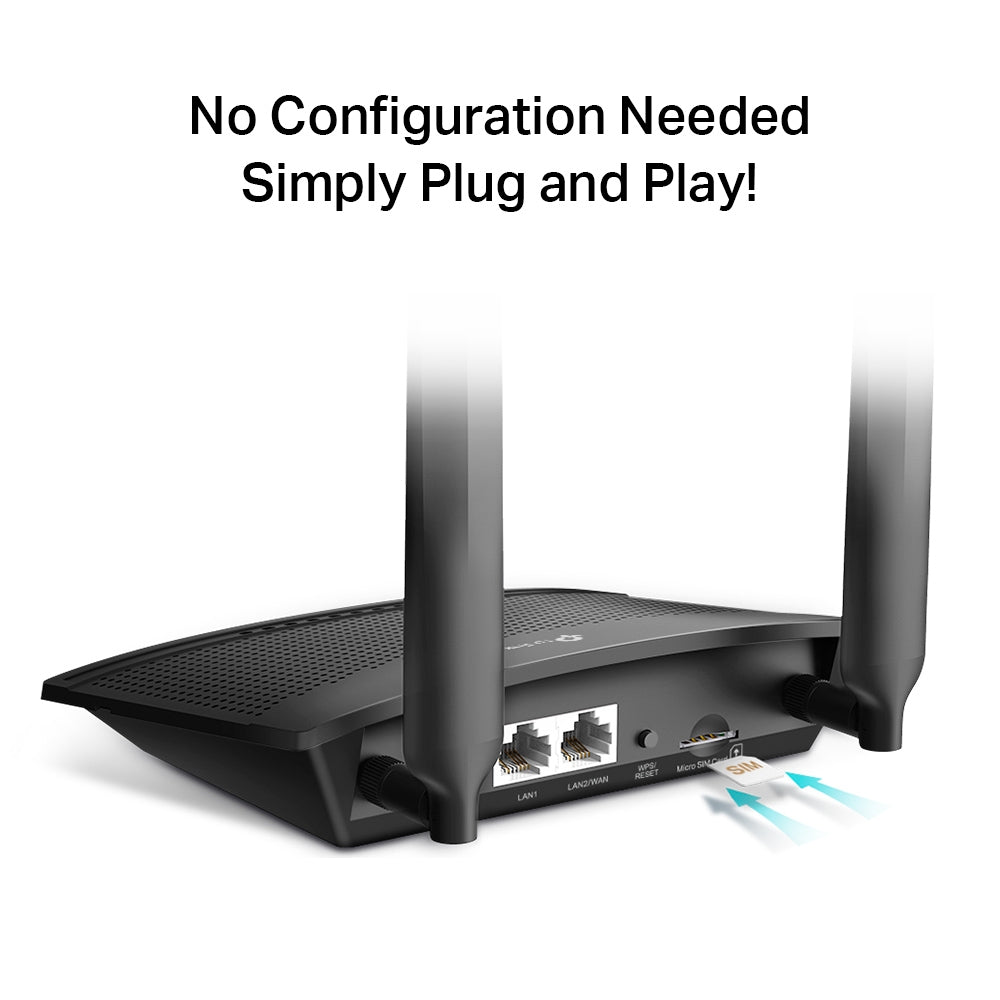

- SIM and Use Card Plug – No configuration required, SIM card compatibility in 100 countries is guaranteed over years of field testing.
- Two advanced detachable LTE antennas - Enjoy a stable and efficient connection with all devices thanks to two external antennas
- Wi-Fi Router mode - Plug the Ethernet cable into the LAN/WAN port for flexible access as a backup option if you cannot have a 4G connection. /
| HARD FUNCTION | |
|---|---|
| Interface |
1 LAN port 10/100Mbps, 1 LAN/WAN port 10/100Mbps, 1 Micro SIM Card slot |
| Button | WPS/Reset button |
| External Power Supply(EU) | 9V/0.85A |
| Size ( R x D x C ) | 6.06×4.49×1.42 in ( 154×114×36 mm) |
| Antenna | 2 External 4G LTE antenna is removable |
| WI-FI FEATURES | |
|---|---|
| Standard Wi-Fi | IEEE 802.11b/g/n |
| Band | 2.4 GHz |
| Signal speed | 300 Mbps |
| Reception Sensitivity |
11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm |
| Transmission capacity | < 20 dBm (2.4 GHz) |
| Wi-Fi feature |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Have |
| Wi-Fi security | 12/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network form |
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES | |
|---|---|
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN form | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Manage | Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocol | IPv4, IPv6 |
| Guest network | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHER | |
|---|---|
| Certificate | CE, RoHS |
| Products included |
Router Wi-Fi 4G LTE Standard N Speed 300 Mbps TL-MR100 Source converter RJ45 Ethernet cable Quick installation guide |
| Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card |
| Environment |
Thermal Activity: 0℃ ~40℃ (32℉ ~104℉) Thermal Flow Text: -40℃~70℃ (-40℉ ~158℉) Active Moisture: 10%~90% non-condensing Moisture Save: 5% ~90% do not condense |
