| PERFORMANCE |
| Processor |
Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB
|
| AI PC Category |
|
| NPU |
Integrated Intel® AI Boost, up to 13 TOPS
|
| Graphics |
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
|
| Chipset |
Intel® HM870 Chipset
|
| Memory |
2x 16GB SO-DIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable
|
| Max Memory
|
Up to 32GB DDR5-5600 offering
|
| Storage |
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
|
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots
|
| Max Storage Support
|
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each
|
| Optical |
None
|
| Card Reader |
SD Card Reader
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3306 codec
|
| Speakers |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio, Smart Amplifier (AMP)
|
| Microphone |
2x, Array
|
| Camera |
5.0MP + IR with E-shutter
|
| Battery |
84Wh
|
| Power Adapter |
245W Slim Tip (3-pin)
|
| Special Features |
AI Chip: LA3
|
| DESIGN |

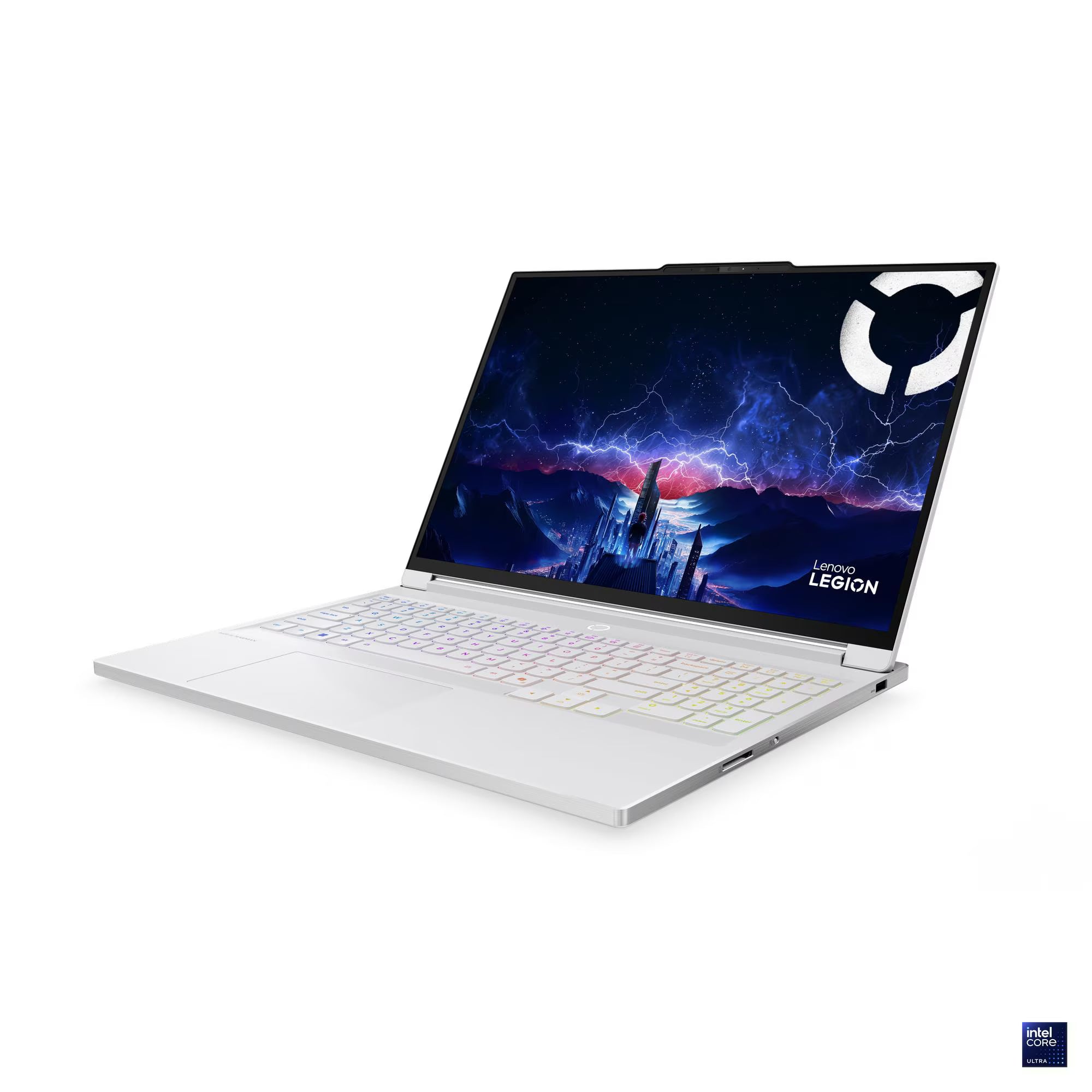

| Display |
16" WQXGA (2560x1600) OLED 500nits (Typical) / 1100nits (Peak) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free
|
| Touchscreen |
None
|
| Color Calibration |
Factory Color Calibration
|
| Pen |
Pen Not Supported
|
| Keyboard |
Per-key RGB Backlit, English
|
| Touchpad |
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
|
| Dimensions (WxDxH)
|
361.7 x 263.4 x 15.9-17.9 mm (14.24 x 10.37 x 0.63-0.70 inches)
|
| Weight
|
Less than 2.0 kg (4.52 lbs)
|

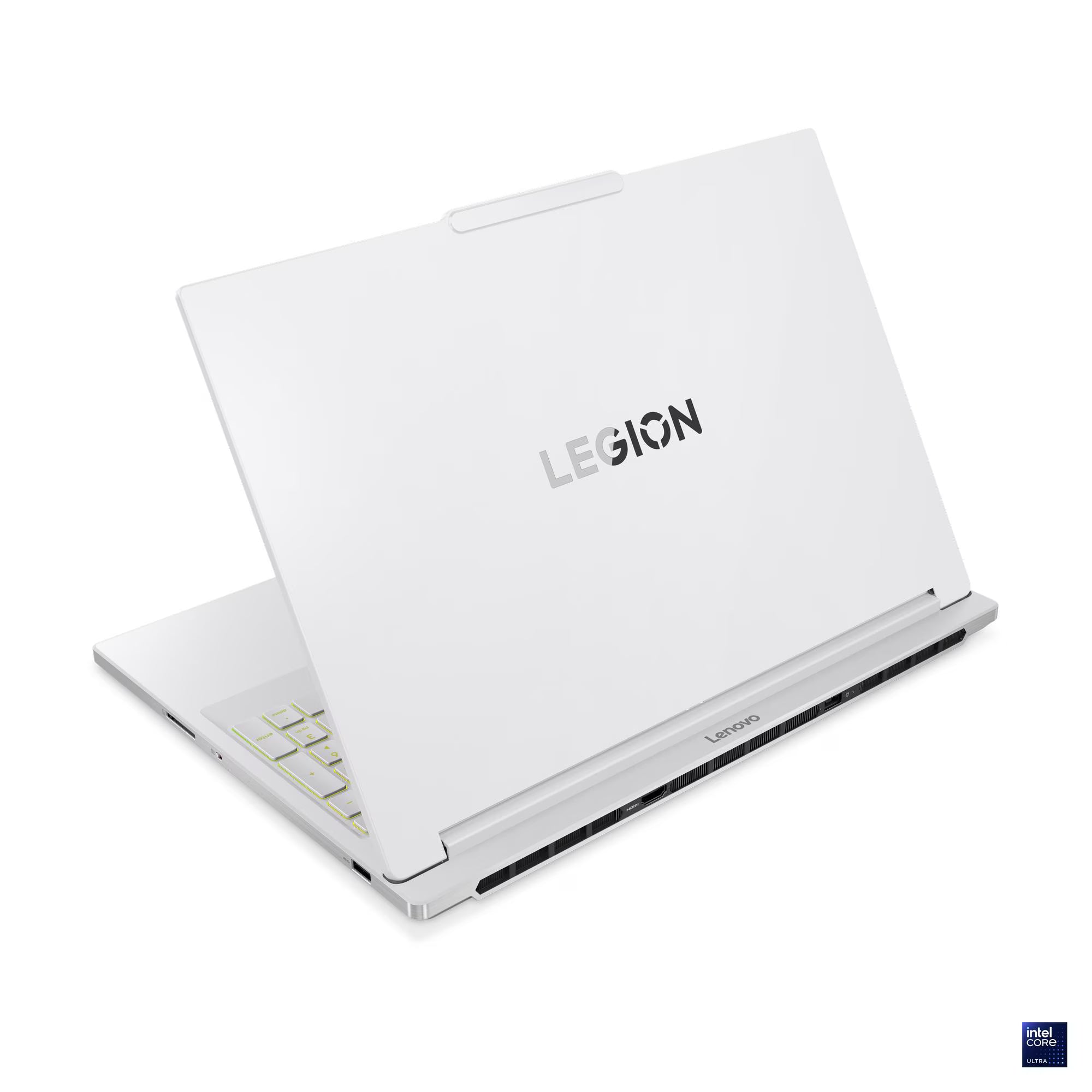

| Case Color |
Glacier White
|
| Case Material |
Aluminium (Top), Aluminium (Bottom)
|
| Surface Treatment |
Anodize Electrophoresis Deposition
|
| SOFTWARE |
| Operating System |
Windows® 11 Home Single Language, English
|
| Bundled Software |
Office Home 2024 + Lenovo® AI Now
|
| CONNECTIVITY |
| WLAN + Bluetooth
|
Wi-Fi® 7, 802.11be 2x2 + BT5.4
|
| WWAN |
Non-WWAN
|
| Ethernet |
No Onboard Ethernet
|
| Standard Ports |
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 65-100W and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Card reader
- 1x Power connector
|
| Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion 7 16IAX10
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 Enabled
|
| Fingerprint Reader |
None
|
| Other Security |
E-shutter
|
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in
|
| Included Upgrade |
3Y Legion Ultimate Support -IPPREM (ESS)
|
| ACCESSORIES |
| Bundled Accessories |
None
|
| CERTIFICATIONS |
| Green Certifications |
|
| Other Certifications |
- TÜV Rheinland® Flicker Free
- TÜV Rheinland® High Gaming Performance
- TÜV Rheinland® Low Blue Light (Hardware Solution)
|
| MODEL INFORMATION |

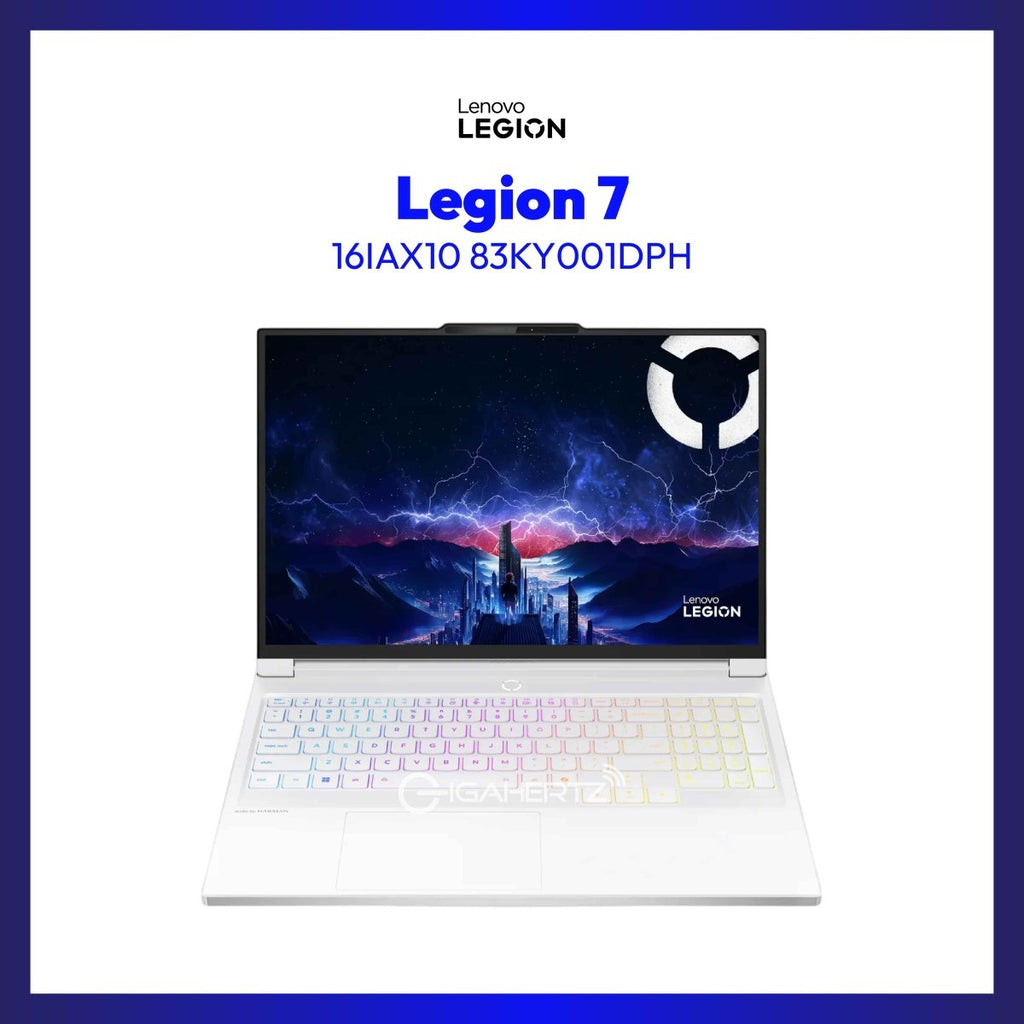

| Model |
83KY001DPH
|
| Machine Type |
83KY
|
| Region |
ASEAN
|
| Country/Region |
Philippines
|
| TopSeller |
Yes
|
| EAN / UPC / JAN |
198158025300
|
| Announce Date |
2025-07-04
|
| End of Support |
2031-06-12
|
