| PERFORMANCE |
| Processor |
Intel® Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB
|
| AI PC Category |
|
| NPU |
None
|
| Graphics |
NVIDIA® GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS
|
| Chipset |
Intel® HM770 Chipset
|
| Memory |
1x 16GB SO-DIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable
|
| Max Memory
|
Up to 32GB DDR5-5600 offering
|
| Storage |
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
|
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots
|
| Max Storage Support
|
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each
|
| Optical |
None
|
| Card Reader |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3287 codec
|
| Speakers |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
|
| Microphone |
2x, Array
|
| Camera |
5.0MP with E-shutter
|
| Battery |
80Wh
|
| Power Adapter |
245W Slim Tip (3-pin)
|
| Special Features |
AI Chip: LA1
|
| DESIGN |
| Display |
15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600
|
| Touchscreen |
None
|
| Screen-to-Body Ratio |
OLED models: 90% AAR (active area ratio)
|
| Color Calibration |
Factory Color Calibration
|
| Pen |
Pen Not Supported
|
| Keyboard |
White Backlit, English
|
| Touchpad |
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
|
| Dimensions (WxDxH)
|
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79-0.85 inches)
|
| Weight
|
Starting at 1.9 kg (4.19 lbs)
|
| Case Color |
Eclipse Black
|
| Case Material |
Aluminium (Top), PC-ABS + 15% Talc (Bottom)
|
| Surface Treatment |
Aluminium Stamping (Anodized with Sandblasting)
|
| SOFTWARE |
| Operating System |
Windows® 11 Home Single Language, English
|
| Bundled Software |
Office Trial + Lenovo® AI Now
|
| CONNECTIVITY |
| WLAN + Bluetooth |
Wi-Fi® 7, 802.11be 2x2 + BT5.4
|
| WWAN |
Non-WWAN
|
| Ethernet |
100/1000M (RJ-45)
|

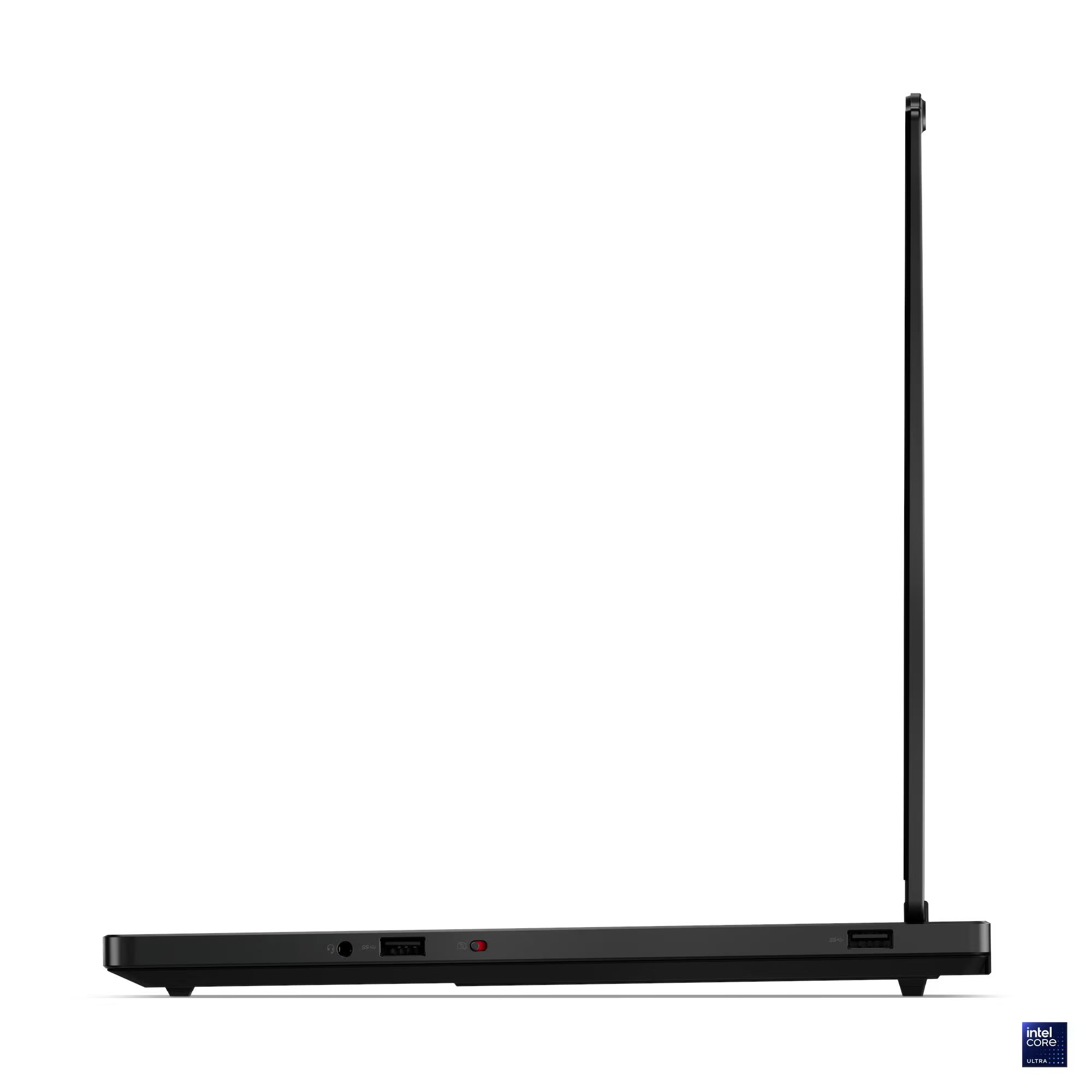

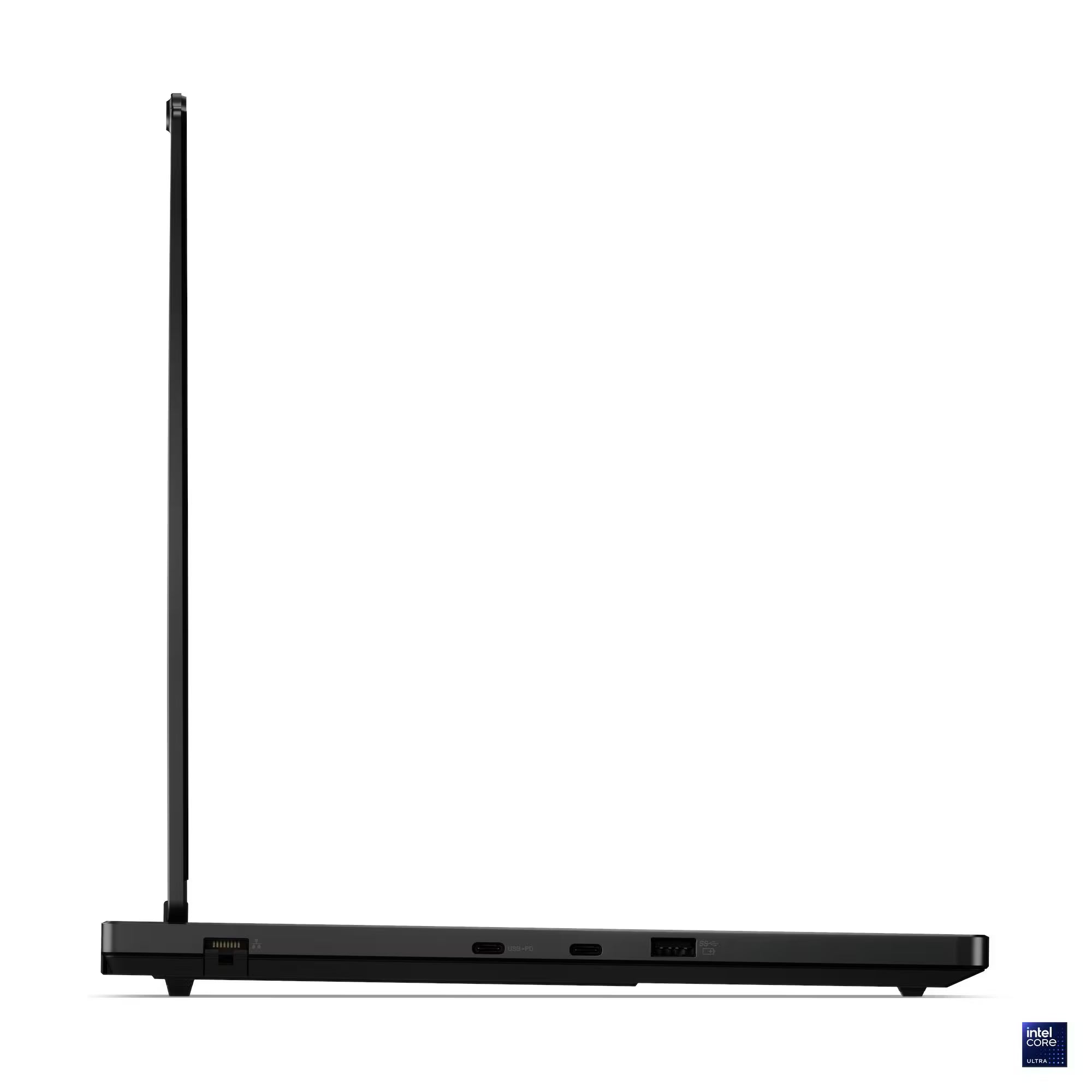

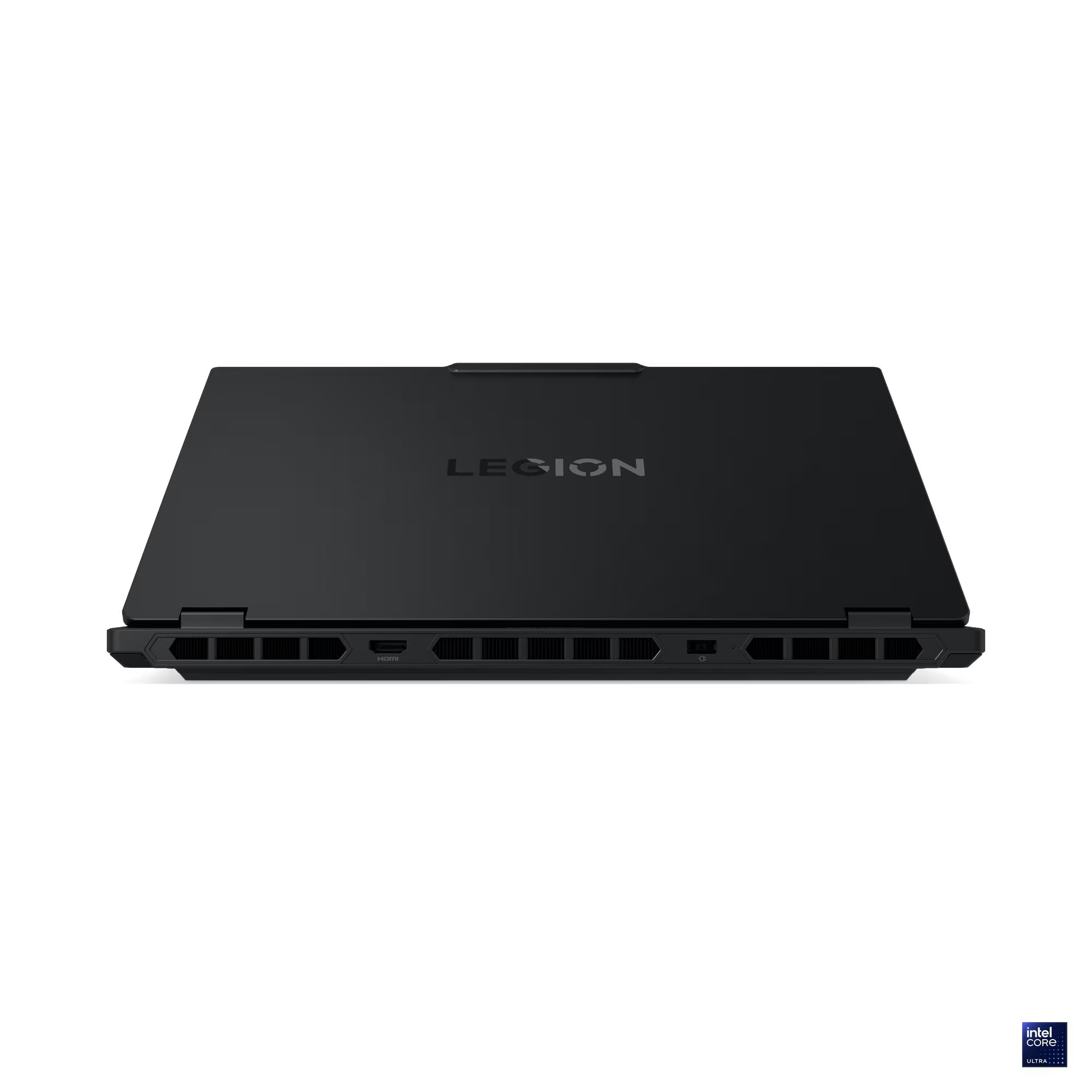

| Standard Ports |
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Power connector
|
| Docking |
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 Enabled
|
| Fingerprint Reader |
None
|
| Other Security |
E-shutter
|
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in
|
| Included Upgrade |
3Y Legion Ultimate Support -IPMAIN (ESS)
|
| ACCESSORIES |
| Bundled Accessories |
None
|
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 6/26
- RoHS compliant
|
| Other Certifications |
- TÜV Rheinland® Flicker Free
- TÜV Rheinland® Low Blue Light (Hardware Solution)
|
| MODEL INFORMATION |
| Model |
83LY00CQPH
|
| Machine Type |
83LY
|
| Region |
ASEAN
|
| Country/Region |
Philippines
|
| TopSeller |
Yes
|
| EAN / UPC / JAN |
199271469088
|
| Announce Date |
2025-06-04
|
| End of Support |
2057-02-07
|
