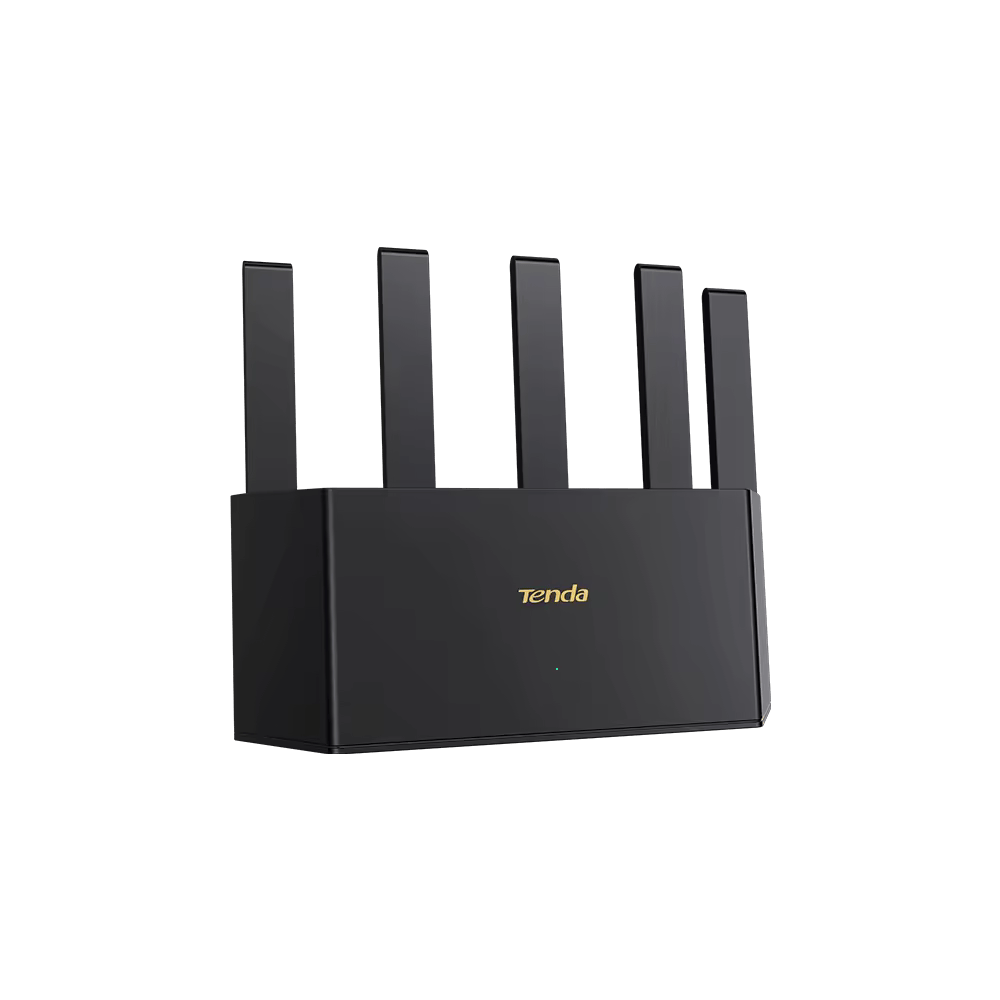

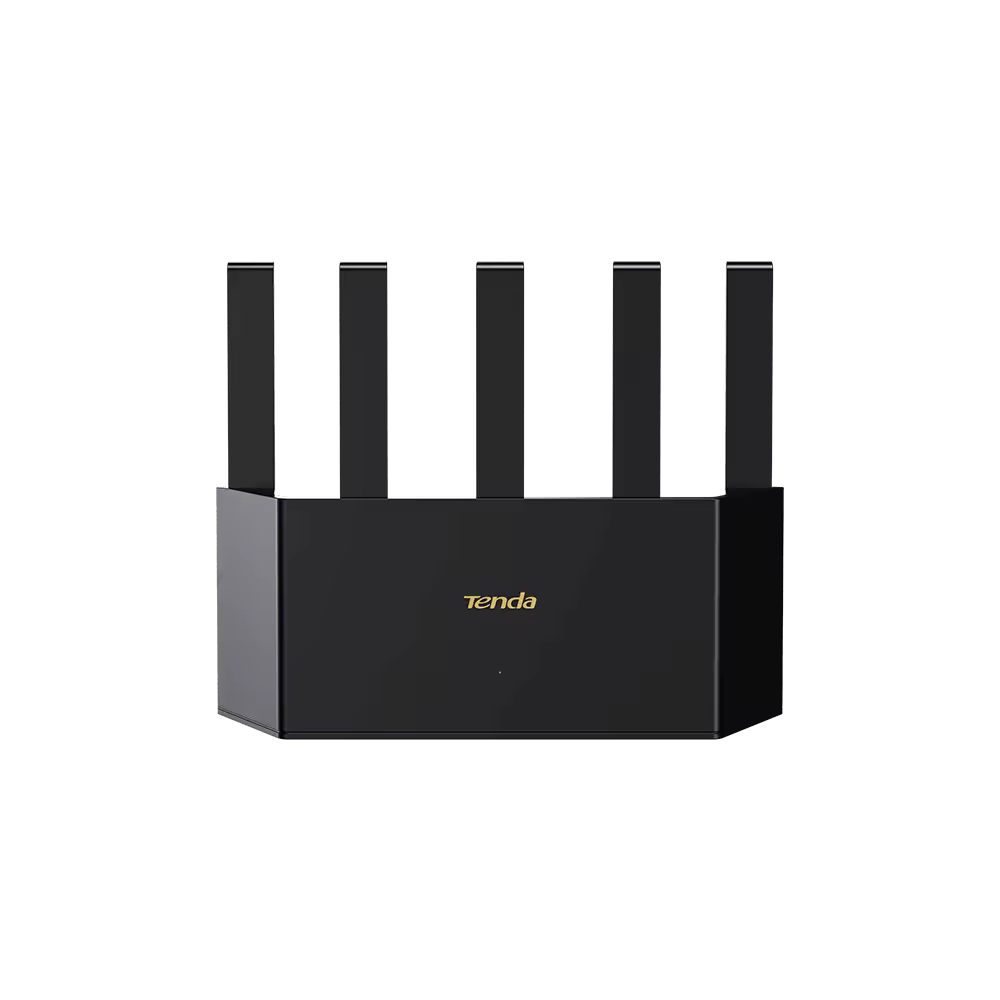

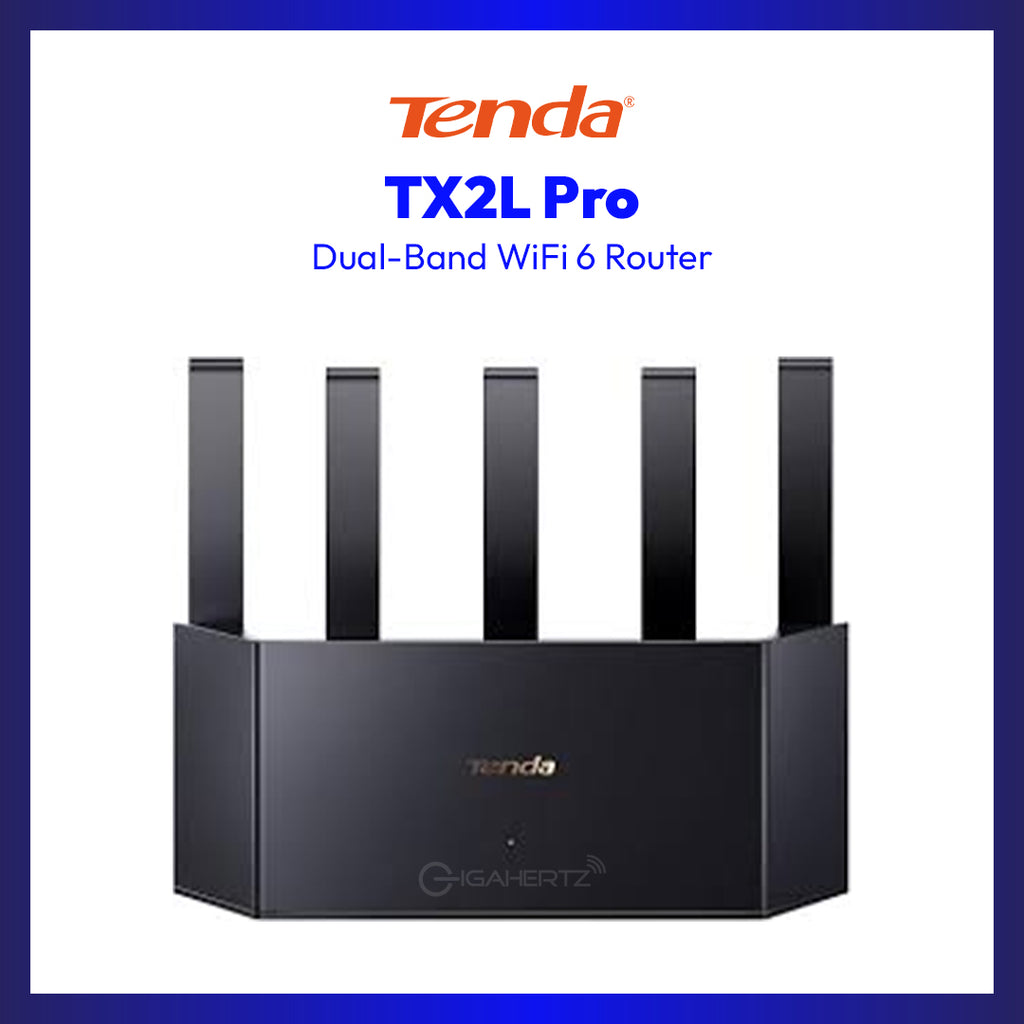

The Tenda TX2L Pro is a dual-band Wi-Fi 6 router designed for fast and stable home internet connections. It delivers up to 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, making it suitable for streaming, online gaming, and multiple connected devices. It includes five external antennas for wider coverage, Gigabit Ethernet ports for high-speed wired connections, and supports modern features like OFDMA and MU-MIMO for better multi-device performance. It also offers WPA3 security, mesh networking support, parental controls, and VPN functionality for flexible and secure home networking.
SPECIFICATION:
|
HARDWARE
|
|
|
Standard & Protocol
|
IEEE802.3, IEEE802.3u, IEEE802.3ab
|
|

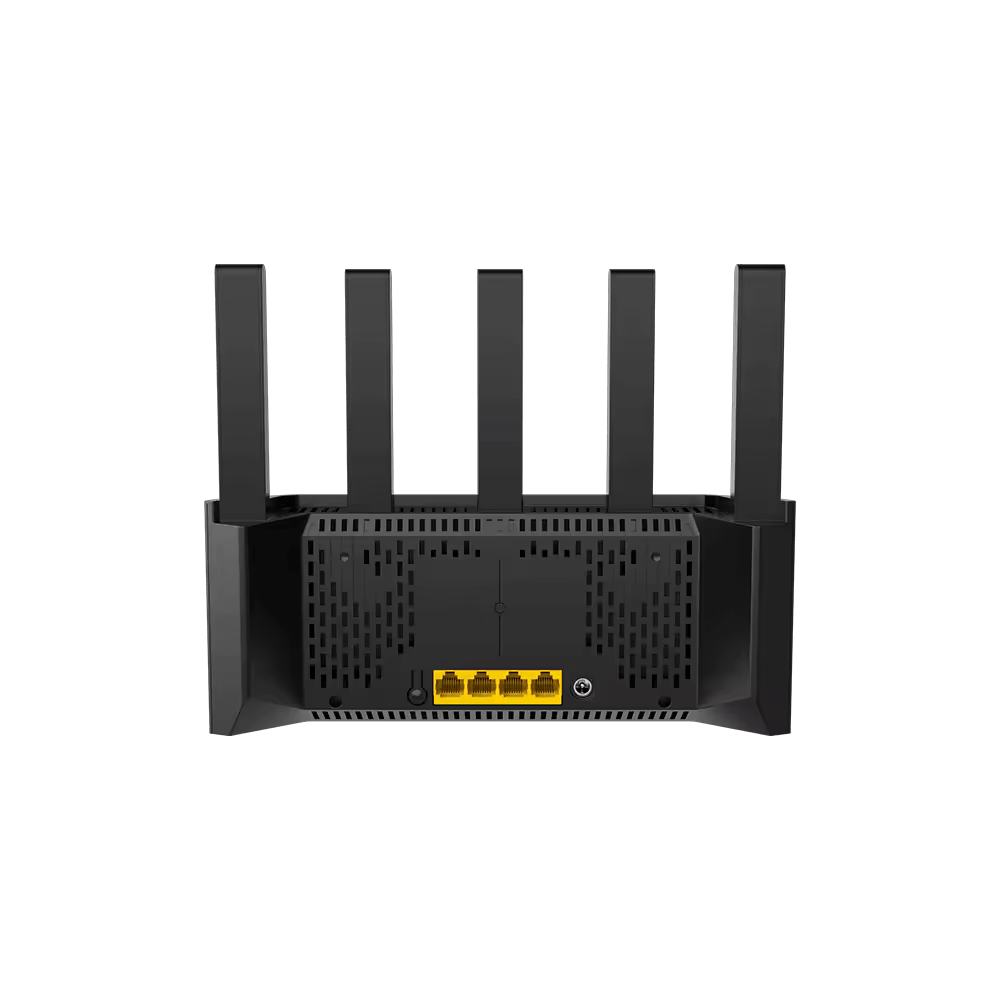

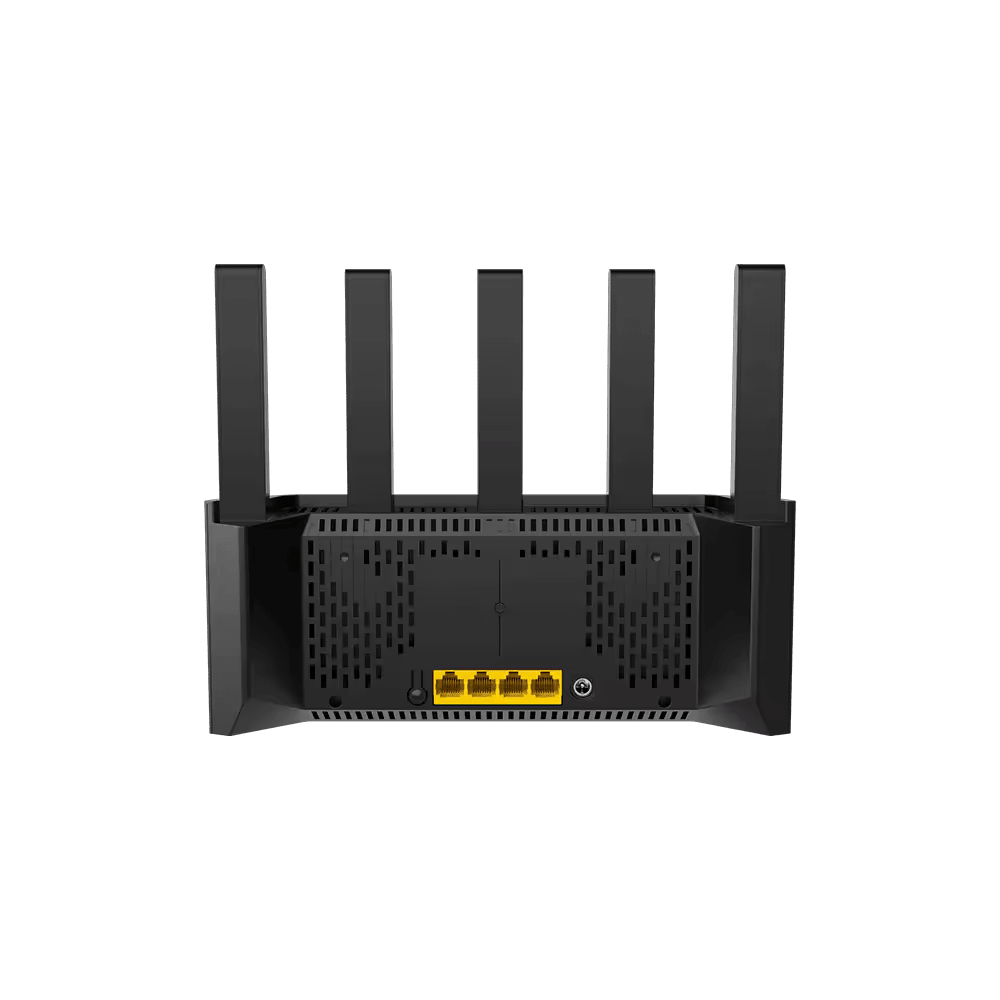

Interfaces
|
• 1*10/100/1000Mbps WAN port
• 3*10/100/1000Mbps LAN ports
|
|
Antenna
|
5*external antennas
|
|
Button
|
1*WPS/Reset button
|
|
Power: Input
|
• AC 100-240V~50/60Hz
• Output:DC 12V⎓1A
|
|
LED Indicator
|
1* LED
|
|
Dimension
|
244*56*200mm(L*W*H)
|
|
WIRELESS
|
|
|
Wireless Standard
|
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
|
|
Data Rate
|
• 5GHz:1201Mbps
• 2.4GHz:300Mbps
|
|
Frequency
|
CE:
• 2.4G: 2412-2472MHz(CH1-CH13)
• 5G: 5150-5250MHz(CH36-CH48)
FCC:
• 2.4G: 2412-2462MHz(CH1-CH11)
• 5G: 5150-5250MHz(CH36-CH48)
• 5725-5850MHz(CH149-CH165)
|
|
Transmission Power
|
CE:
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz)
FCC:
• <30 dBm (2.4 GHz)
• <30 dBm (5 GHz)
|
|
Basic Features
|
• OFDMA+MU-MIMO
• Beamforming Signal Directional Transmission Technology
|
|
Wireless Security
|
• WPA2-PSK,WPA3-SAE/WPA2-PSK
• Wireless Encryption Disable and Enable
• WPS Fast Connection
|
|
SOFTWARE
|
|
|
Internet Connection Type
|
PPPOE, Dynamic IP, Static IP
|
|
Network Protocol
|
IPv4&IPv6
|
|
Operating Mode
|
Wireless Relay Mode (Client+AP)
|
|
Parental Control
|
• Client Filter
• Remote Web Management
|
|
DHCP
|
• DHCP Server
• DHCP Client List
• DHCP Static IP Address Reservation and Assignment
|
|
Virtual Server
|
Port Forwarding, DMZ Host, UPnP
|
|
DDNS
|
Support DynDNS, No-ip
|
|
VPN
|
• IPSec Transparent Transmission
• PPTP Transparent Transmission
• L2TP Transparent Transmission
• PPTP VPN Server
• PPTP VPN Client
• L2TP VPN Client
|
|
Special Features
|
• Wi-Fi+(Mesh System)
• IPTV
• IPv6
• Smart LED on/off
|
|
Other Function
|
• Support App and web management
• Bandwidth Control
• Guest Network
• MAC Address Clone
• Supports black list and white list
• Unify 2.4 GHz & 5 GHz
• Static Routing
• Remote Web Management
• Backup & Restore configurations
• Firmware upgrade online
|
|
OTHERS
|
|
|
Temperature
|
• Operating Temperature : 0℃~40℃
• Storage Temperature : -40C ~70℃
|
|
Humidity
|
• Operating Humidity : 10 %~90% RH non-condensing
• Storage Humidity : 5 %~ 90%RH non-condensing
|
|
Certification
|
CE, FCC,RoHS
|
|
Package Contents
|
• Dual Band Gigabit Wi-Fi 6 Router*1
• Ethernet Cable*1
• Power Adapter*1
• Installation Guide*1
|
