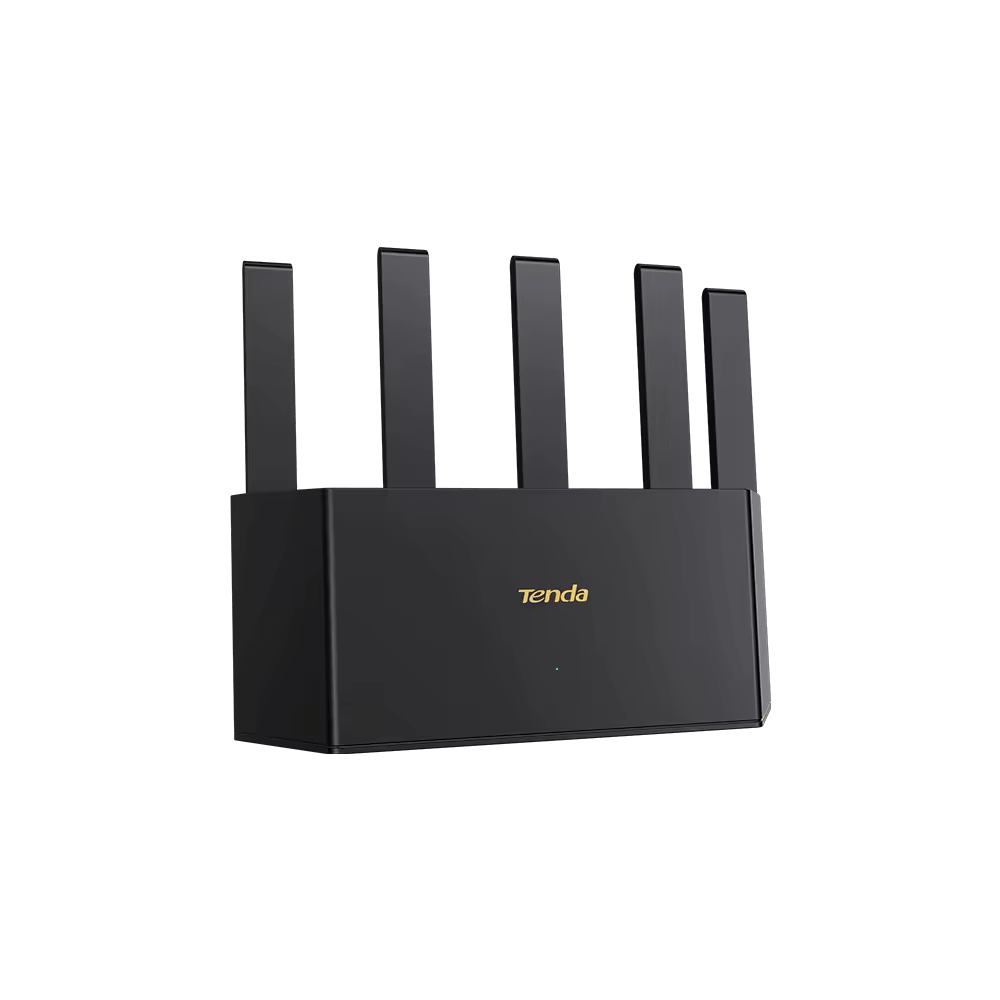

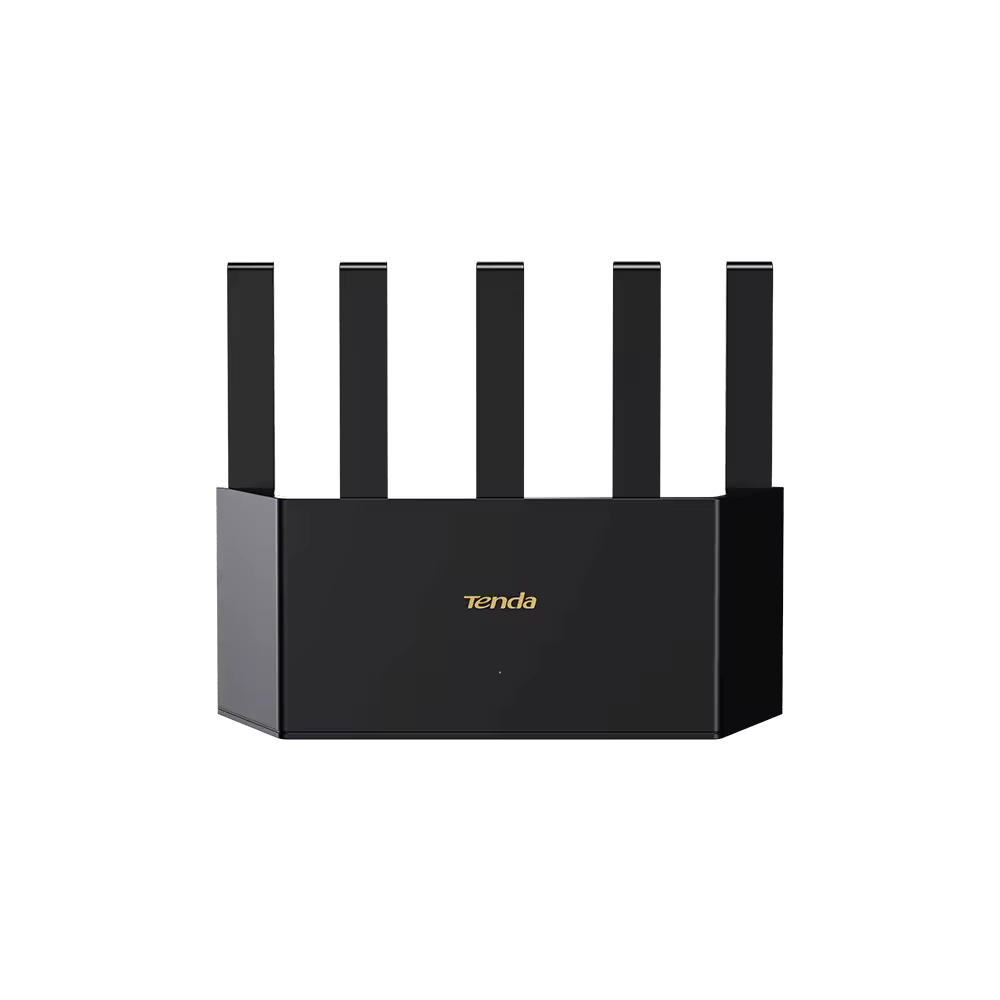

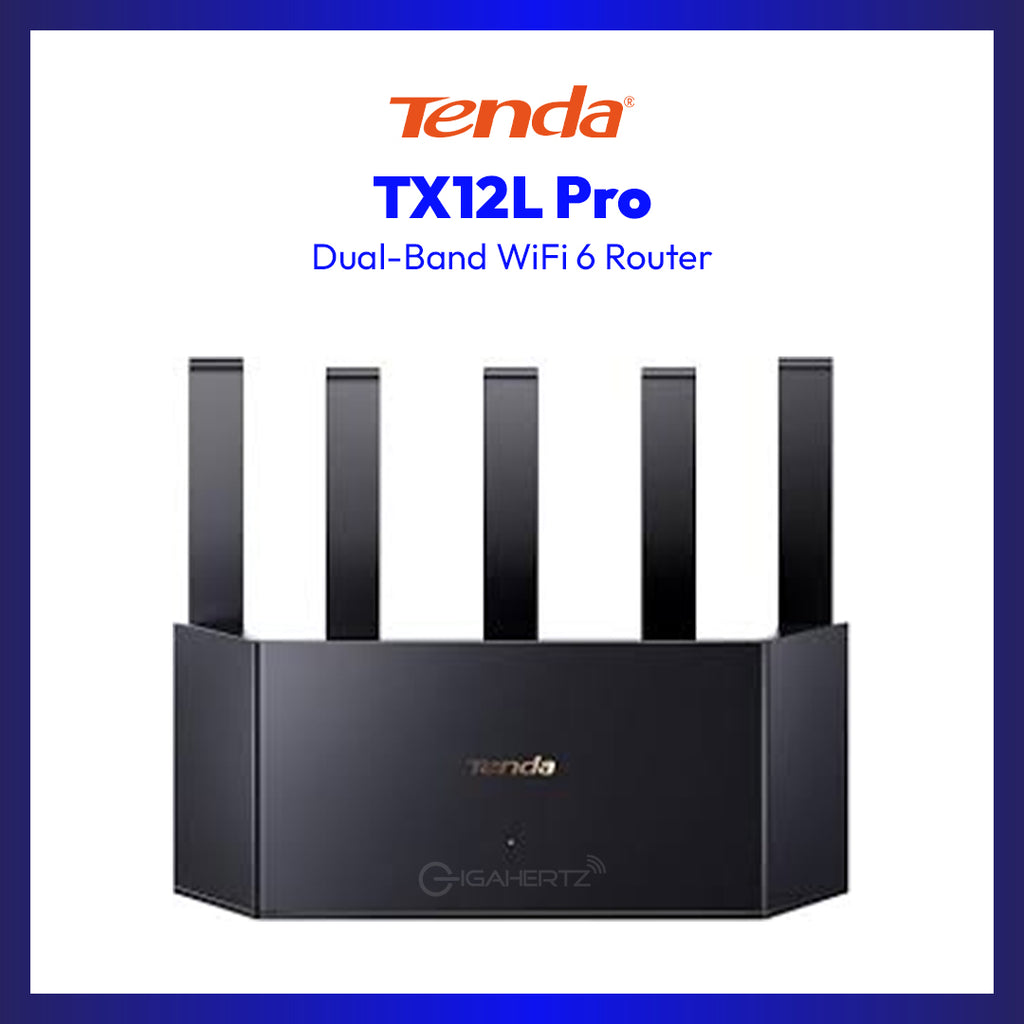

The Tenda TX12L Pro is an AX3000 dual-band Wi-Fi 6 router built for fast, stable home networking with speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. It features five external antennas, Gigabit WAN/LAN ports, OFDMA and MU-MIMO technology for smoother multi-device performance, plus advanced features like Mesh support, VPN client support, parental controls, IPv6, and WPA3 security. It’s designed for streaming, gaming, smart homes, and medium-to-large households needing reliable high-speed wireless coverage.
SPECIFICATION:
|
HARDWARE
|
|
|
Standard & Protocol
|
IEEE802.3, IEEE802.3u, IEEE802.3ab
|
|

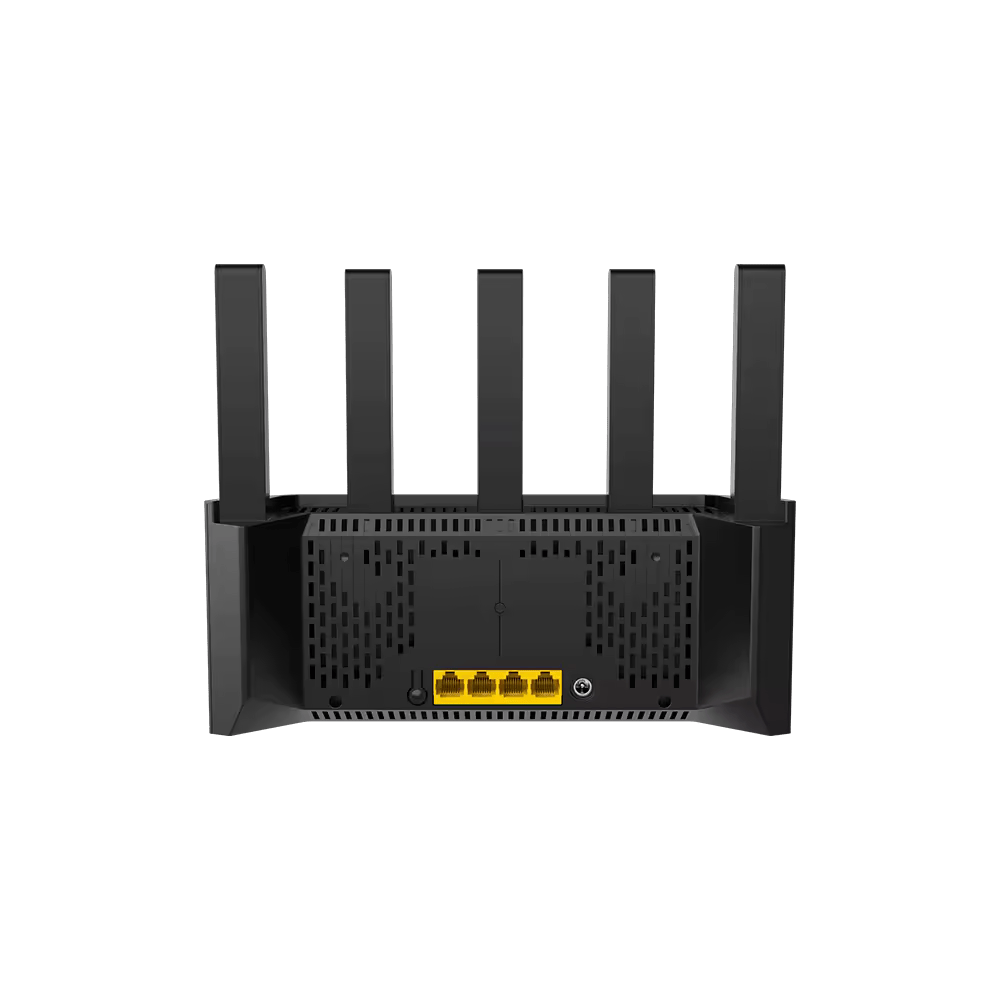

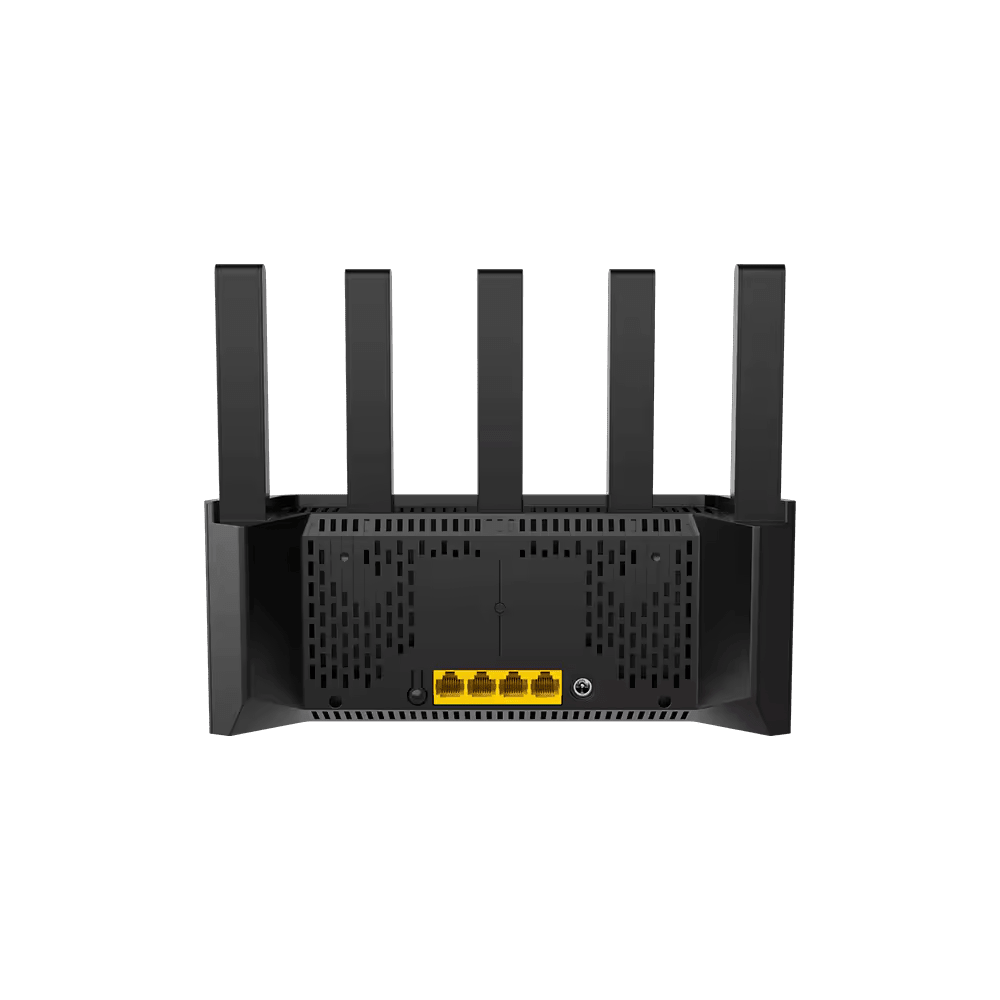

Interfaces
|
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
|
|
Antenna
|
5*external antennas
|
|
Button
|
1*WPS/Reset button
|
|
Power: Input
|
AC 100-240V~50/60Hz
Output:DC 12V⎓1A
|
|
LED Indicator
|
1* LED
|
|
Dimension
|
244*56*200mm(L*W*H)
|
|
WIRELESS
|
|
|
Wireless Standard
|
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
|
|
SIM Slot
|
Nano SIM slot
|
|
Button
|
• Power on/off
• Reset hole
|
|
Antennas
|
• 2 Internal 4G/3G Antennas
• 1 Internal Wi-Fi Antenna
|
|
Indicator
|
• 3 LED indicators
• Internet status
• Wi-Fi status
• Battery status
|
|
Battery
|
• Type: Li (rechargeable)
• Capacity: 3.8V, 2100 mAh,7.98Wh
• Working time: up to 8.5 hours （depending on the network）
• Standby time: up to 168 hours （depending on the network）
|
|
SOFTWARE
|
|
|
WAN Type
|
4G/3G
|
|
4G/3G Features
|
• Auto-APN
• Auto Dial-up
• Roaming
• SMS(Send/Receive/Delete)
• Data limited
• Power save
• PIN Management
• USB Tethering
|
|
Wi-Fi security
|
WPA3-PSK/WPA2-PSK, WPA-PSK/WPA2-PSK
|
|
Software features
|
• Local management
• DHCP Server
• QOS
• Upgrade firmware from local or OTA
• IPV4/IPV6
|
|
CERTIFICATION
|
|
|
Certifications
|
• CE Granted
• ROHS Granted
• IPV6 Host
|
|
WORKING EVIRONMENT
|
|
|
Temperature
|
Operating Temperature: 0℃~35℃
|
|
Humidity
|
Storage Humidity: 5% ~ 90% RH Non-condensing
|
|
PACKAGE CONTENTS
|
|
|
Package Contents:
|
• 1 * Mobile Wi-Fi
• 1 * USB-C cable
• 1 * Rechargeable Battery
• 1 * Quick Installation Guide
|
