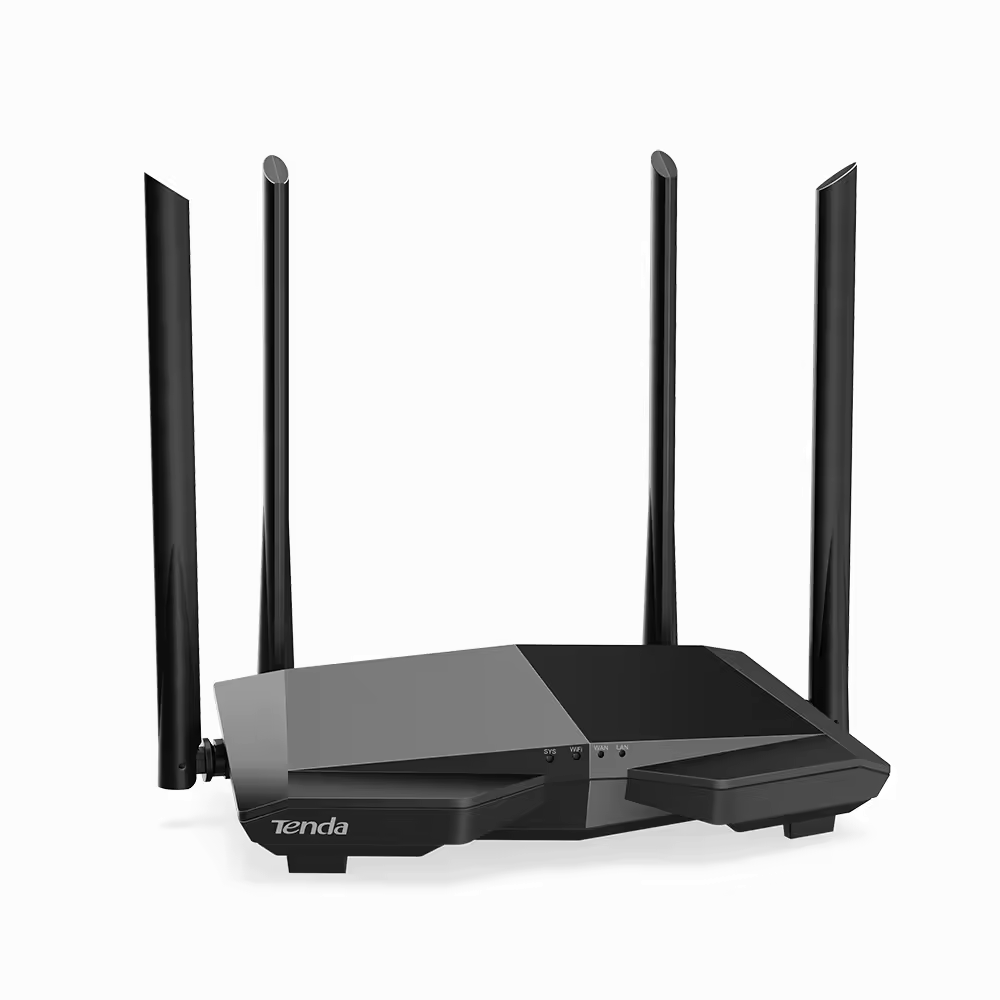

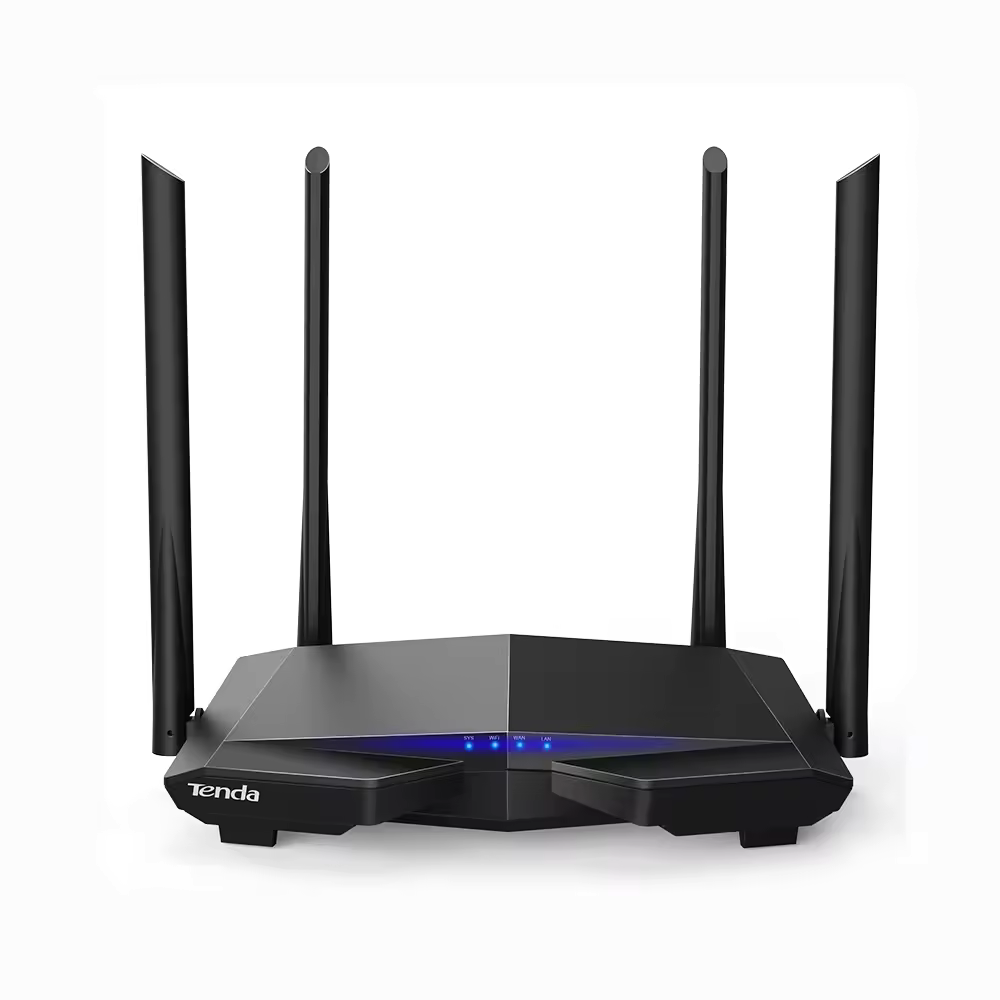

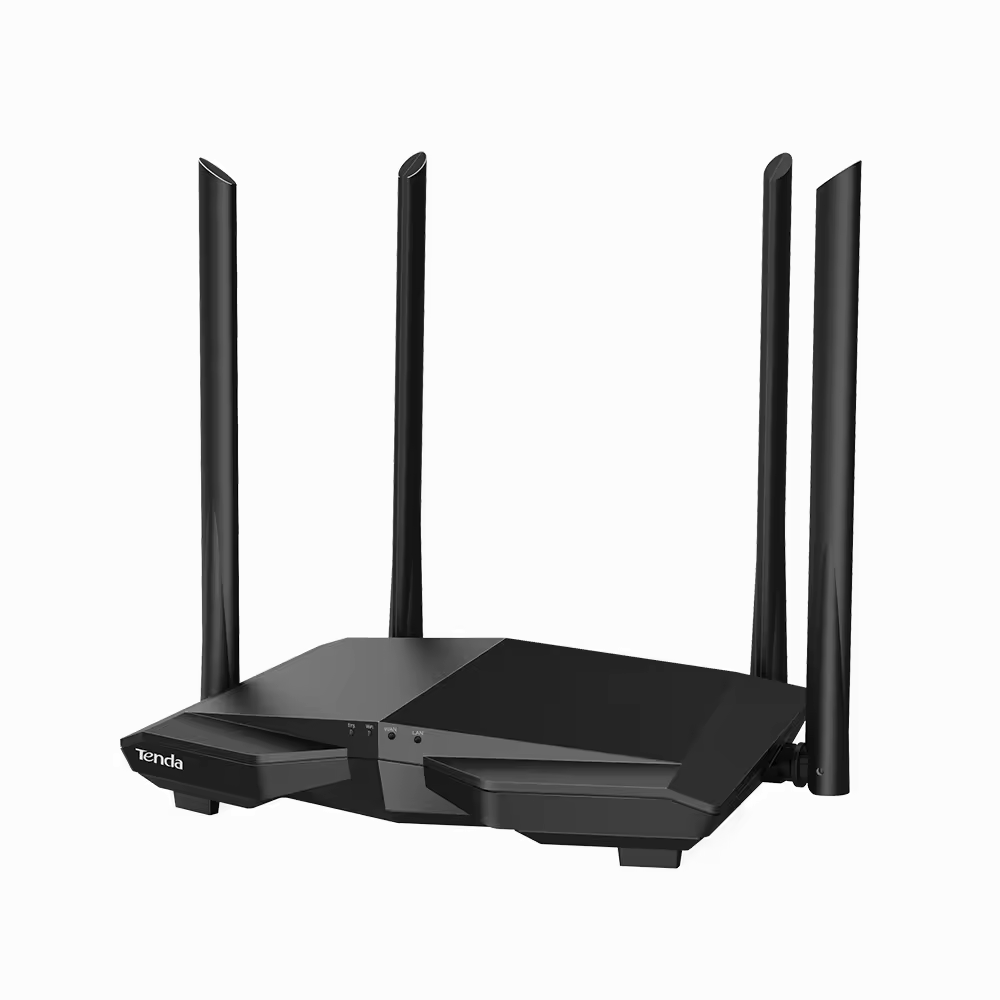

The Tenda AC6 V5 is a high-performance AC1200 dual-band Wi-Fi router designed for fast and stable internet connectivity in homes and small offices. It delivers combined wireless speeds of up to 1167Mbps with 300Mbps on 2.4GHz and 867Mbps on 5GHz, making it ideal for HD streaming, online gaming, and smooth browsing. Equipped with four high-gain 6dBi antennas, Beamforming+, and MU-MIMO technology, it provides wider coverage and stronger signal performance. The router also supports parental controls, guest networks, IPv6, and remote management through the Tenda WiFi App.
SPECIFICATION:
|
HARDWARE
|
|
|
Standard & Protocol
|
IEEE802.3, IEEE802.3u
|
|
RAM
|
32MB
|
|
CPU
|
600MHz
|
|
Interface
|
• 1*10/100Mbps WAN port
• 3*10/100Mbps LAN ports
|
|
Antenna
|
4*6dBi external antennas
|
|
Button
|
1* Wi-Fi / Reset button
|
|
Power
|
• Input：100-240V—50/60Hz 0.4A
• Output：DC 9V1A
|
|
LED Indicator
|
Sys*1,WiFi*1, WAN*1, LAN*1
|
|
Dimension
|
220mm*141.5mm*49mm(L*W*H)
|
|
WIRELESS
|
|
|
Wireless Standard
|
• IEEE 802.11ac/a/n @5GHz
• IEEE 802.11b/g/n @2.4GHz
|
|
Data Rate
|
• 5GHz: Up to 867Mbps
• 2.4GHz: Up to 300Mbps
|
|
Frequency
|
CE:
• 2.4G: 2412-2472MHz(CH1-CH13)
• 5G: 5150-5250MHz(CH36-CH64)
FCC:
• 2.4G: 2412-2462MHz(CH1-CH11)
• 5G: 5150-5250MHz(CH36-CH64)
• 5725-5825MHz(CH149-CH165)
|
|
Transmission Power
|
CE:
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz)
FCC:
• <30 dBm (2.4 GHz)
• <30 dBm (5 GHz)
|
|
Wireless Security
|
• WPA2-PSK
• Wireless Security : Enable /Disable
|
|
SOFTWARE
|
|
|
Internet Connection Type
|
• PPPoE, Dynamic IP, Static IP
• PPPoE(Russia), PPTP(Russia), L2TP(Russia)
• Unify,Maxis,Maxis-special,Celcom,Digi
|
|
Network Protocol
|
IPv4&IPv6
|
|
Operating Mode
|
• Router Mode
• AP Mode
• Universal Repeater Mode（Client+AP,WISP）
|
|
Parental Control
|
• Client Filter
• URL Filter
• Time Limit
|
|
DHCP
|
• DHCP Server
• DHCP Client List
• DHCP Static IP Address Reservation and Allocation
|
|
Virtual Server
|
Port Forwarding, DMZ Host, UPnP
|
|
Firewall
|
• ICMP Flood Attack Defense
• TCP Flood Attack Defense
• UDP Flood Attack Defense
• Block Ping From WAN
|
|
DDNS
|
DynDNS, no-ip, oray, 88ip
|
|
VPN
|
• IPsec pass through
• PPTP pass through
• L2TP pass through
|
|
Special Features
|
• Guest Network
• IPTV
• Signal Adjustment
|
|
Basic Functions
|
• PPPoE Username/password Clone
• Smart WiFi Schedule
• Smart Power Saving
• Smart LED on/off
• Tenda App
• Dual-band in One
• IPv6 Features Supported
• Broadband management
• MAC address clone
• Backup & Restore configurations
• Firmware upgrade from local
|
|
OTHERS
|
|
|
Temperature
|
• Operating Temperature : 0℃~40℃
• Storage Temperature : -40C ~70℃
|
|
Humidity
|
• Operating Humidity : 10 %~90% RH non-condensing
• Storage Humidity : 5 %~ 90%RH non-condensing
|
|
Certification
|
CE, FCC,RoHS
|
|
Package Contents
|
• Wi-Fi Router *1
• RJ45 Ethernet Cable*1
• Power Adapter*1
• Quick Installation Guide*1
|
