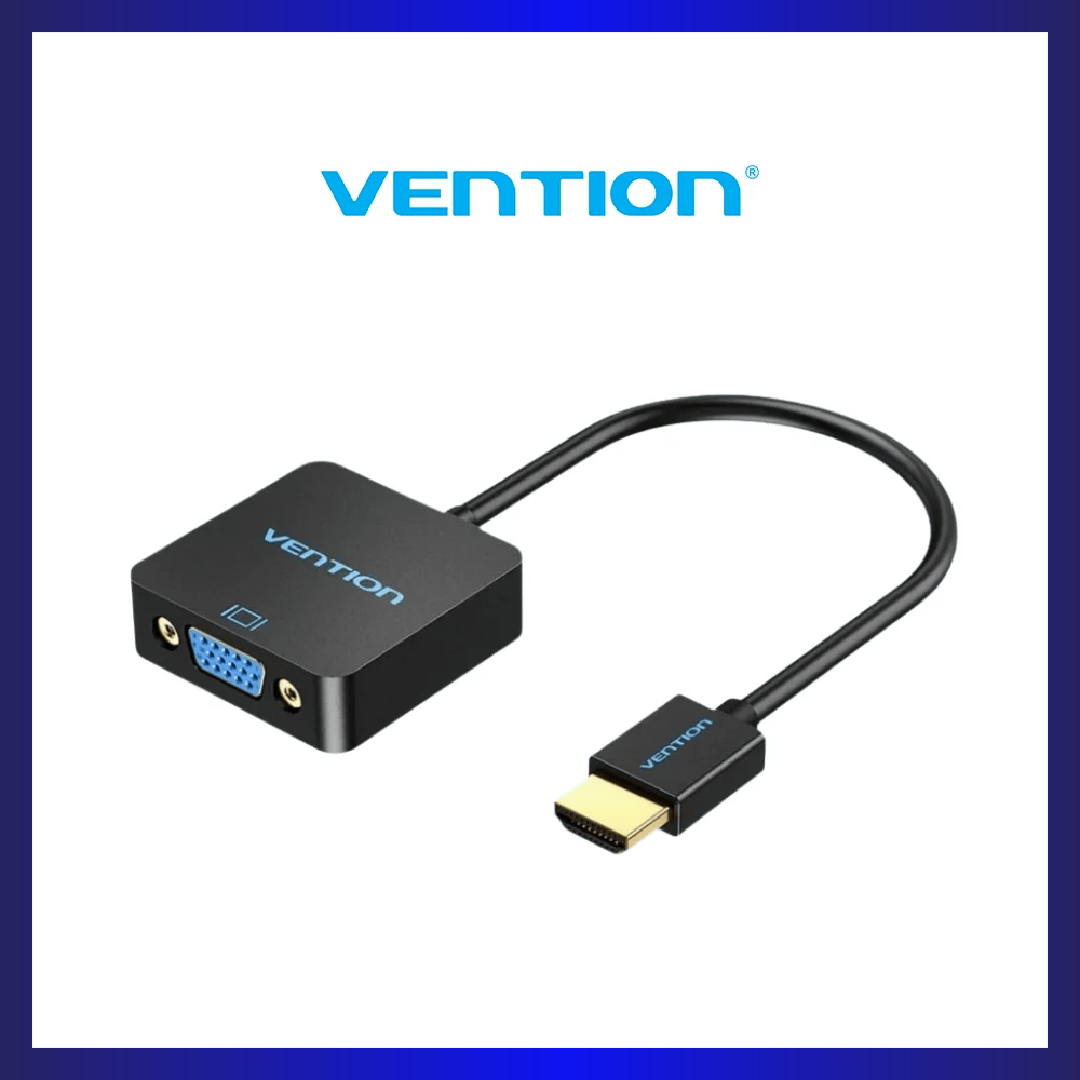

The Vention HDMI Male to VFA Female Adapter (ACRBB-SCB) bridge your digital and analog displays. This compact converter transforms HDMI signals into VGA output while also extracting audio to a 3.55mm jack, powered by a simple Micro-USB connection. It supports Full HD resolution (1920×1080 @ 60Hz) with the AG6200 chipset for reliable signal conversion. It requires minimal power (5V/1A via Micro-USB) and works across Windows, Mac OS, and Linux systems, highly suitable for connecting modern laptops and media players to legacy VGA projectors, monitors, and displays.
|
Model
|
ACRBB-SCB
|
|
Interface Input
|
HDMI A Male
|
|
Interface Output
|
VGA Female
|
|
Audio Output
|
3.5mm Female Jack
|
|
Power Input
|
USB 2.0 Micro-B Female
|
|
Related Input Power
|
5V/1A
|
|
HDMI Version
|
HDMI 1.4
|
|
Maximum Resolution
|
1080P (1920×1080) @ 60Hz
|
|
Internal Chipset
|
AG6200
|
|
Transmission Direction
|
One-Way (HDMI to VGA)
|
|
Interface Treatment
|
Gold-plated connectors
|
|
Conductor Material
|
Tinned Copper
|
|
Shell / Casing Material
|
Durable ABS
|
|
Jacket Material
|
Flexible PVC
|
|
Cable Shielding
|
Aluminum Foil + Mylar + Ground Wire + Metal Braided
|
|
Wire Gauge
|
32AWG for HDMI, 28AWG for other wires
|
|
Cable Outer Diameter (OD)
|
5.0mm
|
|
Cable Length
|
0.15 meters (15cm)
|
|
Adapter Dimensions
|
45mm x 45mm x 11mm
|
|
System Compatibility
|
Windows, Mac OS, and Linux
|
