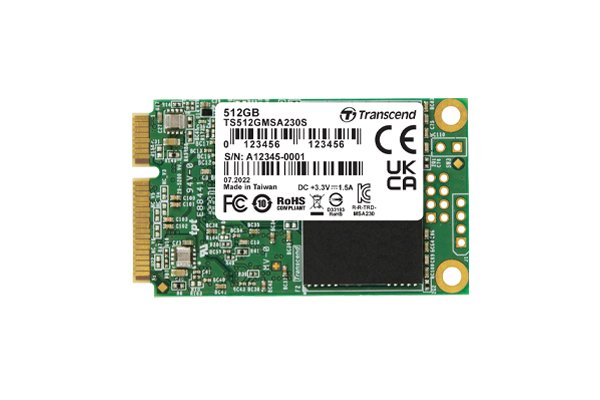

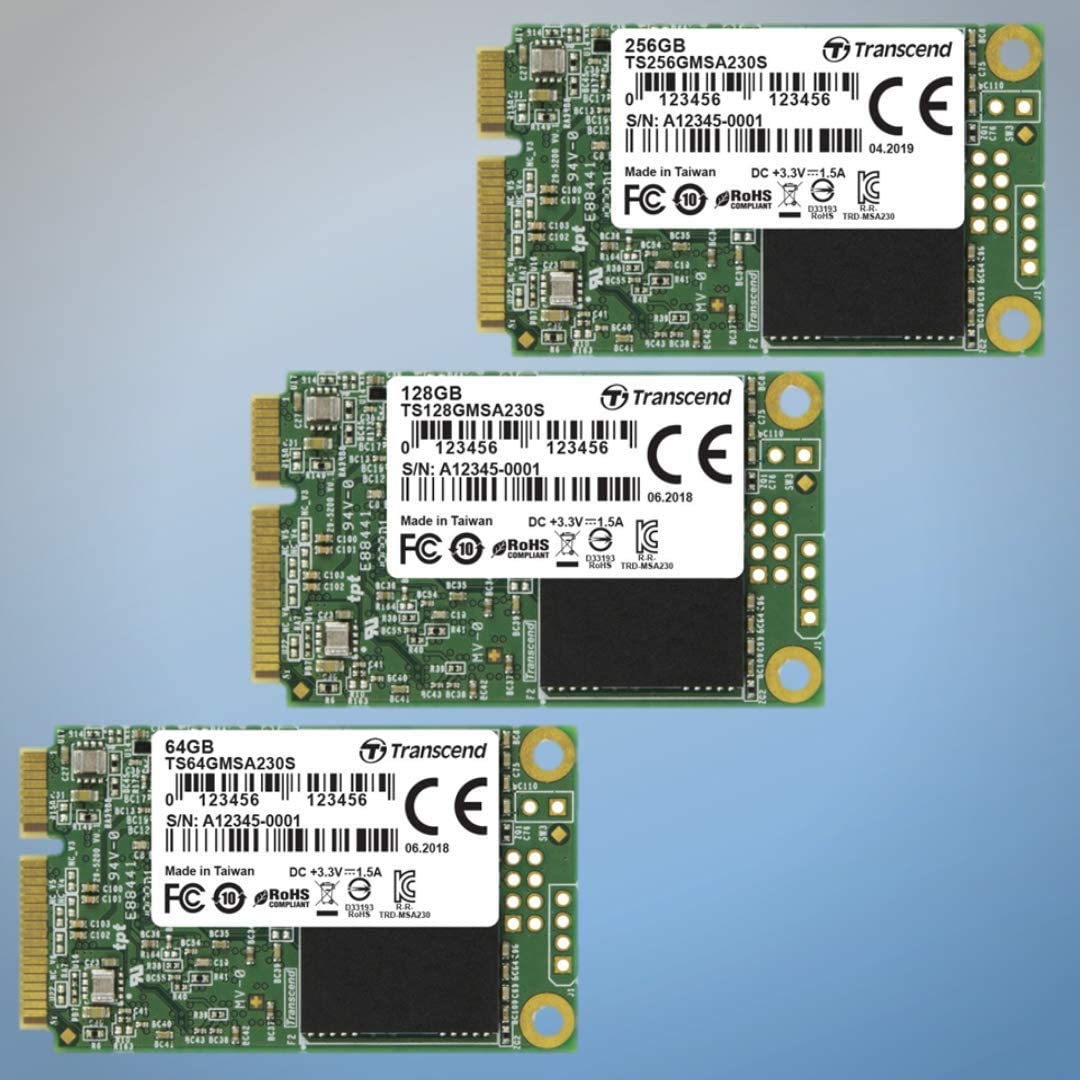

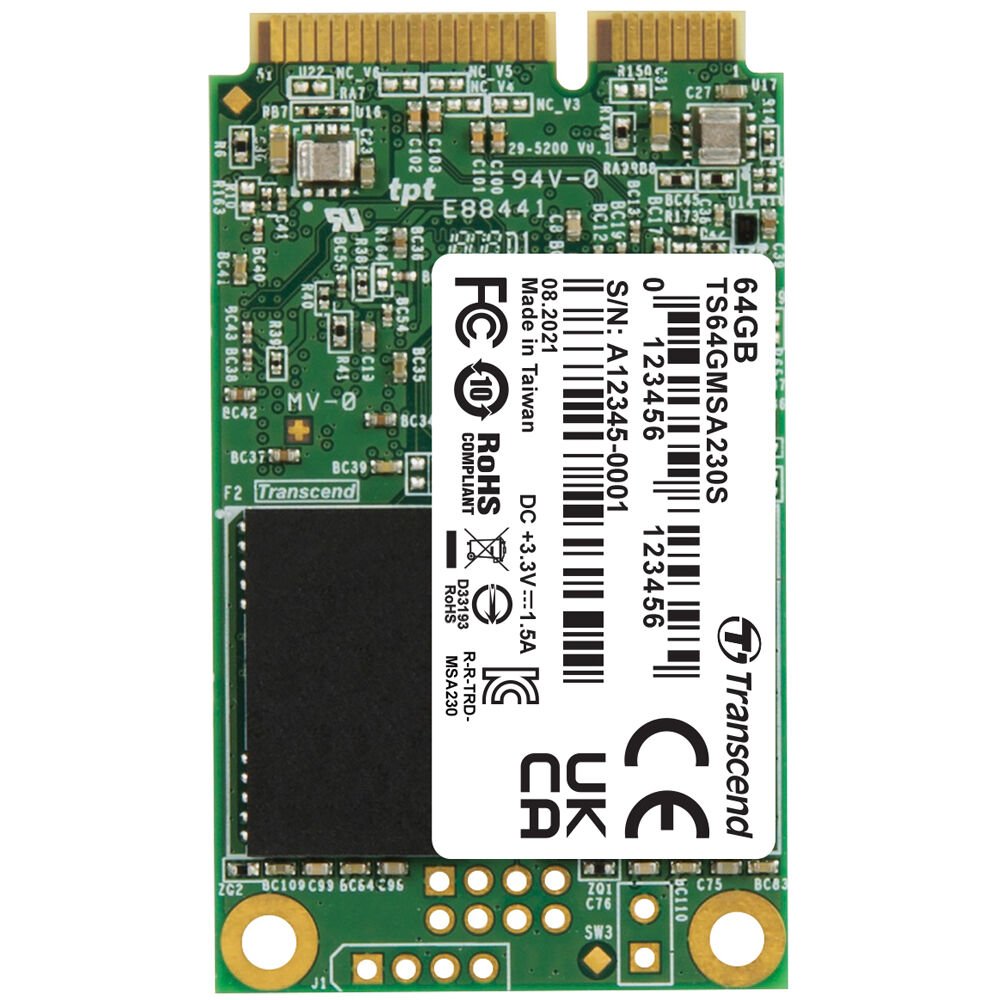

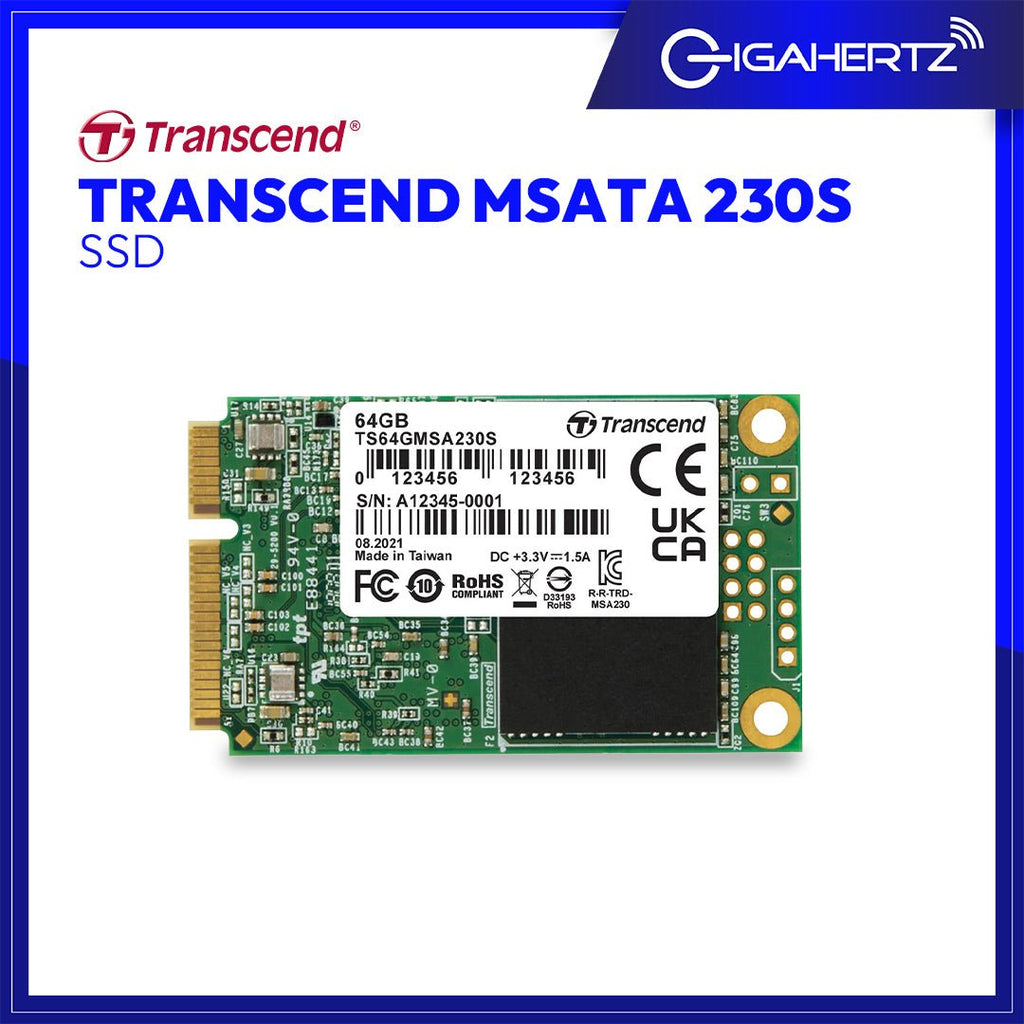

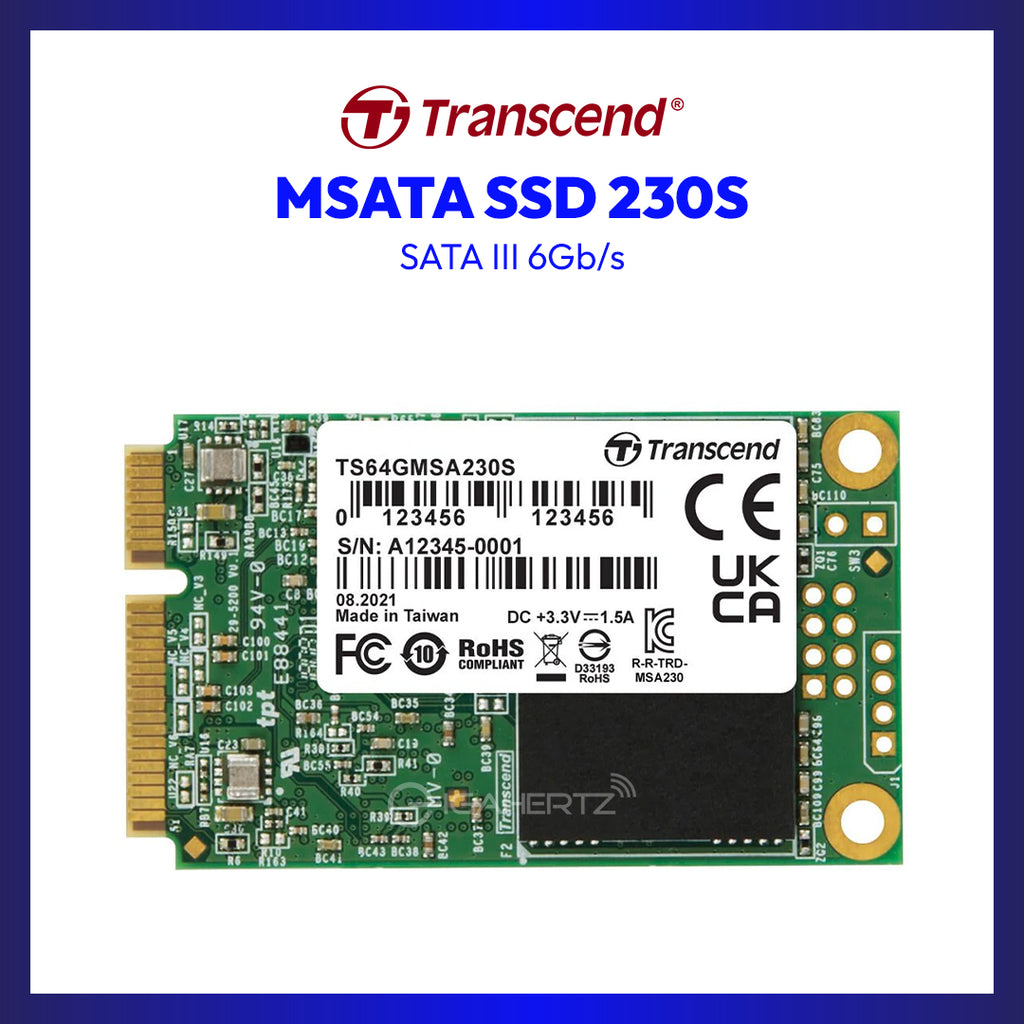

Transcend mSATA SSD 230S


Storage Size: 256 GB Storage
Price:
Sale pricePHP2,059.00

Pickup available at Asus SM City Clark

Usually ready in 24 hours


Available for delivery

Description

Features

  • 3D NAND flash memory
  • DDR3 DRAM cache
  • Advanced Global Wear-leveling and Block management for reliability
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Supports Advanced Garbage Collection, S.M.A.R.T. function, and Security Command
  • Supports TRIM and NCQ commands



Appearance

Dimensions 50.8 mm x 29.85 mm x 4.85 mm (2.00" x 1.18" x 0.19")
Weight 9 g (0.32 oz)

Interface

Bus Interface
  • SATA III 6Gb/s

Storage

Flash Type
  • 3D NAND flash
Capacity
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB

Operating Environment

Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)
    • 512 GB
      up to 560/500 MB/s

    • 256 GB
      up to 530/400 MB/s

    • 128 GB
      up to 550/400 MB/s

  • 64 GB
    up to 350/200 MB/s
4K Random Read/Write (IOmeter)
    • 512 GB
      up to 65,000/85,000 IOPS

    • 256 GB
      up to 45,000/70,000 IOPS

    • 128 GB
      up to 40,000/70,000 IOPS

  • 64 GB
    up to 35,000/50,000 IOPS
Terabytes Written (TBW)
    • 512 GB
      280 TBW

    • 256 GB
      140 TBW

    • 128 GB
      70 TBW

  • 64 GB
    35 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.5 (3 yrs)

Warranty

Certificate
  • CE/
  • FCC/
  • BSMI/
  • KC/
  • RCM/
  • UKCA

System Requirement

Operating System
  • Microsoft Windows 7 or later
  • Linux Kernel 2.6.31 or later

Technology

TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
DevSleep Mode
RAID Engine
LDPC Coding
