| Interface |
4 10/100Mbps RJ45 Ports |
| 1 RJ11 Port |
| Button |
1 Power On/Off Switch |
| 1 WPS Button |
| 1 Wi-Fi On/Off Button |
| External Power Supply |
9VDC/0.6A |
| IEEE Standards |
IEEE 802.3, 802.3u |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) |
| ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions ( W x D x H ) |
7.1*4.9*1.4 in. (181*125*36mm) |
| Antenna Type |
Omni directional, Detachable, Reverse SMA |
| Antenna Gain |
1 * 5dBi |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11g, 802.11b, with some n features |
| Frequency |
2.400-2.4835GHz |
| Transmit Power |
<20dBm(EIRP) |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, |
| Wireless MAC Filtering |
| SOFTWARE FEATURES |
| Quality of Service |
QoS Remarking based on IPP/ToS, DSCP and 802.1p |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Management |
Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL |
| for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
| Port Forwarding |
Virtual server, DMZ, ACL(Access Control List) |
| VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, |
| PPP over ATM (RFC 2364), |
| PPP over Ethernet (RFC2516), |
| IPoA (RFC1577/2225), |
| PVC - Up to 8 PVCs, |
| Advanced Features |
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; |
| Dynamic Host Configuration Protocol (DHCP), DHCP relay; |
| Network Address Translation (NAT); PVC/Ethernet Port Mapping |
| VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); |
| DNS Relay, DDNS, IGMP snooping V1/2IGMP Multicast, UPnP |
| OTHERS |
| Certification |
FCC, RoHS |
| Package Contents |

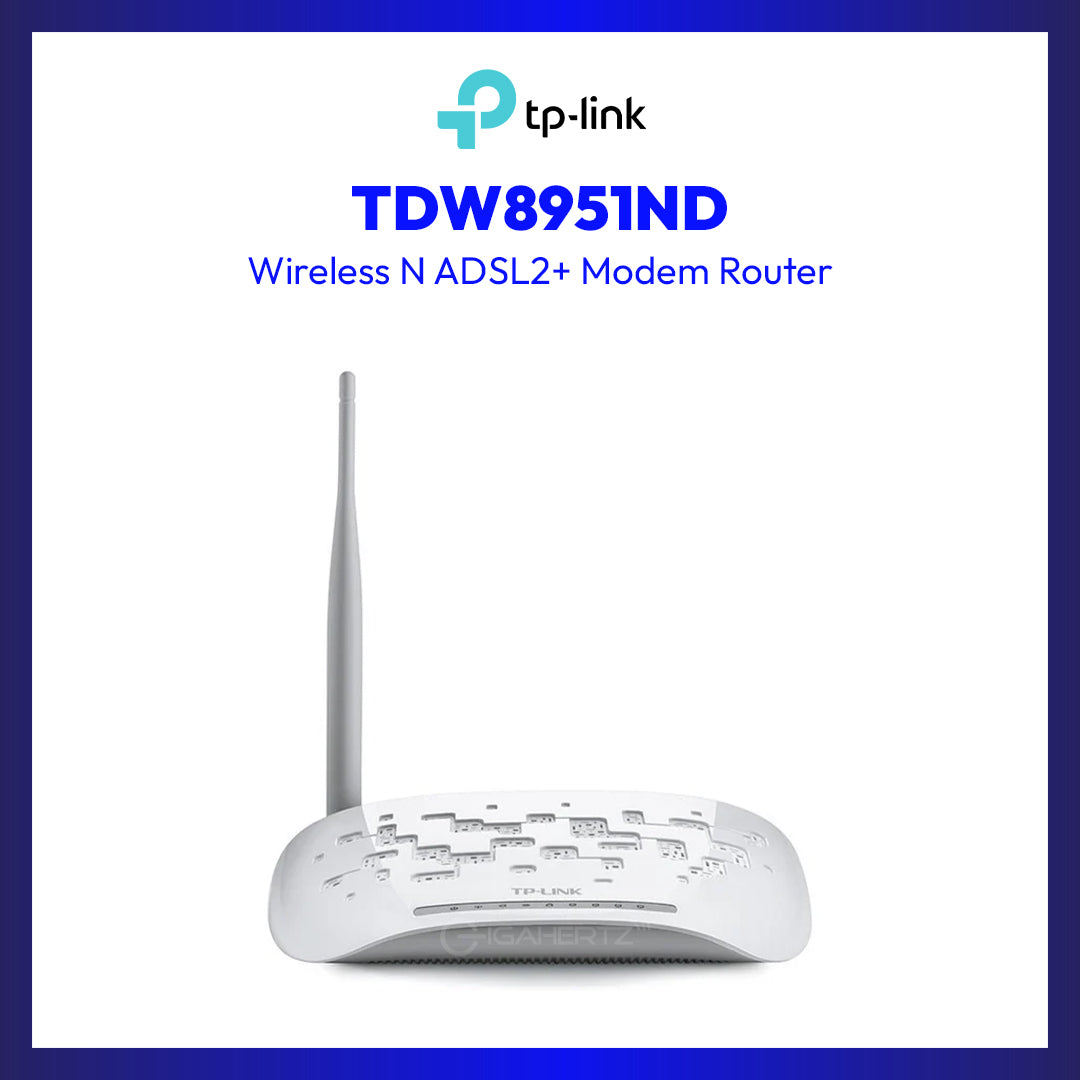

TD-W8951ND |
| External Splitter |
| RJ-11 Telephone Cable |
| RJ-45 Ethernet Cable |
| Quick Installation Guide |
| Resource CD |
| Power Adapter |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
