WIRELESS
|
|
|
WiFi Speeds
|
BE9300
• 6 GHz: 5760 Mbps (802.11be)
• 5 GHz: 2880 Mbps (802.11be)
• 2.4 GHz: 574 Mbps (802.11ax)
|
|
WiFi Range
|
4 Bedroom Houses
6× Optimally Positioned Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
|
|
WiFi Capacity
|
High
Tri-Band
Allocate devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
|
|
Working Modes
|
• Router Mode
• Access Point Mode
|
|
Advanced Functions
|
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network
|
|
SECURITY
|
|
|
Network Security
|
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
|
|
Guest Network
|
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
|
|
VPN Server
|
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server
|
|
VPN Client
|
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client
|
|
WiFi Encryption
|
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
|
|
Network Security
|
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
|
|
Guest Network
|
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
|
|
VPN Server
|
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server
|
|
VPN Client
|
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client
|
|
WiFi Encryption
|
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
|
|
HARDWARE
|
|
|

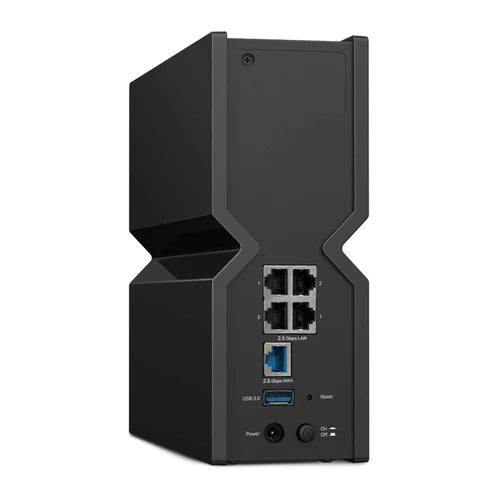

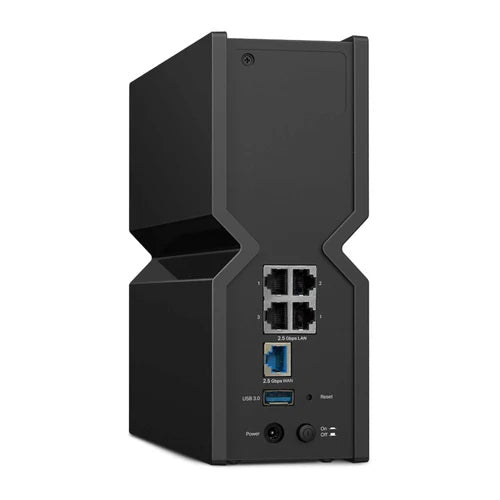

Ethernet Ports
|
• 1× 2.5 Gbps WAN
• 4× 2.5 Gbps LAN
|
|
USB Support
|
1× USB 3.0
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server
|
|
Buttons
|
• Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button
|
|
Power
|
12 V ⎓ 3.3 A
|
|
Ethernet Ports
|
• 1× 2.5 Gbps WAN
• 4× 2.5 Gbps LAN
|
|
USB Support
|
1× USB 3.0
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server
|
|
Buttons
|
• Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button
|
|
Power
|
12 V ⎓ 3.3 A
|
|
SOFTWARE
|
|
|
Protocols
|
• IPv4
• IPv6
|
|
Service Kit
|
HomeShield
|
|
EasyMesh
|
Compatible with EasyMesh
|
|
Parental Controls
|
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
|
|
WAN Type
|
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
|
|
Quality of Service
|
QoS by Device
|
|
Cloud Service
|
• Auto Firmware Upgrade
• TP-Link ID
• DDNS
|
|
NAT Forwarding
|
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
|
|
IPTV
|
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
|
|
DHCP
|
• Address Reservation
• DHCP Client List
• Server
|
|
DDNS
|
• TP-Link
• NO-IP
• DynDNS
|
|
Management
|
• Tether App
• Webpage
|
|
OTHER
|
|
|
System Requirements
|
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
|
|
Certifications
|
CE, FCC, RoHS
|
|
Environment
|
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
|
|
PHYSICAL
|
|
|
Dimensions (W×D×H)
|
3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm)
|
|
Package Contents
|

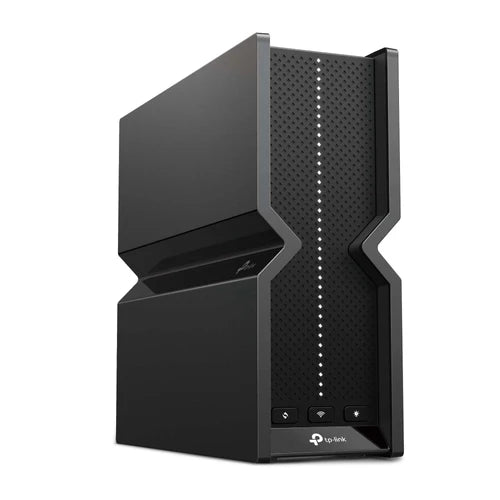

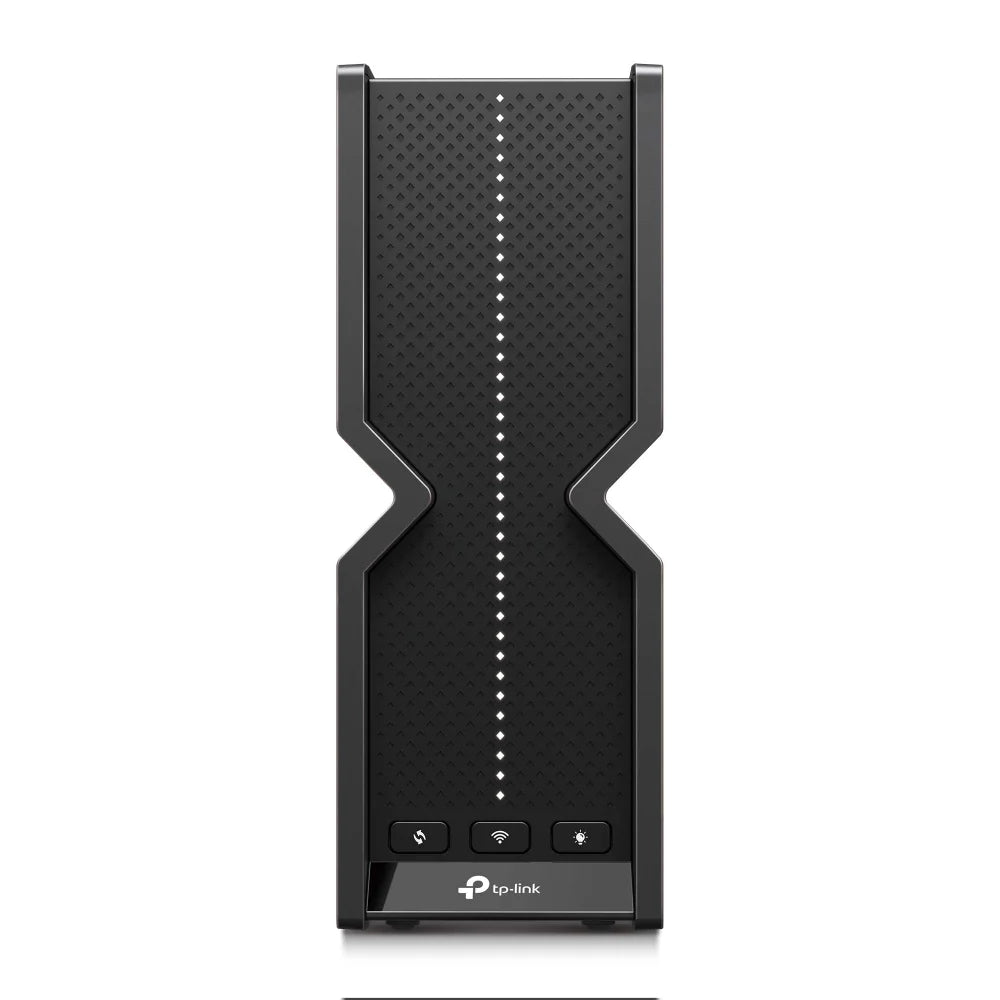

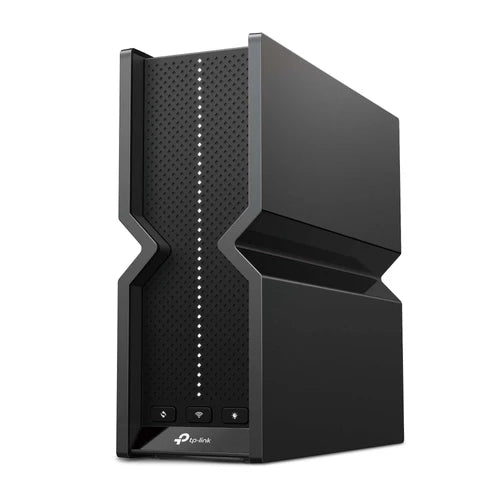

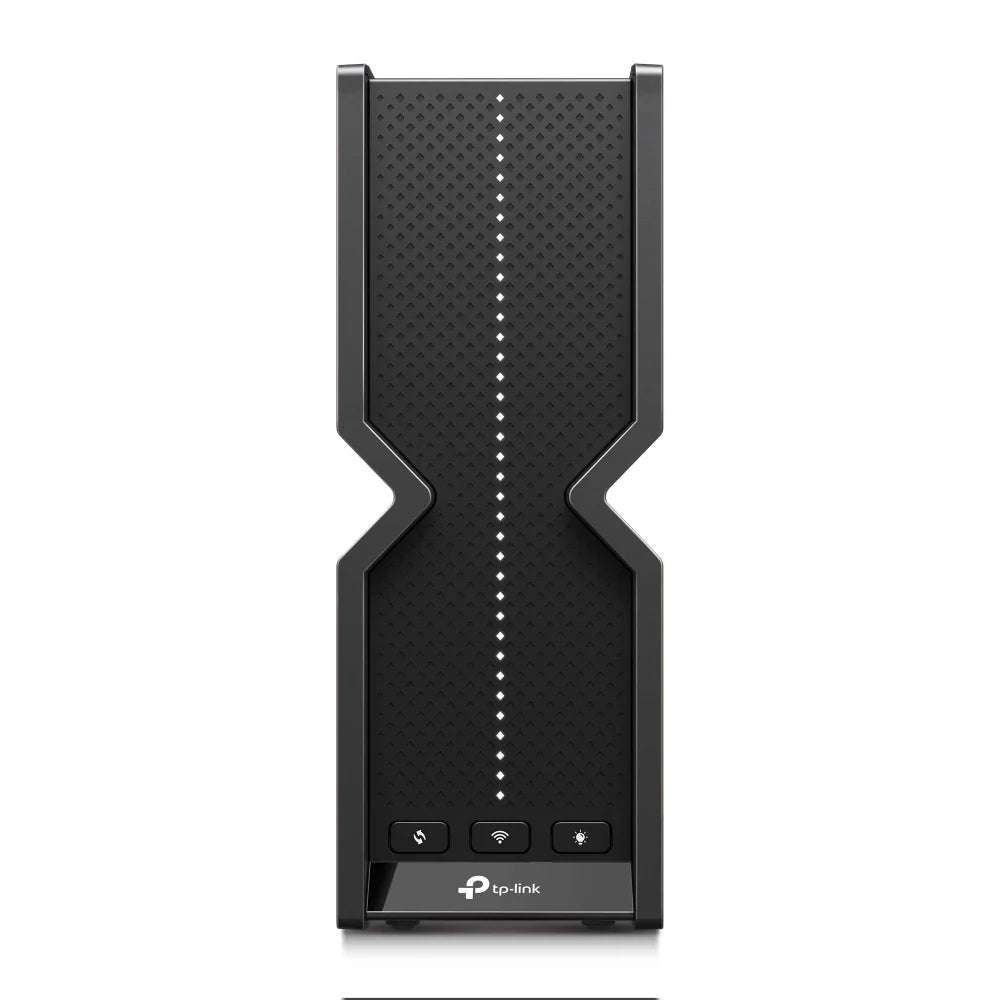

• Wi-Fi 7 Router Archer BE550
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
|
