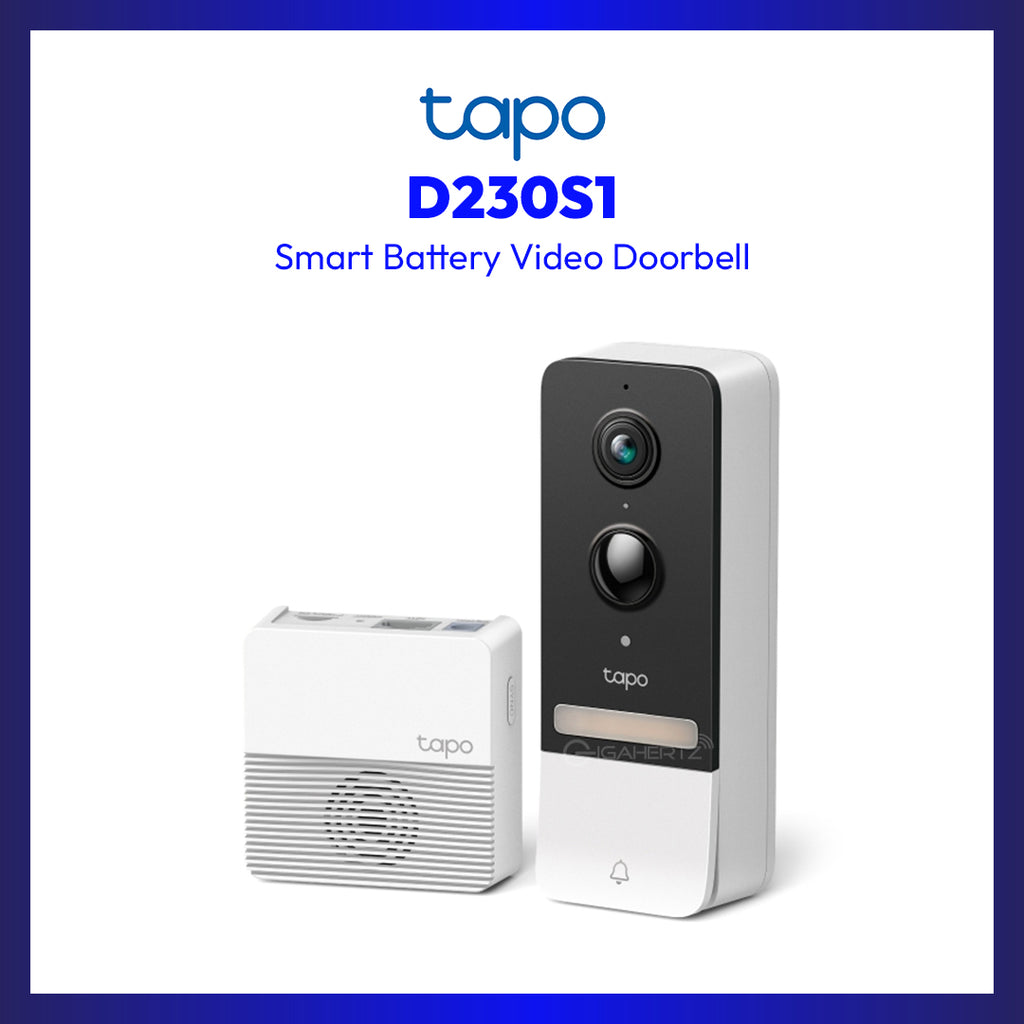

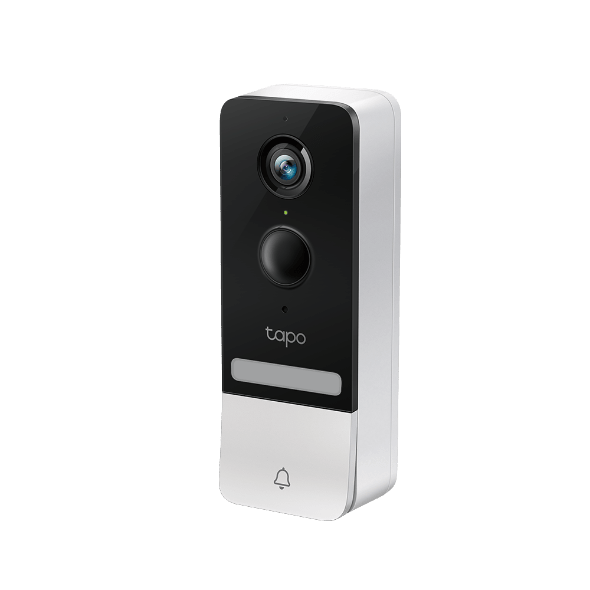

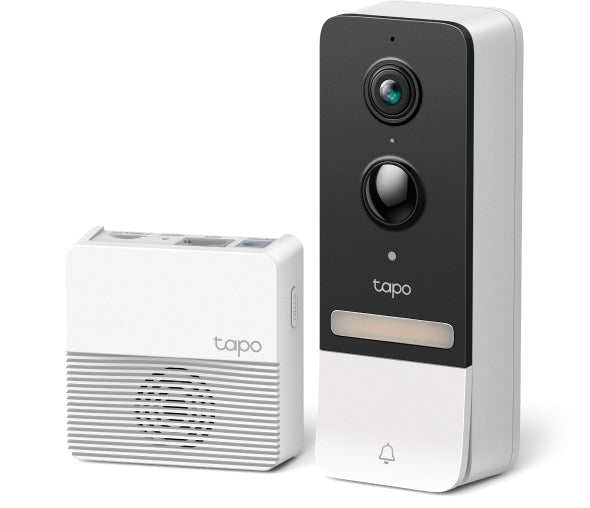

Tapo D230S1 Smart Battery Video Doorbell

CAMERA

Image Sensor

1/2.7“ Progressive Scan CMOS Sensor

Lens

• Focal Length: 2.1 mm
• Aperture: F2.1
• Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical)

Night Vision

• 850 nm IR LED (25 ft / 7.6 m)
• Full-Color Night Vision

Lighting

Built-in Spotlights

Interface & Button

• 1× RESET Button
• 1× Doorbell Button
• 1× Anti-Theft Button

Hub Compatibility

Compatible with H200 (Included)

HUB

Device Compatibility

Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.

All Supported Products>

Connection Capacity

Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells

Interface & Button

• 1× Ethernet Port
• 1× RESET Button
• 1× MicroSD Card Slot (Up to 512 GB)
• 1x SYNC Button

VIDEO & AUDIO

Power Requirements

CR2032 Battery

Package Content

Package Content

• Tapo T110 × 1
• Battery CR2032 x 1
• 3M Adhensives x 3
• Quick Start Guide

ENVIRONMENT

Operating Temperature

0~40°C

VIDEO & AUDIO

Maximum Resolution

2K 5MP (2560 × 1920px)

Frame Rate

15 fps

Digital Zoom

16x

Video Compression

H.264

Live View

Yes

Image Enhancement

• 3DNR
• WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

• Doorbell:
96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
• Hub:
100 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage

• MicroSD Card Slot on Hub (Up to 512 GB)
General Information about using MicroSD Cards >

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

Sensor

• Single PIR Motion Sensor (FOV: 130° horizontal)
• One Ambient Light Sensor

AI Detection

• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Package Detection

Activity Zones

Yes
*Only works with Motion Detection.

Output Notification

• System Notification
• System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

Connect via Wi-Fi

Wireless Connectivity

• IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
• Sub-1G, 868MHz (Used for local connection between doorbell and hub)

Ethernet Port

1× 10/100 Mbps RJ45 Port on Hub

SECURITY

Security

On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source

Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
Hub: 9V DC Power Adapter

Input Voltage

Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A

Output Voltage

Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A

DC Power Connector Size

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP64

System Requirements

Tapo App: iOS 12.0 or higher, Andriod 4.4 or higher

Mounting Options

Stick to a Wall
Mount to a Wall

Operating Temperature

-20℃~45℃

Storage Temperature

-20℃~45℃

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

5%~90% RH, Non-condensing

Dimensions ( W x D x H )

• Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm)
• Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)

Package Content

• Tapo Video Doorbell × 1
• Tapo H200 Hub × 1
• Tapo A100 Battery × 1
• DC Power Adapter × 1
• RJ45 Ethernet Cable × 1
• USB Adapter Cable × 1
• Screws and Anchors × 3
• 3M Adhesive × 1
• Mounting Bracket × 1
• Mounting Template × 1

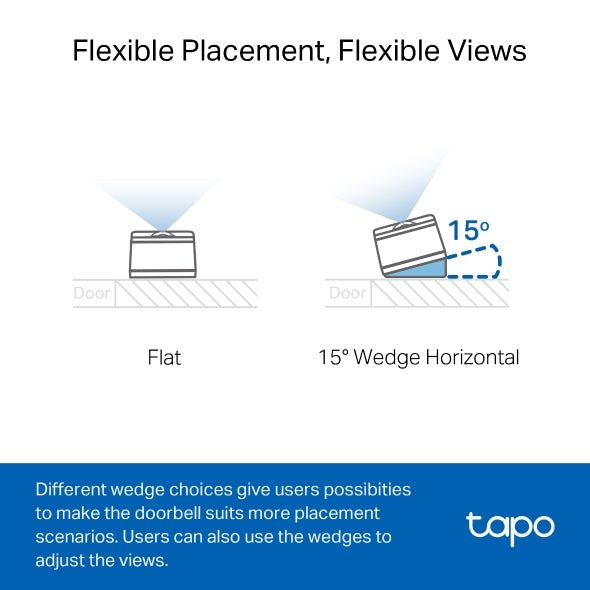

• 15° Mounting Wedge × 1
• Doorbell Detaching Pin × 1
• Button Sticker × 1
• Mounting Wedge Screw × 5
• Quick Start Guide

Certifications

CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA
