Description

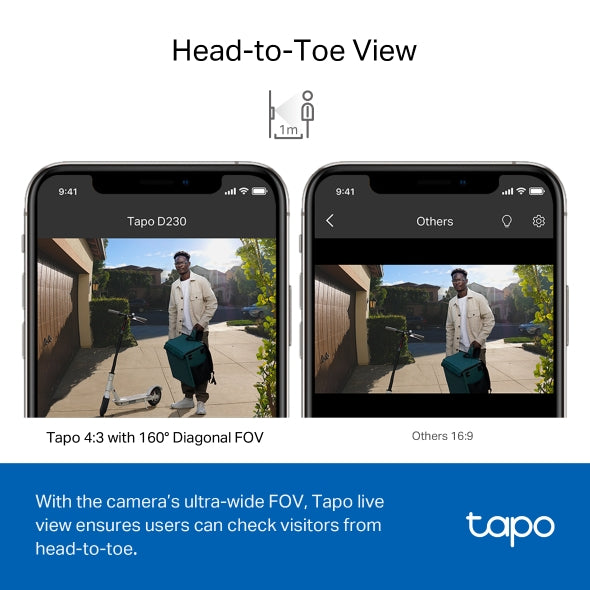

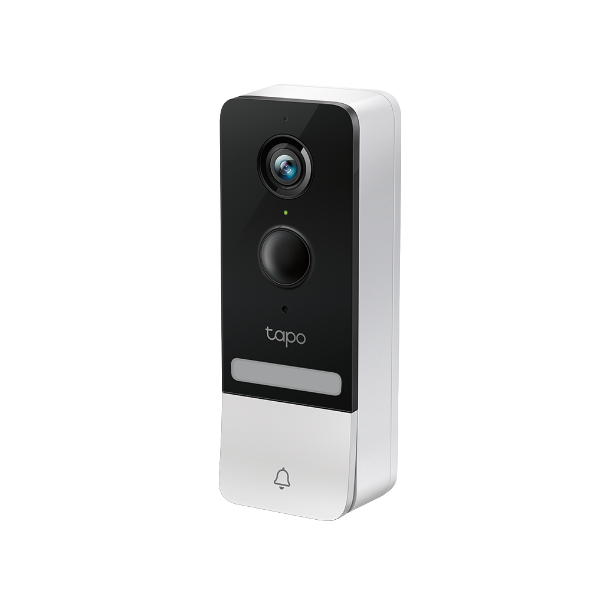

The TP-Link Tapo D230S1 is a smart battery-powered video doorbell that provides clear 2K 5MP video quality and a wide 160° field of view for comprehensive front-door monitoring. It features AI-powered detection to recognize people, vehicles, pets, and packages, sending instant alerts to your phone through the Tapo app for real-time awareness.
It also supports two-way audio, allowing you to communicate with visitors remotely, along with quick response messages for added convenience. With built-in night vision, weather-resistant design, and a long-lasting rechargeable battery, it offers reliable and flexible home security for outdoor use.
SPECIFICATION:
|
CAMERA |
|
|
Image Sensor |
1/2.7“ Progressive Scan CMOS Sensor |
|
Lens |
• Focal Length: 2.1 mm |
|
Night Vision |
• 850 nm IR LED (25 ft / 7.6 m) |
|
Lighting |
Built-in Spotlights |
|
Interface & Button |
• 1× RESET Button |
|
Hub Compatibility |

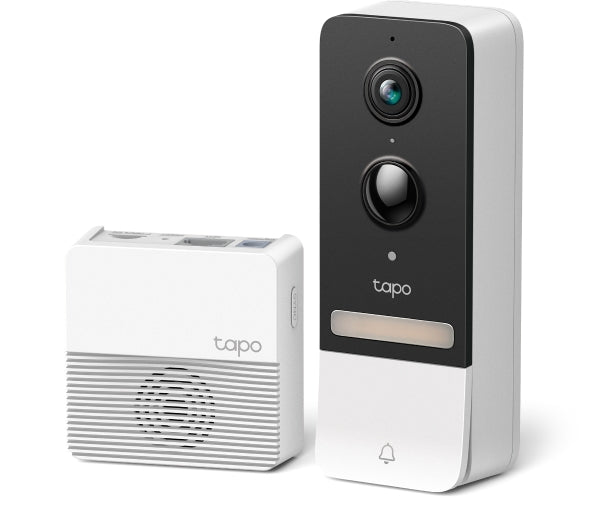

Compatible with H200 (Included) |
|
HUB |
|
|
Device Compatibility |
Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. |
|
Connection Capacity |
Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
|
Interface & Button |
• 1× Ethernet Port |
|
VIDEO & AUDIO |
|
|
Power Requirements |
CR2032 Battery |
|
Package Content |
|
|
Package Content |
• Tapo T110 × 1 |
|
ENVIRONMENT |
|
|
Operating Temperature |
0~40°C |
|
VIDEO & AUDIO |
|
|
Maximum Resolution |
2K 5MP (2560 × 1920px) |
|
Frame Rate |
15 fps |
|
Digital Zoom |
16x |
|
Video Compression |
H.264 |
|
Live View |
Yes |
|
Image Enhancement |
• 3DNR |
|
Audio Input & Output |
Built-in Microphone and Speaker |
|
Audio Communication |
Two-Way Audio with Noise Cancellation |
|
Siren Volume |
• Doorbell: |
|
STORAGE |
|
|
Local Storage |
• MicroSD Card Slot on Hub (Up to 512 GB) |
|
Cloud Storage |
Tapo Care Cloud Storage Services (Subscription required) |
|
DETECTION and NOTIFICATIONS |
|
|
Sensor |
• Single PIR Motion Sensor (FOV: 130° horizontal) |
|
AI Detection |
• Motion Detection |
|
Activity Zones |
Yes |
|
Output Notification |
• System Notification |
|
NETWORK |
|
|
Network Connectivity |
Connect via Wi-Fi |
|
Wireless Connectivity |
• IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|
Ethernet Port |
1× 10/100 Mbps RJ45 Port on Hub |
|
SECURITY |
|
|
Security |
On-Device Machine Learning |
|
POWER |
|
|
Power Source |
Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery |
|
Input Voltage |
Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
|
Output Voltage |
Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A |
|
DC Power Connector Size |
|
|
GENERAL |
|
|
Smart Integration |
Google Assistant, Amazon Alexa |
|
Weather Resistance |
IP64 |
|
System Requirements |
Tapo App: iOS 12.0 or higher, Andriod 4.4 or higher |
|

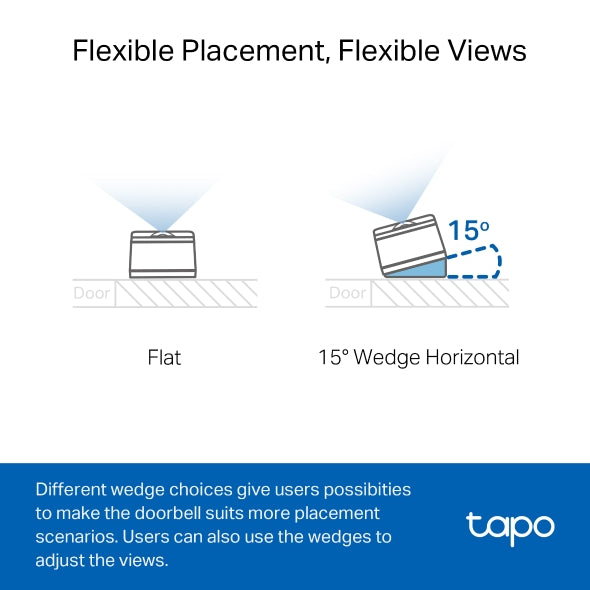

Mounting Options |
Stick to a Wall |
|
Operating Temperature |
-20℃~45℃ |
|
Storage Temperature |
-20℃~45℃ |
|
Operating Humidity |
10%~90% RH, Non-condensing |
|
Storage Humidity |
5%~90% RH, Non-condensing |
|
Dimensions ( W x D x H ) |
• Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm) |
|
Package Content |
• Tapo Video Doorbell × 1 |
|
Certifications |
CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
