Description

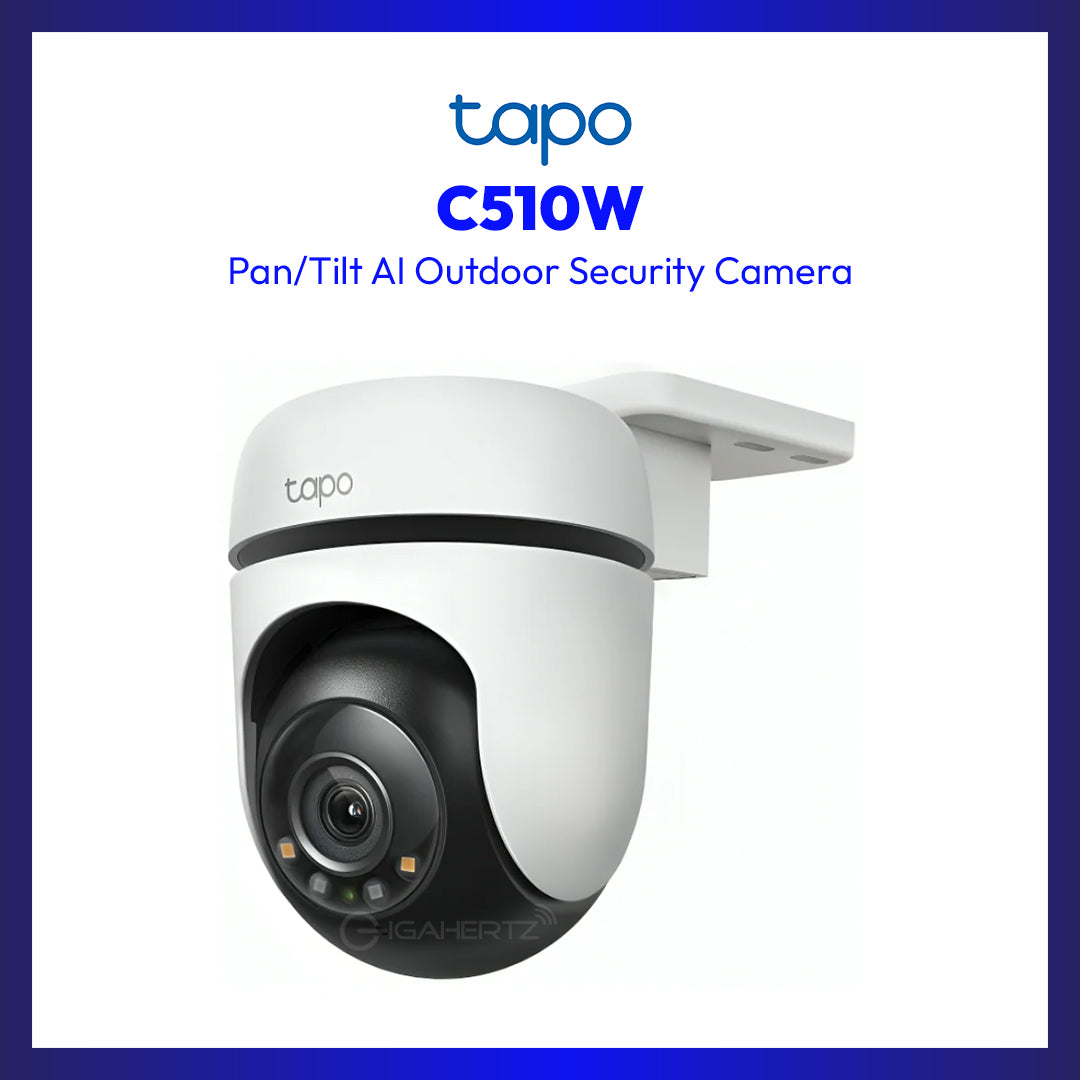

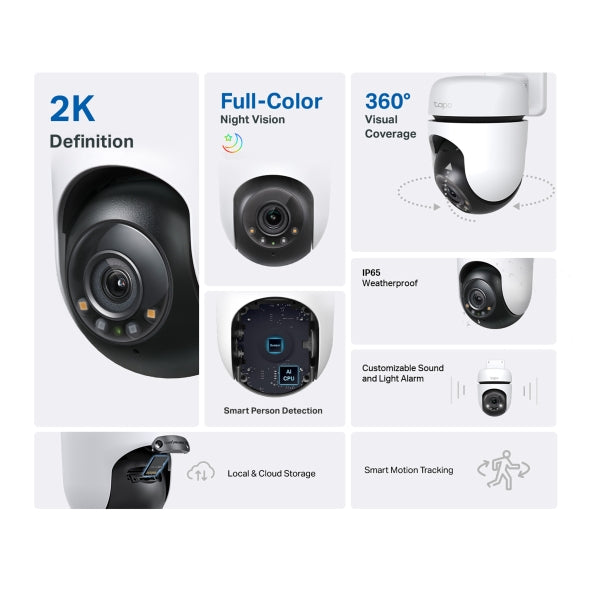

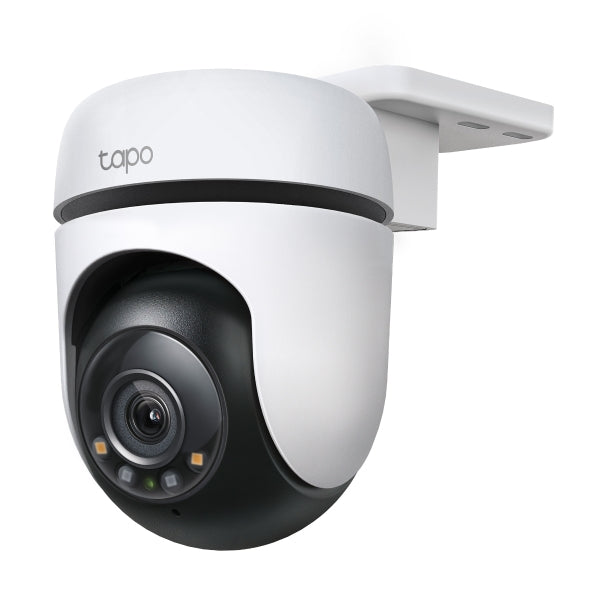

The TP-Link Tapo C510W is a smart outdoor pan-and-tilt security camera built to deliver reliable 360° protection with sharp 2K resolution, intelligent motion tracking, and full-color night vision. Featuring a 3MP sensor, 360° horizontal and 130° vertical coverage, dual spotlights, and AI-powered person detection, it captures clear and detailed footage while helping reduce false alerts. Its IP65 weatherproof design makes it suitable for outdoor environments, while customizable sound and light alarms, two-way audio, and support for local microSD storage up to 512GB provide added convenience and security. With Wi-Fi connectivity, Alexa and Google Assistant compatibility, physical privacy mode, and optional cloud storage through Tapo Care, the Tapo C510W is an ideal solution for monitoring driveways, entrances, garages, and outdoor spaces with smart and flexible surveillance.
|
CAMERA |
|
|
Image Sensor |
1/2.8'' CMOS |
|
Lens |
2.0±5%; Focal Length: 3.9mm±5% |
|
Night Vision |
IR LED (Up to 98 ft), Full-Color Night Vision |
|
Lighting |
2× Built-in Spotlights |
|
Interface & Button |
1× RESET Button |
|
Weatherproof Rating |
IP65 |
|
Pan/Tilt Range |
Pan Mechanical Range: 340° (360° Pan Coverage) |
|
View Range |
360° horizontal and 130° vertical |
|
Resolution |
2K 3MP (2304 × 1296 px) |
|
VIDEO & AUDIO |
|
|
Maximum Resolution |
2304 × 1296 px |
|
Frame Rate |
15 fps |
|
Video Compression |
H.264 |
|
Live View |
Yes |
|
Image Enhancement |
3DNR |
|
Audio Input & Output |
Built-in Microphone and Speaker |
|
Audio Communication |
Two-Way Audio with Noise Cancellation |
|
Siren Volume |
90 dB (Level measured at 4-inch/10-cm distance) |
|
STORAGE |
|
|
Local Storage |
MicroSD Card Slot on Camera (Up to 512 GB) |
|
Cloud Storage |
Tapo Care Cloud Storage Services (Subscription required) |
|
VIDEO |
|
|
Frame Rate |
15 fps |
|
Video Streaming |
2K |
|
Video Compression |
H.264 |
|
DETECTION and NOTIFICATIONS |
|
|
AI Detection |
Motion detection |
|
Activity Zones |
Yes |
|
Output Notification |
System Notification |
|
AI Detection |
Motion detection |
|
AUDIO |
|
|
Audio Communication |
Two-Way Audio |
|
Audio Input & Output: |
Built-in Microphone and Speaker |
|
NETWORK |
|
|
Network Connectivity |
Connect via Wi-Fi |
|
Wireless Connectivity |
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|
Wireless Security |
WPA/WPA2-PSK |
|
RTSP |
Yes |
|
ONVIF |
Yes |
|
Standards and Protocols |
IEEE 802.11b/g/n |
|
Security |
128 bit AES encryption with SSL/TLS |
|
Frequency |
2.4 GHz |
|
SECURITY |
|
|
Security |
On-Device Machine Learning |
|
POWER |
|
|
Power Source |
12V DC Power Adapter |
|
Input Voltage |
100-240 V, 50/60 Hz |
|
Output Voltage |
12 V, 1 A (DC Power) |
|
ACTIVITY NOTIFICATIONS |
|
|
Input Trigger |
Person Detection, Motion Detection |
|
Output Notification |
Snapshot(Tapo care), Clips(Tapo care) |
|
HARDWARE |
|
|
Button |
RESET Button |
|
Indicator LED |
System LED |
|
Adapter Input |
100-240V, 50/60Hz |
|
Adapter Output |
12.0V/1.0A |
|
Product Dimensions (W x D x H) |
4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm) |
|
GENERAL |
|
|
Smart Integration |
Google Assistant, Amazon Alexa |
|
Weather Resistance |
IP65 |
|
System Requirements |
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
|
Mounting Options |
Ceiling-Mounted |
|
Operating Temperature |
-30℃~60℃ |
|
Storage Temperature |
-40℃~60℃ |
|
Operating Humidity |
10%~90%RH, Non-condensing |
|
Storage Humidity |
0~90%RH, Non-condensing |
|
Dimensions ( W x D x H ) |
4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
|
Package Content |
Tapo C510W Camera |
|
Certifications |
CE, FCC, RoHS, RCM |
|
OTHERS |
|
|
Certification |
CE, FCC, RoHS, RCM |
|
Package Content |
Tapo C510W Camera |
