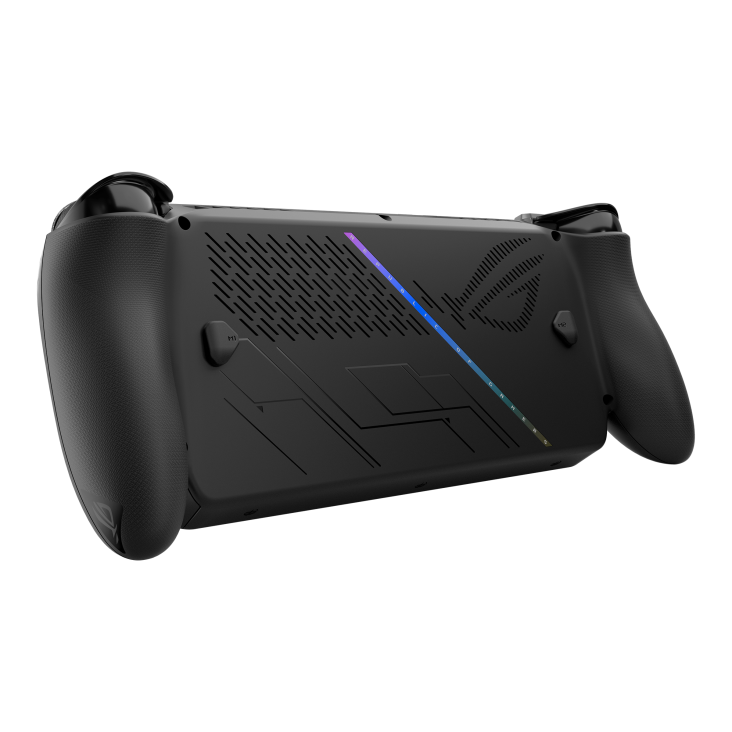

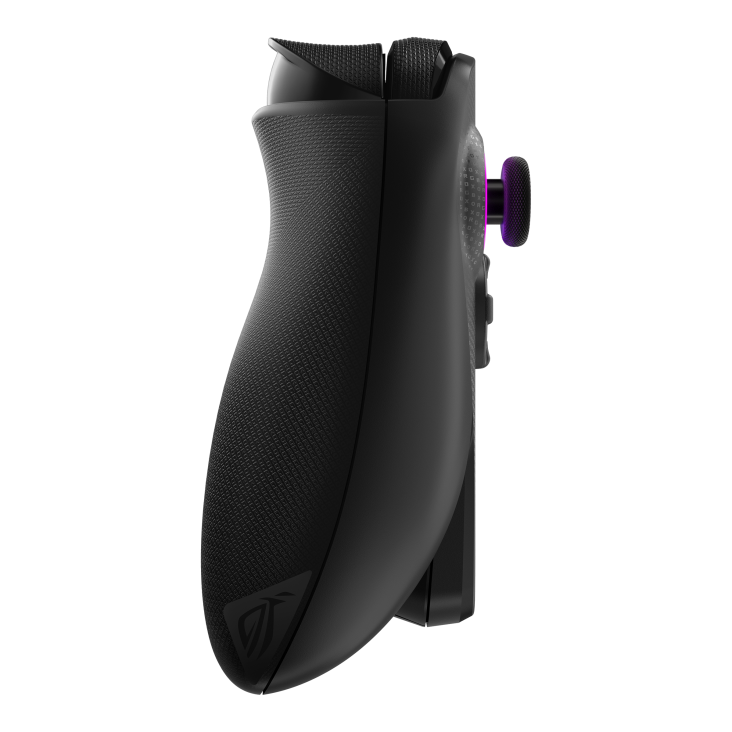

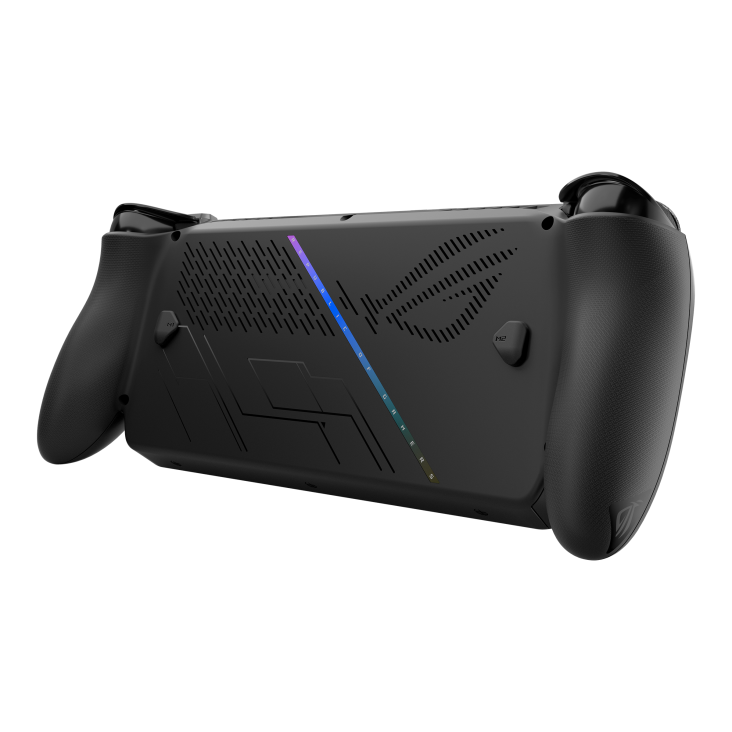

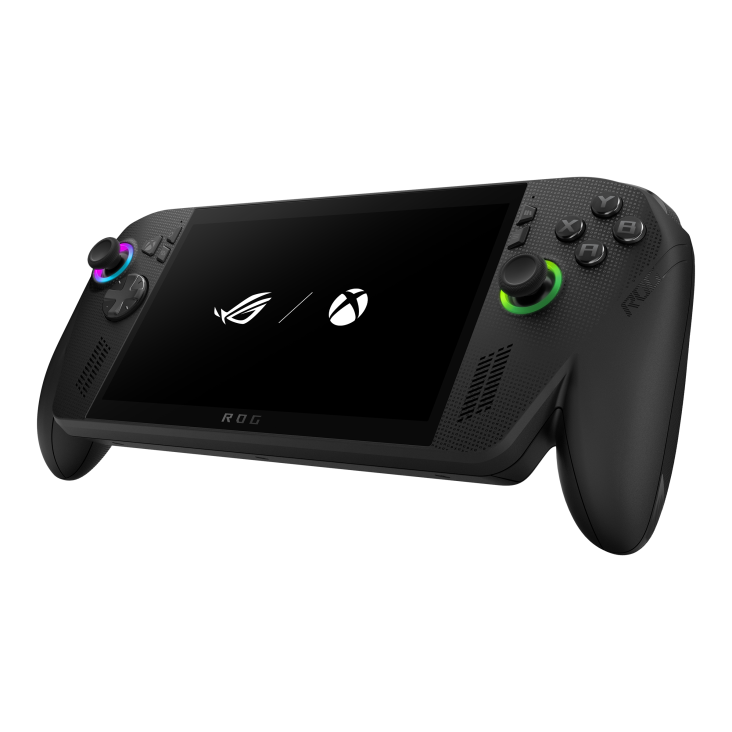

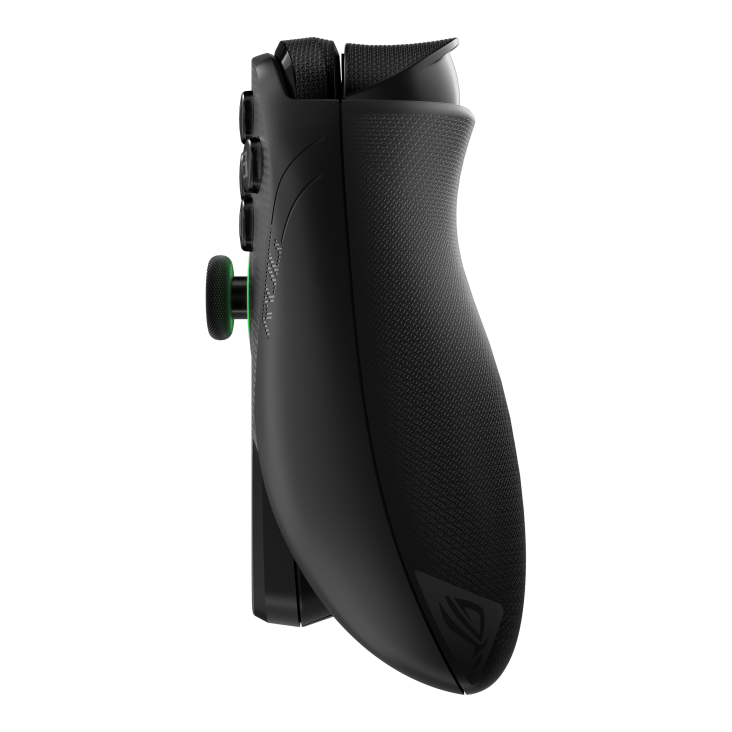

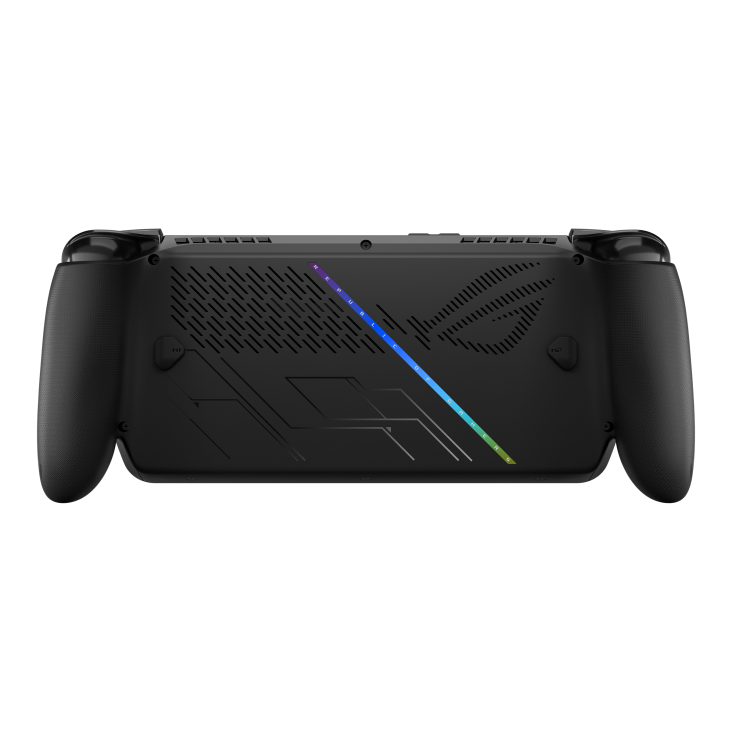

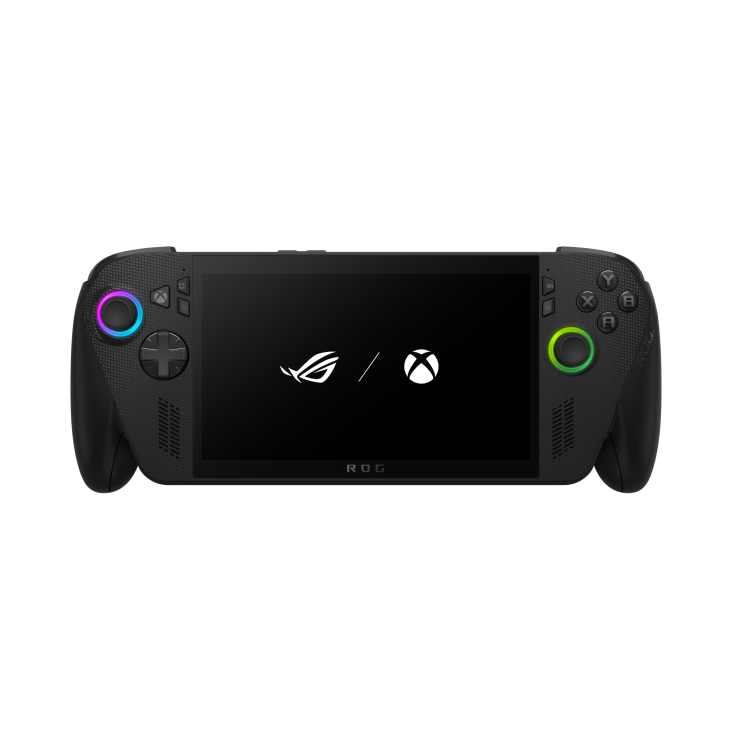

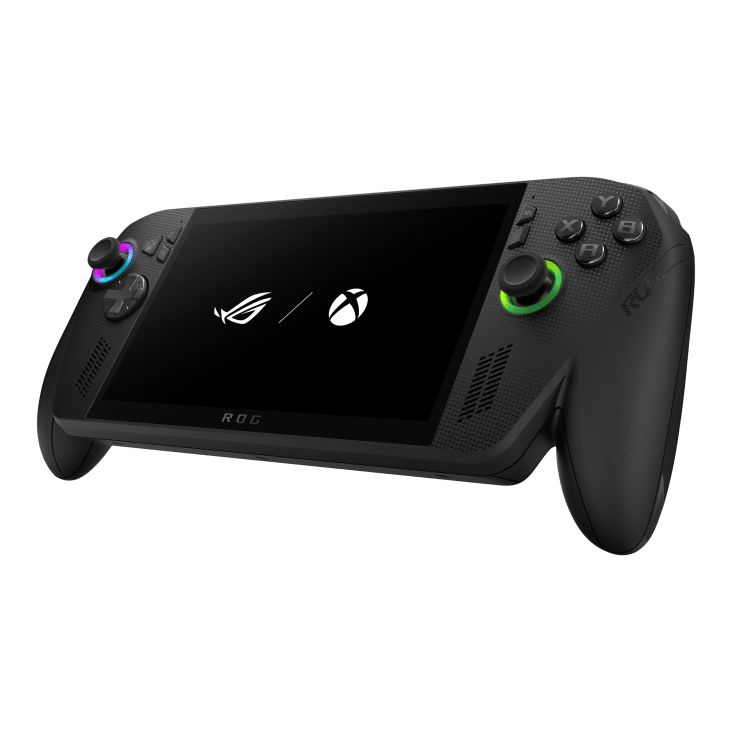

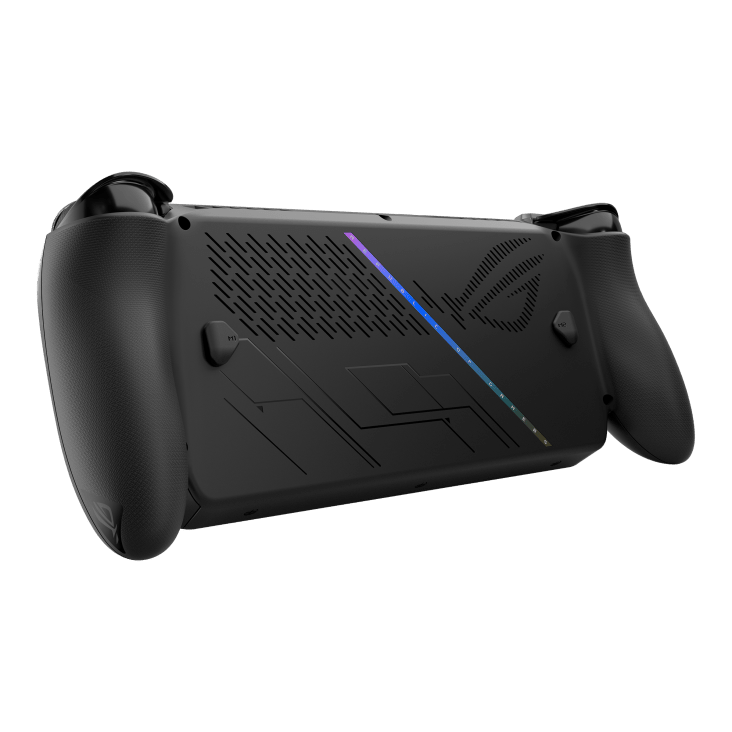

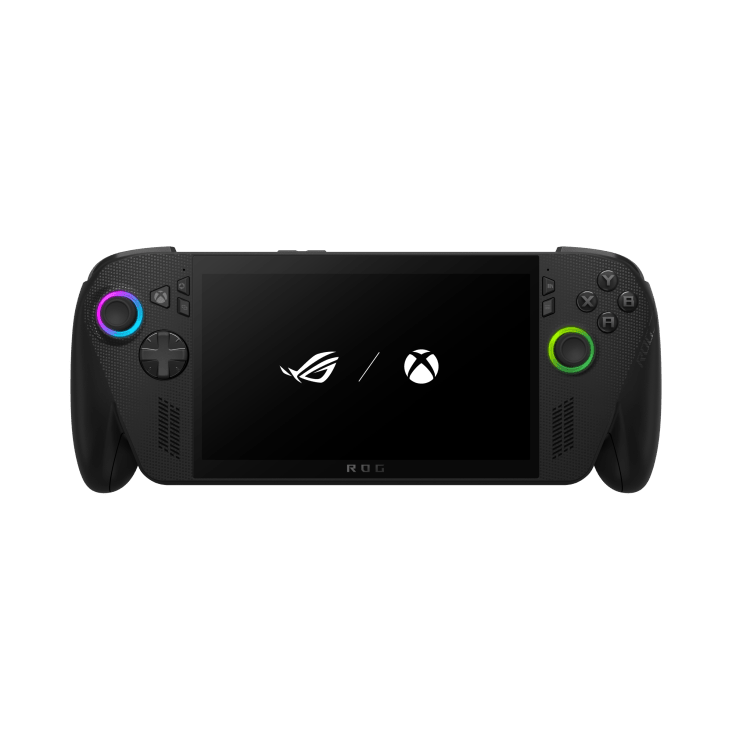

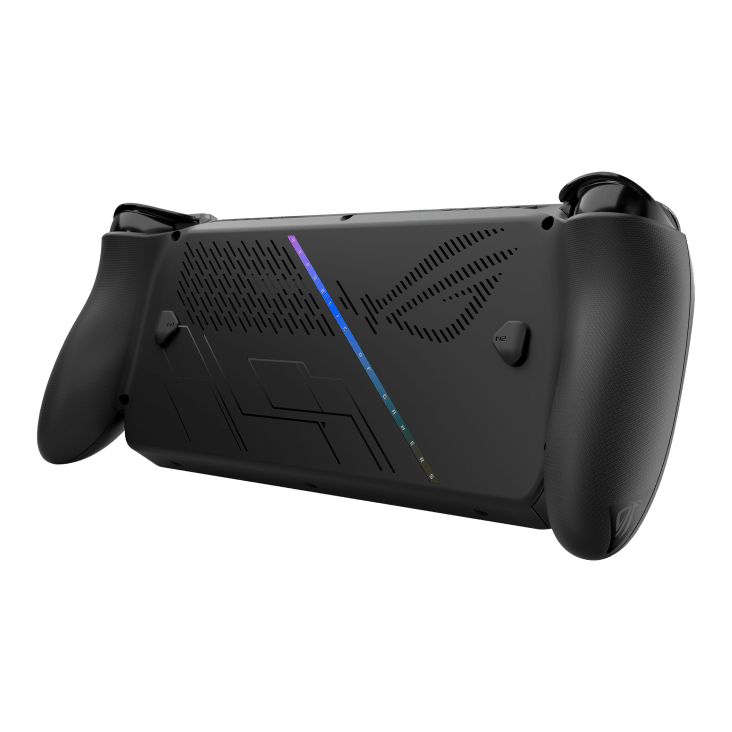

The ASUS ROG XBOX ALLY is a compact yet powerful handheld gaming device built for serious on-the-go performance. It features the AMD Ryzen™ AI Z2 Extreme processor and AMD Radeon™ graphics, delivering smooth gameplay across modern titles. With 24 GB LPDDR5X RAM and a spacious 1 TB PCIe 4.0 NVMe SSD, it ensures fast load times and responsive multitasking. The 7.0-inch FHD (1920 × 1080) display offers sharp, vibrant visuals in a portable form factor, while the 80 WHrs battery provides extended playtime for long gaming sessions on the move.
| Quick Specs: |
• Processor - AMD Ryzen™ AI Z2 Extreme Processor 2.0GHz
|
| • Graphics - AMD Radeon™ Graphics
|
| • Memory - 24GB LPDDR5X on board |
| • Storage - 1TB PCIe® 4.0 NVMe™ M.2 SSD (2280) |
| • Resolution - FHD (1920 x 1080) |
| • Panel size - 7.0 inch |
| • Battery - 80WHrs, 4S1P, 4-cell Li-ion |
Full Specs:
|

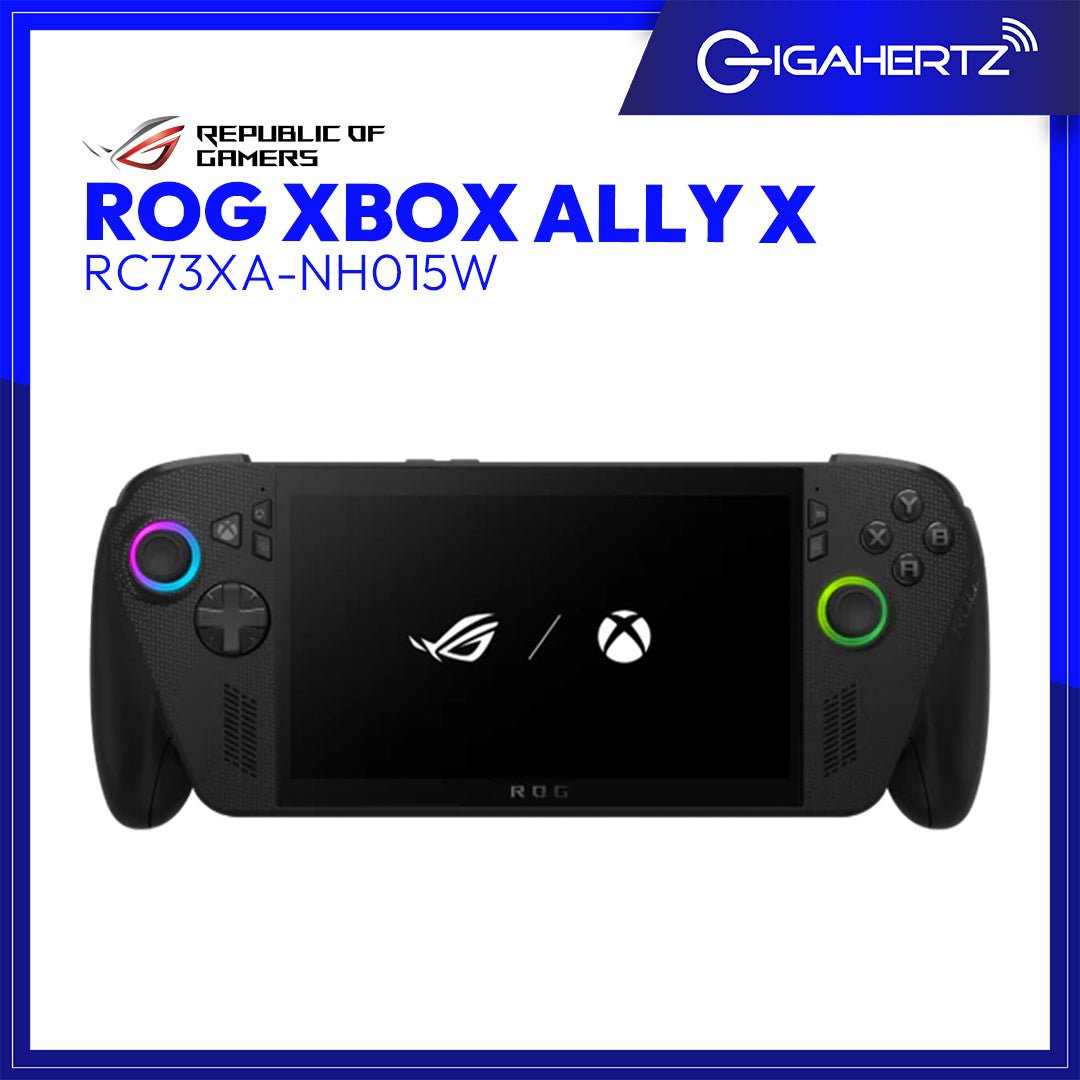

Marketing Name
|
ROG Xbox Ally X
|
|
Size
|
7 Inch
|
|
Color
|
Black
|
|
Model
|
RC73XA-NH015W
|
|
Processor
|
AMD Ryzen™ AI Z2 Extreme Processor 2.0GHz (24MB Cache, up to 5.0GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 50TOPS
|
|
Memory
|
24GB LPDDR5X on board
|
|
Storage
|
1TB PCIe® 4.0 NVMe™ M.2 SSD (2280)
|
|
Display Panel/ Resolution
|
7.0 display, FHD 1920x1080
• Panel Tech: IPS-level
• Anti-glare display
• Glossy display
• Gorilla® Glass Victus™
• Gorilla® Glass DXC
• Touch Screen (10-point multi-touch)
• Refresh Rate: 120Hz
• Brightness: 500 nits
• AMD FreeSync™ Premium (Variable Refresh Rate)
|
|
Graphics
|
AMD Radeon™ Graphics
|
|
Connection
|
• Wi-Fi 6E(802.11ax) (Triple band) 2*2
• Bluetooth® 5.2
|
|
Operating System
|
Windows 11 Home
|
|
Audio
|
• Smart Amp Technology
• Hi-Res certification (for headphone)
• Dolby Atmos
• AI noise-canceling technology
• Built-in array microphone
• 2-speaker system with Smart Amplifier Technology
|
|
Battery/Power
|
Battery
• 80WHrs, 4S1P, 4-cell Li-ion
Power Supply
• TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal
|
|

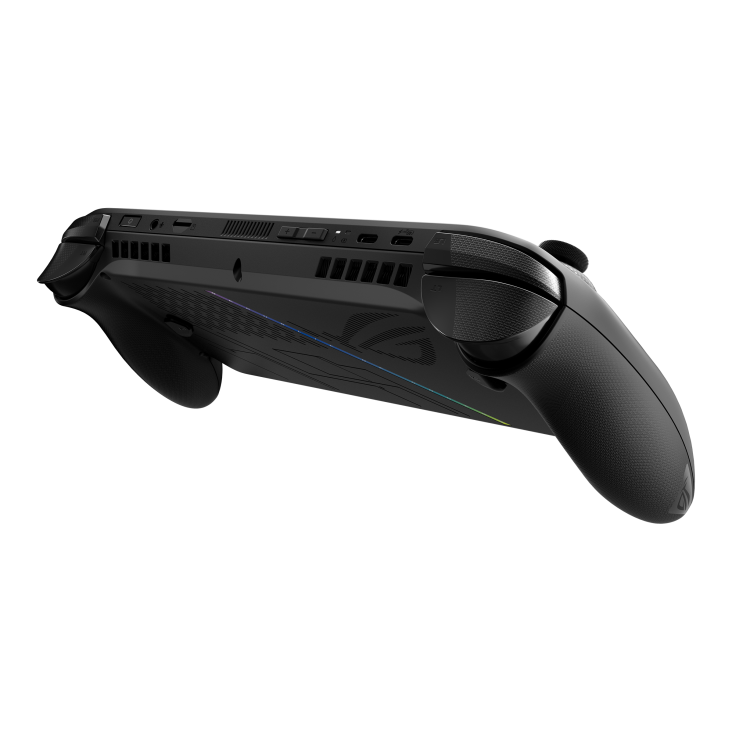

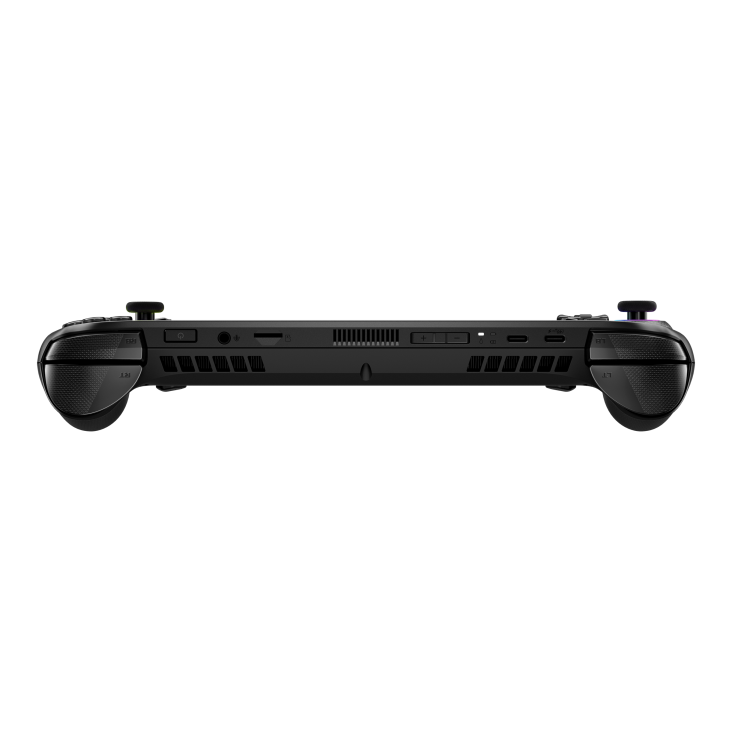

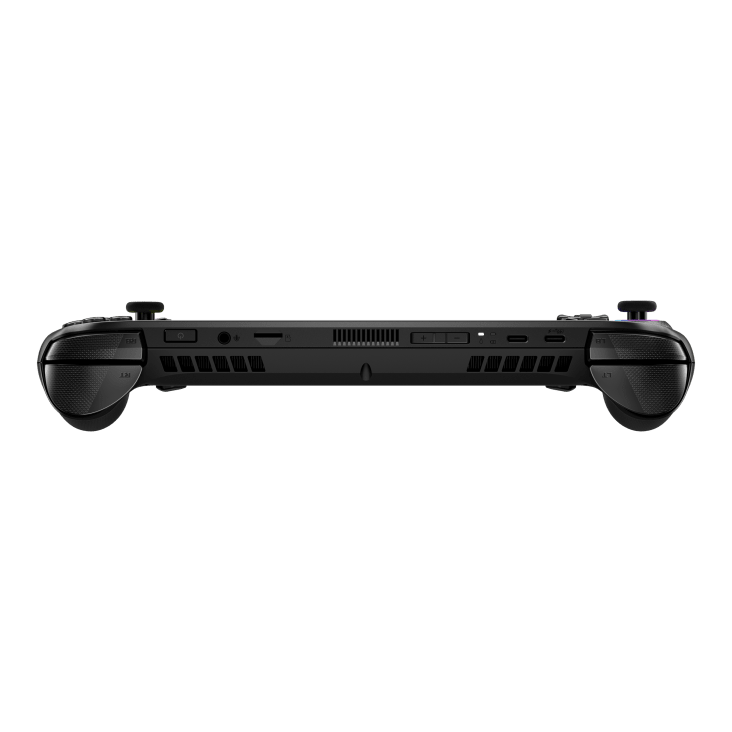

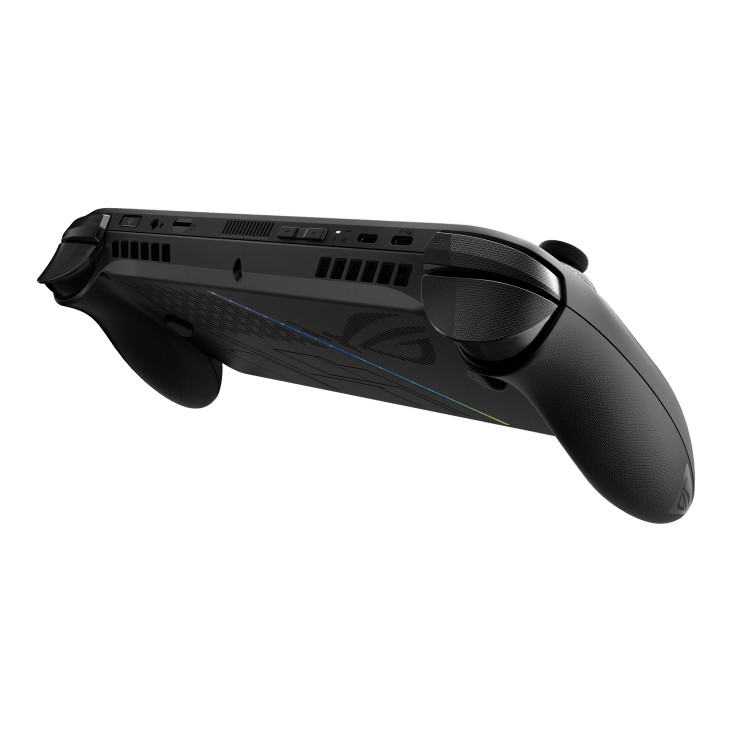

Ports
|
• 1x 3.5mm Combo Audio Jack
• 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
• 1x UHS-II microSD card reader (supports SD, SDXC and SDHC)
• 1x Type C support USB 4
(Thunderbolt™ 4 compliance, DisplayPort™ 1.4 with Freesync support, Power Delivery 3.0)
|
|
Control and Input
|
• View button
• Menu button
• L & R Hall Effect analog triggers
• L & R bumpers
• D-pad
• Command Center button
• Armoury Crate button
• A B X Y buttons
• 2 x assignable grip buttons
• Thumbsticks: 2 x full-size analog sticks
• Haptics: HD haptics
• Gyro: 6-Axis IMU
|
