Description

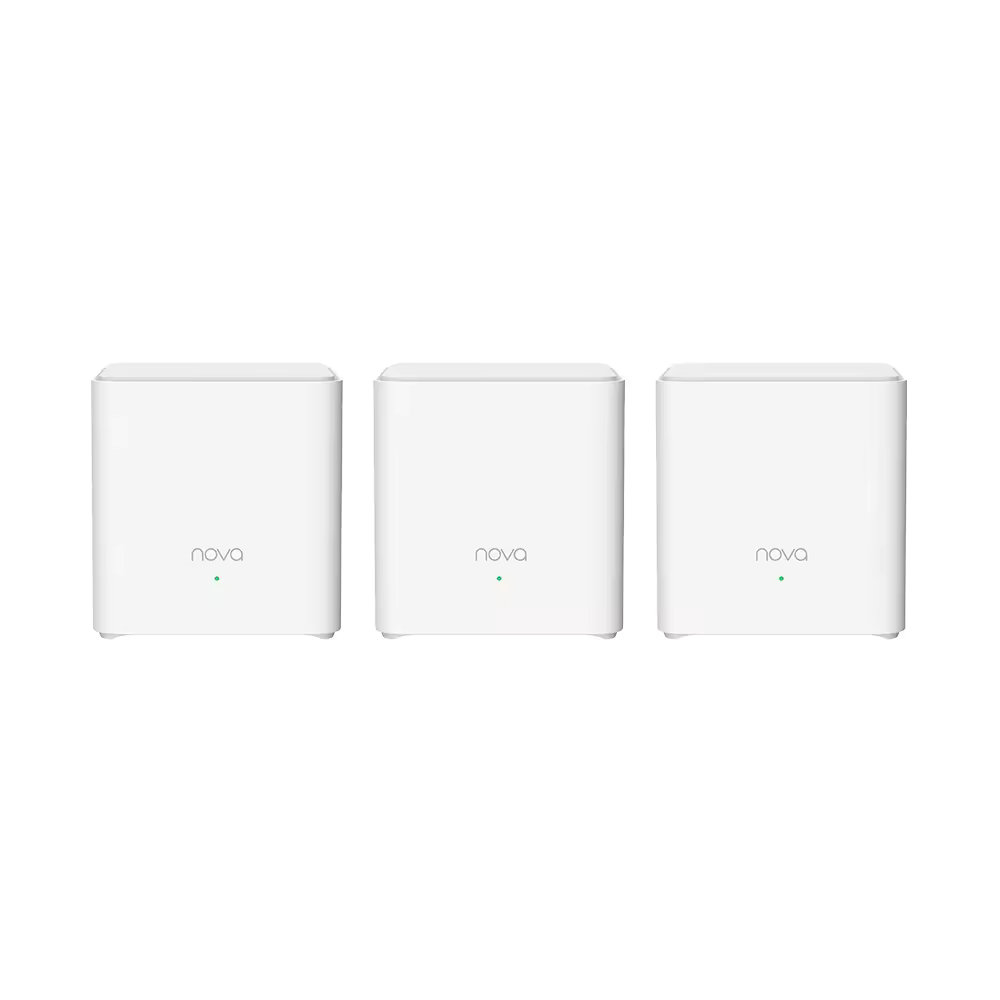

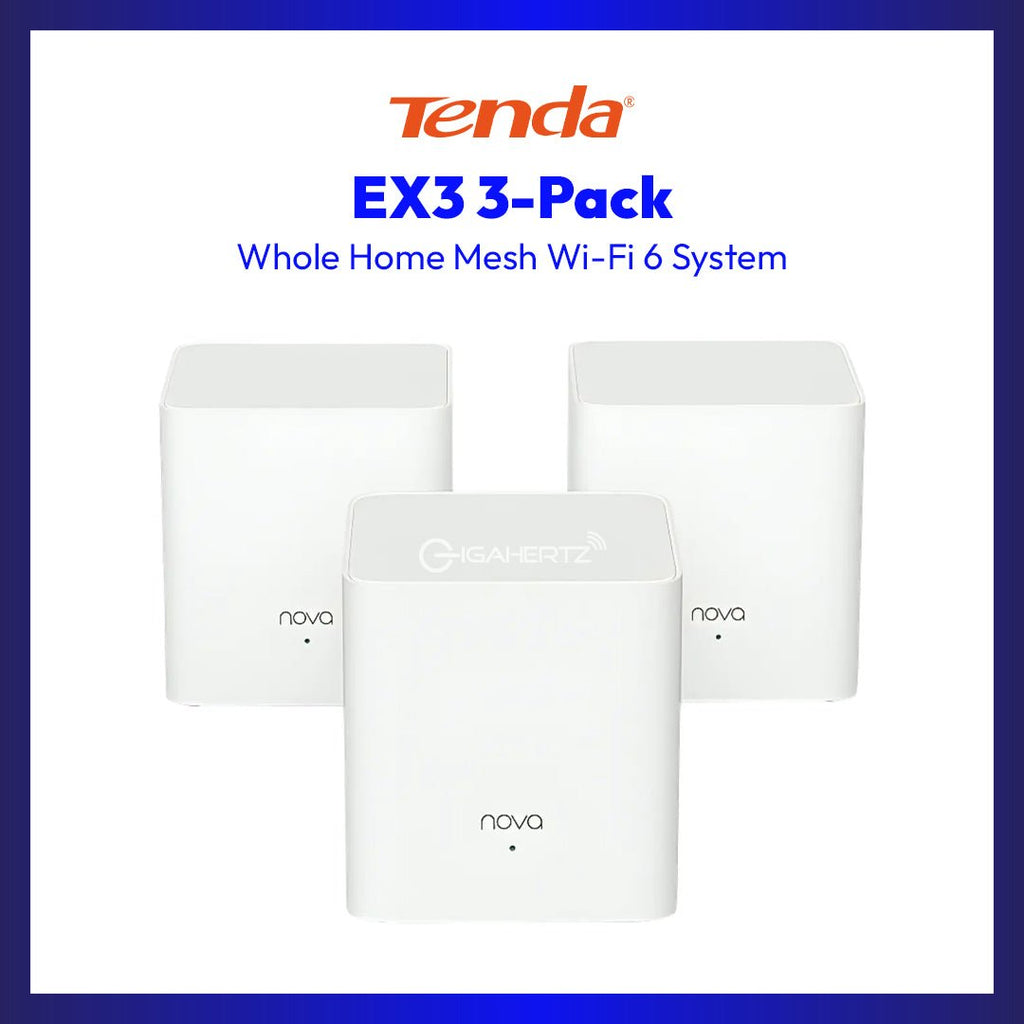

The Tenda EX3 (3-Pack) is an AX1500 Wi-Fi 6 whole-home mesh system designed to provide fast, seamless internet coverage for medium to large homes. With three mesh nodes, it can cover up to 300 m² (3,500 ft²), eliminating dead zones while supporting smooth roaming under one Wi-Fi name. It delivers speeds up to 1501 Mbps, supports OFDMA and MU-MIMO for stable multi-device connections, and includes features like EasyMesh, WPA3 security, parental controls, VPN support, and app-based management for easy setup and monitoring.
SPECIFICATION:
HARDWARE
Standard & Protocol
IEEE802.3, IEEE802.3u, IEEE802.3ab
CPU
1GHz CPU
RAM
128MB

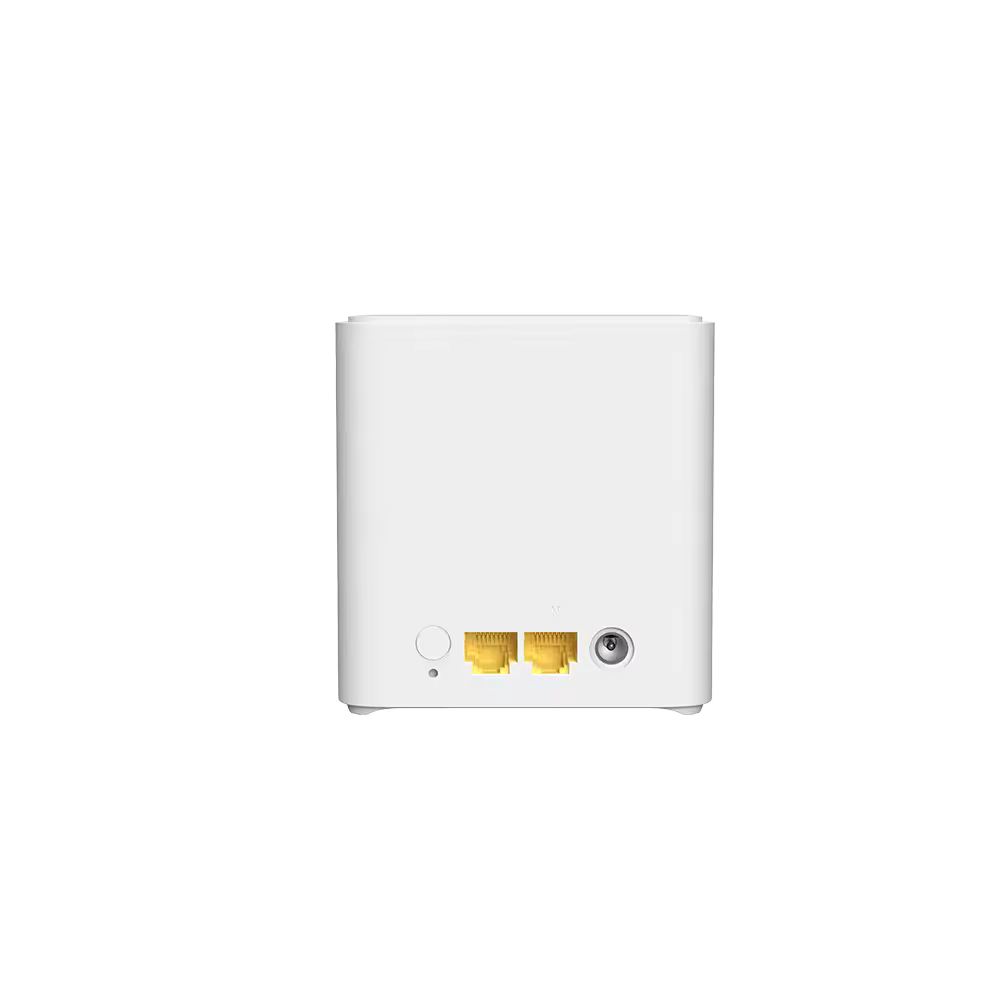

Interface
• 10/100/1000Mbps WAN port*1
• 10/100/1000Mbps LAN port*1
Antenna
2 x 3dBi Internal antenna
Button
• 1 x Reset Button
• 1 x MESH Button
Power
• Input: AC 100-240V~50/60Hz
• Output:DC 12V⎓1A
LED Indicator
SYS*1
Dimension
90*90*93 mm (3.54*3.54*3.65 in.)
WIRELESS
Wireless Standard
• 2.4GHz：IEEE 802.11n/b/g
• 5GHz：IEEE 802.11ax/ac/n/a
Data Rate
• 5GHz:1201Mbps
• 2.4GHz:300Mbps
Frequency
2.4GHz & 5GHz
Transmission Power
CE:
• <20dBm(2.4GHz)
• <23dBm(5GHz)
FCC:
• <30dBm(2.4GHz)
• <30dBm(5GHz)
Basic Functions
• OFDMA
• MU-MIMO
• Beamforming
Wireless Security
• WPA2-PSK
• WPA3-SAE/WPA2-PSK
• Wireless Encryption Disable and Enable
• WPS Fast Connection
SOFTWARE
Internet Connection Type
• PPPoE, Dynamic IP, Static IP
• PPPoE(Russia), PPTP(Russia), L2TP(Russia)
• Unify,Maxis,Maxis-special,Celcom,Digi
Network Protocol
IPv4&IPv6
Operating Mode
Router Mode,AP Mode
Parental Control
• URL Filter
• Time Limit
DHCP
• DHCP Server
• DHCP Client List
• DHCP Reservation
Virtual Server
• Port Forwarding
• DMZ Host
• UPnP
Firewall
• Forbid UDP Flood Attack
• Forbid TCP Flood Attack
• Forbid ICMP Flood Attack
• Forbid WAN Ping from Internet
DNS
DynDNS, no-ip, oray, 88ip
VPN
• IPsec Pass Through
• PPTP Pass Through
• L2TP Pass Through
• PPTP VPN Server
• PPTP VPN Client
• L2TP VPN Client
Special Features
• WPA3
• TR069
• Tenda EasyMesh
• Unify 2.4 GHz & 5 GHz
• Smart LED on/off
• Amazon Alexa
• One-button Fault Diagnosis
• Broadband Account Migration
• Tenda App: Local and Remote ManagementSpeed Test
