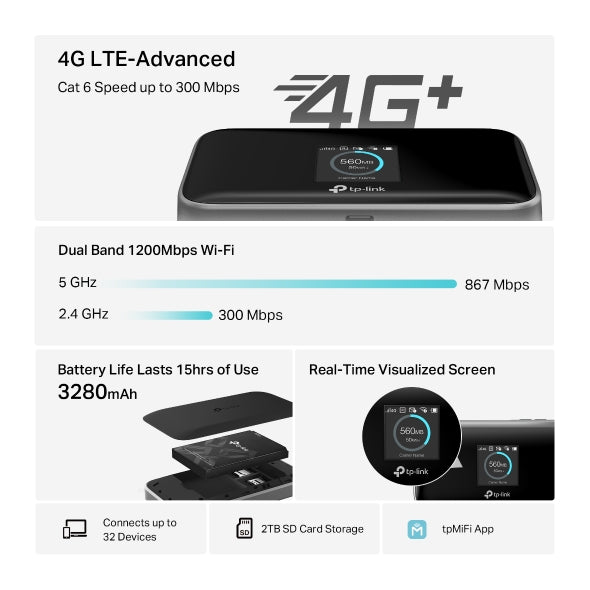

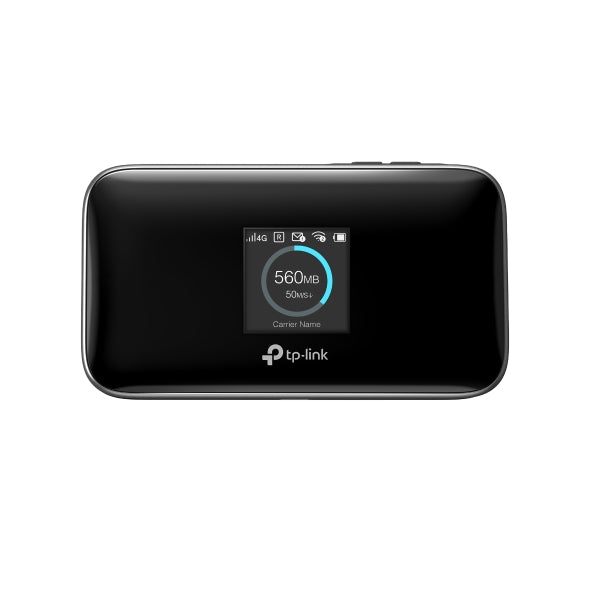

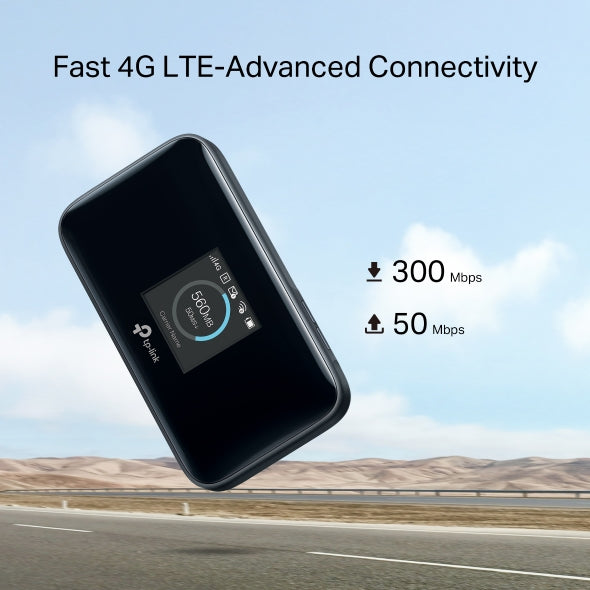

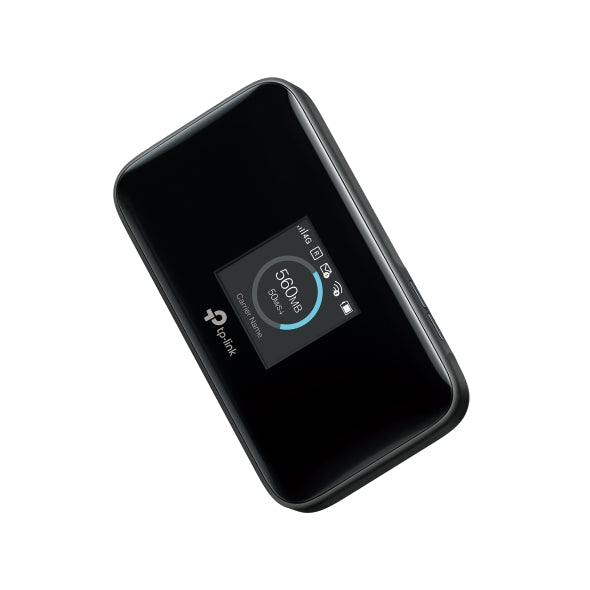

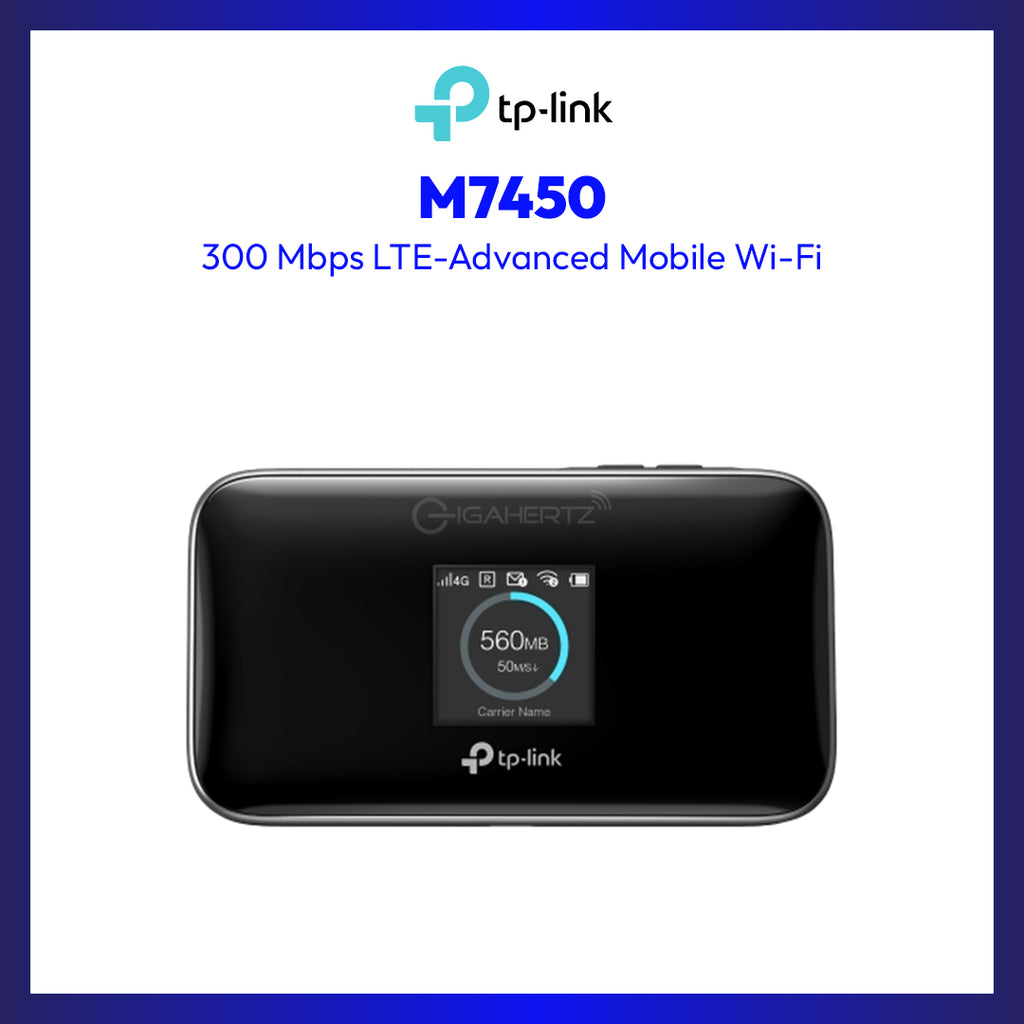

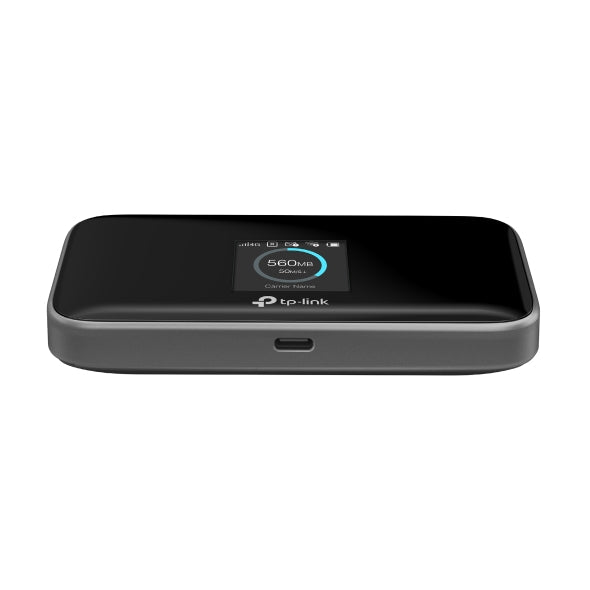

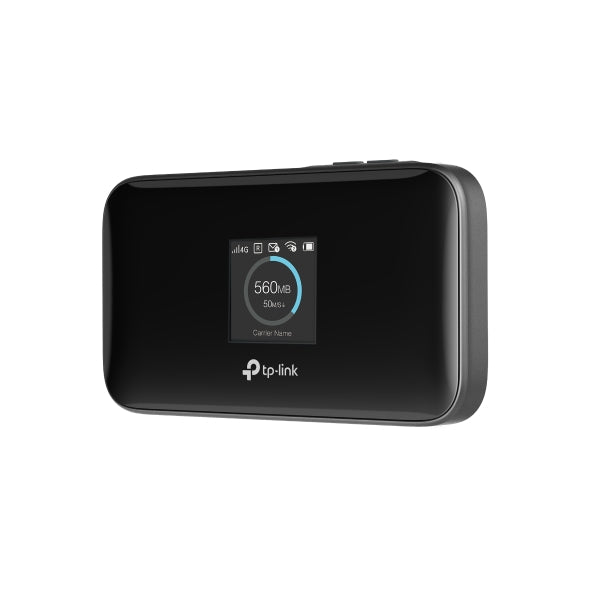

The TP-Link M7450 is a portable 4G LTE-Advanced mobile Wi-Fi router designed for fast and reliable internet access on the go. It supports download speeds of up to 300Mbps, dual-band Wi-Fi (2.4GHz and 5GHz), and can connect up to 32 devices simultaneously, making it ideal for travel, remote work, streaming, and sharing internet with multiple users.
It features a compact pocket-sized design, a built-in 3280mAh battery that lasts up to 15 hours, and a display screen for monitoring signal strength, battery life, and data usage. The device also supports microSD storage sharing and can be easily managed through the tpMiFi mobile app for convenient network control and monitoring.
SPECIFICATION:
|
4G
|
|
|
Network Type
|
4G:
• FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
• TDD-LTE B38/B40/B41 (2600/2300/2500MHz)
3G:
• DC-HSDPA/HSUPA/UMTS/WCDMA: B1/B5/B8 (2100/850/900MHz)
|
|
Speed
|
• Download Speed up to 300Mbps
• Upload Speed up to 50Mbps
|
|
HARDWARE FEATURES
|
|
|
Interface
|
• 1 USB-C port for power supply
• 1 Nano SIM card slot
• 1 Micro SD card slot
|
|
Button
|
• Power On/Off Button
• Menu Button
• Reset Button
|
|
Power Supply
|
• Internal 3280mAh Rechargeable Battery
• External Power Supply 5V/2A
|
|
Dimensions ( W x D x H )
|
4.5 × 2.5 × 0.7 in. (114 × 64 × 19mm)
|
|
Antenna
|
Internal Antenna
|
|
Micro SD Card Reader
|
Up to 2TB
|
|
Screen Display
|
1.44 inch TFT
|
|
WIRELESS FEATURES
|
|
|
Wireless Standards
|
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
|
|
Frequency
|
2.4GHz and 5GHz
|
|
Signal Rate
|
Selectable dual band, 300Mbps at 2.4GHz or 867Mbps at 5GHz
|
|
Wireless Security
|
• Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID
• Broadcast
|
|
DHCP
|
DHCP server, DHCP Client List
|
|
Transmission Power
|
2.4G <20dbm, 5G <23dbm
|
|
OTHERS
|
|
|
Network Services Enabled by Default
|
Web Server
Manage and configure device through web or app
• Port: 80/443 Protocol: HTTP/HTTPS
DNS
DNS
• Port: 53; Protocol: UDP
DHCP/DHCPv6
IP address assignment
• Port: 67/547; Protocol: UDP
|
|
Certification
|
CE, RoHS
|
|
Package Content
|
• 300Mbps LTE-Advanced Mobile Wi-Fi M7450
• USB Type-C Cable
• 3280mAh Battery
• Quick Installation Guide
|
|
System Requirements
|
Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
|
|
Environment
|
• Operating Temperature: 0℃~35℃ (32℉ ~95℉)
• Storage Temperature: -20℃~60℃ (4℉ ~140℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
|
