Description

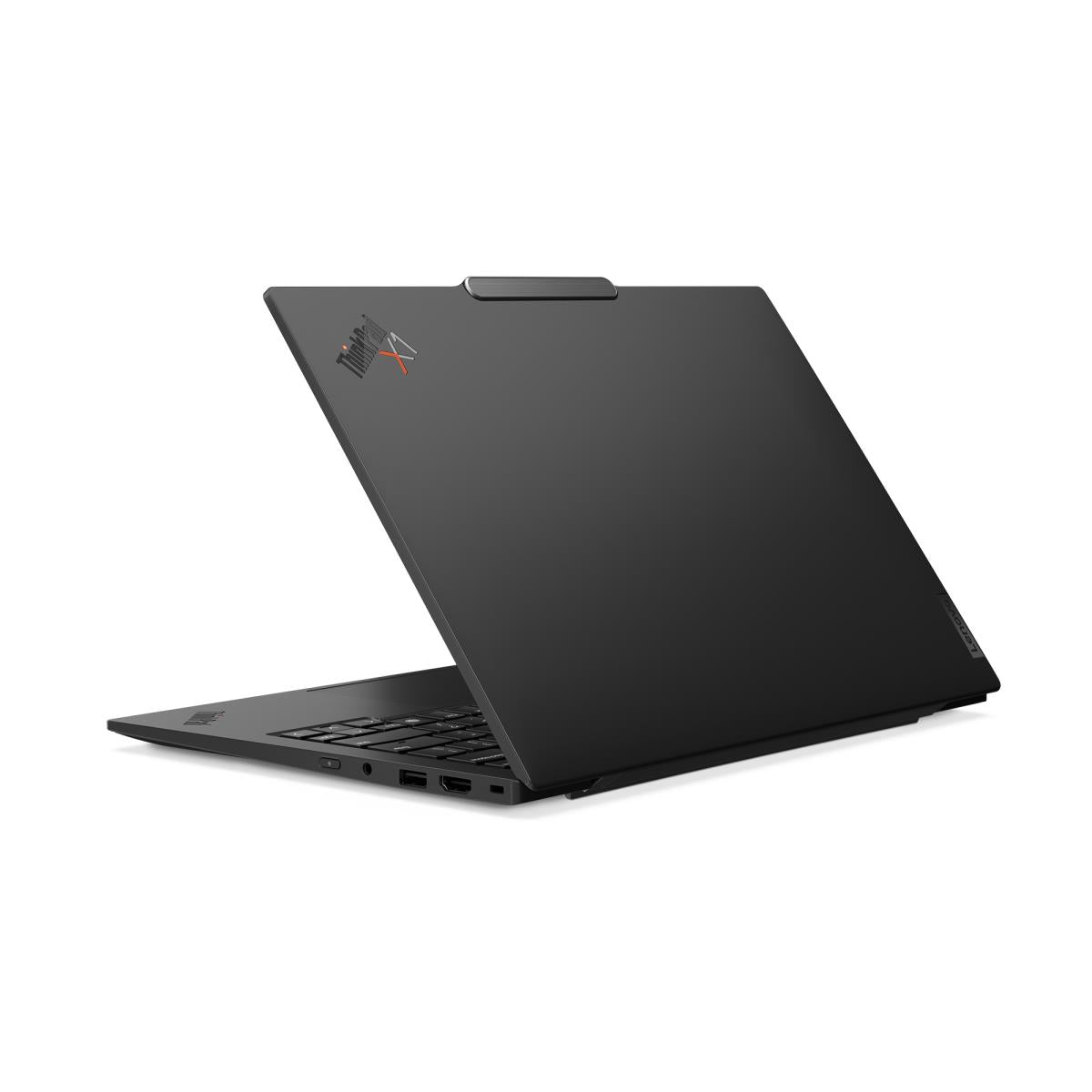

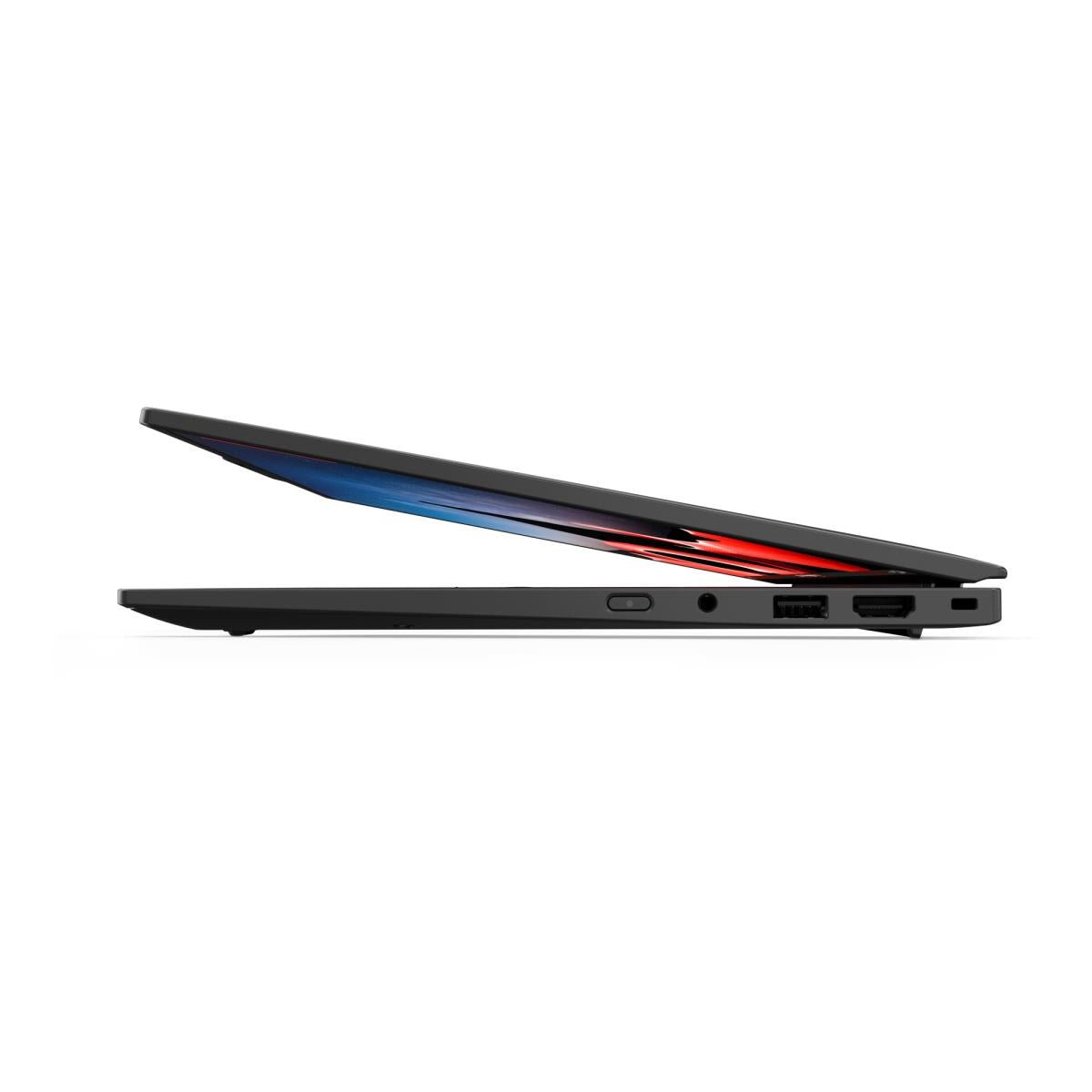

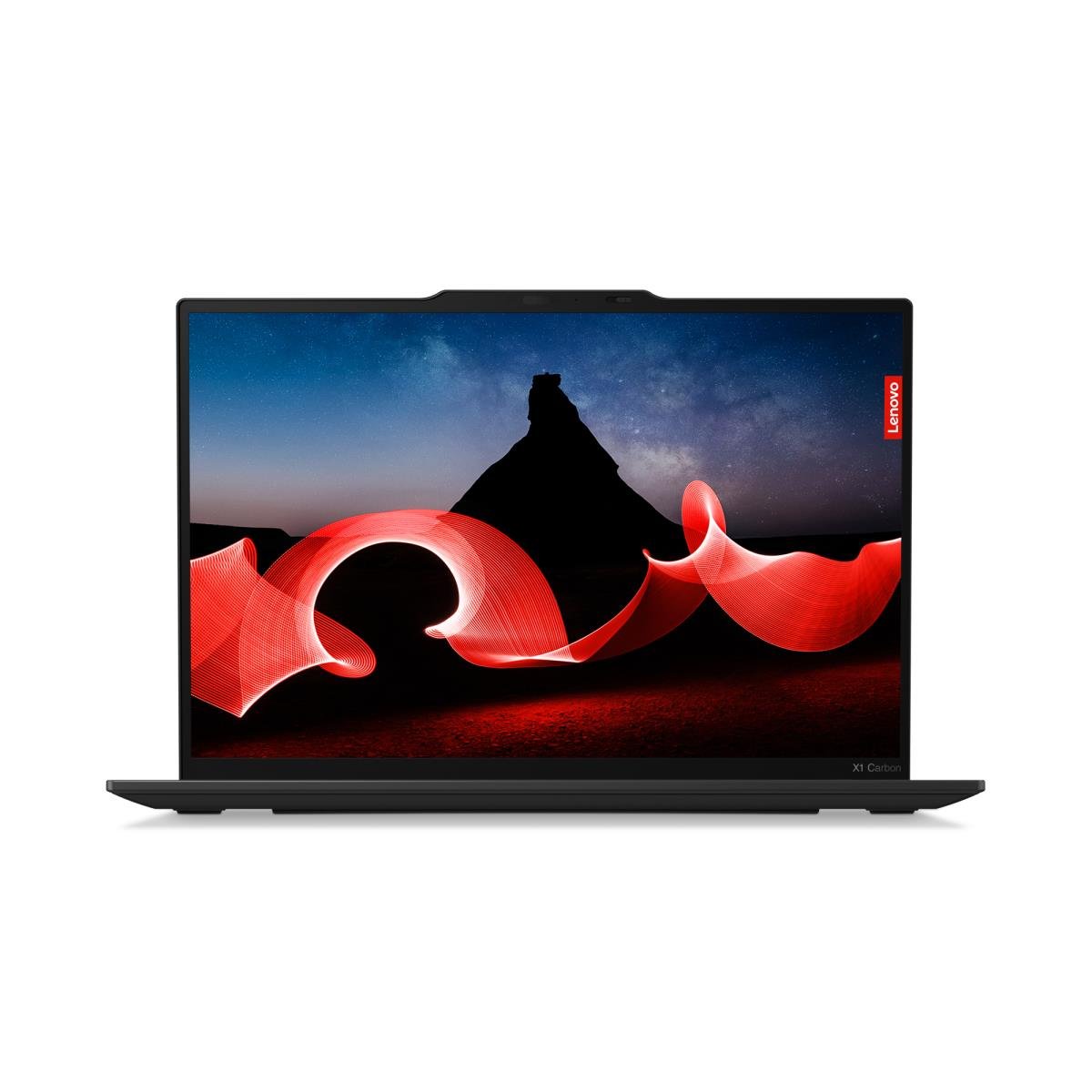

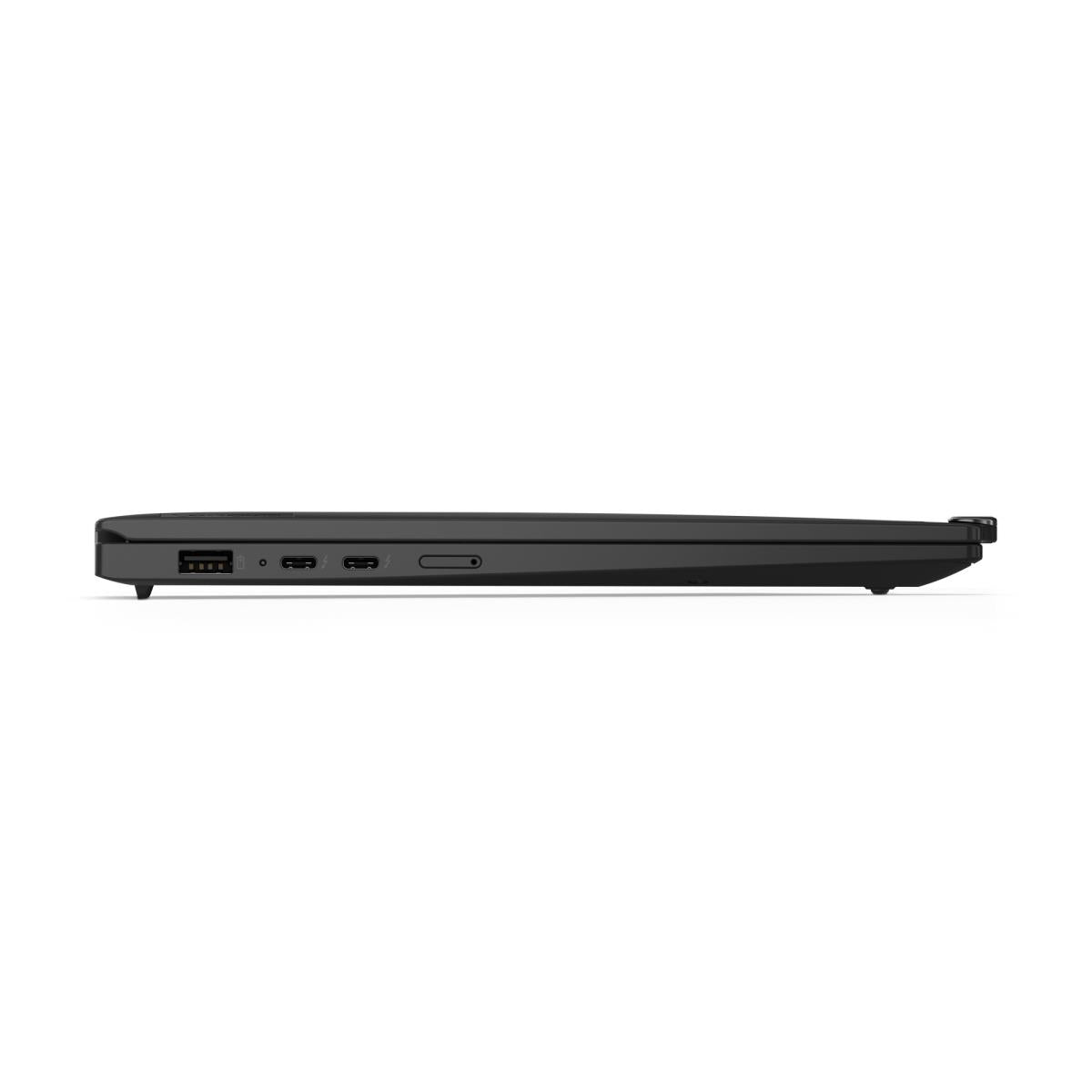

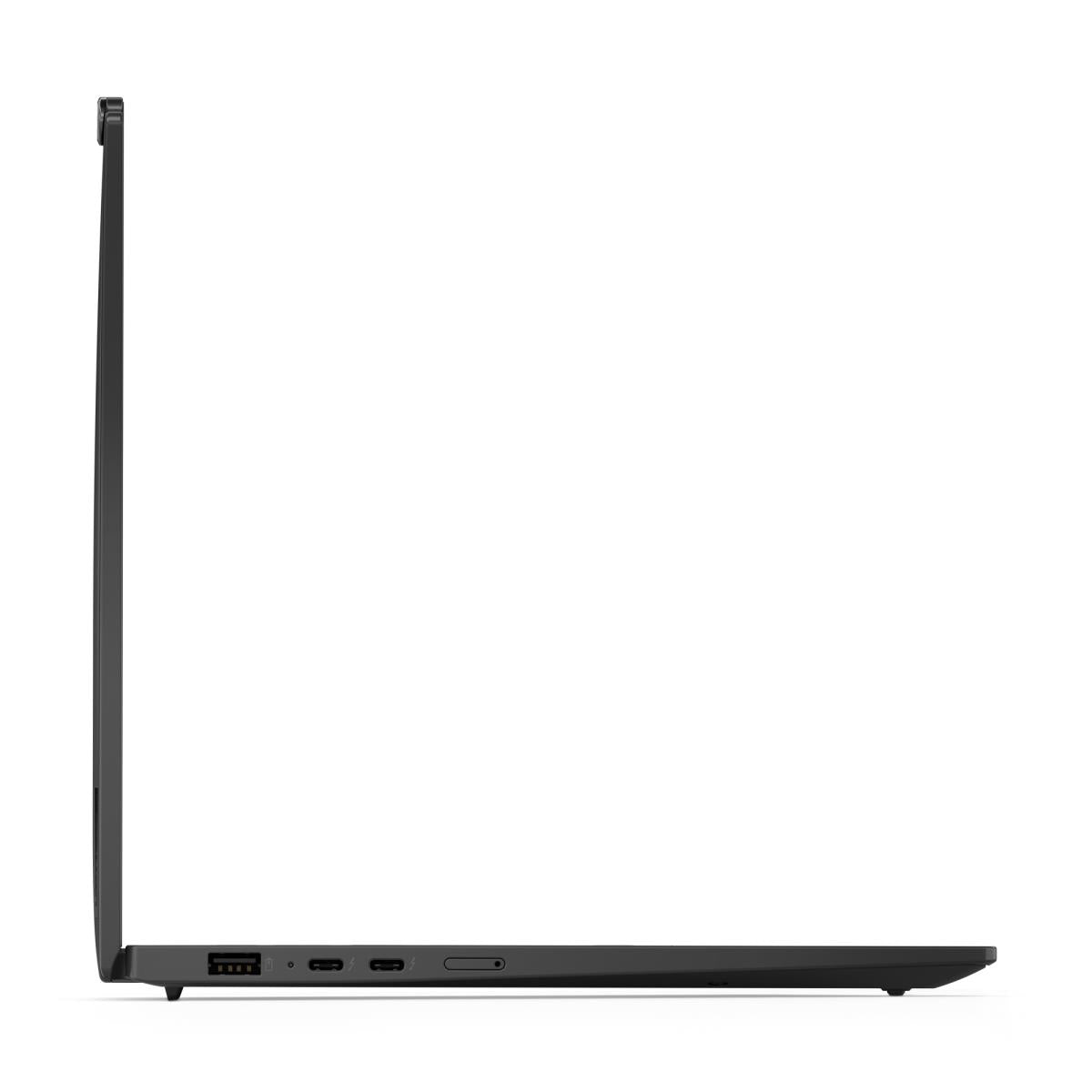

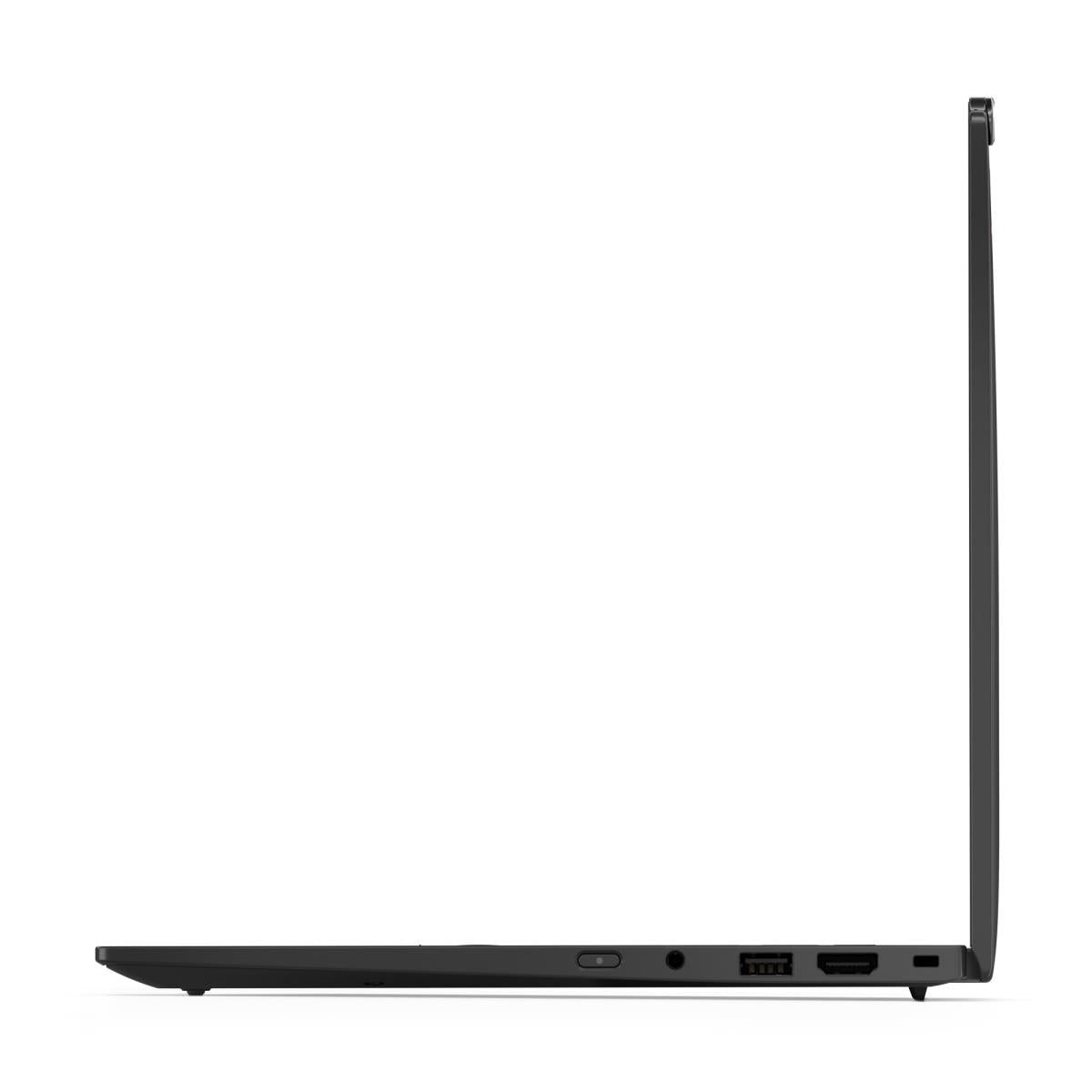

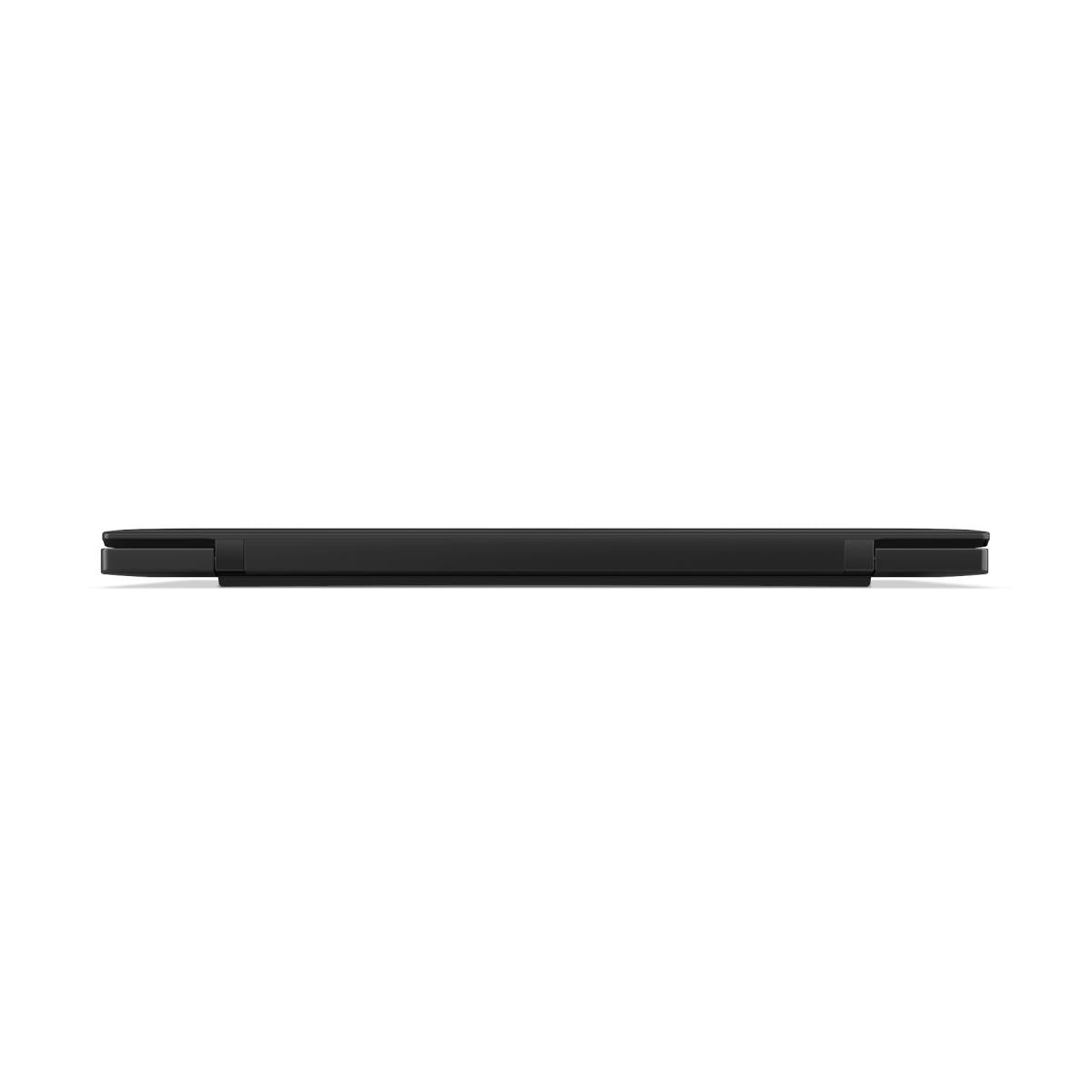

The Lenovo ThinkPad X1 Carbon Gen 12 embodies the perfect harmony between executive design and dependable performance. Built for professionals who demand excellence, this premium Ultrabook delivers a seamless user experience in a sleek, ultra-light chassis. Whether you're navigating high-stakes meetings or remote work sessions, it offers enduring comfort, security, and reliability every step of the way.
Its intelligent design, thoughtful features, and sustainable build speak to a future-focused mindset empowering users to stay agile, focused, and connected in a fast-paced digital world.
Think Premium. Work Anywhere.
| Quick Specs: | • Processor - Intel Core Ultra 7 155U • Graphics - Intel Graphics • Memory - 16GB / 32GB RAM • Storage - 1TB SSD • Resolution - WUXGA 1920 x 1200 IPS • Panel size - 14-inch • Battery - 57-Wh Lithium Polymer |
||
Full Specifications:
| Design | |
|
Colour name
|
Black, Paint
|
|
Product type
|
Laptop
|
| Product colour | Black |
| Form Factor | Clamshell |
| Housing Material | Aluminium, Carbon fibre |
|
Display
|
|
|
Display diagonal
|
35.6 cm (14")
|
|
Display resolution
|
1920 x 1200 pixels
|
|
Touchscreen
|
No
|
|
HD type
|
WUXGA
|
|
Panel type
|
IPS
|
|
LED backlight
|
Yes
|
|
Native aspect ratio
|
16:10
|
|
Anti-glare screen
|
Yes
|
|
Display brightness
|
400 cd/m²
|
|
RGB colour space
|
sRGB
|
|
Colour gamut
|
100%
|
|
Maximum refresh rate
|
60 Hz
|
|
Contrast ratio (typical)
|
1000:01:00
|
|
Processor
|
|
|
Processor manufacturer
|
Intel
|
|
Processor family
|
Intel Core Ultra 7
|
|
Processor generation
|
Intel Core Ultra (Series 1)
|
|
Processor model
|
155U
|
|
Processor cores
|
12
|
|
Processor threads
|
14
|
|
Processor boost frequency
|
4.8 GHz
|
|
Performance cores
|
2
|
|
Efficient cores
|
8
|
|
Low Power Efficient-cores
|
2
|
|
Performance-core Max Turbo Frequency
|
4.8 GHz
|
|
Efficient-core Max Turbo Frequency
|
3.8 GHz
|
|
Low Power Efficient-core Max Turbo Frequency
|
2.1 GHz
|
|
Performance-core base frequency
|
1.7 GHz
|
|
Efficient-core base frequency
|
1.2 GHz
|
|
Low Power Efficient-core Base Frequency
|
700 MHz
|
|
Processor cache
|
12 MB
|
|
Processor cache type
|
Smart Cache
|
|
Processor base power
|
15 W
|
|
Maximum turbo power
|
57 W
|
|
Neural processor unit (NPU)
|
|
|
Neural processor unit (NPU)
|
Intel AI Boost
|
|
Maximum frequency NPU
|
1.4 GHz
|
|
Sparsity support
|
Yes
|
|
Windows Studio effects support
|
Yes
|
|
AI datatype support on NPU
|
FP16, FP32, Int8
|
|
AI software frameworks supported by NPU
|
DirectML, ONNX RT, OpenVINO, Windows ML
|
|
Memory
|
|
|
Internal memory
|
16 GB or 32 GB
|
|
Internal memory type
|
LPDDR5x-SDRAM
|
|
Memory clock speed
|
6400 MHz
|
|
Memory form factor
|
On-board
|
|
Maximum internal memory
|
32 GB
|
|
Memory channels
|
Dual-channel
|
|
Storage
|
|
|
Total storage capacity
|
1 TB
|
|
Storage media
|
SSD
|
|
Total SSDs capacity
|
1 TB
|
|
Number of SSDs installed
|
1
|
|
SSD capacity
|
1 TB
|
|
SSD interface
|
PCI Express 4.0
|
|
NVMe
|
Yes
|
|
SSD form factor
|
M.2
|
|
Optical drive type
|
No
|
|
Card reader integrated
|
No
|
|
Graphics
|
|
|
Discrete graphics card model
|
Not available
|
|
On-board graphics card
|
Yes
|
|
On-board GPU manufacturer
|
Intel
|
|
Discrete graphics card
|
No
|
|
On-board graphics card model
|
Intel Graphics
|
|
Audio
|
|
|
Audio chip
|
Realtek ALC3306
|
|
Audio system
|
Dolby Atmos
|
|
Number of built-in speakers
|
2
|
|
Speaker power
|
2 W
|
|
Built-in microphone
|
Yes
|
|
Number of microphones
|
2
|
|
Camera
|
|
|
Front camera
|
Yes
|
|
Front camera resolution
|
1920 x 1080 pixels
|
|
Front camera HD type
|
Full HD
|
|
Infrared (IR) camera
|
Yes
|
|
Privacy camera
|
Yes
|
|
Privacy type
|
Privacy shutter
|
|
Network
|
|
|
Mobile network generation
|
5G
|
|
Top Wi-Fi standard
|
Wi-Fi 6E (802.11ax)
|
|
Wi-Fi standards
|
Wi-Fi 6E (802.11ax)
|
|
Mobile network connection
|
Yes
|
|
Antenna type
|
2x2
|
|
WLAN controller model
|
Intel Wi-Fi 6E AX211
|
|
WLAN controller manufacturer
|
Intel
|
|
Ethernet LAN
|
No
|
|
Bluetooth
|
Yes
|
|
Bluetooth version
|
5.3
|
|
Near Field Communication (NFC)
|
No
|
|
WWAN
|
Installed
|
|
WWAN controller
|
Quectel RM520N-GL
|
|

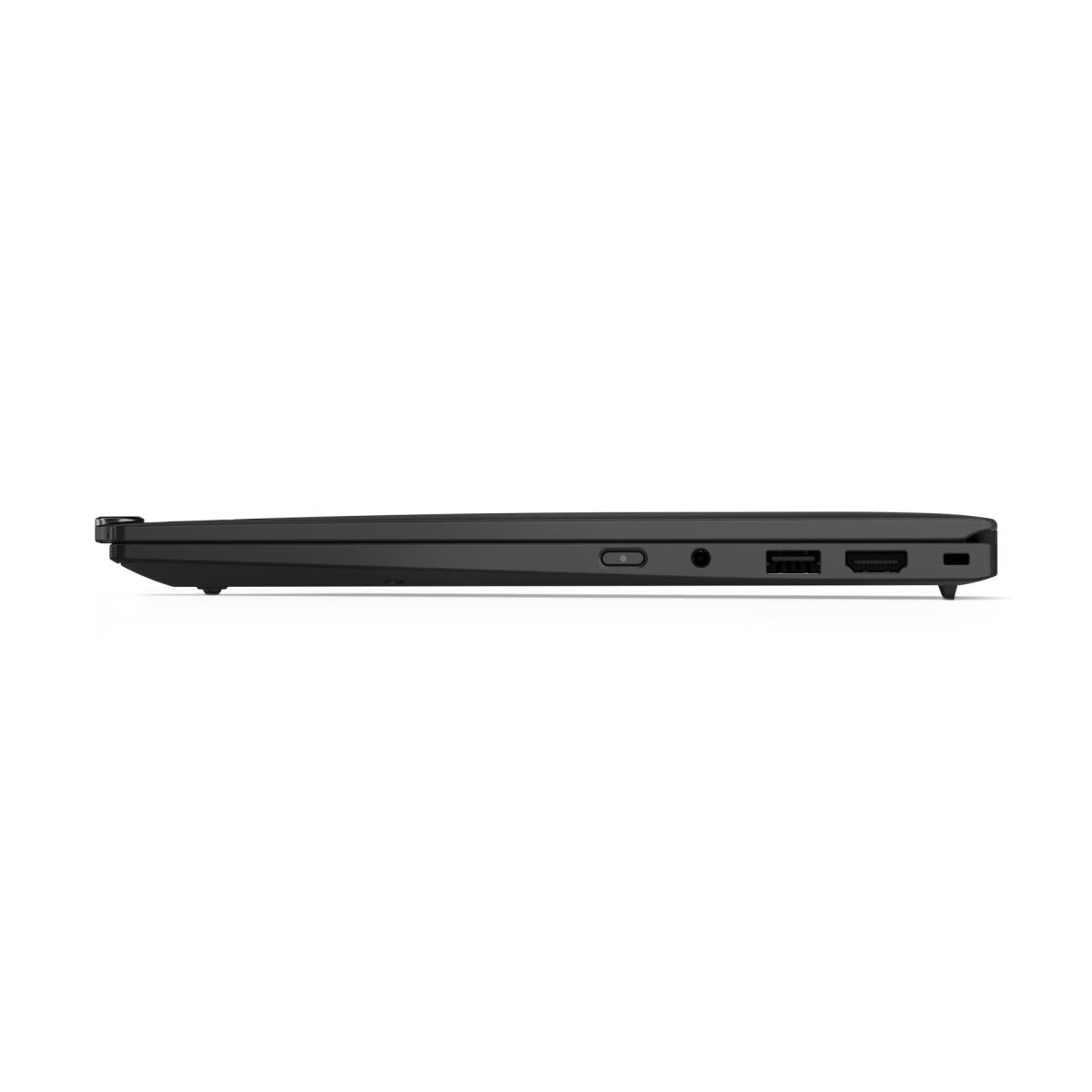

Ports & interfaces
|
|
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
|
2
|
|
HDMI ports quantity
|
1
|
|
HDMI version
|
2.1
|
|
Thunderbolt 4 ports quantity
|
2
|
|
Intel® Thunderbolt 4
|
Yes
|
|
Combo headphone/mic port
|
Yes
|
|
USB Type-C DisplayPort Alternate Mode
|
Yes
|
|
USB Power Delivery
|
Yes
|
|
USB Sleep-and-Charge
|
Yes
|
|
USB Sleep-and-Charge ports
|
1
|
|
Performance
|
|
|
Motherboard chipset
|
Intel SoC
|
|
Keyboard
|
|
|
Pointing device
|
ThinkPad UltraNav
|
|
Keyboard language
|
Belgian
|
|
Numeric keypad
|
No
|
|
Keyboard backlit
|
Yes
|
|
Spill-resistant keyboard
|
Yes
|
|
Software
|
|
|
Operating system architecture
|
64-bit
|
|
Operating system language
|
German, Dutch, English, French, Italian
|
|
Operating system installed
|
Windows 11 Pro
|
|
Bundled software
|
Intel Connectivity Performance Suite
|
|
Battery
|
|
|
Battery technology
|
Lithium Polymer (LiPo)
|
|
Battery capacity
|
57 Wh
|
|
Fast charging
|
Yes
|
|
Power
|
|
|
AC adapter power
|
65 W
|
|
AC adapter frequency
|
50/60 Hz
|
|
AC adapter input voltage
|
100 - 240 V
|
|
Security
|
|
|
Cable lock slot
|
Yes
|
|
Cable lock slot type
|
Kensington
|
|
Fingerprint reader
|
Yes
|
|
Smart card reader
|
No
|
|
Windows Hello
|
Yes
|
|
Trusted Platform Module (TPM)
|
Yes
|
|
Trusted Platform Module (TPM) version
|
2
|
|
Password protection
|
Yes
|
|
Password protection type
|
BIOS, Power on, Supervisor, SSD
|
|
Operational conditions
|
|
|
Operating temperature (T-T)
|
5 - 35 °C
|
|
Storage temperature (T-T)
|
5 - 43 °C
|
|
Operating relative humidity (H-H)
|
8 - 95%
|
|
Storage relative humidity (H-H)
|
5 - 95%
|
|
Maximum shipping altitude
|
3048 m
|
|
Certificates
|
|
|
Compliance certificates
|
RoHS
|
|
Certification
|
MIL-STD-810H military test passed
|
|
Sustainability
|
|
|
Sustainability compliance
|
Yes
|
|
Sustainability certificates
|
TCO, ENERGY STAR, EPEAT Gold, ErP
|
|
Weight & dimensions
|
|
|
Width
|
312.8 mm
|
|
Depth
|
214.8 mm
|
|
Height
|
15 mm
|
|
Weight
|
1.09 kg
|
