The Tenda 4G180 V4 is a compact portable 4G LTE mobile Wi-Fi hotspot designed for reliable internet access on the go. Powered by Wi-Fi 6 technology, it delivers wireless speeds of up to 300Mbps and supports 4G LTE download speeds of up to 150Mbps. It features a 2100mAh rechargeable battery that provides up to 8.5 hours of usage, a USB-C charging port, and compatibility with over 4000 global carrier SIM cards. With its lightweight design, Nano SIM support, WPA3 security, and plug-and-play setup, the 4G180 V4 is ideal for travel, remote work, and outdoor connectivity.
SPECIFICATION:
|
HARDWARE
|
|
|
4G Category
|
LTE CAT.4
|
|
4G/3G Standards
|
FDD LTE,TDD-LTE,WCDMA
|
|
Working Bands
|
• 4G FDD_LTE:B1/B3/B5/B7/B8/B20
• 4G TDD-LTE:Band38/Band40/Band41
• 3G WCDMA:B1/B5/B8
|
|
Max 4G speed
|
DL:150Mbps UL:50Mbps
|
|
Wi-Fi Standards
|
802.11b/g/n/ax
|
|
Wi-Fi Frequency
|
2.4GHz
|
|
Wi-Fi Speed
|
Wi-Fi 6; 2.4GHz:286Mbps
|
|
Wi-Fi Transmit Power
|
2.4GHz:up to 20dBm
|
|
USB Port
|

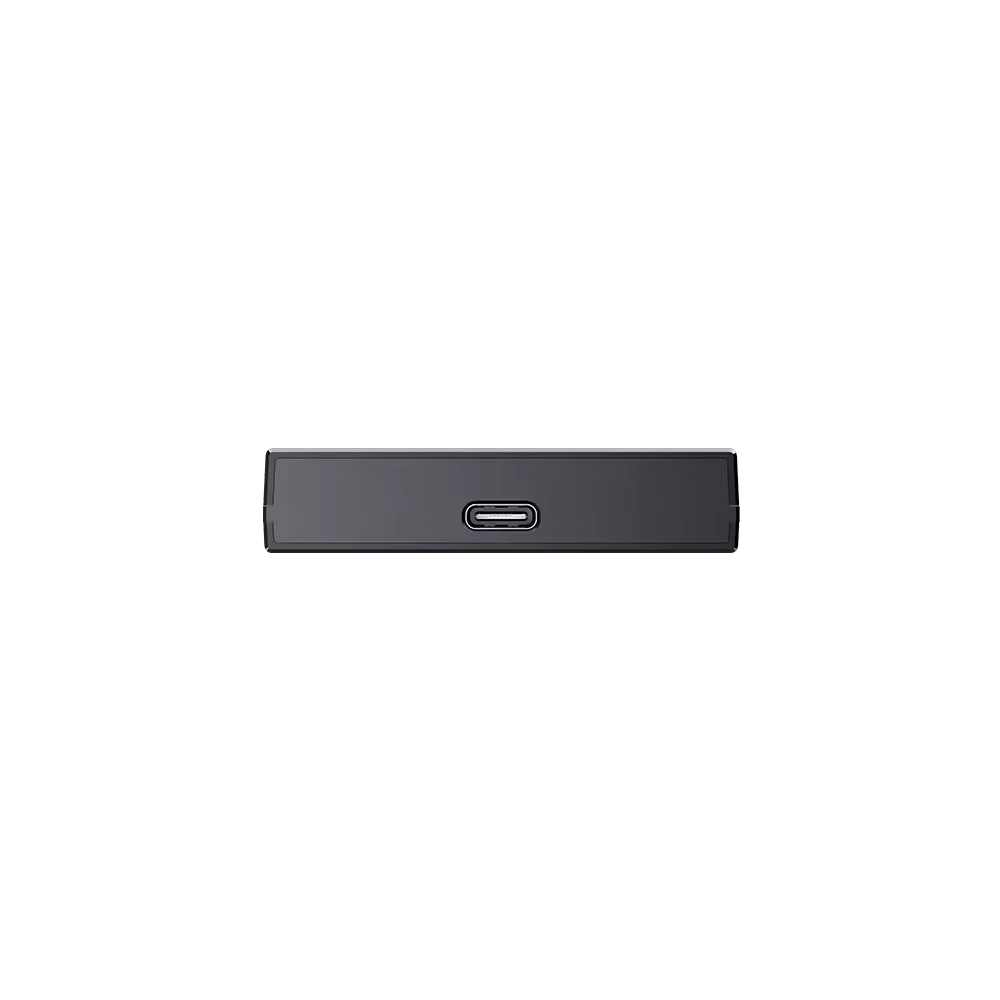

USB-C port
|
|
SIM Slot
|
Nano SIM slot
|
|
Button
|
• Power on/off
• Reset hole
|
|
Antennas
|
• 2 Internal 4G/3G Antennas
• 1 Internal Wi-Fi Antenna
|
|
Indicator
|
• 3 LED indicators
• Internet status
• Wi-Fi status
• Battery status
|
|
Battery
|
• Type: Li (rechargeable)
• Capacity: 3.8V, 2100 mAh,7.98Wh
• Working time: up to 8.5 hours （depending on the network）
• Standby time: up to 168 hours （depending on the network）
|
|
SOFTWARE
|
|
|
WAN Type
|
4G/3G
|
|
4G/3G Features
|
• Auto-APN
• Auto Dial-up
• Roaming
• SMS(Send/Receive/Delete)
• Data limited
• Power save
• PIN Management
• USB Tethering
|
|
Wi-Fi security
|
WPA3-PSK/WPA2-PSK, WPA-PSK/WPA2-PSK
|
|
Software features
|
• Local management
• DHCP Server
• QOS
• Upgrade firmware from local or OTA
• IPV4/IPV6
|
|
CERTIFICATION
|
|
|
Certifications
|
• CE Granted
• ROHS Granted
• IPV6 Host
|
|
WORKING EVIRONMENT
|
|
|
Temperature
|
Operating Temperature: 0℃~35℃
|
|
Humidity
|
Storage Humidity: 5% ~ 90% RH Non-condensing
|
|
PACKAGE CONTENTS
|
|
|
Package Contents:
|
• 1 * Mobile Wi-Fi
• 1 * USB-C cable
• 1 * Rechargeable Battery
• 1 * Quick Installation Guide
|
