Description

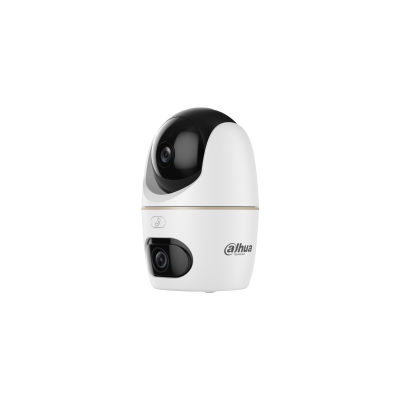

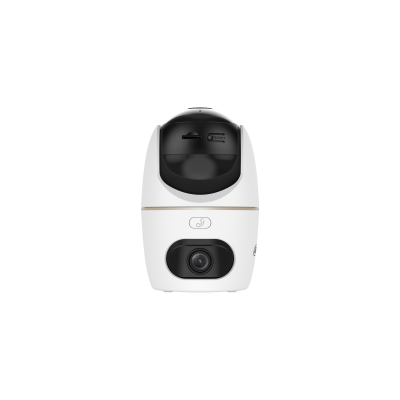

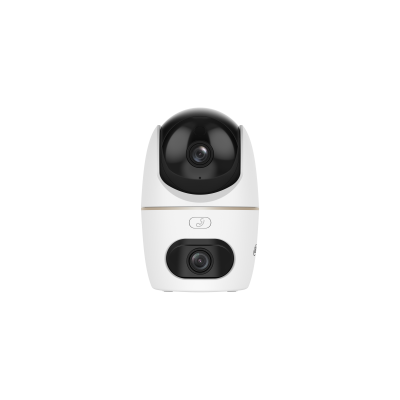

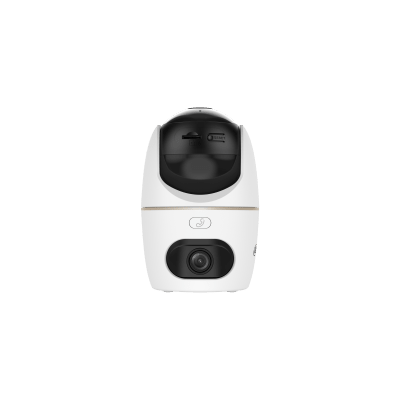

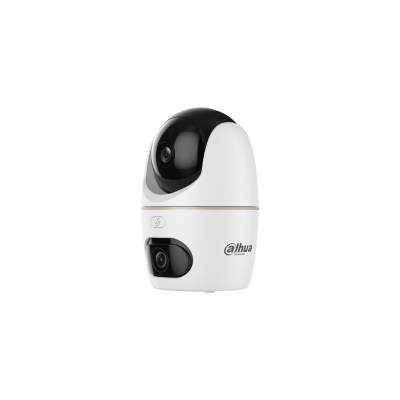

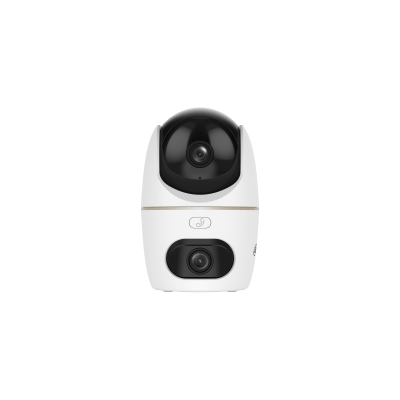

The Dahua H3D-3F is a smart indoor dual-lens Wi-Fi security camera designed to provide wider coverage, intelligent tracking, and detailed 3MP + 3MP surveillance for homes and small businesses. Featuring both a fixed lens and a pan-and-tilt lens, it allows simultaneous monitoring of two areas with 360° coverage and minimal blind spots. It supports AI-powered human and pet detection, auto tracking, full-color and infrared night vision, and sound and light alarms for more accurate real-time security monitoring.
With built-in two-way audio, Wi-Fi 6 connectivity, Bluetooth pairing, and support for microSD storage up to 256GB, the H3D-3F offers convenient remote access and reliable wireless performance through the DMSS mobile app. Its compact design and smart dual-view functionality make it ideal for monitoring homes, offices, stores, and indoor spaces with enhanced visibility and flexible control.
|
Camera（2.8 mm +6 mm） |
|
|
Fixed Lens |
|
|
Image Sensor |
1/3.2'' CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
|
Illuminator Number |
2 (IR LED) |
|
Angle Adjustment |
0° to 15° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
2.8 mm |
|
Max. Aperture |
F2.0 |
|
Field of View |
H: 90°; V: 50°; D: 105° |
|
|
|
|
PT Lens |
|
|
Image Sensor |
1/3.2'' CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
|
Illuminator Number |
2 (IR LED); 1 (Warm light) |
|
Angle Adjustment |
Pan: 0° to 349° Tilt: –5° to 90° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
6 mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 44°; V: 24°; D: 52° |
|
Camera (3.6 mm+3.6 mm) |
|
|
Fixed Lens |
|
|
Image Sensor |
1/3.2'' CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
|
Illuminator Number |
2 (IR LED) |
|
Angle Adjustment |
0° to 15° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
3.6 mm |
|
Max. Aperture |
F2.0 |
|
Field of View |
H: 79°; V: 43°; D: 94° |
|
|
|
|
PT Lens |
|
|
Image Sensor |
1/3.2'' CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
|
Illuminator Number |
2 (IR LED); 1 (Warm light) |
|
Angle Adjustment |
Pan: 0° to 349° Tilt: –5° to 90° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
3.6 mm |
|
Max. Aperture |
F2.0 |
|
Field of View |
H: 79°; V: 43°; D: 94° |
|
Audio and Video |
|
|
Video Compression |
H.265 |
|
Video Frame Rate |
Main stream: 2304 × 1296@15 fps |
|
Video Bit Rate |
H.265: 512 kbps–4096 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
WDR |
DWDR |
|
Motion Detection |
Yes |
|
Image Rotation |
0°/180° |
|
Built-in MIC |
Yes, built-in Mic |
|
Built-in Speaker |
Yes, built-in speaker |
|
Audio Compression |
G.711a |
|
Network |
|
|

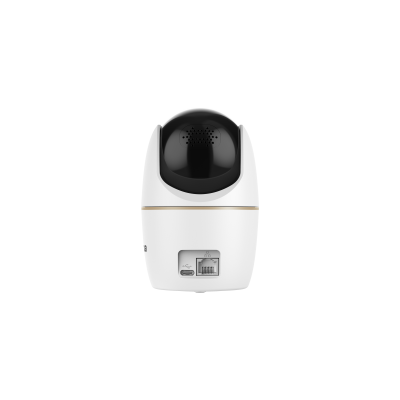

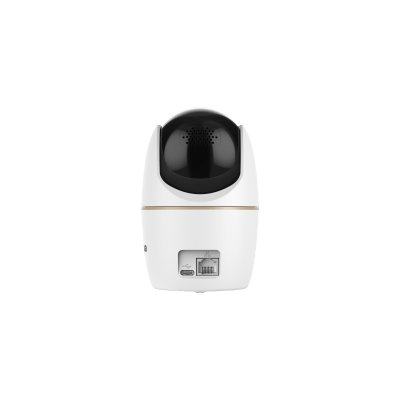

Network Port |
RJ-45 (10/100 Base-T) |
|
Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz |
|
Wi-Fi Pairing |
Bluetooth pairing |
|
Storage |
Micro SD card (support max. 256 GB) |
|
Management Software |
DMSS |
|
Mobile Client |
iOS;Android |
|
Function |
|
|
Abnormal Sound Alarm |
Yes |
|
Privacy Mode |
Yes |
|
General |
|
|
Certifications |
CE |
|
Power Supply |
5 VDC |
|
Power Consumption |
Basic: 2.3 W |
|
Operating Temperature |
–10 °C to +45 °C (–4 °F to +113 °F) |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Casing Material |
Plastic |
|
Product Dimensions |
Φ80.9 mm × 125.7mm (3.19" × Φ4.95") |
|
Net Weight |
233 g (0.51 lb) |
