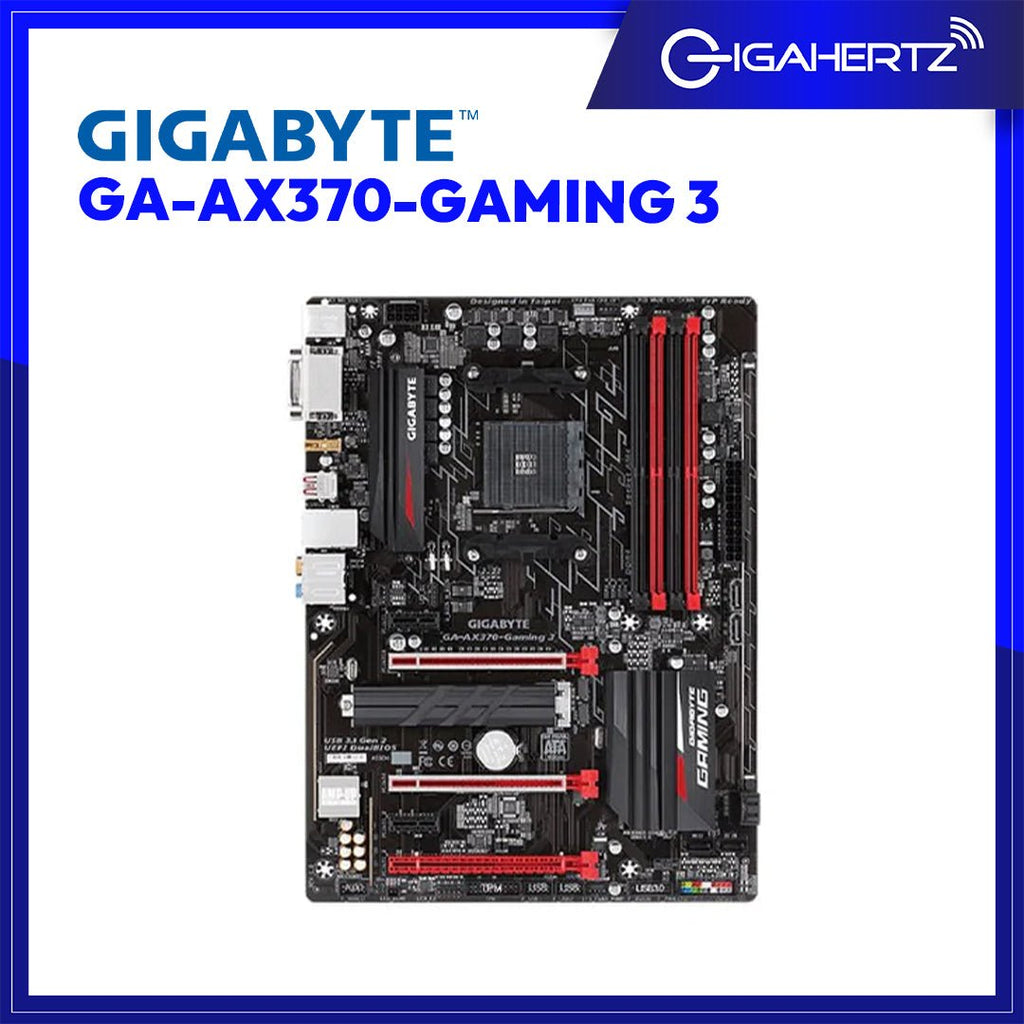

Description
Key Features:
- Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Fast 2 USB 3.1 Gen 2 with USB Type-A
- 2-Way CrossFire™ Multi-Graphics Support with Ultra Durable™ Metal Shielding over PCIe Slots
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- ALC1220 120dB SNR HD Audio with Smart Headphone Amp
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- USB DAC-UP 2 & 2 Front USB 3.0 Ports with Adjustable Voltage
- RGB FUSION with Multi-Zone LED Light Show design
- Swappable Overlay for Accent LED
- Smart Fan 5 features 6 Temperature Sensors and 5 Hybrid Fan Headers
- GIGABYTE™ UEFI DualBIOS™
- APP Center Including EasyTune™ and Cloud Station™ Utilities
Full Specifications:
| Component | Specification |
|---|---|
| CPU | |
| Socket | AM4 |
| Supported CPUs | AMD 5000 Series, 5000 G-Series, 4000 G-Series, 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, 2nd Gen Ryzen with Radeon Vega Graphics, 1st Gen Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics |
| Chipset | AMD X370 |
| Memory | |
| DIMM Slots | 4 x DDR4 DIMM sockets supporting up to 64 GB |
| Memory Support | DDR4 3200(O.C.)/2933(O.C.)/2667/2400/2133 MHz, ECC and non-ECC support, Extreme Memory Profile (XMP) support |
| Onboard Graphics | |
| Integrated Graphics | 1 x DVI-D port, 1 x HDMI port |
| Maximum Shared Memory | 2 GB |
| Audio | |
| Audio Codec | Realtek ALC1220 codec |
| Channels | 2/4/5.1/7.1-channel |
| LAN | |
| LAN Chip | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | |
| PCIe Slots | 1 x PCIe x16 (PCIEX16), 1 x PCIe x16 (PCIEX4), 1 x PCIe x16 (PCIEX1_3), 2 x PCIe x1 |
| Multi-Graphics Tech | |
| Multi-Graphics Technology | Support for 2-Way AMD CrossFire™ Technology |
| Storage Interface | |
| M.2 Connector | 1 x M.2 (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support) |
| SATA Connectors | 6 x SATA 6Gb/s connectors |
| USB | |
| Chipset USB Ports | 2 x USB 3.1 Gen 2 Type-A ports (red), 2 x USB 3.1 Gen 1 ports (internal), 5 x USB 2.0/1.1 ports (1 port on back panel, 4 ports internal) |
| CPU USB Ports | 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | |
| Power Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector |
| Fan Headers | 1 x CPU fan, 2 x system fan, 1 x system fan/water cooling pump |
| Other Connectors | 1 x M.2, 6 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x S/PDIF Out, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM, 1 x CPU cooler LED strip/RGB LED strip extension cable header, 1 x RGB (RGBW) LED strip extension cable header, 1 x Clear CMOS jumper |
| Back Panel Connectors | |
| Ports | 1 x PS/2, 1 x DVI-D, 1 x HDMI, 4 x USB 3.1 Gen 1, 2 x USB 3.1 Gen 2 Type-A (red), 1 x USB 2.0/1.1, 1 x RJ-45, 1 x optical S/PDIF Out, 5 x audio jacks |
| BIOS | |
| ROM | 2 x 128 Mbit flash |
| Features | DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | |
| Software | APP Center, Norton Internet Security (OEM version), cFosSpeed |
| Utilities | 3D OSD, AutoGreen, BIOS Setup, Cloud Station, Color Temperature, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, System Information Viewer, USB Blocker, USB DAC UP 2, V-Tuner, Q-Flash, Xpress Install |
| Operating System | |
| Supported OS | Windows 10 64-bit, Windows 7 64-bit |
| Form Factor | |
| Size | ATX Form Factor (30.5cm x 23.0cm) |
| Remark | |
| Note | Due to different Linux support conditions provided by chipset vendors, please download Linux drivers from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, they will be updated on the GIGABYTE website. |
