Description
Full Specs:
| Processor: Intel Pentium Gold G6400 (2C / 4T, 4.0GHz, 4MB) |
| Graphics: Integrated Intel UHD Graphics 610 |
| Chipset: Intel B460 |
| Memory: 1x 4GB UDIMM DDR4-2933 |
| Memory Slots: Two DDR4 UDIMM slots, dual-channel capable |
| Max Memory: Up to 32GB DDR4-2666 |
| Storage: 128GB SSD M.2 2242 PCIe NVMe + 1TB HDD 7200rpm 3.5" |
| Optane Memory: None |
| Storage Support: Up to 2 drives, 1x 3.5" HDD + 1x M.2 SSD ⢠3.5" HDD up to 2TB ⢠M.2 SSD up to 512GB ⢠Optional Intel Optane Memory Integrated with SSD, M.2 |
| Card Reader: 7-in-1 Card Reader |
| Optical: 9.0mm DVD±RW |
| Audio Chip: High Definition (HD) Audio, Realtek ALC222-CG codec |
| Power Supply: 180W 85% Energy Star |
| DESIGN |
| Keyboard: USB Calliope Keyboard, Black, English |
| Mouse: USB Calliope Mouse, Black |
| Expansion Slots: One PCIe 3.0 x1, low-profile |
| Two M.2 slots (one for WLAN, one for SSD) |
| One PCIe 3.0 x16, low-profile |
| Case Color: Mineral Grey |
| System Fan: None |
| Form Factor: SFF (7.4L) |
| Dimensions: (WxDxH) 100 x 274.5 x 312.5 mm (3.93 x 10.8 x 12.3 inches) |
| Weight: 4.35 kg (9.59 lbs) |
| CONNECTIVITY |
| Ethernet: Integrated 100/1000M |
| WLAN + Bluetooth: 11ac, 2x2 + BT5.0 |
| Front Ports: 1x headphone / microphone combo jack (3.5mm) |
| 4x USB 3.2 Gen 1 |
| 1x microphone (3.5mm) |
| Optional Front Ports: 1x card reader |

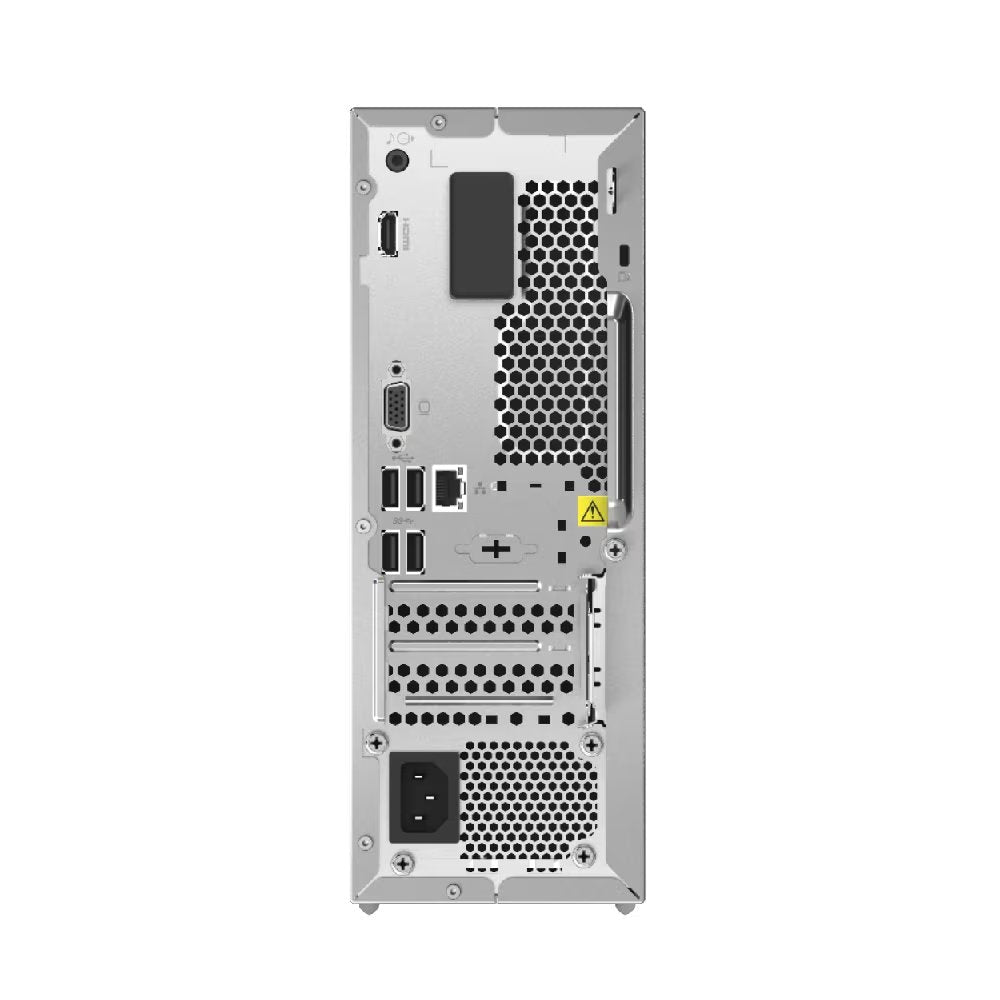

| Rear Ports: 1x VGA |
| 1x HDMI 1.4b |
| 1x Ethernet (RJ-45) |
| 2x USB 2.0 |
| 2x USB 3.2 Gen 1 |
| 1x line-out (3.5mm) |
