Description

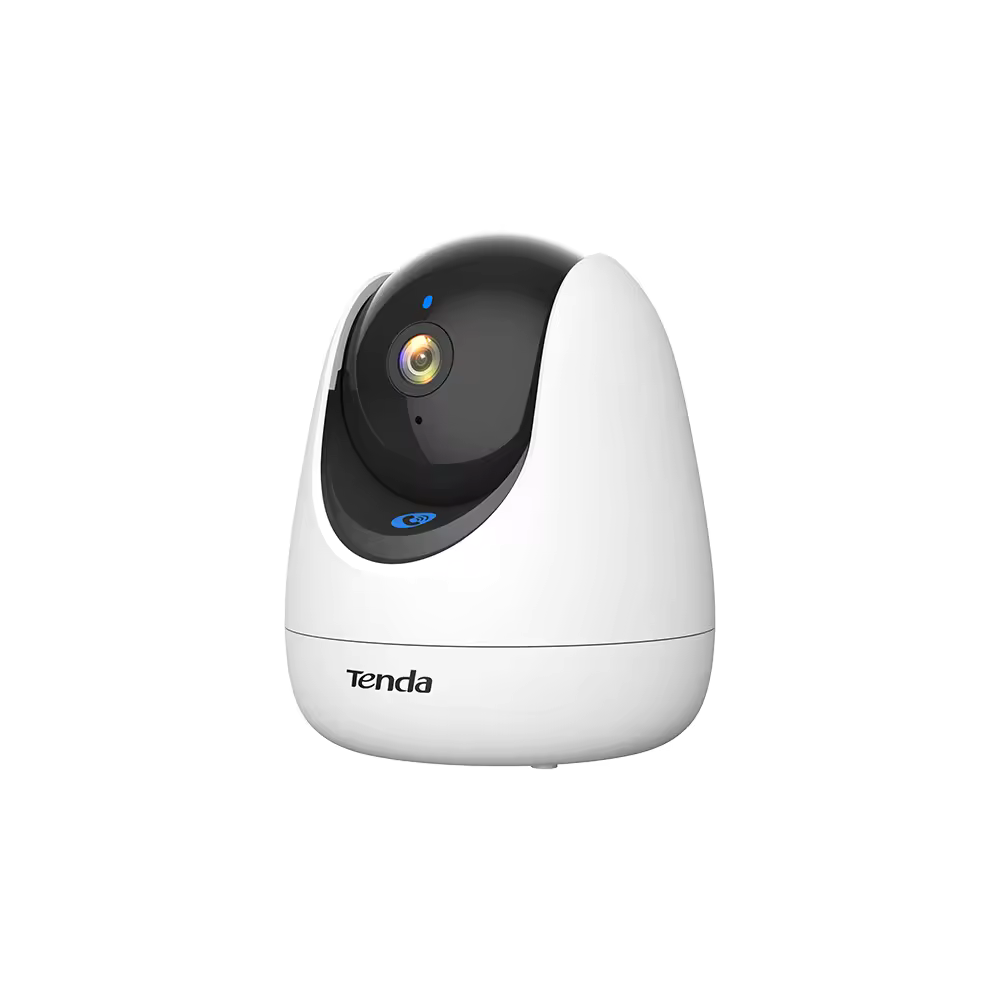

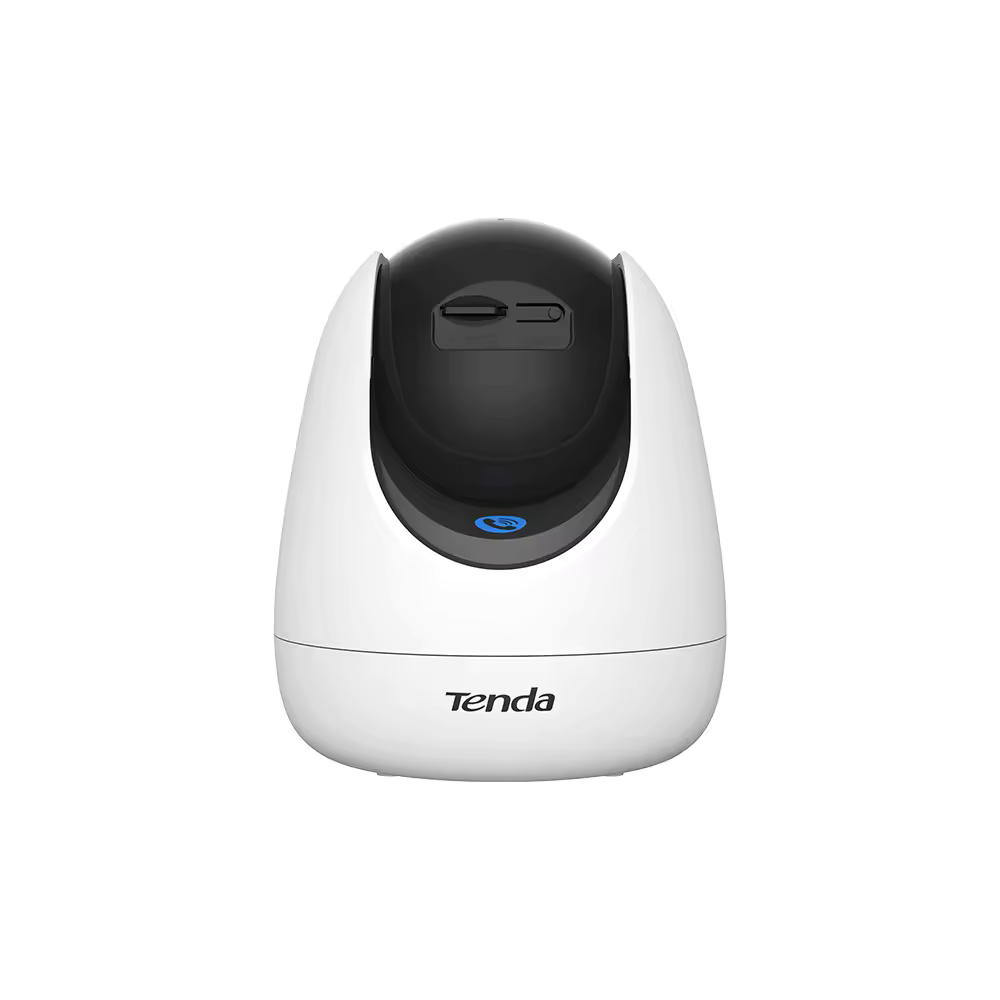

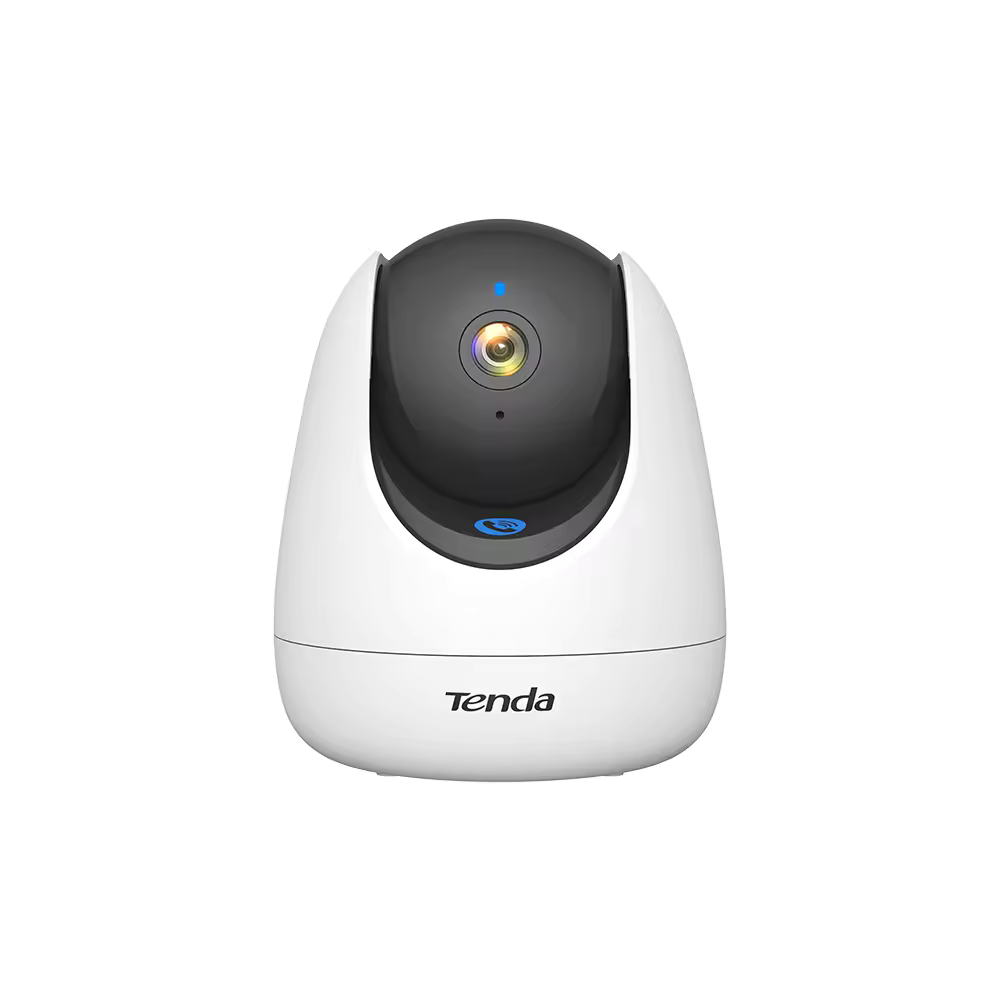

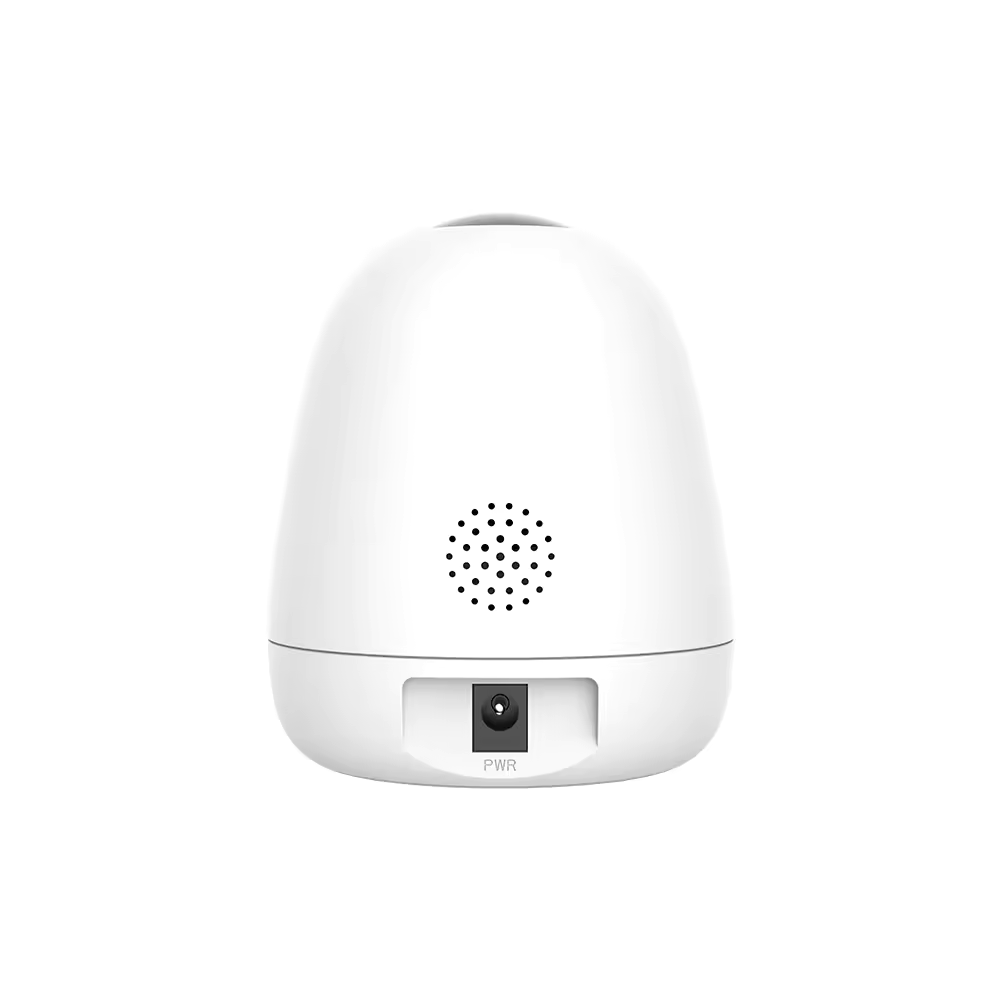

The Tenda CP3 Pro is a smart indoor pan-and-tilt security camera designed to provide reliable home monitoring with clear 3MP video resolution, intelligent AI detection, and flexible 360° coverage. Equipped with a progressive scan CMOS sensor, H.265 video compression, and infrared night vision up to 10 meters, it delivers smooth and detailed footage day or night while helping reduce bandwidth and storage usage. Its 355° horizontal and 90° vertical pan-and-tilt range, human and pet detection, baby crying alerts, and motion tracking allow for more accurate and responsive monitoring around the home. The camera also features two-way audio with one-touch calling, customizable sound and light alerts, local microSD storage support up to 256GB, and Wi-Fi 6 connectivity for stable wireless performance. With Alexa compatibility, privacy masking, and a compact design suitable for desktop or ceiling mounting, the Tenda CP3 Pro is an ideal solution for monitoring homes, nurseries, pets, and small office spaces with smart and convenient surveillance features.
|
Camera |
|
|
Image Sensor |
1/3 Progressive Scan CMOS sensor |
|
Day and Night |
ICR type |
|
Lens |
|
|
Focal Length |
4mm |
|
Aperture |
F2.0 |
|
FOV |
Horizontal FOV: 78°, Vertical FOV: 41.8°, Diagonal FOV: 95° |
|
Illuminator |
|
|
Supplementary Light |
2 IR Lights |
|
Supplementary Light Distance |
Up to 10 m/32 ft (depending on environment) |
|
IR Wavelength |
850nm |
|
Night Vision Mode |
Black & White Mode |
|
Video |
|
|
Video Encoding Format |
H.265, H.264 |
|
Main Stream Resolution |
2304 ×1296, 1920 × 1080, 1280 × 720 |
|
Sub Stream Resolution |
640 x 360 , 352 x 288 , 320x240 |
|
Frame Rate |
1-30fps, Default 20fps |
|
Bit Rate |
512kbps -- 4096kbps |
|
Bit Rate Control |
CBR,VBR |
|
Audio |
|
|
Audio Encoding Format |
G.711A, G.711U, AAC |
|
Audio Sampling Rate |
8 kHz |
|
Audio Communication |
Two-way Audio, One-touch Call |
|
Image |
|
|
Image Enhancement |
DWDR, BLC, HLC, 3D DNR |
|
Privacy Mask: |
4 Areas |
|
Network |
|
|
Ethernet Port |
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
|
ONVIF |
Support |
|
Protocols: |
• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • DNS • DDNS • RTP • RTSP • RTCP • NTP • ARP |
|
Client |
TDSEE (mobile phone), TDSEE STUDIO (PC) |
|
Web Browser |
Plug-in free live view: Chrome, Edge, Opera |
|
Pan & Tilt |
|
|
Pan Movement Range |
0°--355° |
|
Tilt Movement Range |
-65°--90° |
|
Preset |
6 |
|
Patrol |
Panoramic Patrol, Preset Patrol |
|
Wi-Fi |
|
|
Antenna |
Internal antenna |
|
Wireless Standard |
IEEE 802.11 b/g/n/ax |
|
Transmission Rate |
Up to 287Mbps |
|
Channel Width |
20/40 MHz |
|
Modulation |
DSSS/OFDM/OFDMA |
|
Frequency Band |
2.4GHz: 2412MHz-2472MHz(CH1-CH13) |
|
Transmit Power |
2.4GHz: <0.1W(EIRP) |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Alarm |
|
|
Smart Detection |
Motion Detection, Tempering Detection, Human Detection, Cry Detection, Pet Detection |
|
Smart Linkage |
Sound&light Alert, Dual-lens Linkage Tracking |
|
DIY Audio |
3 Customized Audios |
|
Interface |
|
|
Audio Input |
Built-in MIC, adjustable microphone volume |
|
Audio Output: |
Built-in Speaker, 68 dBA (Alarm sound at 1 meter), adjustable sound level |
|
Storage |
Built-in Micro SD Card Slot, Up to 512 GB |
|
Reset Button |
Support |
|
LED Indicator: |
Dual Color(red & blue) |
|
General |
|
|
Power |
9V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug |
|
Material |
Plastic |
|
Smart Integration |
Amazon Alexa |
|
Product Dimension |
103mm x 88mm x 88mm (4.1'' × 3.5'' × 3.5'') |
|
Package Dimension |
100mm x 100mm x 163mm (4.0'' × 4.0'' × 6.5'') |
|
Product Weight |
200g (0.44lb) |
|
With Package Weight |
420g (0.93lb) |
|
Installation Method |
Desktop, Ceiling Mounting |
|
Certification |
CE, RoHS, FCC, RCM, UKCA |
|
Temperature: |
• Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
|
Humidity: |
• Operating Humidity: 10% ~ 95% RH (non-condensing) • Storage Humidity: 3% ~ 95% RH (non-condensing) |
|
Package Contents |
•Camera •Power Adapter (cord length: 3m) •Installation Template •Mounting Bracket •Mounting Accessories Kit •Waterproof Kit •Quick Installation Guide |
