Description

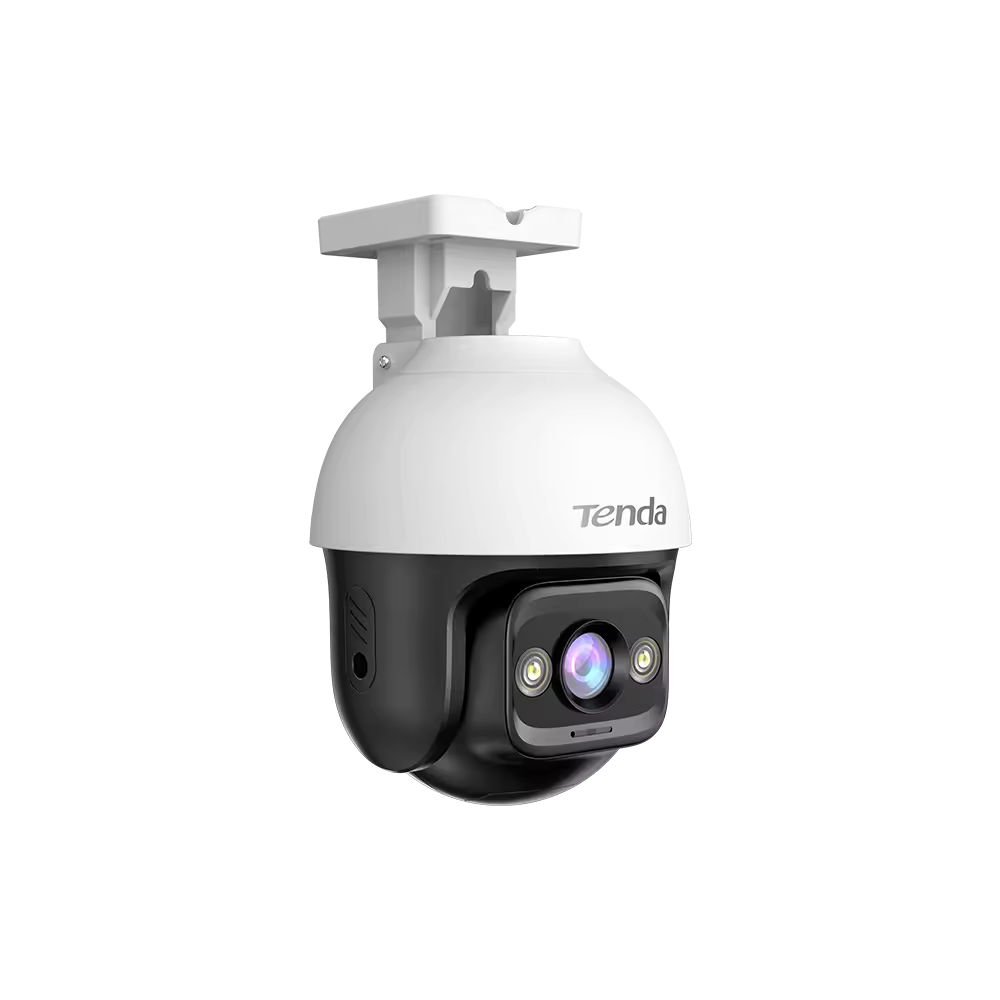

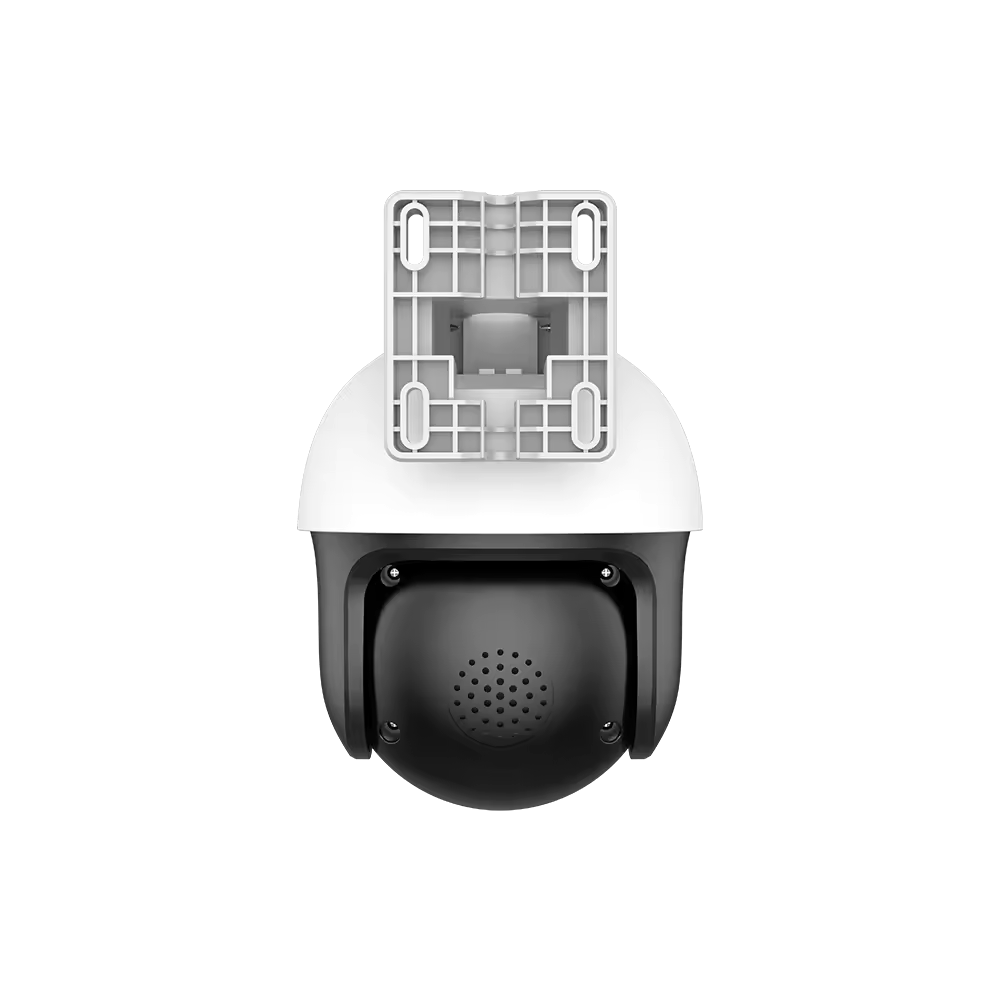

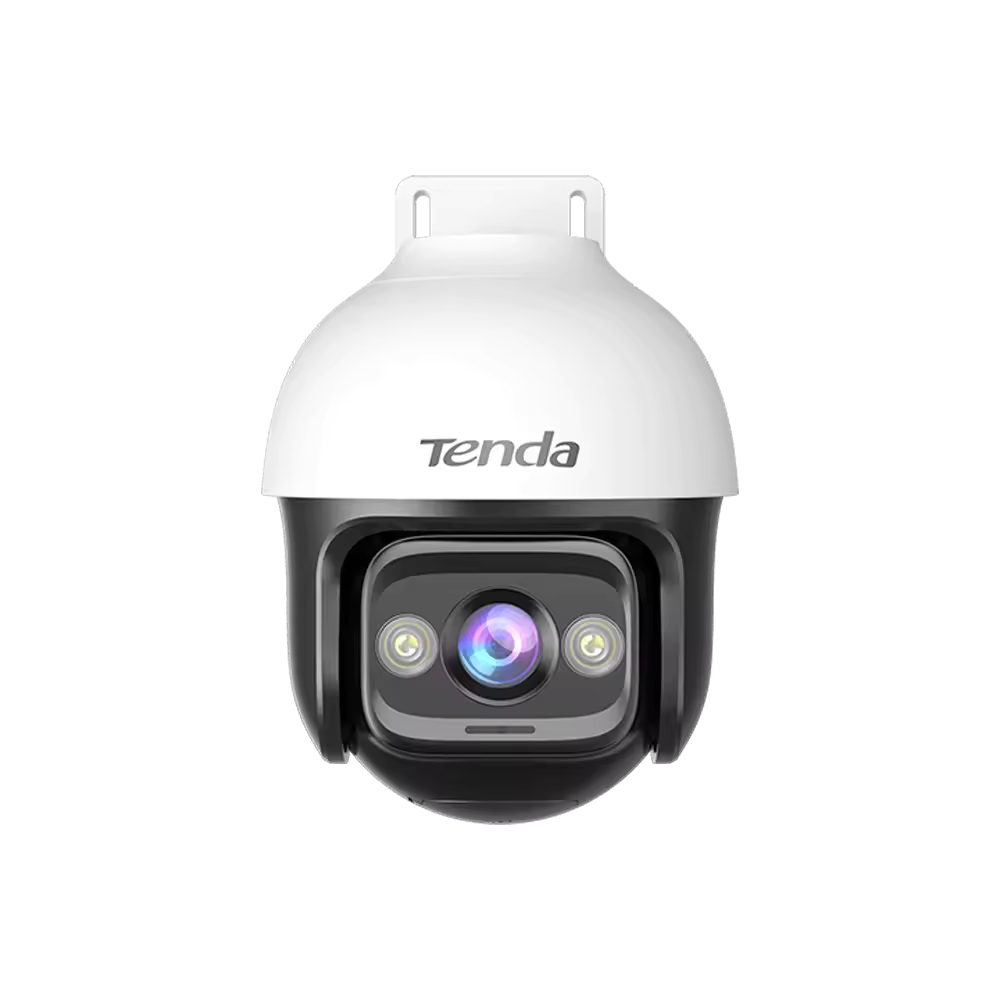

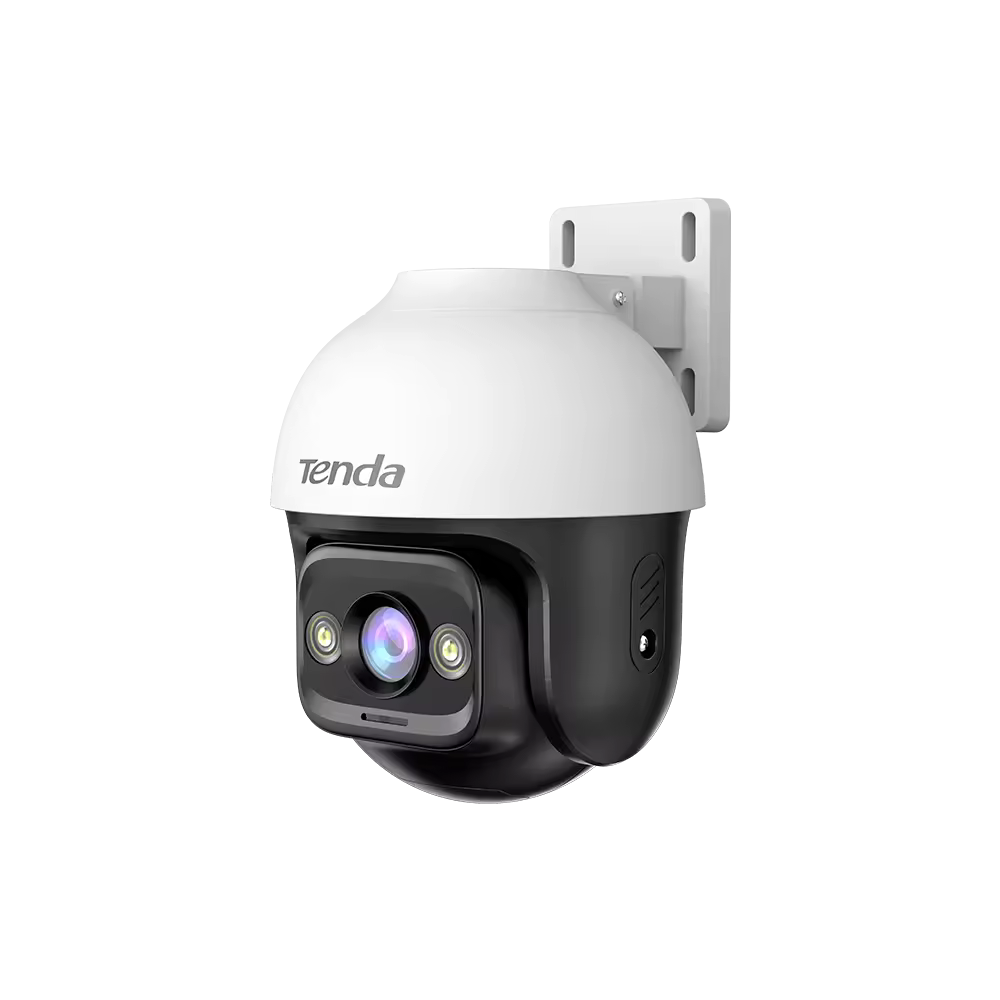

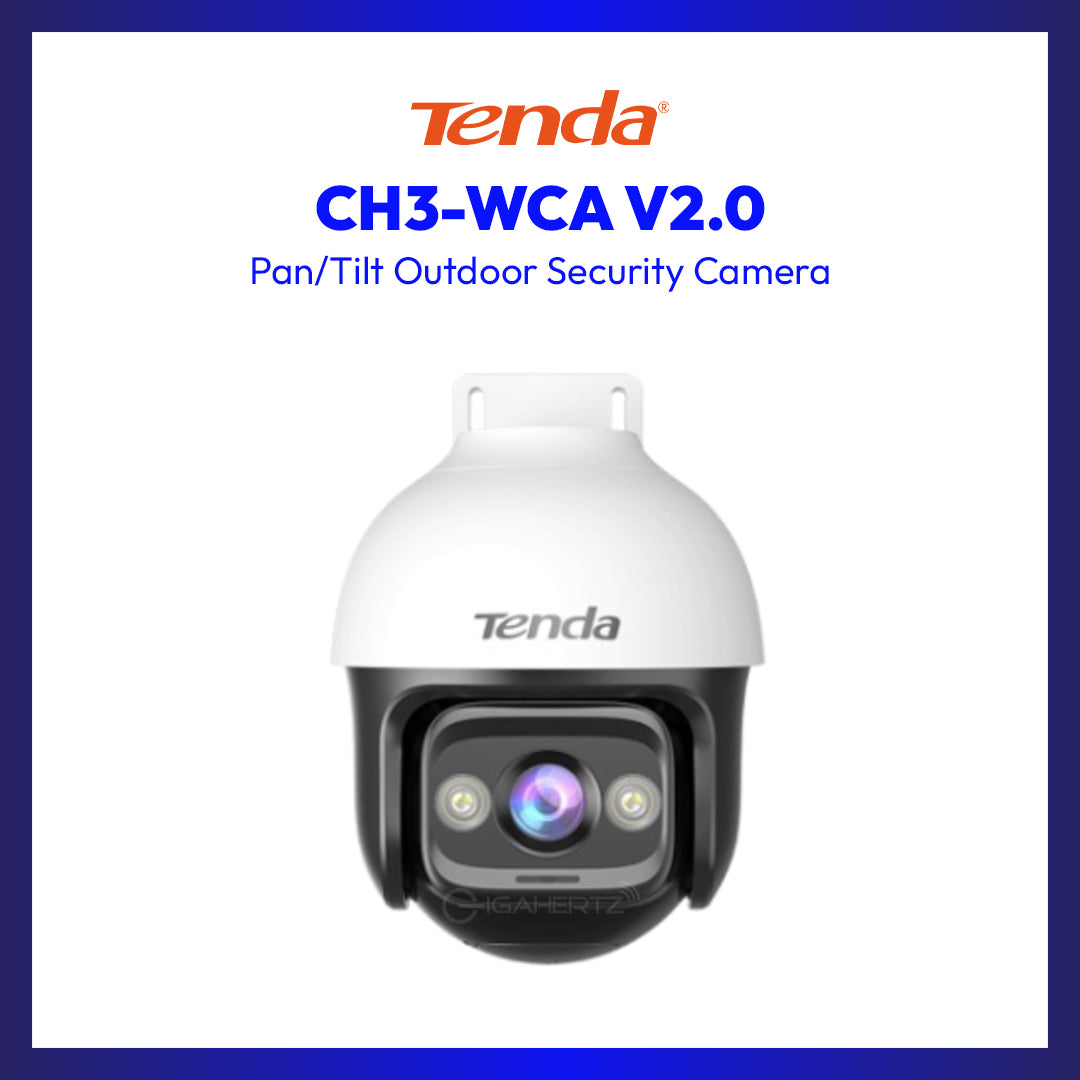

The Tenda CH3-WCA V2.0 is a 3MP outdoor Wi-Fi 6 security camera designed for reliable 360° surveillance in homes, shops, and outdoor spaces. It features full-color night vision, smart human and vehicle detection, automatic tracking, two-way audio, and sound/light alerts for enhanced security. With IP65 weather resistance, pan-tilt coverage, ONVIF support, and storage options via microSD, cloud, or NVR/NAS, it offers flexible and intelligent monitoring for modern security setups.
|
Camera |
|
|
Image Sensor |
1/3 Progressive Scan CMOS sensor |
|
Day and Night |
ICR type |
|
Lens |
|
|
Focal Length |
4 mm |
|
Aperture |
F1.6 |
|
FOV |
Horizontal FOV: 83.3°, Vertical FOV: 53.1°, Diagonal FOV: 91° |
|
Illuminator |
|
|
Supplementary Light |
2 IR Lights, 2 Spotlights |
|
Supplementary Light Distance |
Up to 30 m/100 ft (depending on environment) |
|
IR Wavelength |
850nm |
|
Night Vision Mode |
Smart Mode, Full Color Mode, Black & White Mode |
|
Video |
|
|
Video Encoding Format |
H.265, H.264 |
|
Main Stream Resolution |
2304 ×1296, 1920 × 1080, 1280 × 720 |
|
Sub Stream Resolution |
640 × 360, 352 × 288 |
|
Frame Rate |
1-30fps, Default 20fps |
|
Bit Rate |
512kbps -- 4096kbps |
|
Bit Rate Control |
CBR,VBR |
|
Audio |
|
|
Audio Encoding Format |
G.711A, G.711U, AAC |
|
Audio Sampling Rate |
8 kHz |
|
Audio Communication |
Two-way Audio, Voice Input |
|
Network |
|
|
Ethernet Port |
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
|
ONVIF |
Support |
|
Protocols: |
• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • DNS • DDNS • RTP • RTSP • RTCP • NTP • ARP • WebSockets |
|
Client |
TDSEE (mobile phone), TDSEE STUDIO (PC) |
|
Web Browser |
Plug-in free live view: Chrome, Edge, Opera |
|
Pan & Tilt |
|
|
Pan Movement Range |
0°--355° |
|
Tilt Movement Range |
0°--90° |
|
Preset |
6 |
|
Patrol |
Panoramic Patrol, Preset Patrol |
|
Wi-Fi |
|
|
Antenna |
Internal antenna |
|
Wireless Standard |
IEEE 802.11 b/g/n/ax |
|
Transmission Rate |
Up to 287Mbps |
|
Channel Width |
20/40 MHz |
|
Modulation |
DSSS/OFDM/OFDMA |
|
Frequency Band |
2.4GHz: 2412MHz-2472MHz(CH1-CH13) |
|
Transmit Power |
2.4GHz: <0.1W(EIRP) |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Interface |
|
|
Audio Input |
Built-in MIC, adjustable microphone volume |
|
Audio Output: |
• Built-in Speaker |
|
Storage |
Built-in Micro SD Card Slot, Up to 512 GB |
|
Reset Button |
Support |
|
LED Indicator: |
Dual Color (red & blue) |
|
General |
|
|
Power |
12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug |
|
Material |
Plastic |
|
Smart Integration |
Amazon Alexa |
|
Product Dimension |
120mm x 120mm x 146mm (4.7'' × 4.7'' × 5.7'') |
|
Package Dimension |
167 mm x 131 mm x 251 mm (6.6'' × 5.2'' × 9.9'') |
|
Product Weight |
367g (0.81lb) |
|
With Package Weight |
860g (1.89lb) |
|
Protection Level |
IP65 |
|
Installation Method |
Wall Mounting, Ceiling Mounting, Pole Mounting |
|
Certification |
CE, RoHS, FCC, RCM, UKCA |
|
Temperature: |
• Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
|
Humidity: |
• Operating Humidity: 10% ~ 95% RH (non-condensing) • Storage Humidity: 3% ~ 95% RH (non-condensing) |
|
Package Contents |
•Camera •Power Adapter (cord length: 3m) •Installation Template •Mounting Bracket •Mounting Accessories Kit •Waterproof Kit •Quick Installation Guide |
