Description

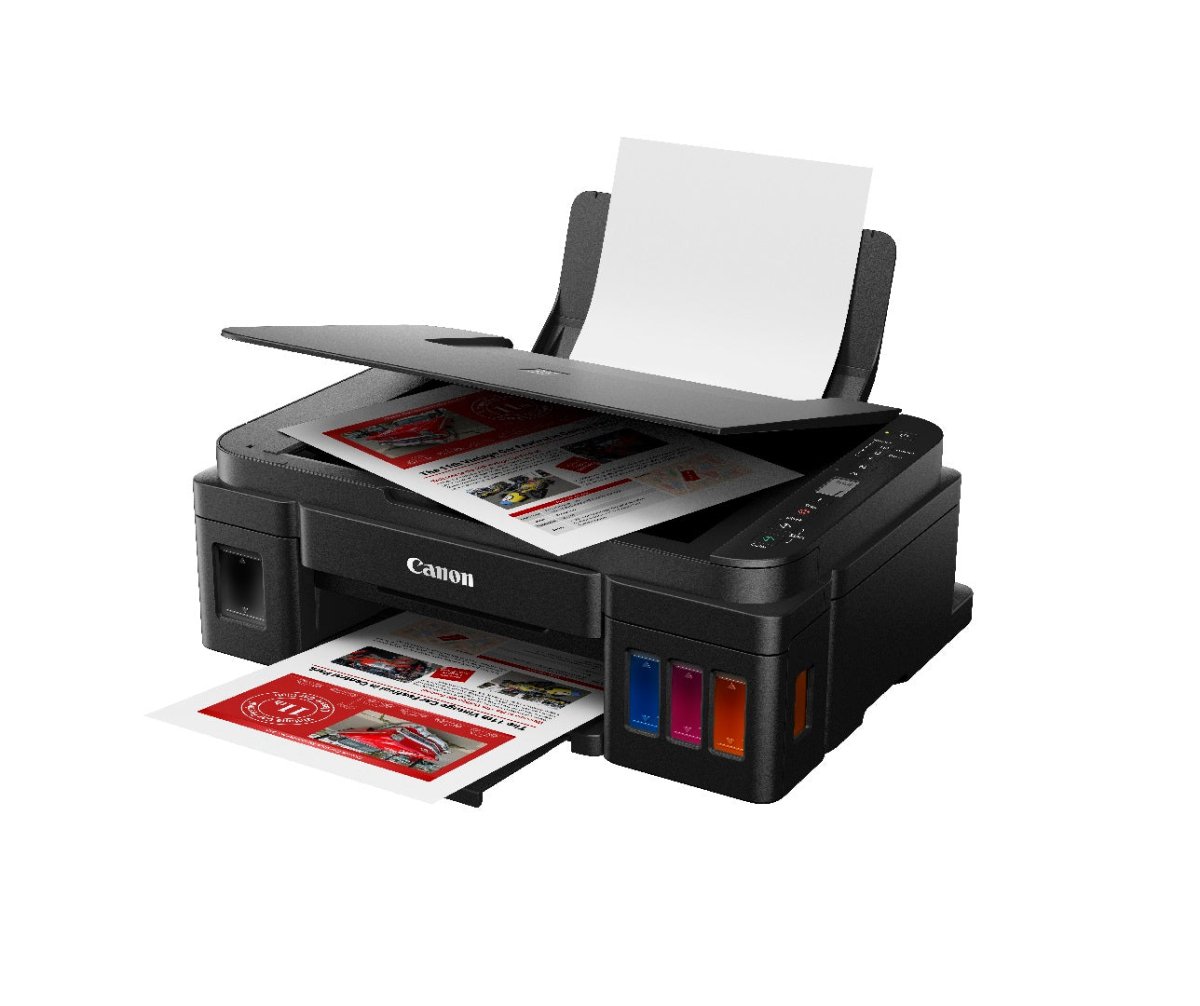

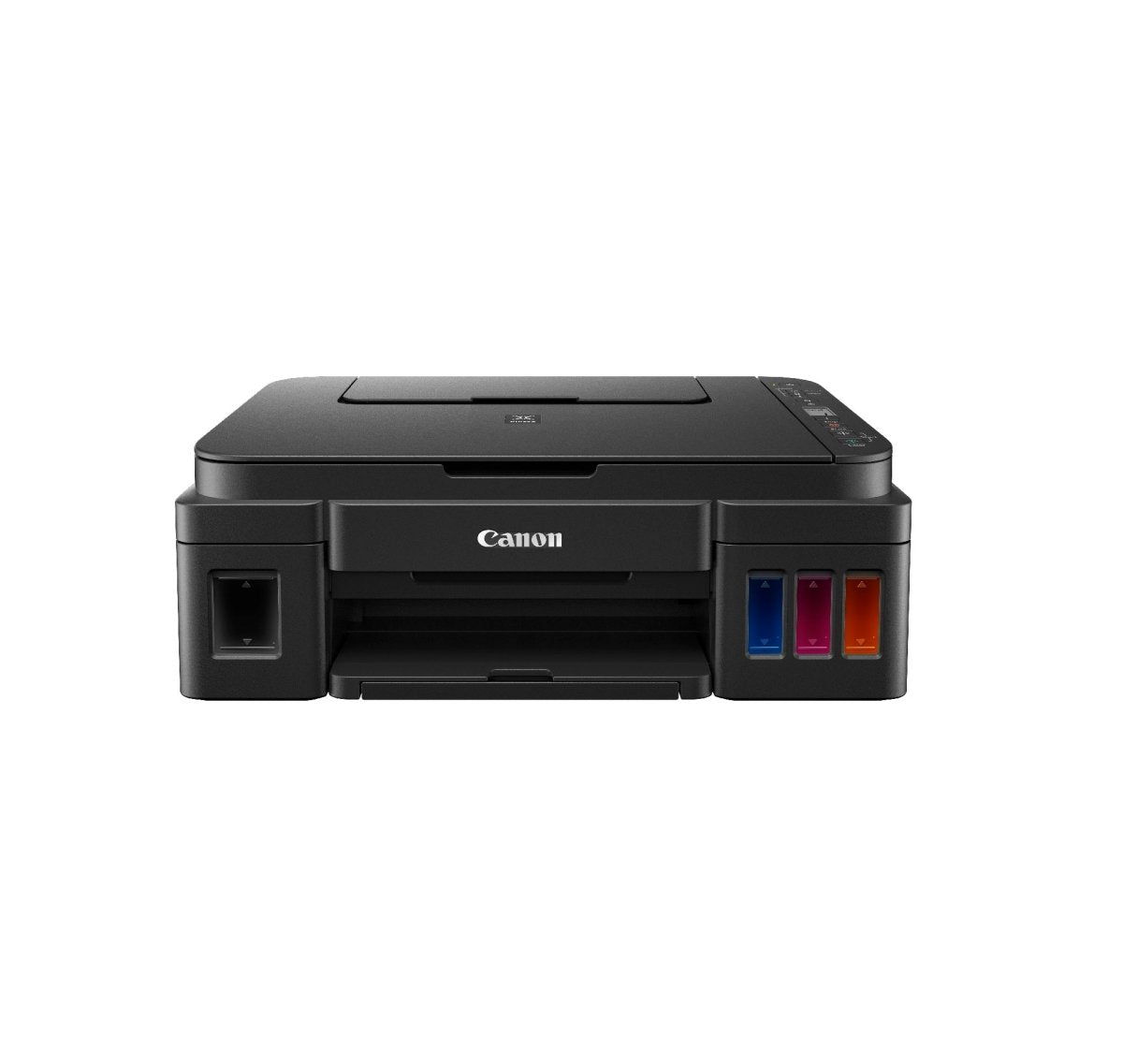

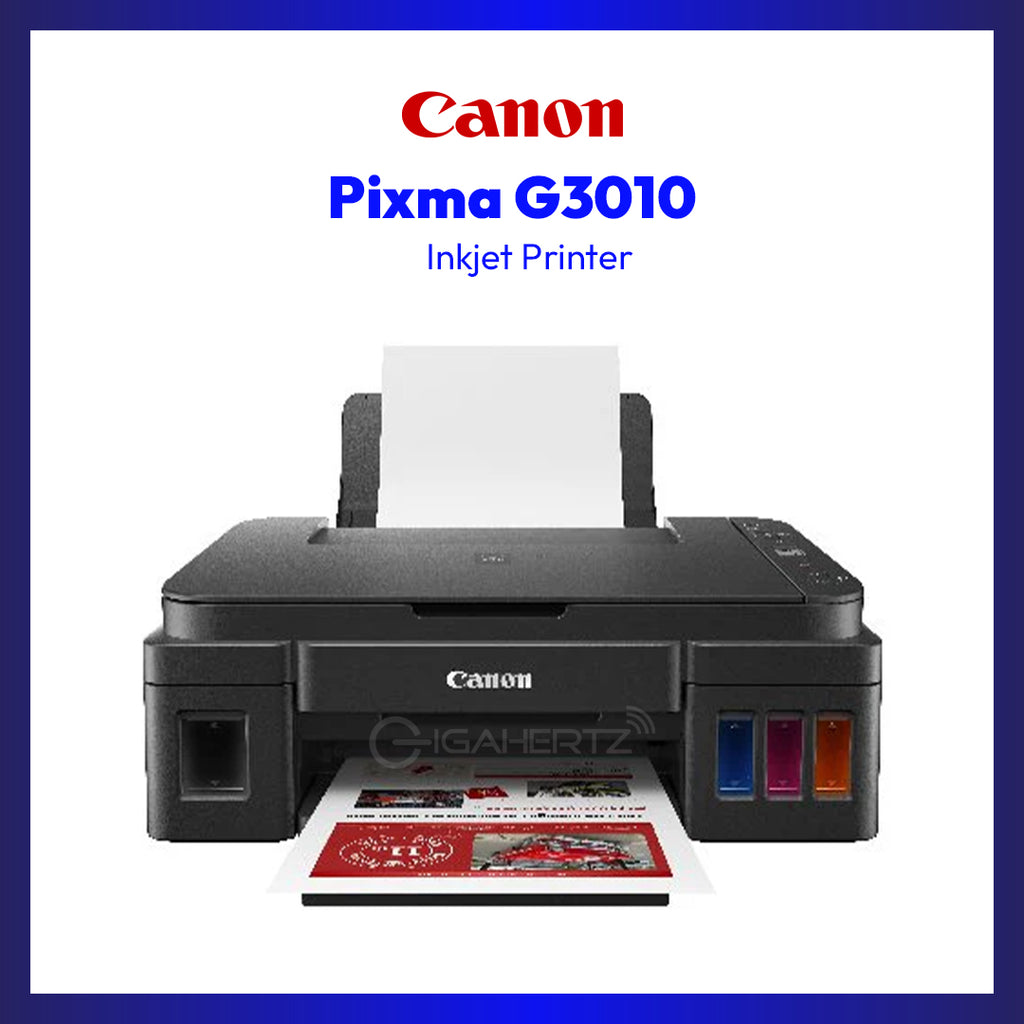

PIXMA G3010
Refillable Ink Tank Wireless All-In-One for High Volume Printing
Designed for high-volume printing at a low running cost
- Print, Scan, Copy
- Print Speed (A4, ISO): up to 8.8 / 5 ipm (mono/color)
- Wi-Fi, Mopria, Direct Wireless
- Recommended Monthly Print Volume: 150 - 1500 pages
| Printer | |||
| Maximum Printing Resolution | 4800 (horizontal)*1 x 1200 (vertical) dpi | ||
| Print Head / Ink | Number of Nozzles: | Total 1,472 nozzles |
|
| Ink Bottles | GI-790 (Black, Cyan, Magenta, Yellow) | ||
| Print Speed (Approx.) Based on ISO / IEC 24734 |
Document: Col | ESAT / Simplex | 5.0 ipm |
| Document: Mono | ESAT / Simplex | 8.8 ipm | |
| Document: Col | FPOT Ready/Simplex | 17 sec | |
| Document: Mono | FPOT Ready/Simplex | 11 sec | |
| Document: Col | FPOT Sleep/Simplex | 22 sec | |
| Document: Mono | FPOT Sleep/Simplex | 14 sec | |
| Photo (4 x 6") | PP-201 / Borderless | 60 sec | |
| Printable Width | Bordered: | Up to 203.2 mm (8") | |
| Borderless: | Up to 216 mm (8.5") | ||
| Printable Area | Borderless Printing*3 | Top / Bottom / Right / Left margin: each 0 mm (Supported Paper Size: A4 / Letter / 4 x 6" / 5 x 7" / 8 x 10" / Square (5 x 5") / Business Card) | |
| Bordered Printing | Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm (LTR/Legal: Left: 6.4 mm, Right: 6.3 mm) |
||
| Recommended Printing Area | Top margin: | 31.2 mm | |
| Bottom margin: | 32.5 mm | ||
| Paper Size |
A4, A5, B5, Letter, Legal, 4 x 6", 5 x 7", 8x 10", Envelopes (DL, COM10), Square (5 x 5"), Business Card, Custom size (width 55 - 215.9 mm, length 89 - 676 mm) * F4 is possible via custom size settings.
|
||
| Paper Handling (Rear Tray) (Maximum Number) |
Plain Paper | A4, A5, B5, Letter = 100, Legal = 10 | |
| High Resolution Paper (HR-101N) | A4, Letter = 80 | ||
| Photo Paper Plus Glossy II (PP-201) | A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10, Square (5 x 5") = 20 | ||
| Photo Paper Plus Semi-Gloss (SG-201) | A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10 | ||
| Matte Photo Paper (MP-101) | A4, LTR = 10, 4 x 6" = 20 | ||
| Envelope | European DL / US Com. #10 = 10 | ||
| Glossy Photo Paper "Everyday Use" (GP-508) | A4 = 10, 4 x 6" = 20 | ||
| Photo Paper Plus Glossy II (PP-208) | A4, 4 x 6" = 10 | ||
| Photo Sticker | PS-208, PS-808 = 1 | ||
| Paper Weight | Rear Tray | Plain Paper: 64 - 105 g/m2, Canon specialty paper: Max. 275 g/m2 Photo Paper Plus Glossy II (PP-201) | |
| Ink End Sensor | Dot count | ||
| Print Head Alignment | Manual | ||
| Scan*4 | |||
| Scanner Type | Flatbed | ||
| Scanning Method | CIS (Contact Image Sensor) | ||
| Optical Resolution*5 | 600 x 1200 dpi | ||
| Scanning Bit Depth (Input / Output) | Grayscale: | 16 / 8-bit | |
| Colour: | 48 / 24-bit (RGB each 16 / 8-bit) | ||
| Line Scanning Speed*6 | Grayscale: | 1.5 ms/line (300 dpi) | |
| Colour: | 3.5 ms/line (300 dpi) | ||
| Scanning Speed*7 | Reflective: A4 Colour / 300 dpi |
Approx. 19 sec | |
| Maximum Document Size | Flatbed: | A4 / Letter (216 x 297 mm) | |
| Copy | |||
| Maximum Document Size | A4 / Letter (216 x 297 mm) | ||
| Compatible Media | Size: | A4, Letter | |
| Type: | Plain Paper | ||
| Image Quality | Plain Paper: Fast, Standard | ||
| Copy Speed*8 (Approx.) Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions |
Document: Colour sFCOT / Simplex |
24 sec | |
| Document: Colour sESAT / Simplex |
3.5 ipm | ||
| Multiple Copy | Mono / Colour: | 1 - 20 pages | |
| Network | |||
| Protocol | TCP / IP | ||
| Wireless | Network Type: | IEEE 802.11b/g/n | |
| Frequency Band: | 2.4 GHz | ||
| Channel*9: | 1 - 13 | ||
| Range: | Indoor 50 m (depends on the transmission speed and conditions) | ||
| Security: | WEP 64 / 128-bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES) | ||
| Direct Connection (Wireless LAN) | Available (AP Mode only) | ||
| Printing Solutions | |||
| Mopria | Available | ||
| Smart Device Print Plug-In (for Android / Amazon device) |
Available | ||
| PIXMA Cloud Link | From smartphone or tablet: | Available | |
| Canon PRINT Inkjet / SELPHY App (for iOS / for Android) Canon Easy-PhotoPrint (for Windows RT) |
Available | ||
| Layout | 1-up (bordered / borderless*10) | LTR, A4, 4 x 6", 5 x 7", 8 x 10", Square 5 x 5", Business card | |
| 1-up (bordered only) | A5, B5, Legal | ||
| Print Quality | Fixed | ||
|
System Requirements (Please visit https://asia.canon to check OS compatibility and to download the latest driver updates) |
Windows: | Windows 10, Windows 8.1, Windows 7 SP1 | |
| Macintosh: | Mac OS is not supported | ||
| Others: | Chrome OS | ||
| General Specifications | |||
| Operation Panel | Display | LCD (1.2 inch segment mono) | |
| Interface | USB 2.0 | ||
| Paper Output Tray | A4, LTR = 50, Legal = 10 | ||
| Operating Environment*11 | Temperature: | 5 - 35°C | |
| Humidity: | 10 - 90% RH (no dew condensation) | ||
| Recommended Environment*12 | Temperature: | 15 - 30°C | |
| Humidity: | 10 - 80% RH (no dew condensation) | ||
| Storage Environment | Temperature: | 0 - 40°C | |
| Humidity: | 5 - 95% RH (no dew condensation) | ||
| Quiet Mode | Available | ||
| Acoustic Noise (PC Print)*13 | Plain Paper (A4, B/W) | 53.5 dB(A) | |
| Power | AC 100 - 240 V; 50/60 Hz | ||
| Power Consumption (Approx.) | Connection to PC | Wi-Fi | |
| OFF: | 0.2 W | ||
| Standby (scanning lamp is off): (USB connection to PC) |
1.2 W | ||
| Standby (all ports connected, scanning lamp is off) | 1.2 W | ||
| Copying*14: G3010 | 11 W | ||
| Environment | Regulation: | RoHS (EU, China), WEEE (EU) | |
| Dimension (W x D x H) (Approx.) | Factory configuration | 445 x 330 x 163 mm | |
| Output / ADF trays extended | 445 x 533 x 260 mm | ||
| Weight (Approx.) |
6.3 kg |
||
| Specifications are subject to change without notice. | |
| *1 | Ink droplets can be placed with a pitch of 1/4800 inch at minimum. |
| *2 | Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO / IEC 24734. Photo print speed is based on the default setting using ISO / JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc. |
| *3 | Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers. |
| *4 | TWAIN driver (ScanGear) is based on the TWAIN specification V1.9 and requires the Data Source Manager comes with the operating system. |
| *5 | Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard. |
| *6 | The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included. |
| *7 | Colour document scan speed is measured with ISO / IEC 29735 Target A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc. |
| *8 | Copy speeds are the average of sFCOT and sESAT, ISO / IEC 29183. Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warm up time. |
| *9 | 1-11 in US, CND, LTN, BRA, TW and HK. |
| *10 | The amount of image extension beyond the paper cannot be adjusted. |
| *11 | The performance of the printer may be reduced under certain temperature and humidity conditions. |
| *12 | For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions. |
| *13 | Acoustic Noise is measured based on ISO 7779 standard. |
| *14 | Copy:When copying ISO / JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings. |
| Disclaimer | |
| • | You need to install ink bottles of all colours whether you perform black and white printing or colour printing. If any of the ink bottles is not installed, an error occurs and you cannot perform printing. |
| • | Even when black-only or grayscale printing is selected, depending on the printing material and driver settings used, colour inks might still be consumed when printing. When the remaining ink level of any ink tank falls below the lower limit line, Canon recommends that you refill that ink bottle with the corresponding colour of ink. |
| • | During the initial printer setup, a certain amount of ink is used to fill the print head's nozzles with ink. Therefore, the page yield of the initial bundled set of ink bottles will be lower than that of the subsequent sets of bottles. |
| • | To keep printer's performance, Canon printer performs cleaning automatically according to its condition. When the printer performs cleaning, a small amount of ink is consumed. In this case, all colours of ink may be consumed. [Cleaning function] The cleaning function helps the printer to suck air bubbles or ink itself from the nozzle and thus prevents print quality degradation or nozzle clogging. |
| • | The repairing parts for printers will be available five years after production is discontinued. Depending on your model, we may ask you to replace it with a new one, or one with almost the same performance as a maintenance service. In this case, it may be that you cannot use supplies or accessories for your model or the compatible OS will be changed. |
| • | The warranty term for details, contact a Canon-authorized sales representative in the country or region you live in. The warranty covers only the printer main body excluding consumables such as print media and ink / ink bottles even during the warranty period. |
| • | To obtain good printing quality, use up ink within six months after opening. |
| • | Please take note that if the printer fault or breakdown is due to the usage of non-genuine inks, repair charges are applicable even if the claim is within the warranty period. |
| • | Using non-genuine inks may affect the printer's performance and / or the print quality. In some rare occasions, although there are no safety issues, using non-genuine inks has caused overheating of the print head and smoke emission from the print head due to the absence of an ingredient found in genuine ink. (Does not apply to usage of all non-genuine inks). |
| • | Depending on your terminal, such as a computer or a smartphone, or the operating system of your terminal, such as your computer or smartphone, the estimated ink level information or message displayed on the screen of your terminal may be different from the information or message displayed on the operation panel of the printer. Also, a part of the estimated ink level message displayed on the operation panel of the printer may not be displayed and / or may be displayed at a different point in time. Canon recommends that you use the information and message displayed on the operation panel of the printer as your reference. Note, however, that such information and message are displayed items serve only as a guideline information. |
