Model
|

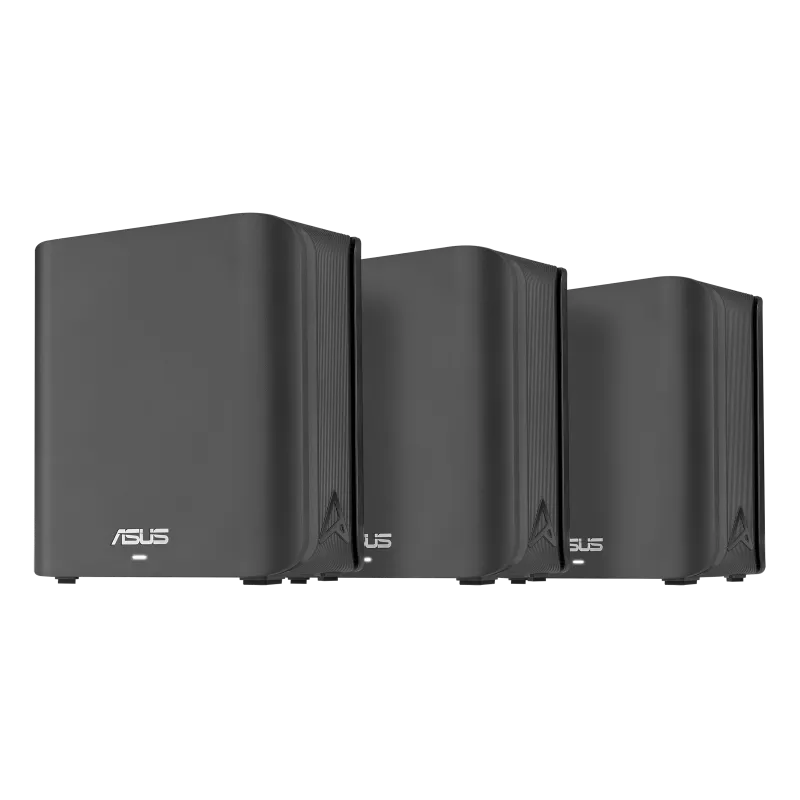

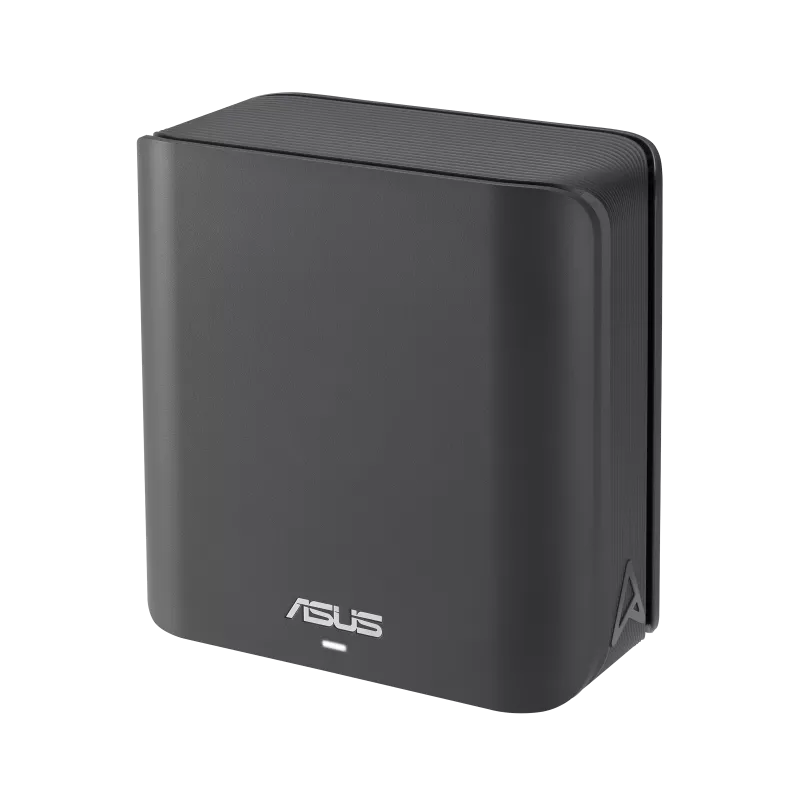

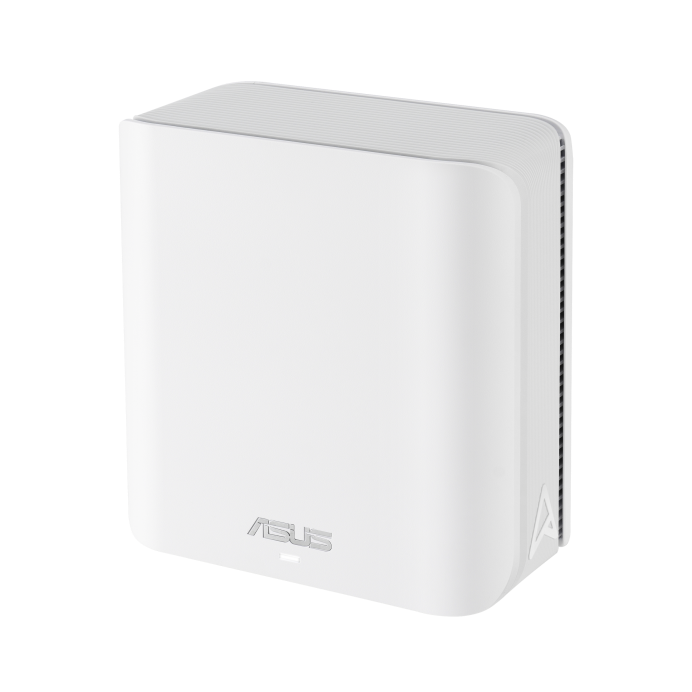

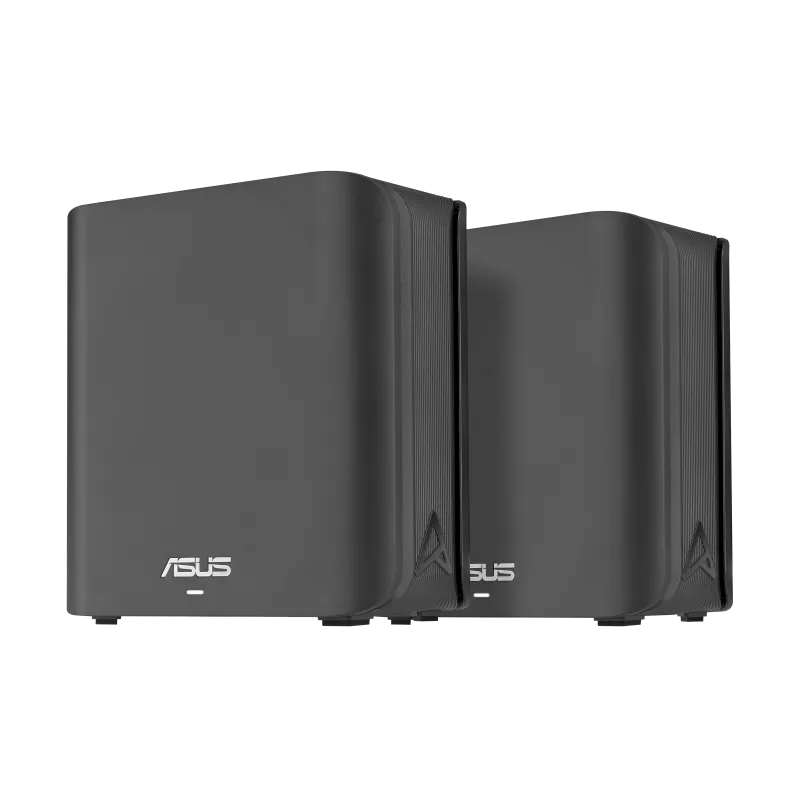

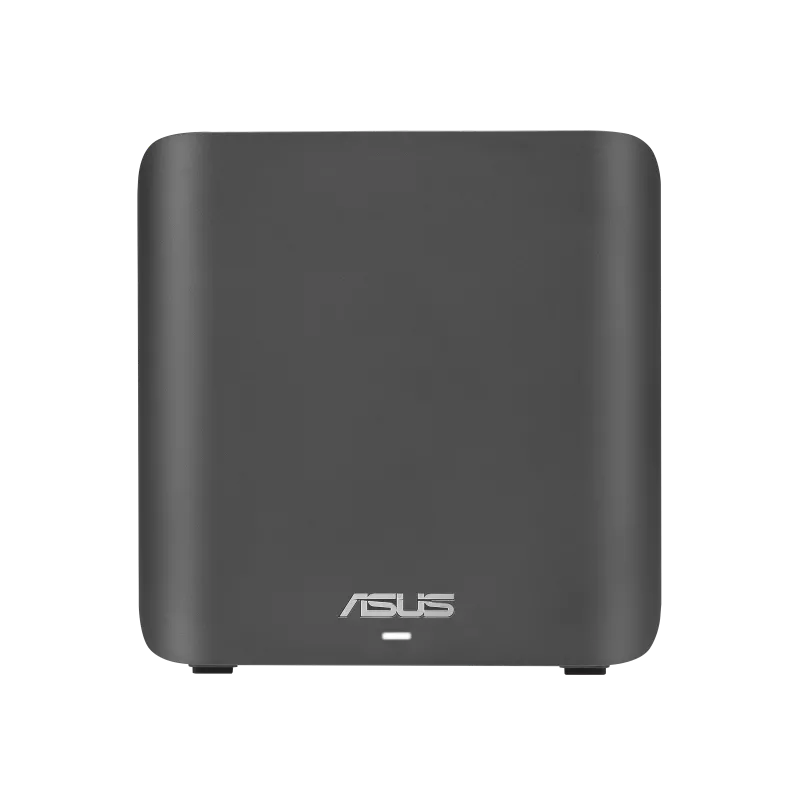

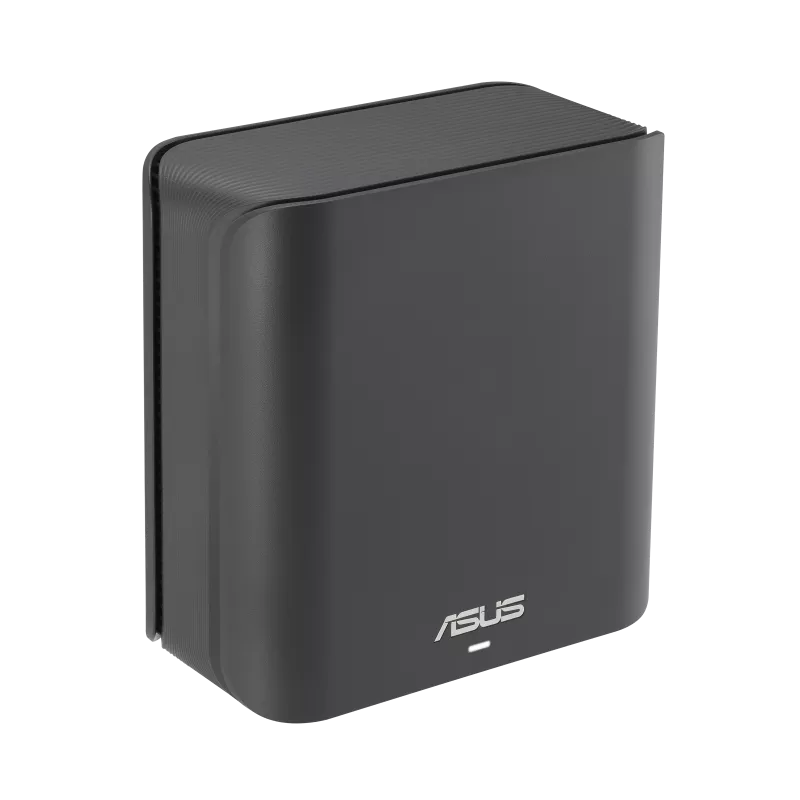

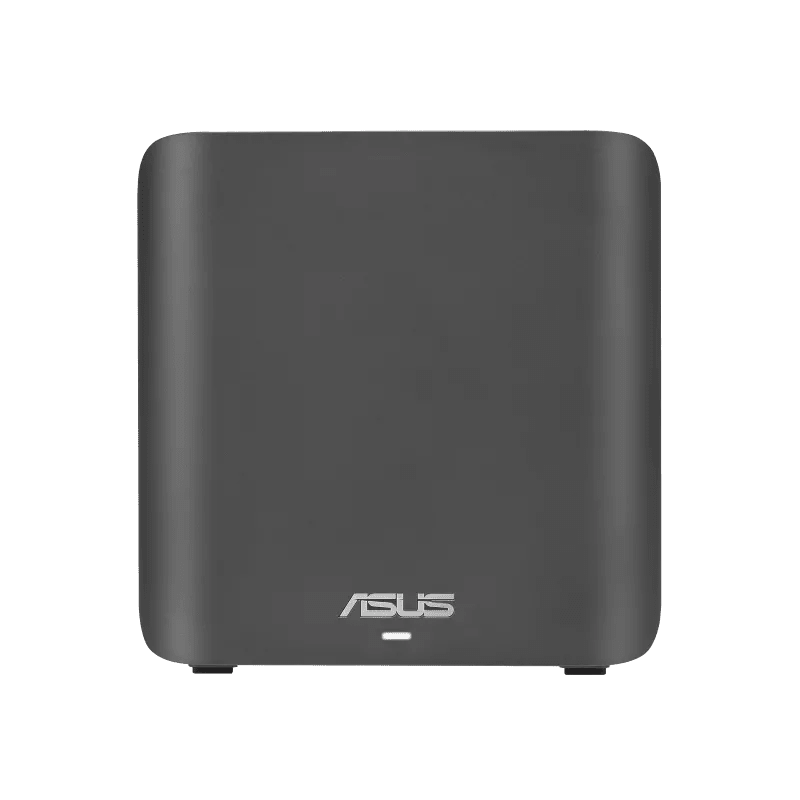

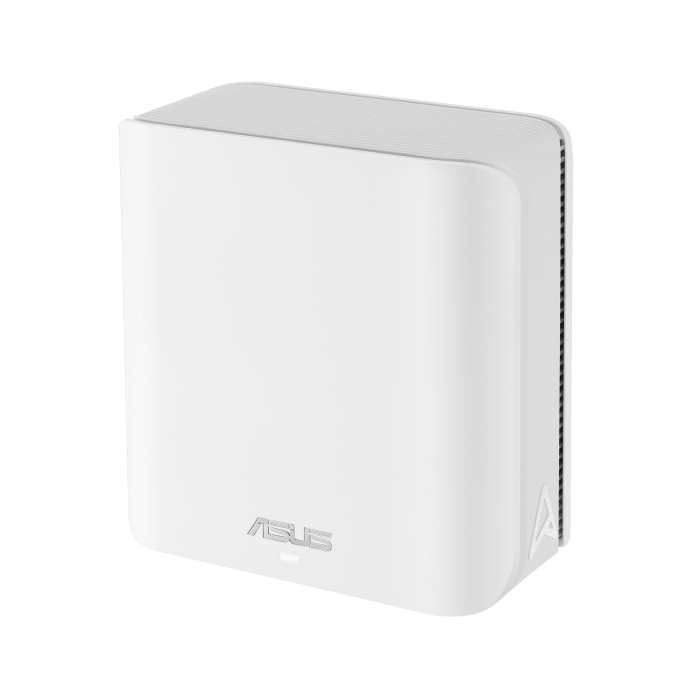

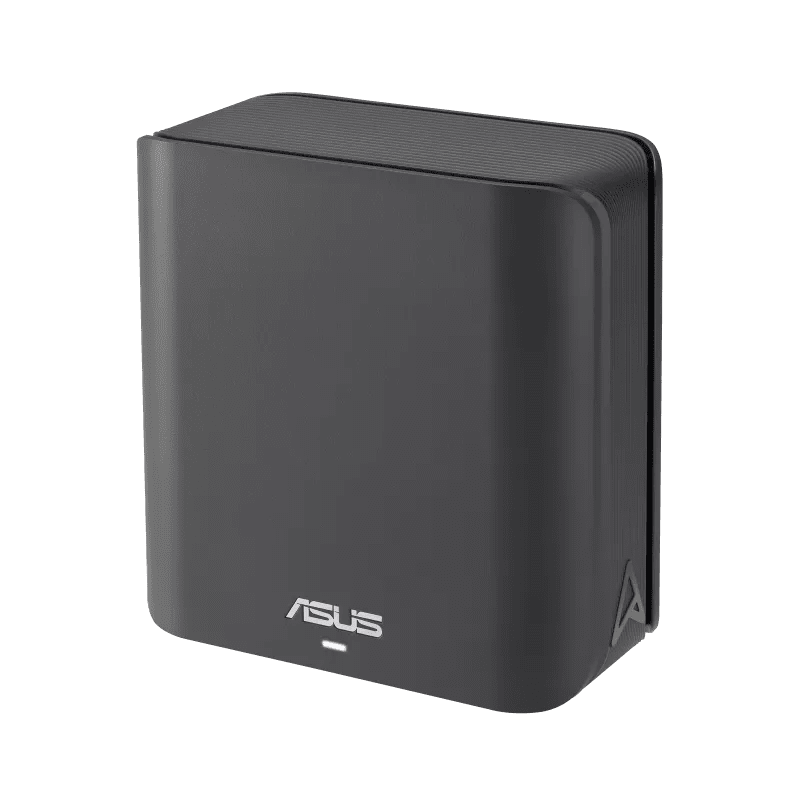

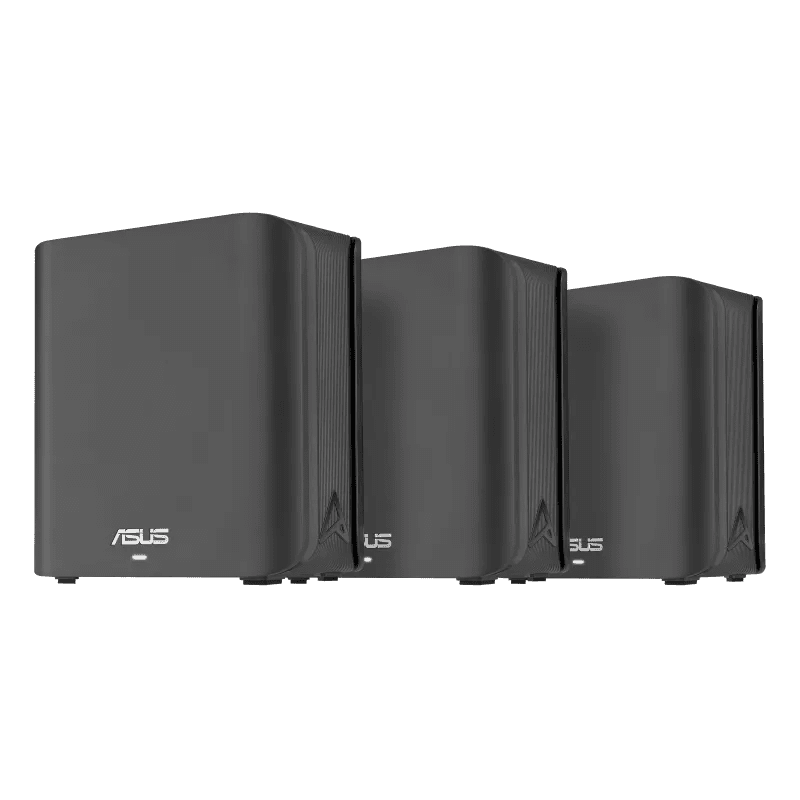

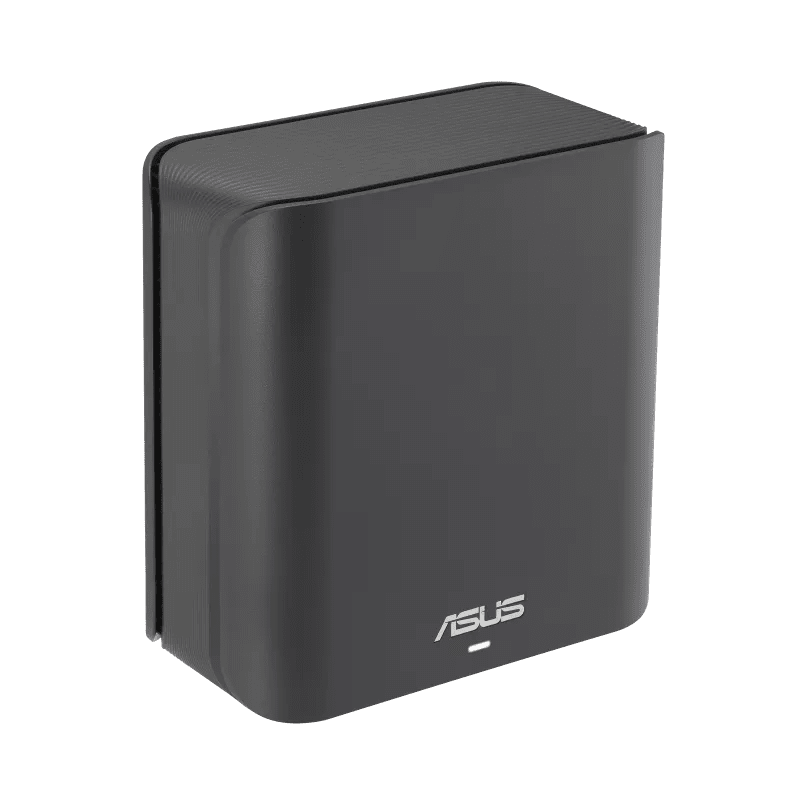

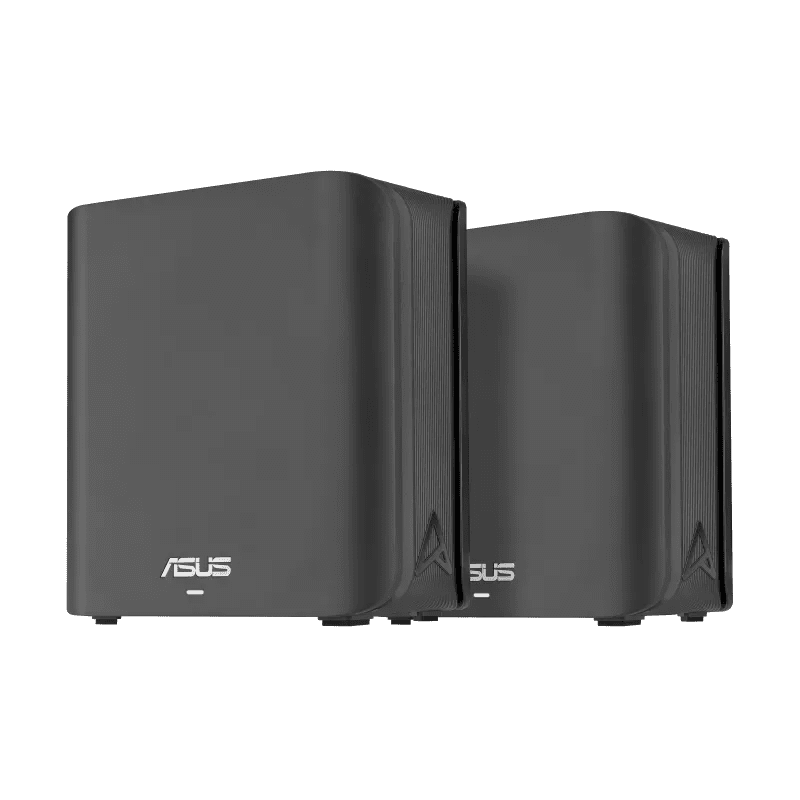

ASUS ZenWiFi BD4
|
|
Model Name
|
• BD4(B-2-PK)
• BD4(B-1-PK)
|
|
Network Standard
|
• IPv6
• IPv4
• WiFi 7 (802.11be)
• WiFi 6 (802.11ax)
• WiFi 5 (802.11ac)
• WiFi 4 (802.11n)
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
|
|
WiFi Data Rate
|
• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
|
|
Antenna
|
Internal antennas x 4
|
|
Transmit / Receive
|
• 5GHz 2x2
• 2.4GHz 2x2
|
|
Processor
|
1.5GHz quad-core processor
|
|
Memory
|
RAM 512MB , Flash 128MB
|
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth
|
|
Operating Frequency
|
• 5 GHz
• 2.4 GHz
|
|
Operating Mode
|
• Access Point Mode
• AiMesh Node Mode
• Wireless Router Mode
|
|
I/O Ports
|
2.5G x 2 (WAN/LAN auto detecting)
|
|
Buttons
|
WPS button, Reset button, Power switch
|
|
LED Indicator
|
Power x 1
|
|
Power Supply
|
• AC Input : 110V~240V(50~60Hz)
• DC Output : 12V with max 1.5A current
|
|
Package Content
|
• ZenWiFi BD4
• RJ45 cable
• Power adapter
• Warranty card
• Quick start guide
|
|
Product Dimensions
|
140 x 70 x 140 mm
|
|
Remark
|
Content may vary in different regions and packages.
|
|
AiMesh
|
• AiMesh,
• Primary AiMesh Router
• AiMesh Node
|
|
Parental Control
|
"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Customized Internet Schedule
|
|
Router APP
|
APP: ASUS Router APP
|
|
Guest Network
|
“The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network
|
|
Security
|
AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall
|
|
AiProtection
|
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
|
|
VPN
|
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
|
|
Traffic Control
|
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
• Traditional QoS
• Traffic Monitor
• Traffic Analyzer
• Website History
|
|
WAN
|
Port Forwarding, Port Triggering, DMZ, DDNS
|
|
LAN
|
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)
|
|
Wireless
|
MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
|
|
Administration
|
Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
|
|
Smart Home
|
Support Google Assistant
|
