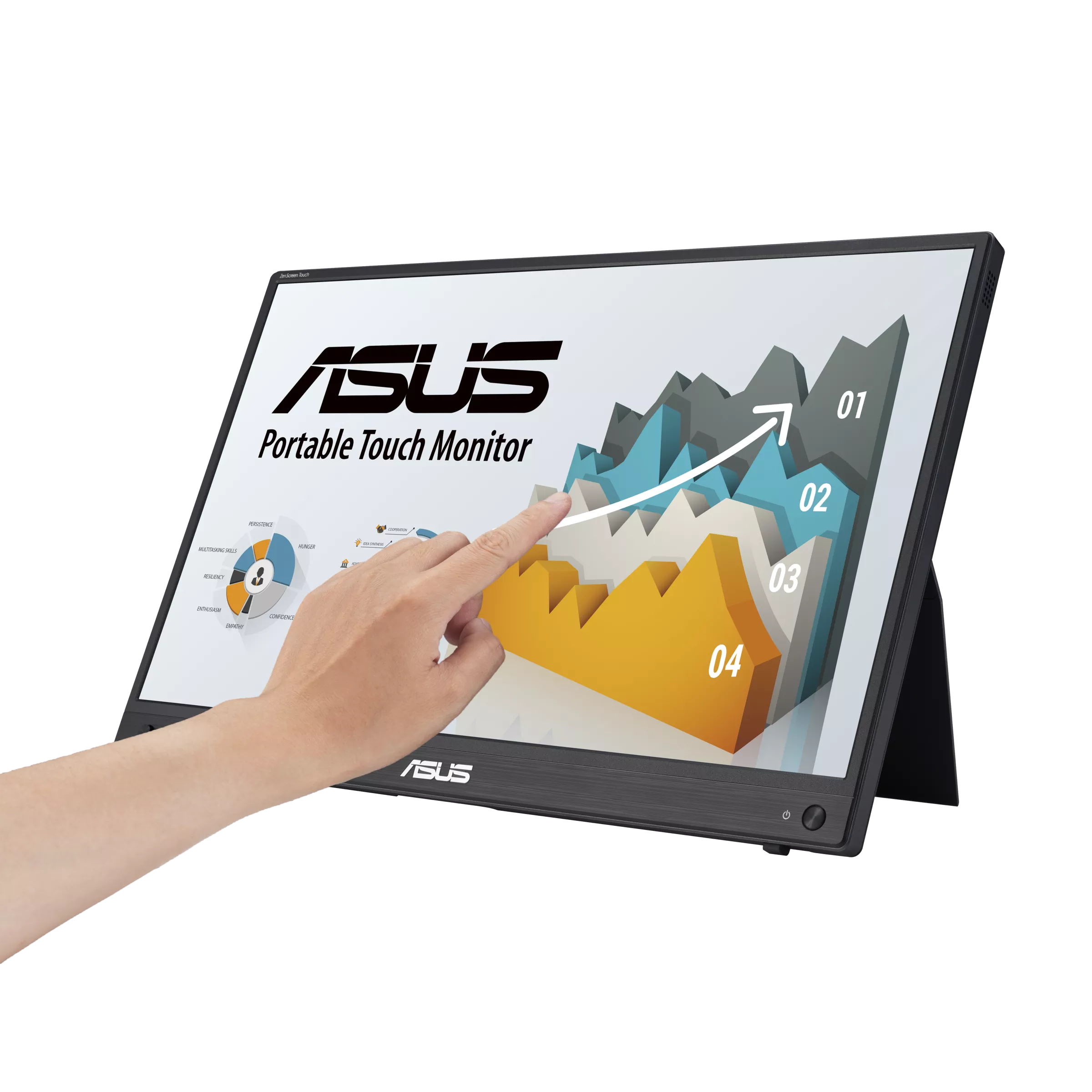

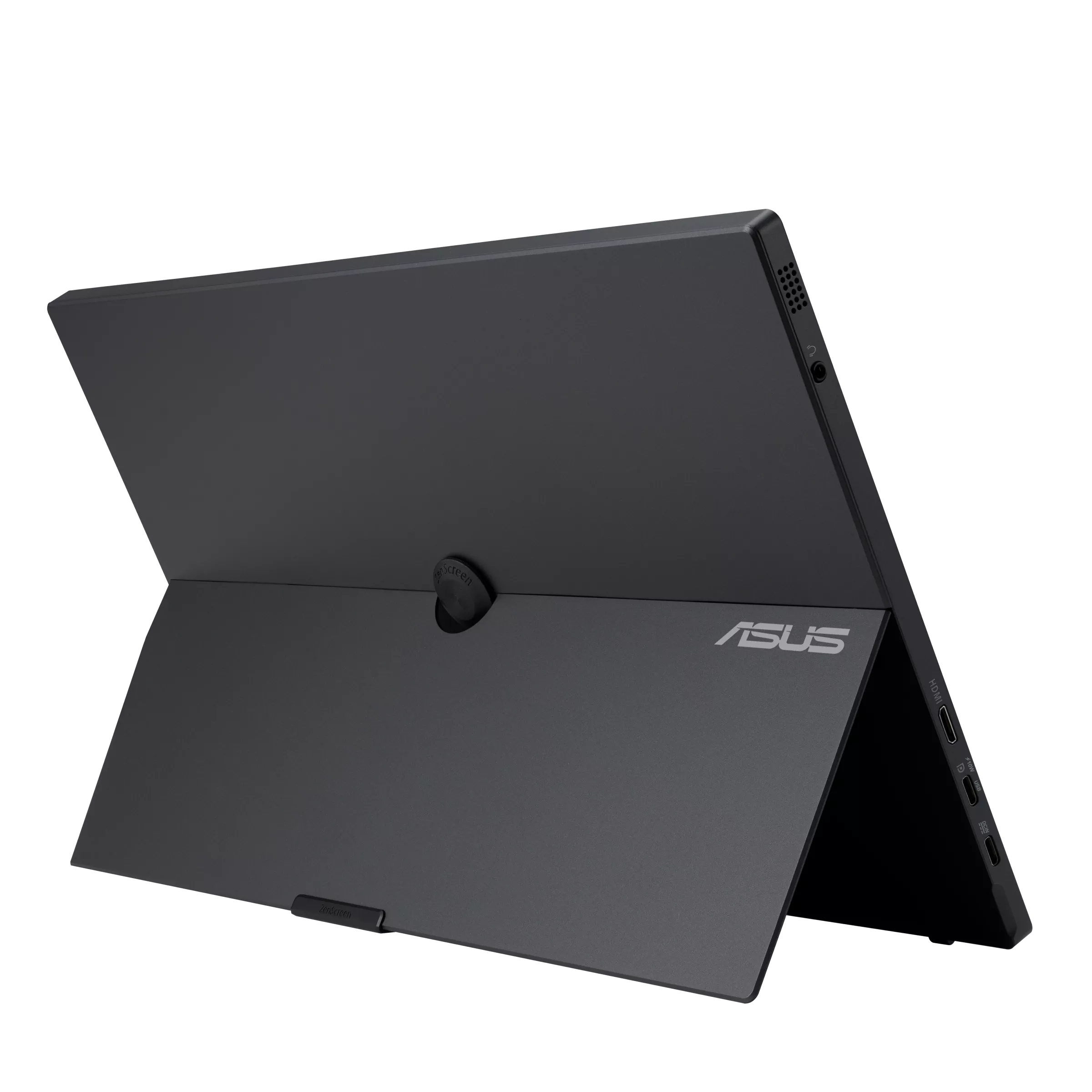

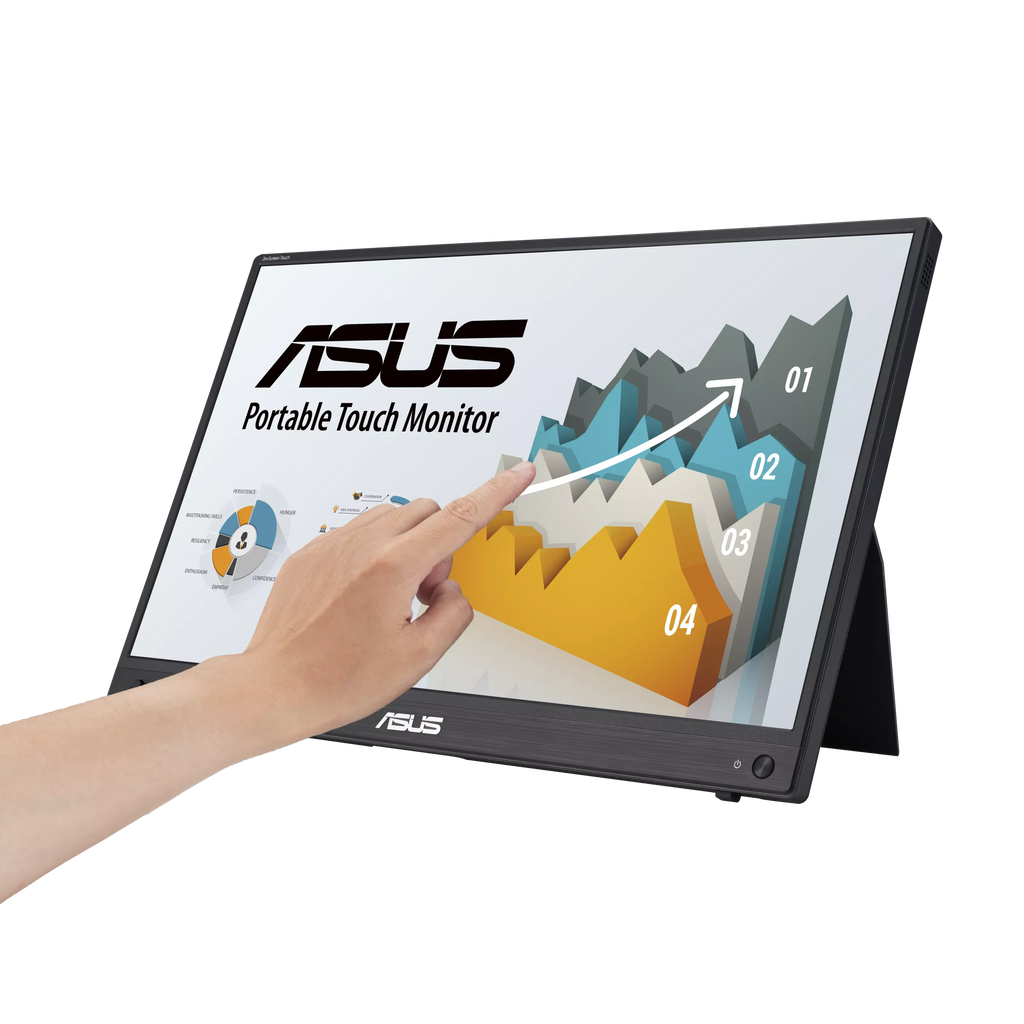

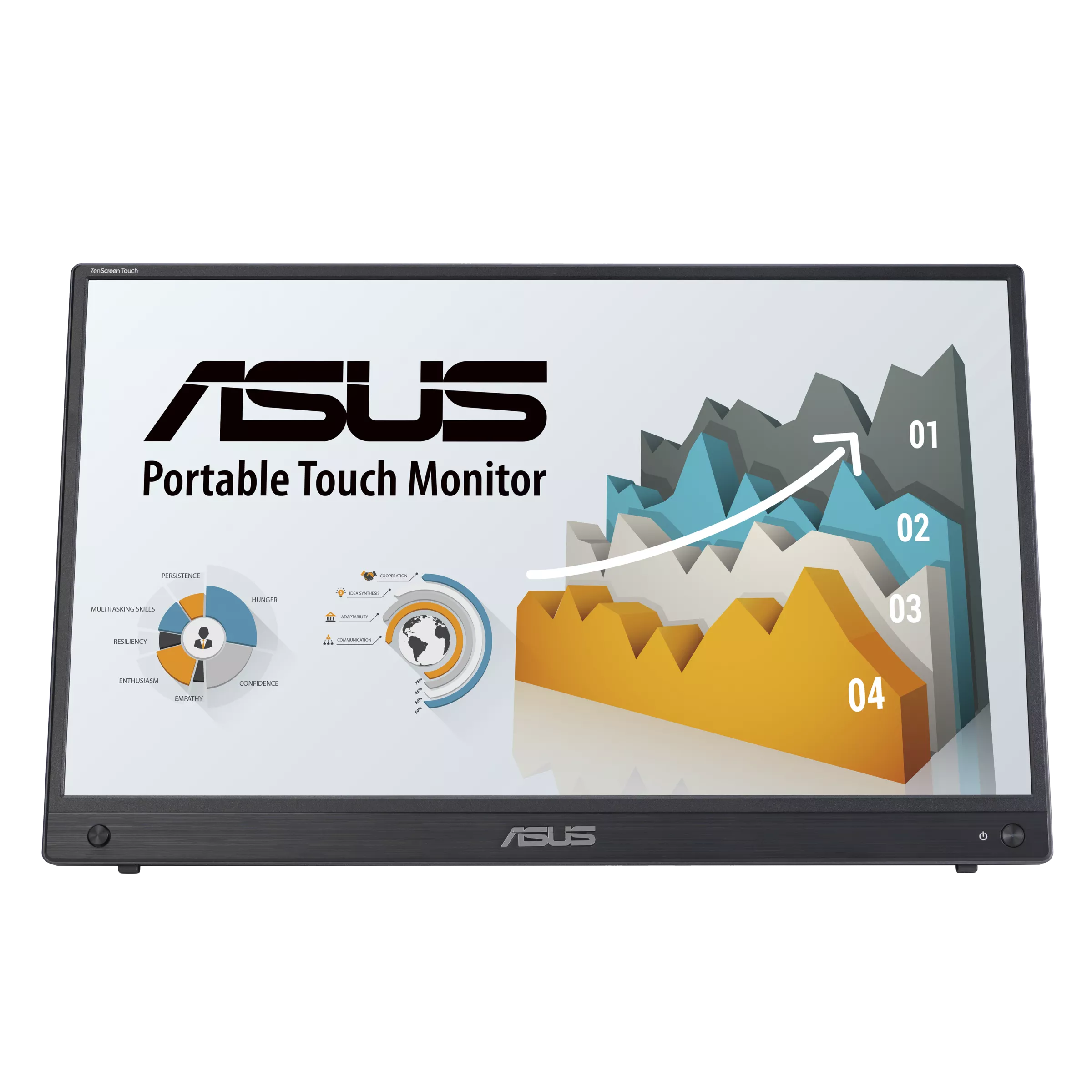

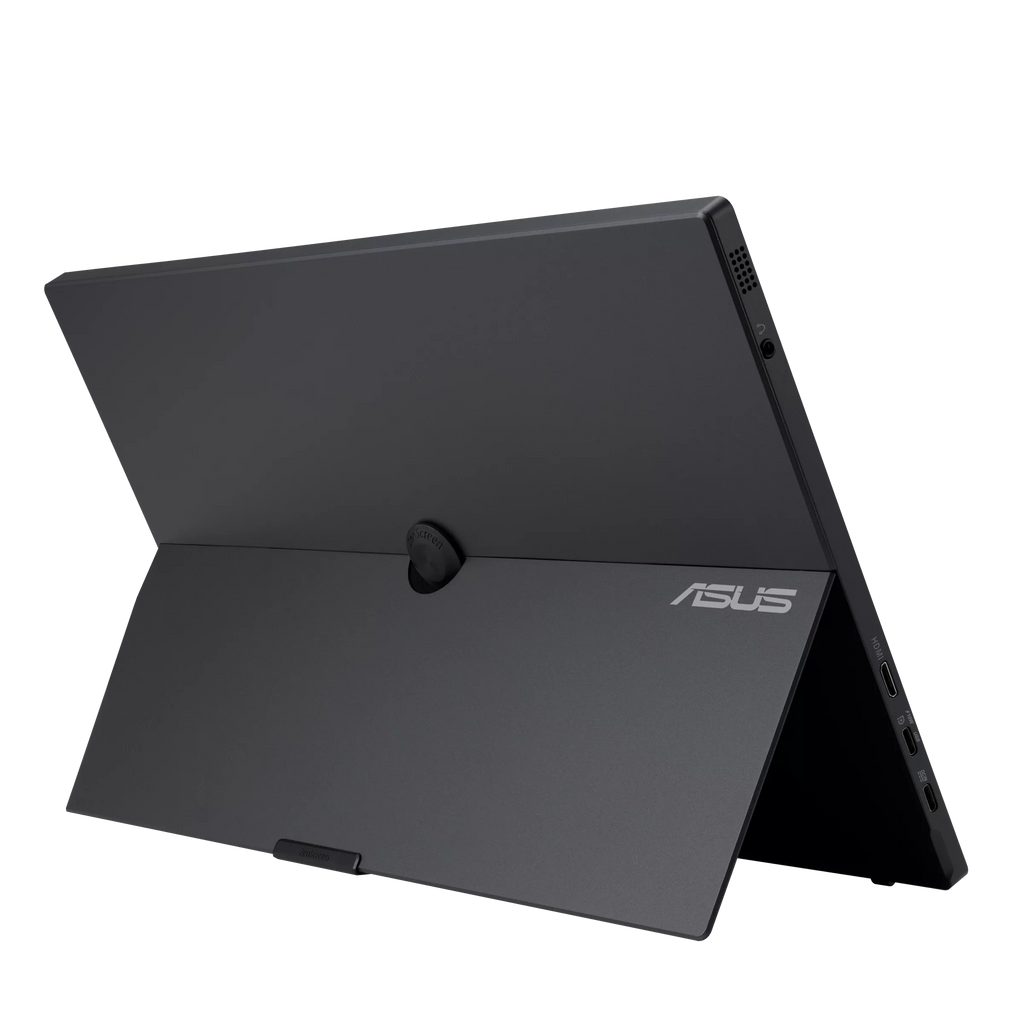

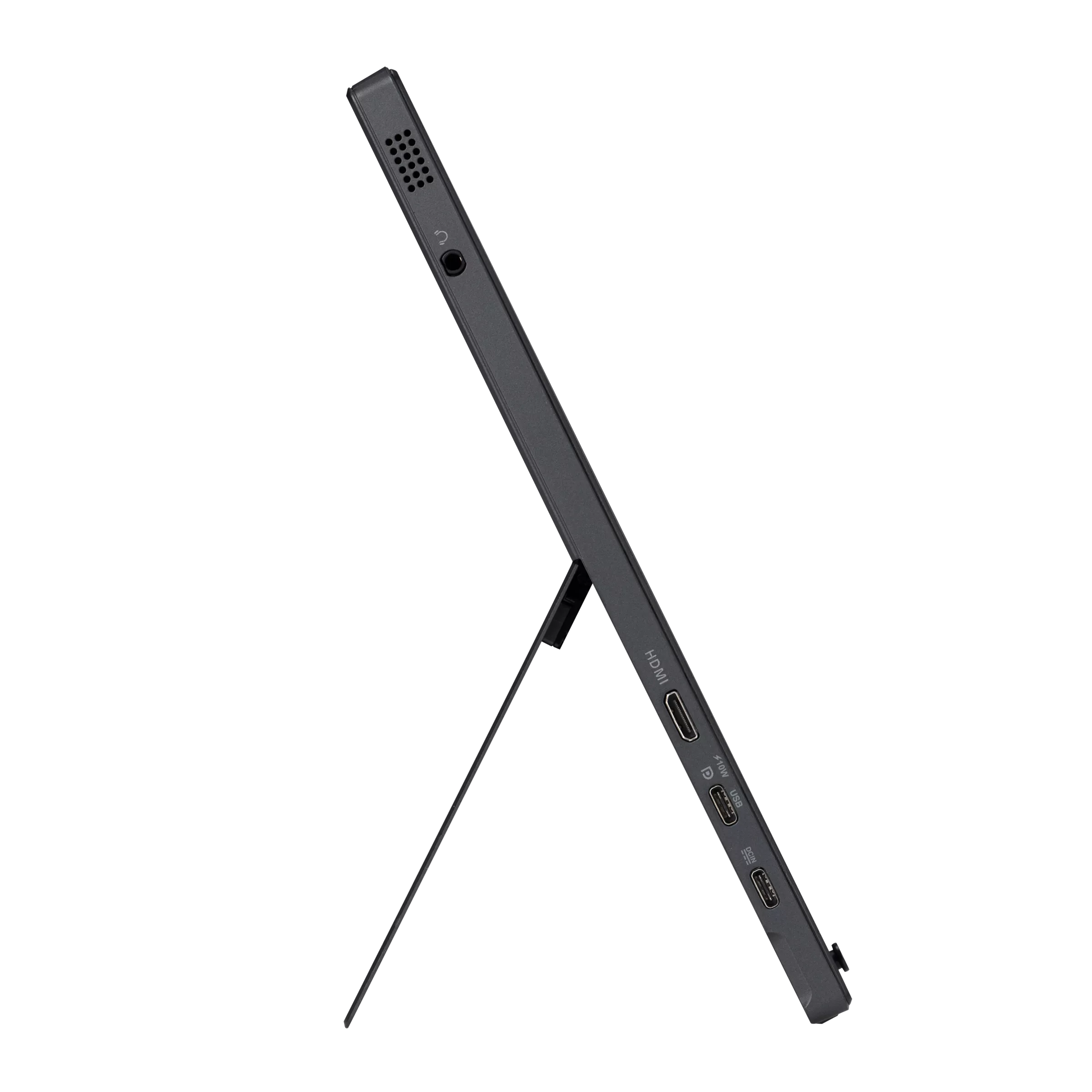

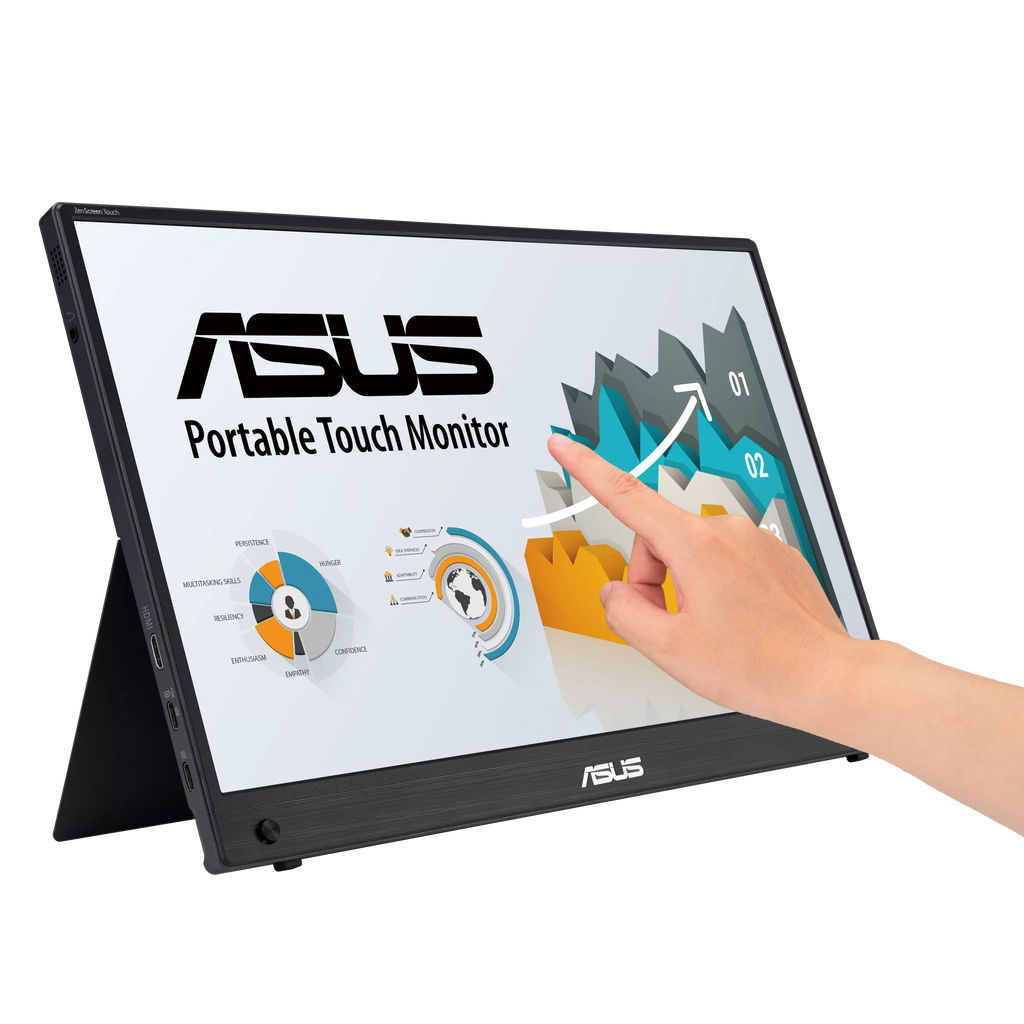

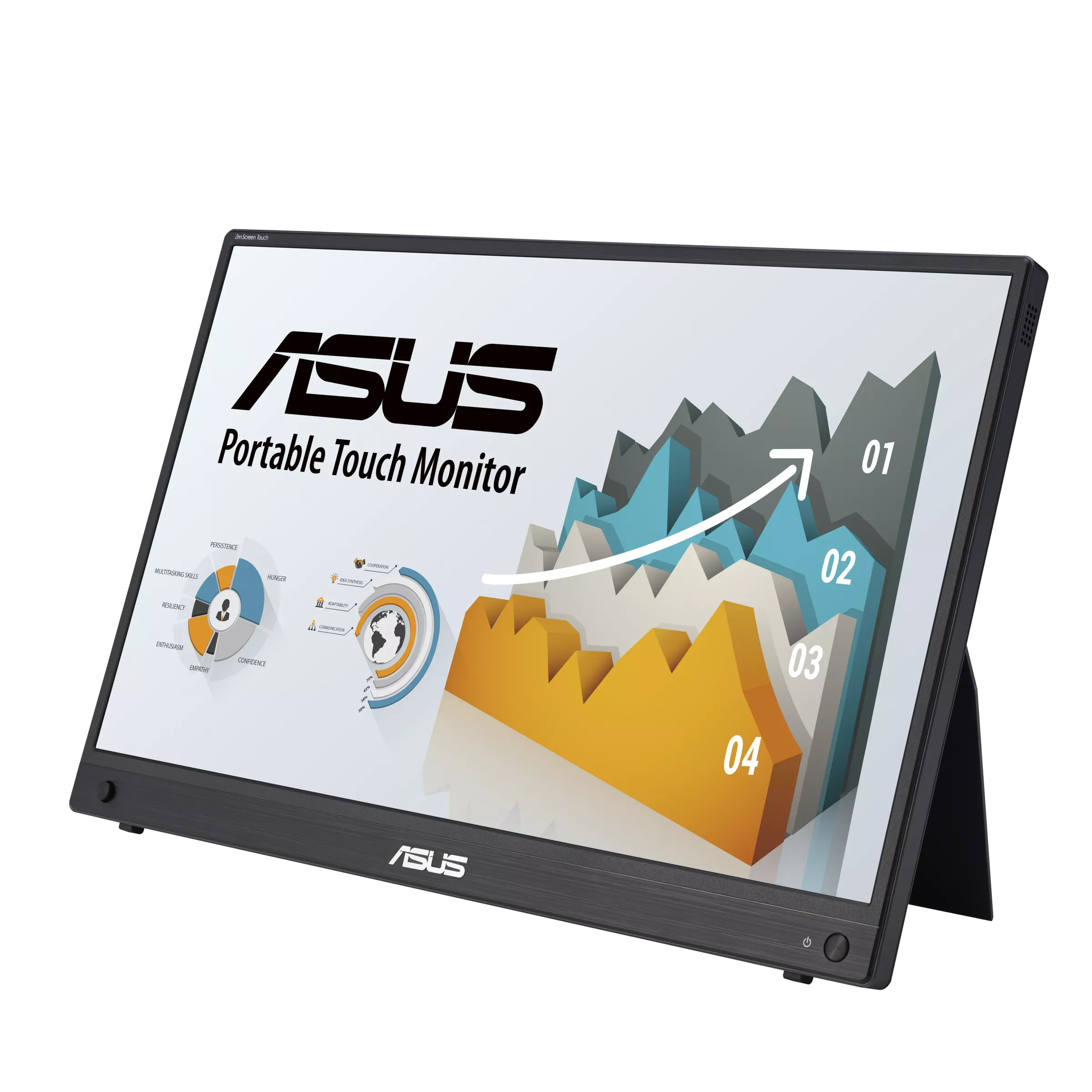

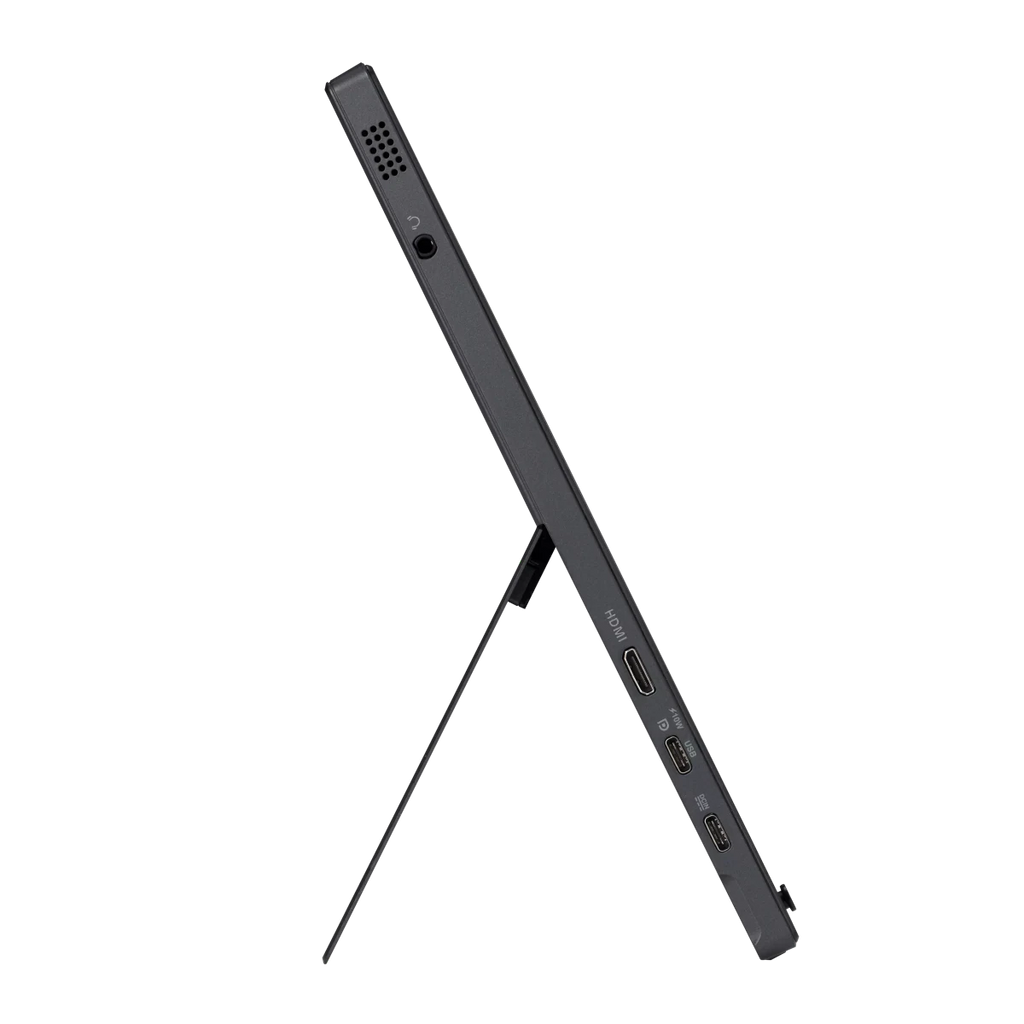

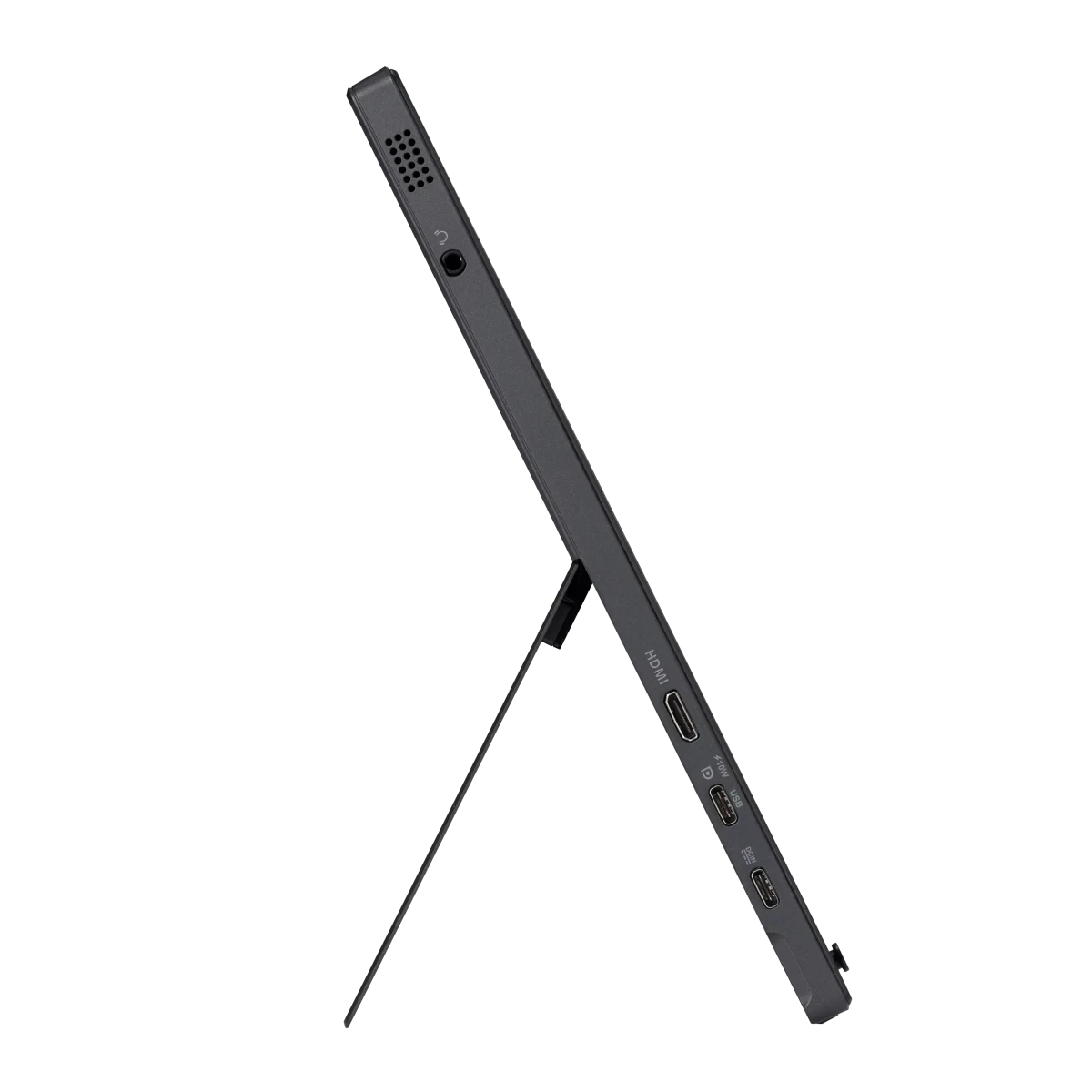

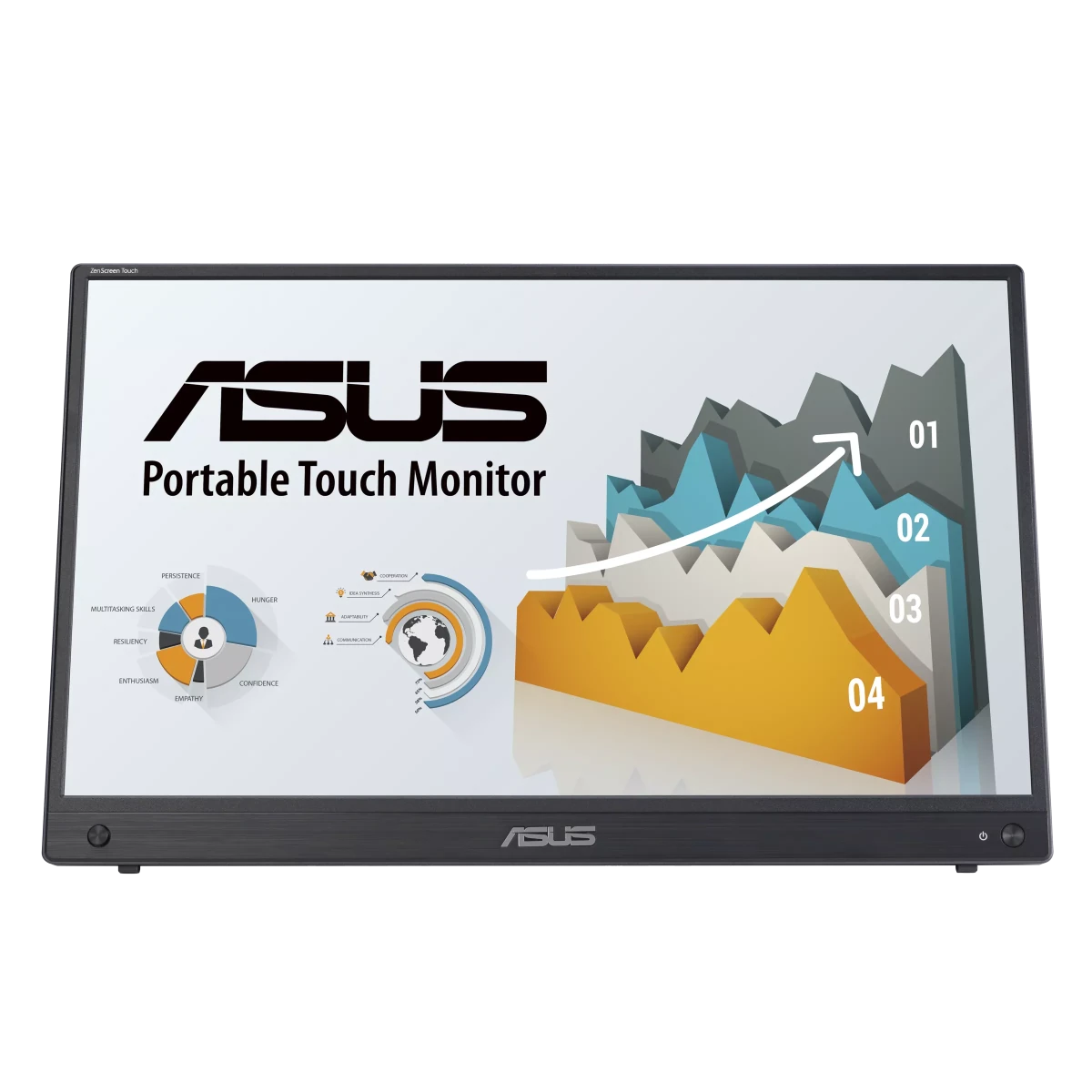

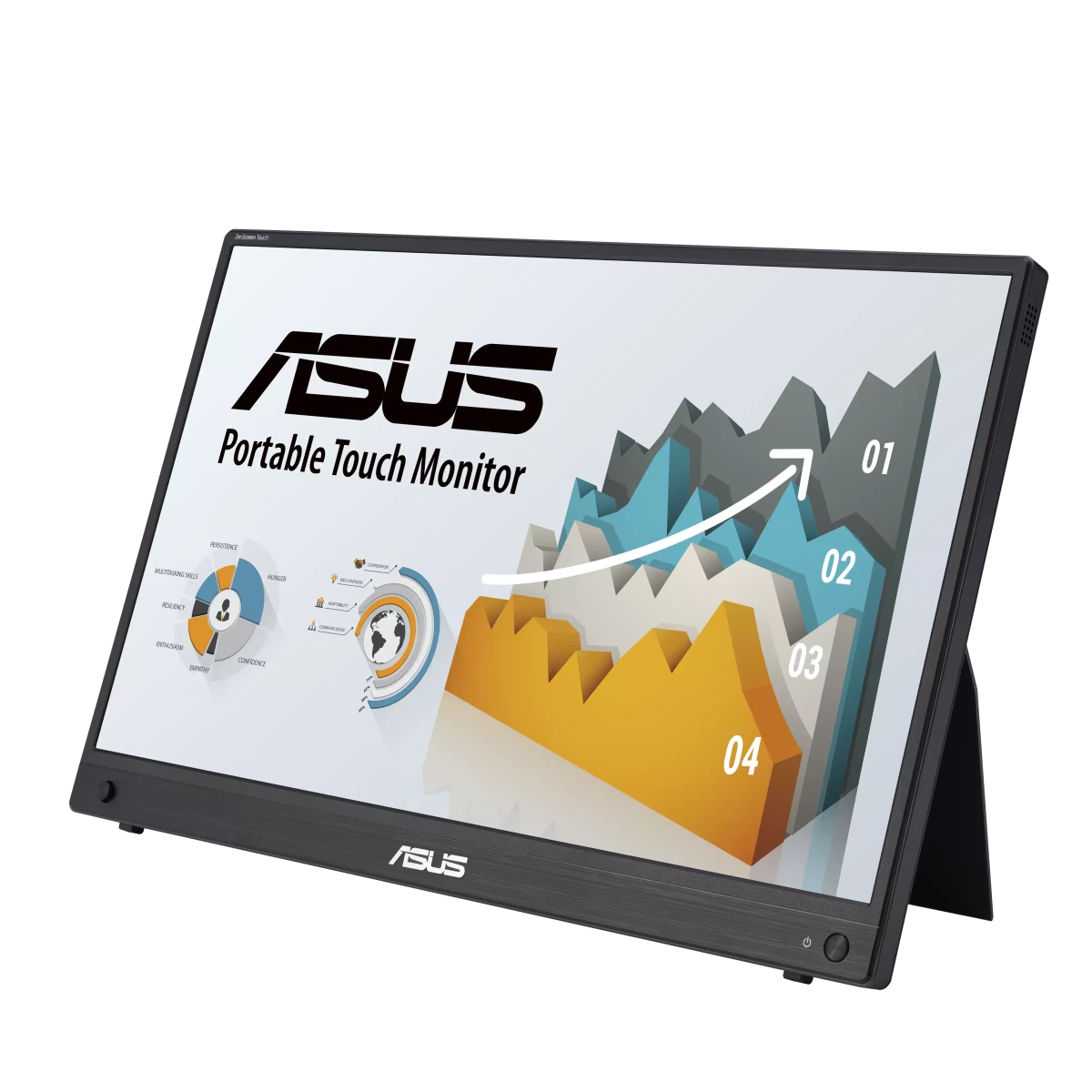

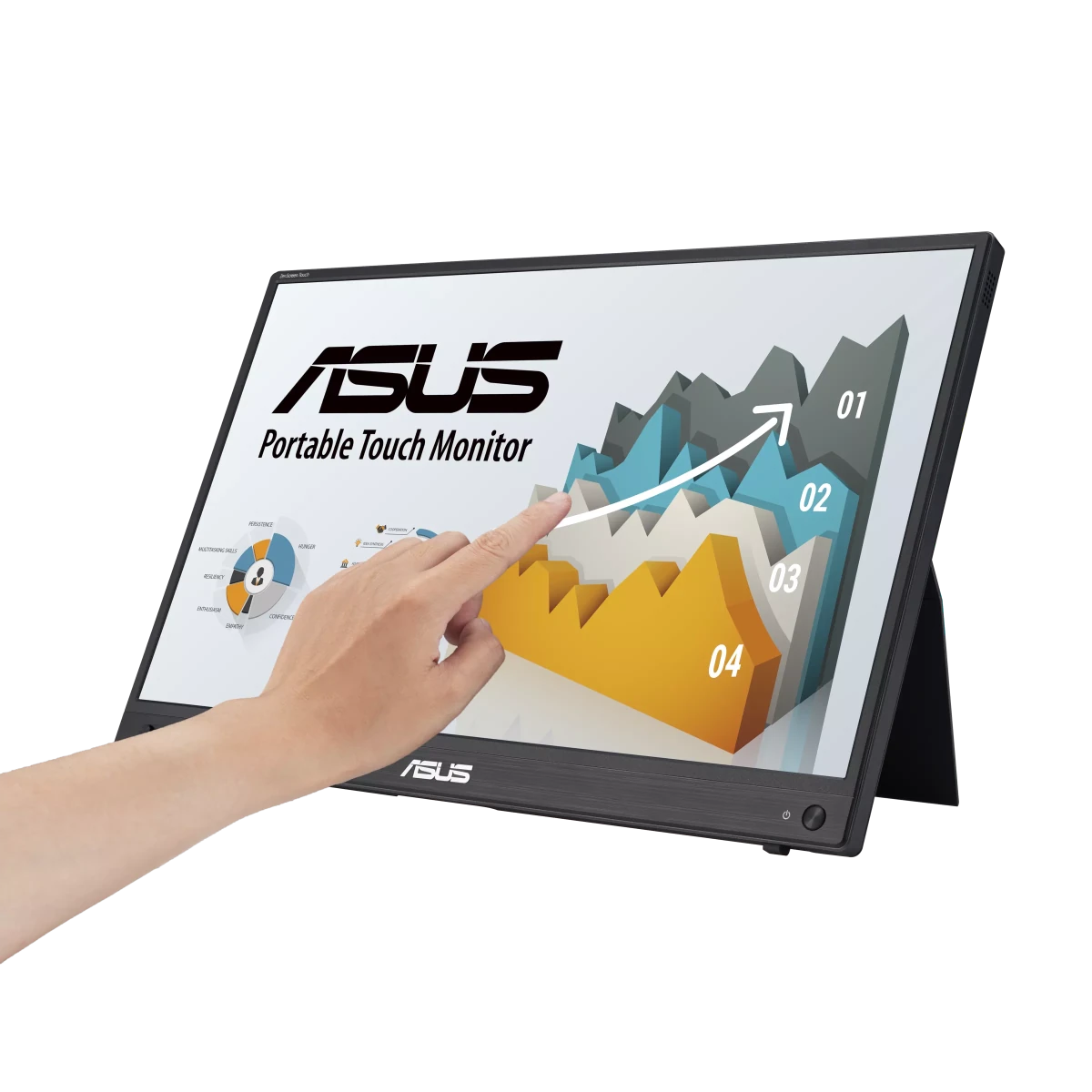

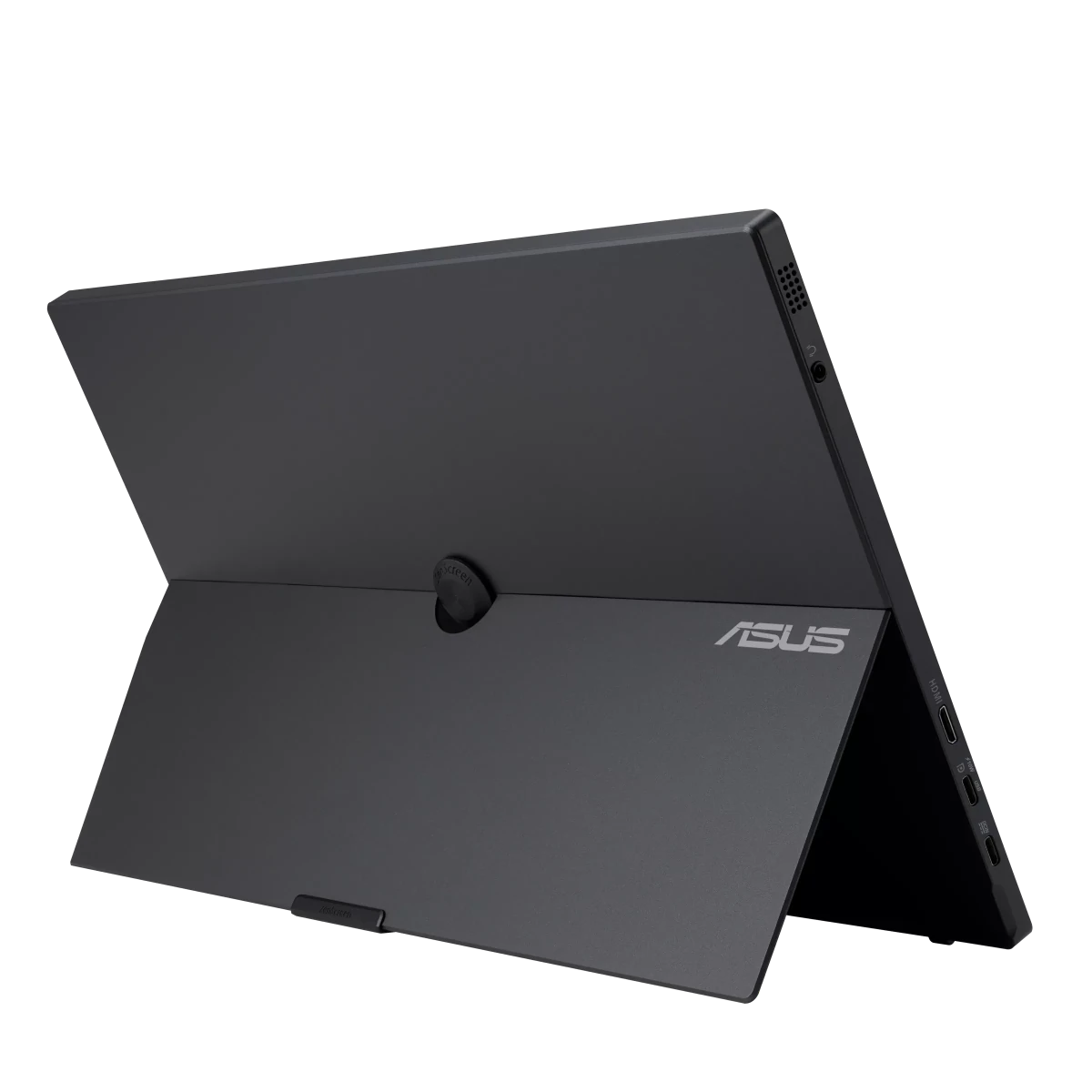

ASUS ZenScreen Touch MB16AMTR portable monitor - 16 inch (15.6 inch viewable), FHD (1920 x 1080), IPS, 10-point touch, Built-in Battery, Hybrid Signal Solution, Mini-HDMI, Compatible with Laptops, Smartphones and Game Consoles

Model

ASUS ZenScreen Touch MB16AMTR

Display

• Panel Size (inch) : 15.6

• Aspect Ratio : 16:9

• Display Viewing Area (H x V) : 344.16 x 193.59 mm

• Display Surface : Anti-Glare

• Backlight Type : LED

• Panel Type : IPS

• Viewing Angle (CR≧10, H/V) : 170°/ 170°

• Pixel Pitch : 0.179mm

• Resolution : 1920x1080

• Brightness (Typ.) : 250cd/㎡

• Contrast Ratio (Typ.) : 700:1

• Display Colors : 260K

• Response Time : 5ms(GTG)

• Refresh Rate (Max) : 60Hz

• Touch : Yes, Projective Capacitive 10-point Touch

• Flicker-free : Yes

Features

• SPLENDID Technology : Yes

• Color Temp. Selection : Yes (4 modes)

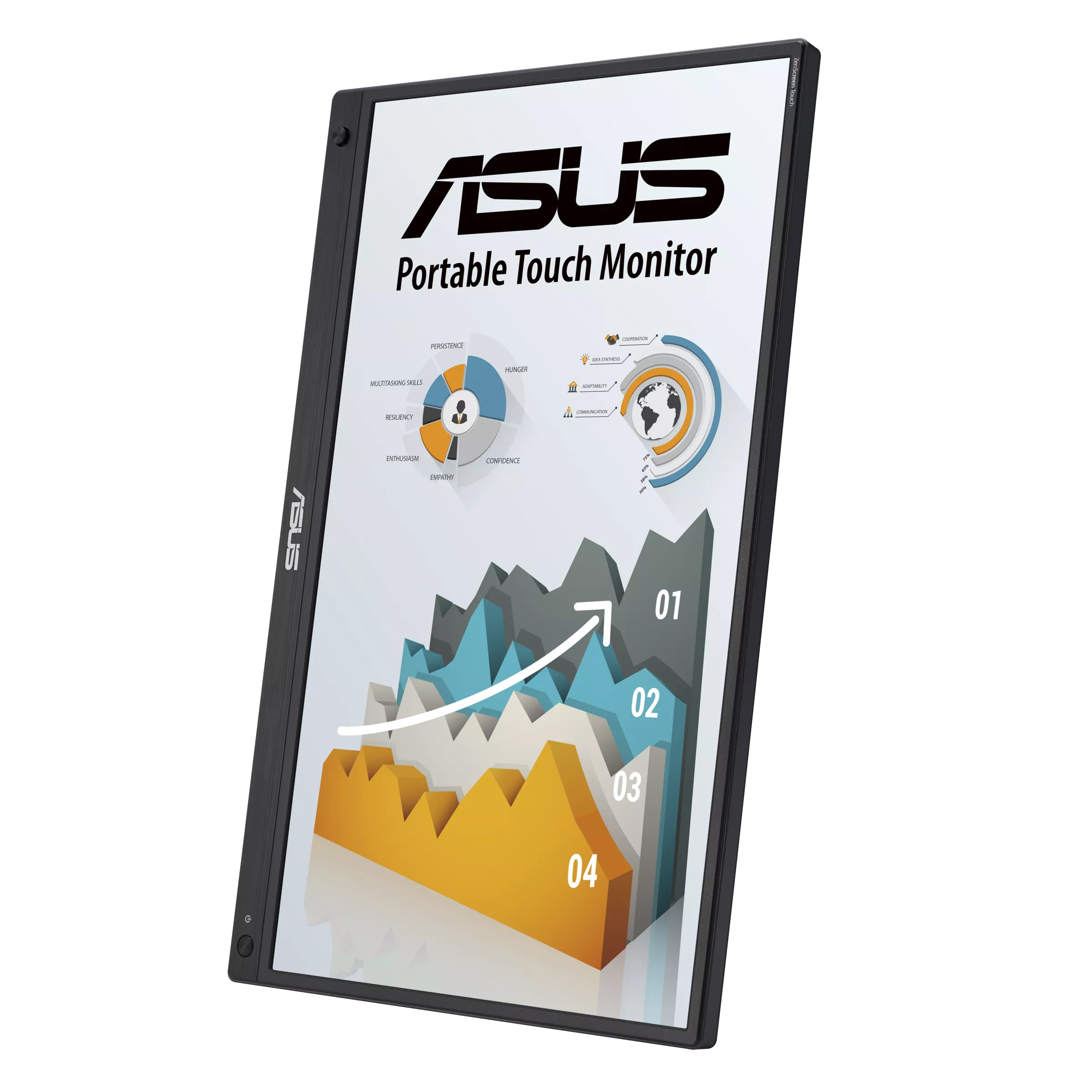

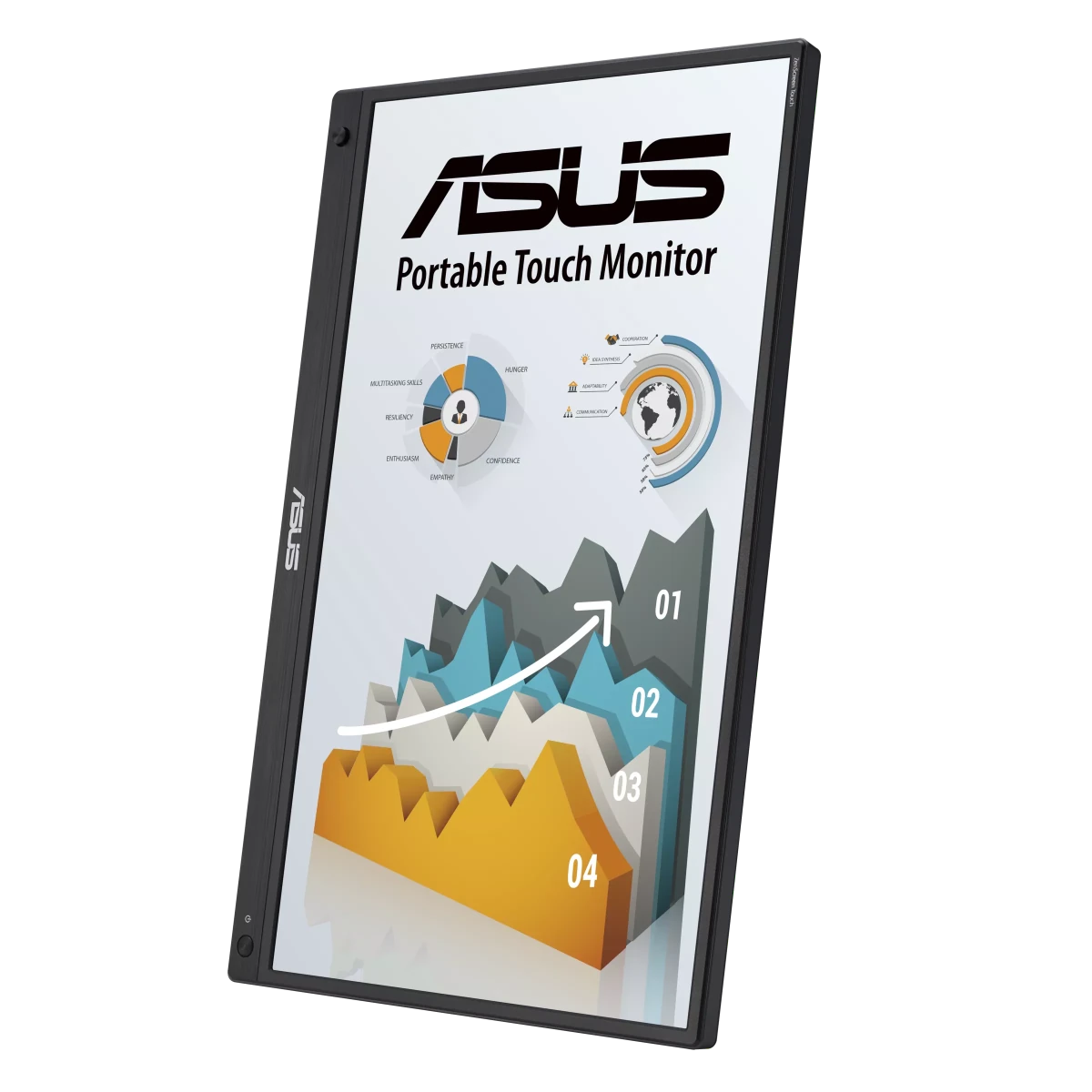

• Auto Rotation:Yes, supported by DisplayWidget Center

• QuickFit : Yes (Photo/Alighment Grid)

• HDCP : Yes

• DisplayWidget : Yes, DisplayWidget Center

• Low Blue Light : Yes

Audio

• Speaker : Yes(1Wx2)

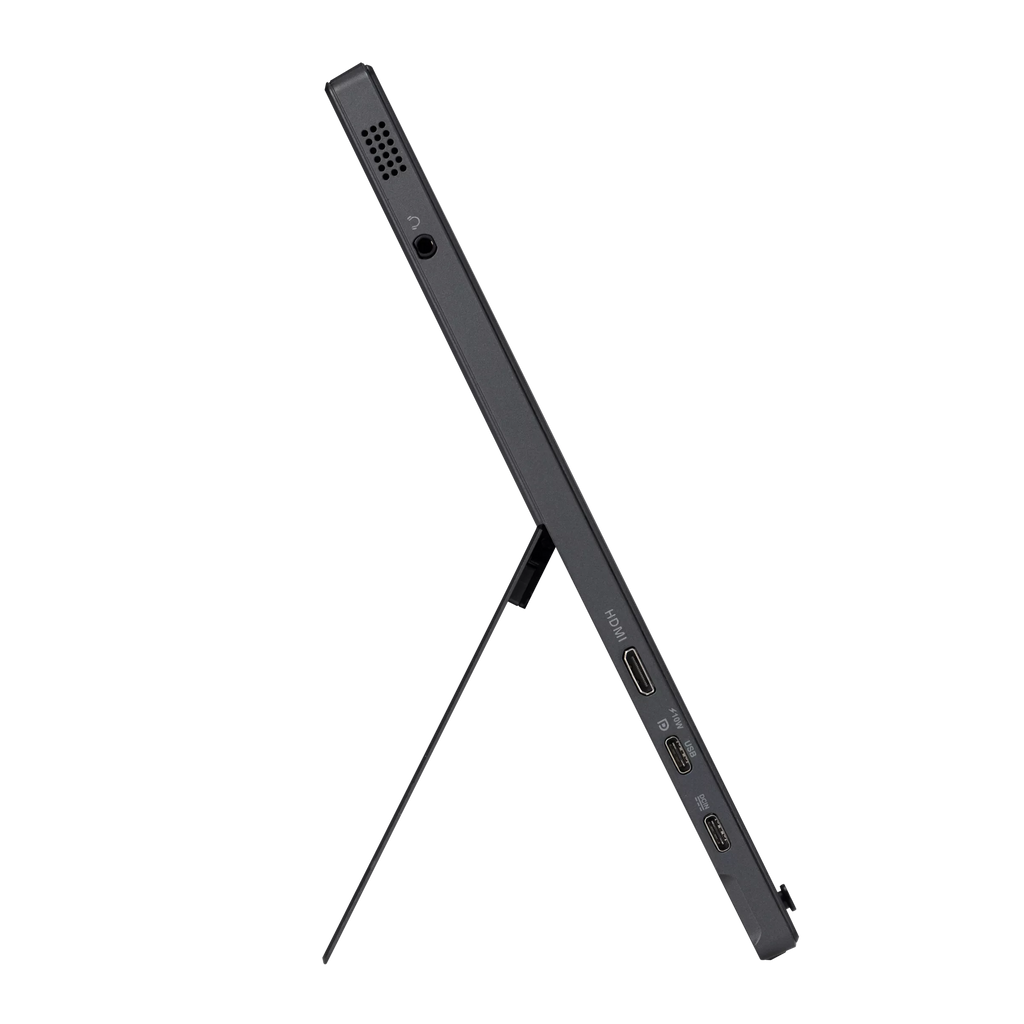

I/O Ports

• USB-C x 2 (DP Alt Mode & USB 3.2 x1 + DC In x1)

• Mini HDMI x 1

• Earphone Jack : Yes

• USB-C Power Delivery : 10W

• USB 3.2 (Signal) : x 1

Signal Frequency

• Digital Signal Frequency : HDMI: 24~83 KHz (H) / 50~61 Hz (V)

• USB-C: 83~83 KHz (H) / 50~61 Hz (V)

Battery

• Battery : 7800mAh

Power Consumption

• Power Consumption : 10W

• Power Saving Mode : <0.5W

• Power Off Mode : <0.3W

• Voltage : 100-240V, 50/60Hz

Mechanical Design

• Tilt : Yes (+15° ~ +35°)

• Height Adjustment : No

• 1/4" Tripod Socket : Yes

Dimensions (Esti.)

• Phys. Dimension (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")

• Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")

• Box Dimension (W x H x D) : 48.8 x 29.8 x 8.8 cm (19.21" x 11.73" x 3.46")

Weight (Esti.)

• Net Weight without Stand : 1.15 kg (2.54 lbs)

• Gross Weight : 2.29 kg (5.05 lbs)

Accessories (vary by regions)

• ZenScreen tripod hole cover

• ZenScreen sleeve

• Warranty Card

• USB-C to A cable

• USB-C cable

• Quick start guide

• Power adapter

• Mini HDMI to HDMI cable

Operation Temperature / Humidity

• Operation Temperature : 5~35℃

• Operation Humidity : 20-90% RH

Certificate

• TÜV Low Blue Light

• TÜV Flicker-free
