| Part No |
90NB1181-M005L0 |
| Model Name |
M3504YA-L1153WS |
| |
|
| EAN Code |
4711387181966 |
| UPC Code |
197105181960 |
| |
|
| Marketing Name |

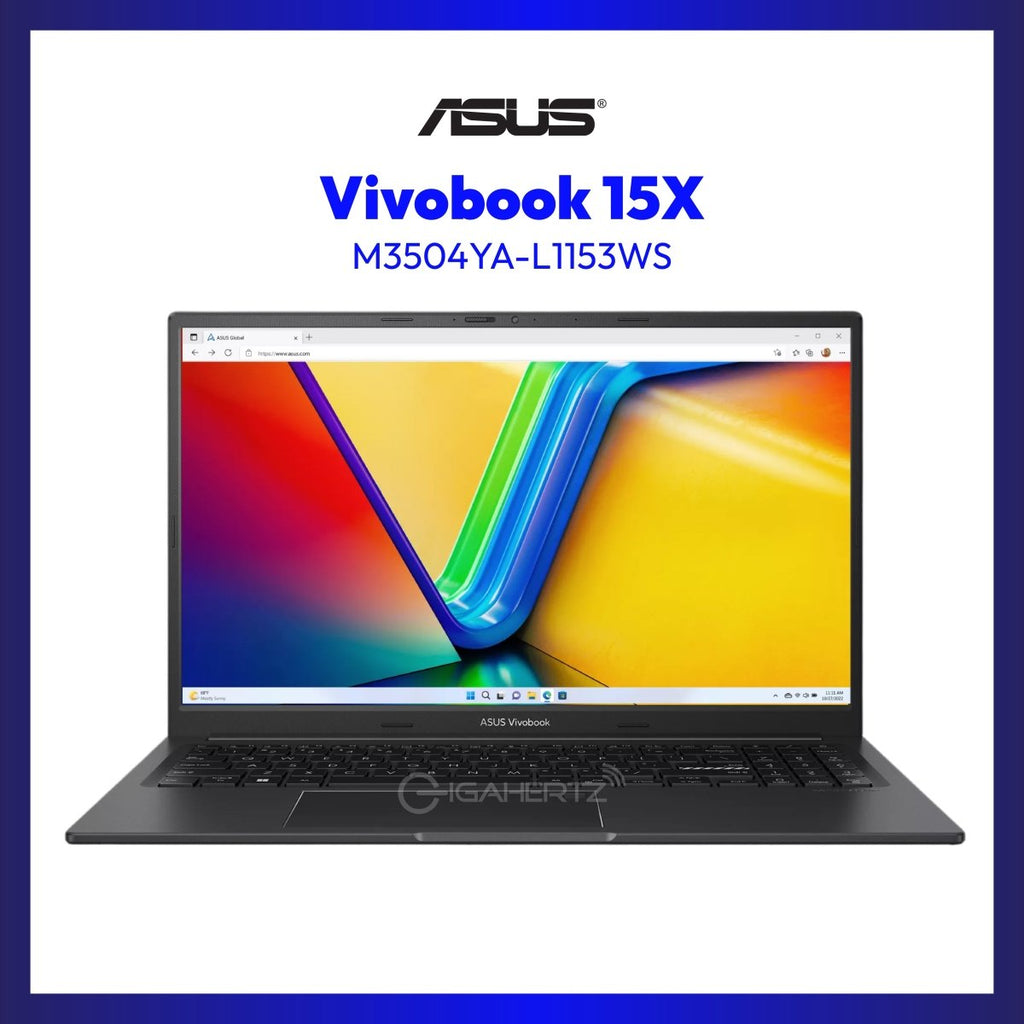

ASUS Vivobook 15X OLED |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| Office |
Microsoft Office Home & Student 2021 |
| LCD cover-material |
Aluminum |
| LCD cover-color |
Indie Black |
| Top case-material |
Plastic |
| Top case-color |
Indie Black |
| Keyboard color |
Black |
| Bottom case-material |
Plastic |
| Bottom case-color |
Indie Black |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Non-touch screen |
| Panel Size |
15.6-inch |
| Resolution |
FHD (1920 x 1080) OLED 16:9 aspect ratio |
| Response time |
0.2ms response time |
| Refresh rate |
60Hz refresh rate |
| Peak Brightness |
600nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Gamut mapping |
Yes |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 600 |
| Color depth |
1.07 billion colors |
| Pantone |
PANTONE Validated |
| Glare |
Glossy display |
| Low blue light |
70% less harmful blue light |
| T?V Rheinland-certified |
TÜV Rheinland-certified |
| Screen-to-body ratio |
85 ％ |
| Processor |
AMD Ryzen™ 7 7730U Processor 2.0GHz (20MB Cache, up to 4.5 GHz, 8 cores, 16 Threads) |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
AMD Radeon™ Graphics |
| VRAM |
N/A |
| How to upgrade memory |
Upgradable; Need to remove bottom/top case |
| Expansion Slot(includes used) |
1x DDR4 SO-DIMM slot
1x M.2 2280 PCIe 3.0x4 |
| On board memory |
8GB DDR4 on board |
| Total System Memory |
DDR4 8GB |
| Storage |
512GB M.2 NVMe™ PCIe® 3.0 SSD |
| Front-facing camera |
720p HD camera ; With privacy shutter |
| Wireless |
Wi-Fi 5(802.11ac) (Dual band) 1*1 + Bluetooth® 5.1 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Touchpad |
Precision touchpad |
| FingerPrint |
FingerPrint |

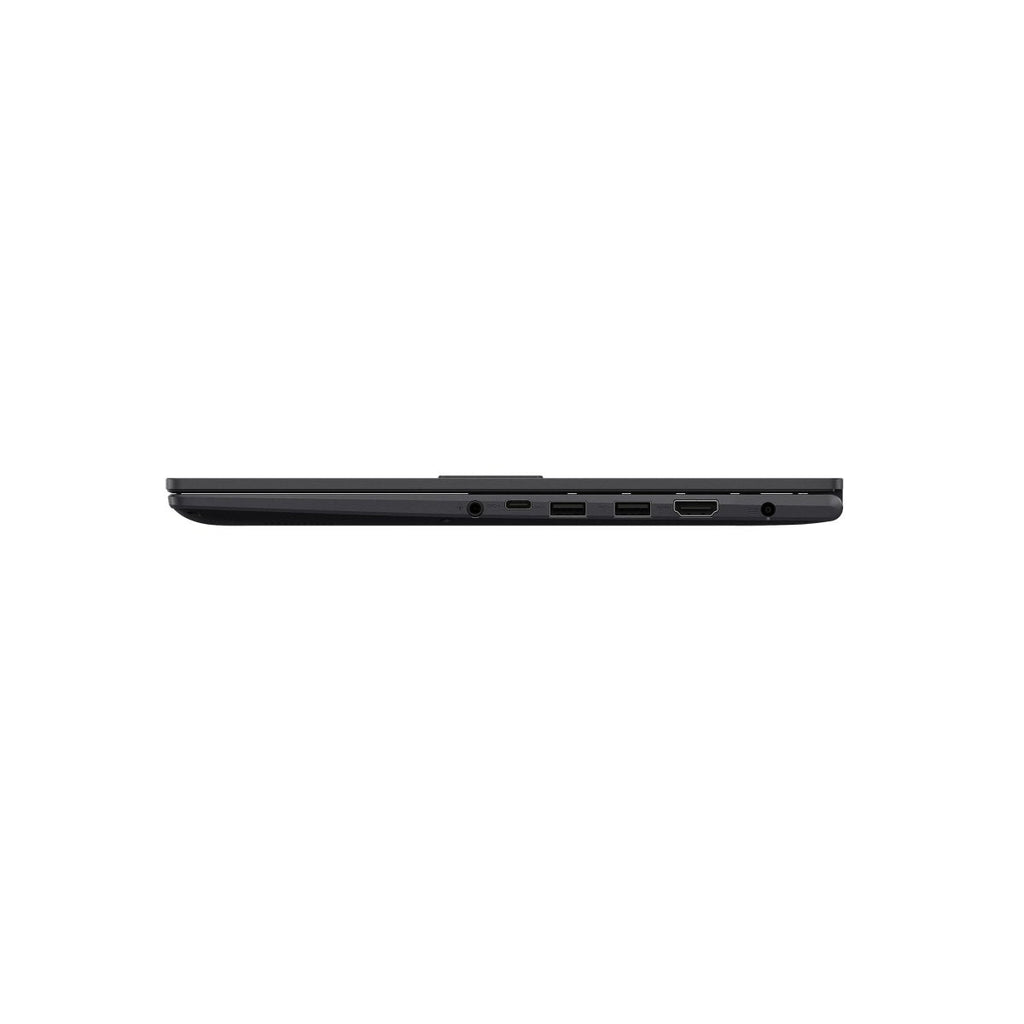

| I/O ports |
1x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-C support power delivery
2x USB 3.2 Gen 1 Type-A
1x HDMI 1.4
1x 3.5mm Combo Audio Jack
1x DC-in |
| Audio |
SonicMaster
Built-in speaker
Built-in array microphone |
| Voice control |
with Cortana voice-recognition support |
| AC Adapter |
ø4.5, 65W AC Adapter, Output: 19V DC, 3.42A, 65W, Input: 100~240V AC 50/60Hz universal |
| Battery |
50WHrs, 3S1P, 3-cell Li-ion |
| Replaceable Battery |
No |

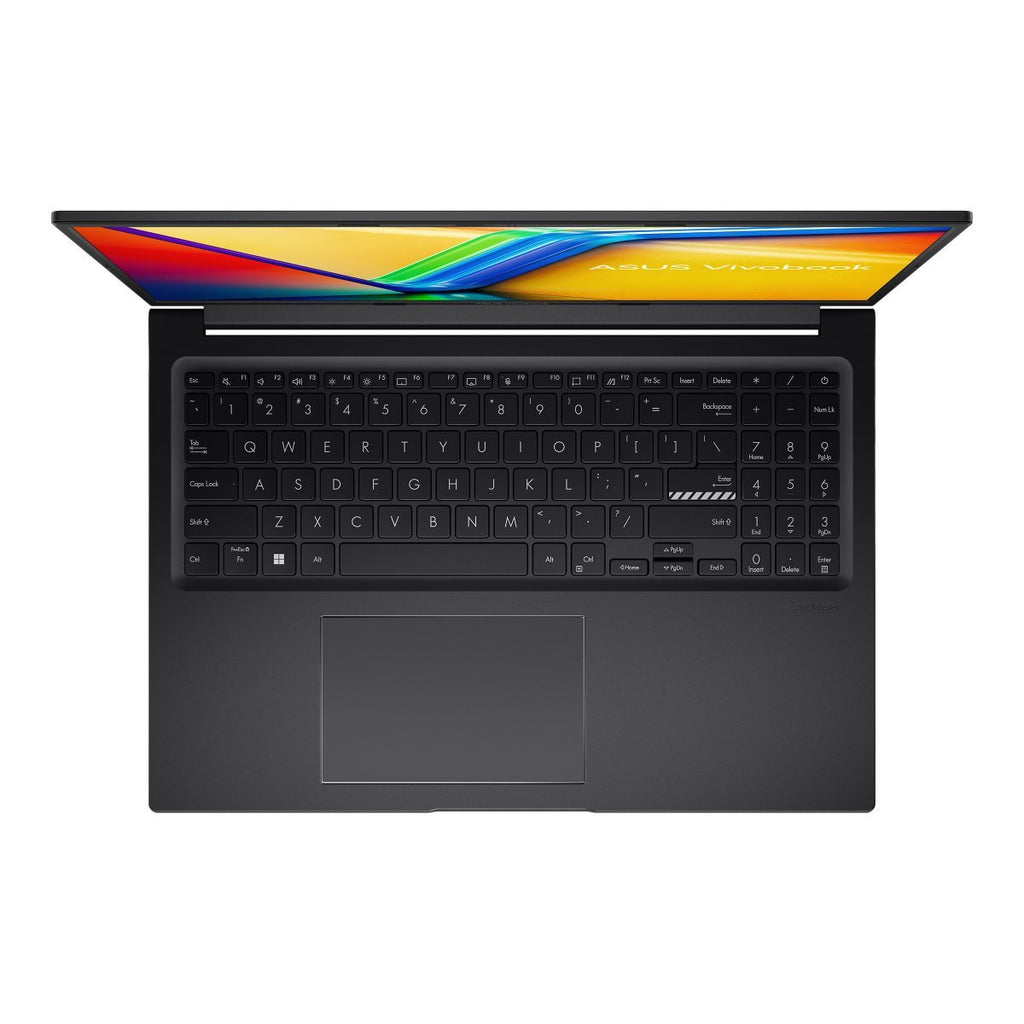

| Keyboard type |
Backlit Chiclet Keyboard with Num-key |
| Dimension (WxHxD) |
35.97 x 23.25 x 1.79 ~ 1.79 cm (14.16" x 9.15" x 0.70" ~ 0.70") |
| Weight (with Battery) |
1.60 kg (3.53 lbs) |
| Weight (without Battery) |
1.60 kg (3.53 lbs) |
| Antivirus |
McAfee® 30 days free trial |
| Security |
McAfee® 30 days free trial
Fingerprint sensor integrated with Touchpad
McAfee®
BIOS Booting User Password Protection
BIOS setup user password
Trusted Platform Module (Firmware TPM) |
| MyASUS feature |
System diagnosis
Battery health charging
Fan Profile
Splendid
Function key lock
WiFi SmartConnect
Link to MyASUS
TaskFirst
Live update
ASUS OLED Care
AI Noise Canceling |
| Built-in Apps |
MyASUS
ScreenXpert
GlideX |
| Adobe Creative Cloud Hard Bundle |
One-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2024. |
| Reparability Index (for France) |
7.9 |
