Dominate every game with the Asus TUF Gaming F15 FX507ZM-HF076W, built to give you incredible speed and power. The 15.6" FHD display brings your gaming world to life, letting you dive into every moment with clarity and precision.
This laptop keeps up with your passion, ensuring you stay in control and ready for whatever comes next. And feel the thrill of seamless gameplay and responsive performance.
Power your Play, and Own the Game.
| Quick Specs: |
• Processor - 12th Gen Intel® Core™ i7-12700H Processor 2.3 GHz
• Graphics - NVIDIA® GeForce® RTX™ 3060 Laptop GPU
• Memory - 16GB DDR5-4800 SO-DIMM
• Storage - 1TB PCIe® 3.0 NVMe™ M.2 SSD
• Resolution - FHD (1920 x 1080) 16:9
• Panel size - 15.6-inch
• Battery - 90WHrs, 4S1P, 4-cell Li-ion
|
| Part No |
90NR09A2-M001P0 |
| Model Name |
FX507ZM-HF076W |
| |
|
| EAN Code |
4711081620488 |
| UPC Code |
195553620482 |
| |
|
| Marketing Name |
ASUS TUF Gaming F15 |
| Color |
Jaeger Gray |
| Dimension (W x D x H) |
35.4 x 25.1 x 2.24 ~ 2.49 cm |
| Weight |
2.20 Kg |
| Processor |
12th Gen Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 14 cores: 6 P-cores and 8 E-cores) |
| Chipset |
N/A |
| Discrete/Optimus |
MUX Switch + Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 3060 Laptop GPU |
| Graphic Wattage |
1752MHz* at 140W (1702MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) |
| Graphic Memory |
6GB GDDR6 |
| IGPU |
Intel® Iris Xᵉ Graphics |
| Panel Size |
15.6-inch |
| Resolution |
FHD (1920 x 1080) 16:9 |
| Refresh Rate |
300Hz |
| Viewing Angle |
170 |
| Panel Tech |
IPS-level |
| Brightness |
300nits |
| Contrast |
1000:1 |
| NTSC % |
72% |
| SRGB % |
100% |
| Adobe % |
75.35% |
| Anti glare |
anti-glare display |
| Adaptive-Sync technology |
Adaptive-Sync |
| Pantone |
N/A |
| Support Dolby Vision HDR |
N/A |
| Total System Memory |
8GB DDR5-4800 SO-DIMM *2 |
| On board memory |
N/A |
| Memory Slot |
2x SO-DIMM slots |
| DIMM Memory |
8GB DDR5-4800 SO-DIMM *2 |
| Memory Max. |
32GB |
| Multi-channel memory technology |
Support dual channel memory |
| System Storage Installed |
1TB PCIe® 3.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
M.2 PCIe 512GB
M.2 PCIe 1TB |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots |
| LAN |
10/100/1000 Mbps |
| Wi-Fi/Bluetooth |
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 (*BT version may change with OS version different.) |

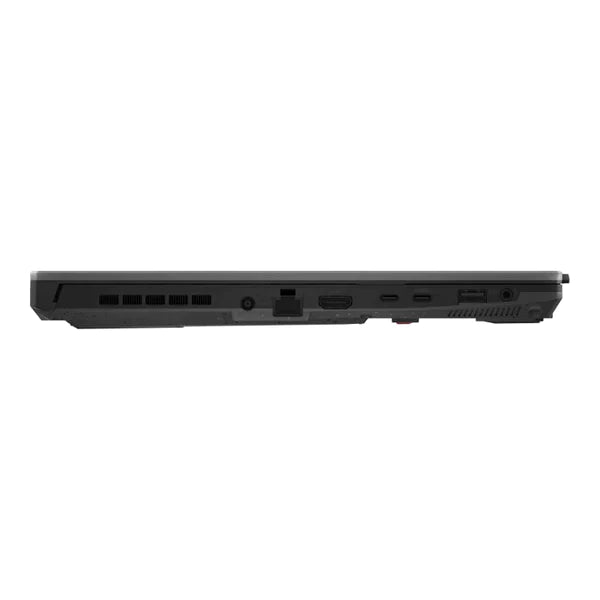

| I/O Ports |
1x RJ45 LAN port
1x Thunderbolt™ 4 support DisplayPort™
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / G-SYNC
2x USB 3.2 Gen 1 Type-A |
| Display output |
1x HDMI 2.0b |
| Audio |
1x 3.5mm Combo Audio Jack |
| Webcam |
720P HD camera |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| NumberPad |
N/A |
| Aura Sync |
Yes |
| Speakers |
2-speaker system |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification |
| Operating System |
Windows 11 Home |
|
|
| Security |
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Power |
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
|
|
|
|
| Reparability Index (for FR) |
7.6 |
