Description
Order now (before 6:00 pm except Sundays) - Get it in 2 hours (for Metro Manila only!)
Quick Specs: | • Processor - Intel® Core™ i5-10300H Processor • Graphics - NVIDIA® GeForce® GTX™ 1650 • Memory - 8GB DDR4 SO-DIMM • Storage - 512GB PCIe® 3.0 NVMe™ M.2 SSD • Resolution - FHD (1920 x 1080) 16:9 • Panel size - 15.6-inch, 144Hz • Battery - 48WHrs, 3S1P, 3-cell Li-ion |
Full Specs:
Part No | 90NR03U2-M00BB0 |
Model Name | FX506LHB-HN326W |
EAN Code | 4711081844587 |
UPC Code | 195553844581 |

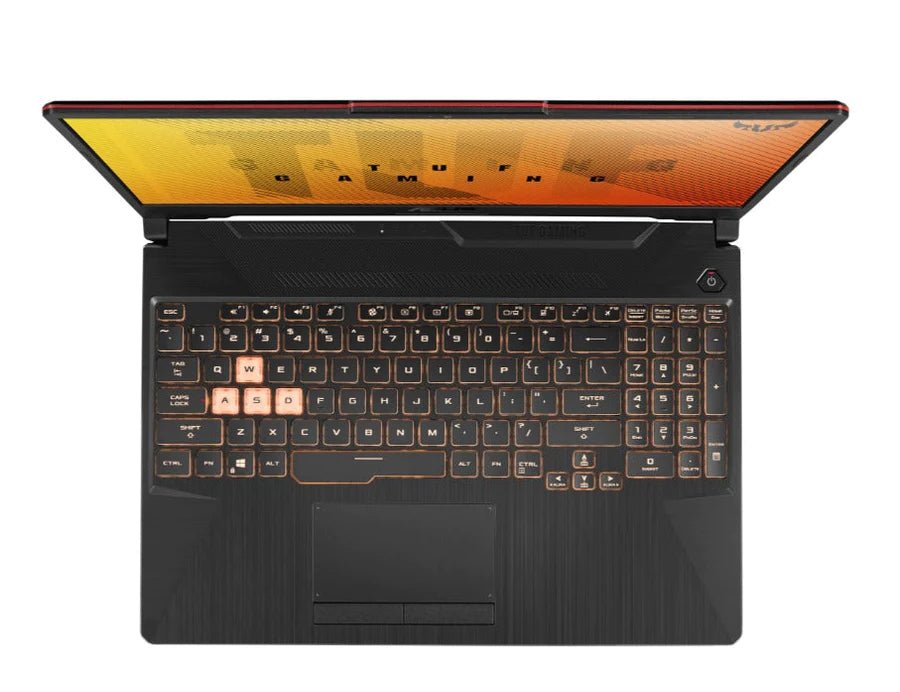

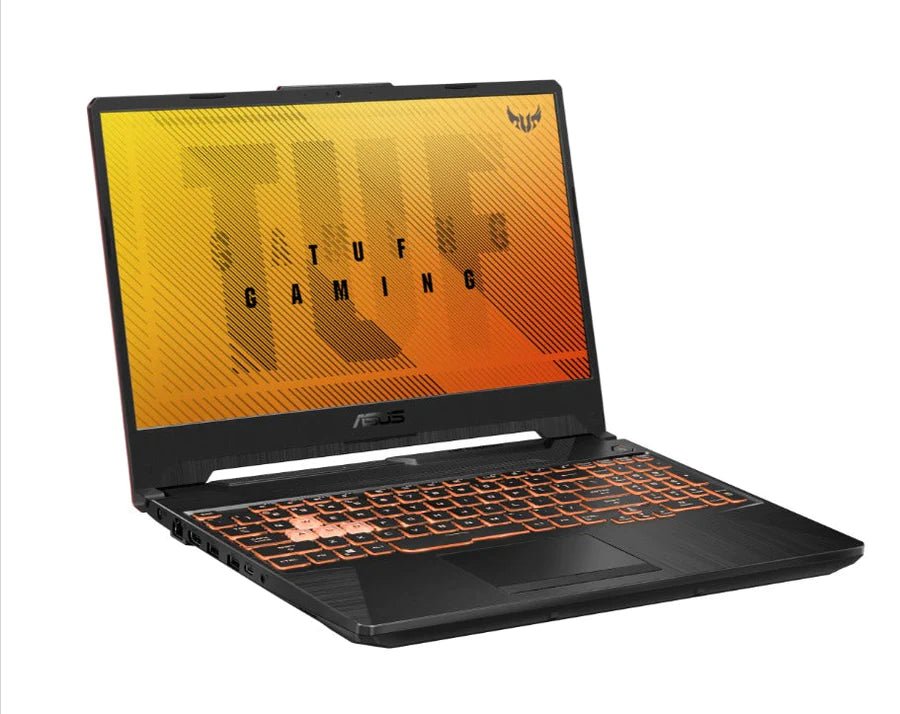

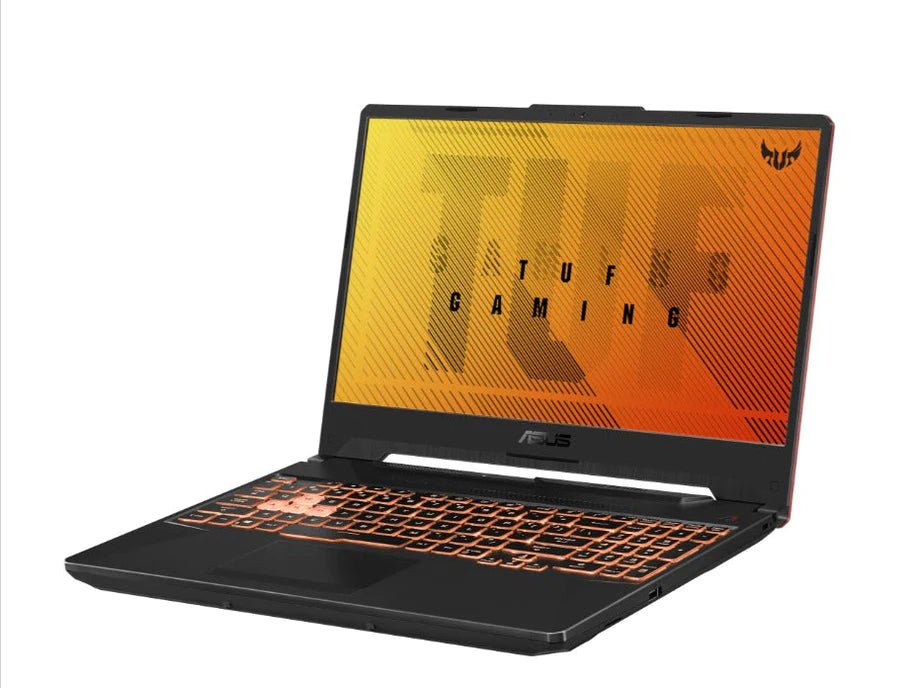

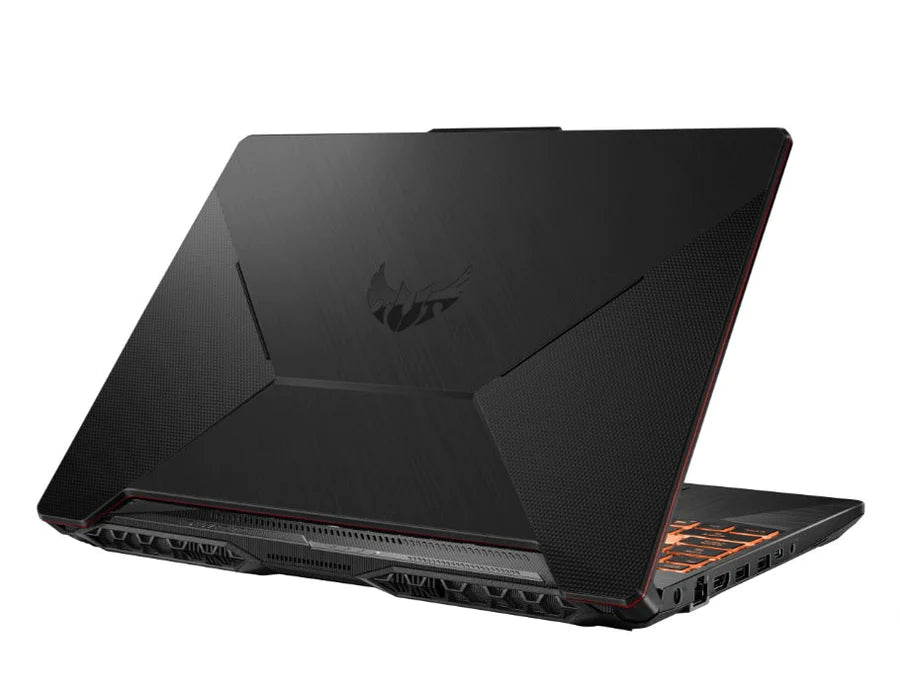

Marketing Name | ASUS TUF Gaming F15 |
Color | Bonfire Black |
Dimension (W x D x H) | 35.9 x 25.6 x 2.47 ~ 2.49 cm |
Weight | 2.30 Kg |
Processor | Intel® Core™ i5-10300H Processor 2.5 GHz (8M Cache, up to 4.5 GHz, 4 cores) |
Chipset | Mobile Intel® HM470 Express Chipsets |
Discrete/Optimus | Optimus |
Graphic | NVIDIA® GeForce GTX™ 1650 |
Graphic Memory | 4GB GDDR6 |
IGPU | Intel® UHD Graphics |
Panel Size | 15.6-inch |
Resolution | FHD (1920 x 1080) 16:9 |
Refresh Rate | 144Hz |
Viewing Angle | 170/170 |
Panel Tech | Value IPS-level |
Brightness | 250 |
Contrast | 1000:1 |
NTSC % | 45% |
SRGB % | 62.5% |
Adobe % | 47.1% |
Anti glare | anti-glare display |
Adaptive-Sync technology | N/A |
Pantone | N/A |
Support Dolby Vision HDR | N/A |
Total System Memory | 8GB DDR4 SO-DIMM(2933MHz for i5-10300H/i7-10750H/i7-10870H) |
On board memory | N/A |
Memory Slot | 2x SO-DIMM slots |
DIMM Memory | 8GB DDR4 SO-DIMM(2933MHz for i5-10300H/i7-10750H/i7-10870H) |
Memory Max. | 32GB |
System Storage Installed | 512GB PCIe® 3.0 NVMe™ M.2 SSD |
M.2 slots support either SATA or NVMe | 1 |
M.2 SSD Support List | M.2 256GB PCIe SSD M.2 512GB PCIe SSD M.2 1TB PCIe SSD |
Expansion Slot (includes used) | 2x DDR4 SO-DIMM slots 1x PCIe 1x PCIe/SATA |
LAN | 10/100/1000 Mbps |
Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 (*BT version may change with OS version different.) |
I/O Ports | 1x USB 2.0 Type-A 2x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 1 Type-C support DisplayPort™ / G-SYNC |
Display output | 1x HDMI 2.0b |
Audio | 1x 3.5mm Combo Audio Jack |
Webcam | 720P HD camera |
Mic | Built-in array microphone |
Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB |
NumberPad | N/A |
Aura Sync | N/A |
Speakers | 2-speaker system with Smart Amplifier Technology |
Audio Tech | DTS software |
Operating System | Windows 11 Home |
Security | BIOS Administrator Password and User Password Protection Kensington Security Slot™ Trusted Platform Module (Firmware TPM) |
Battery | 48WHrs, 3S1P, 3-cell Li-ion |
Power | ø6.0, 150W AC Adapter, Output: 20V DC, 7.5A, 150W, Input: 100~240V AC, 50/60Hz universal |
Reparability Index (for FR) | 5.4 |
