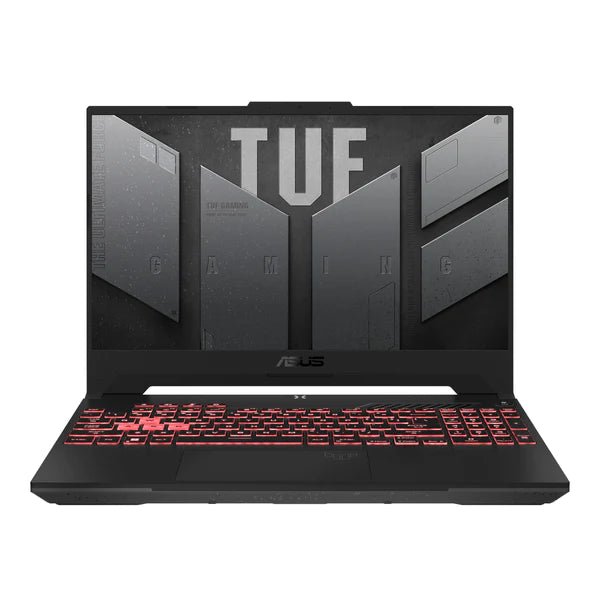

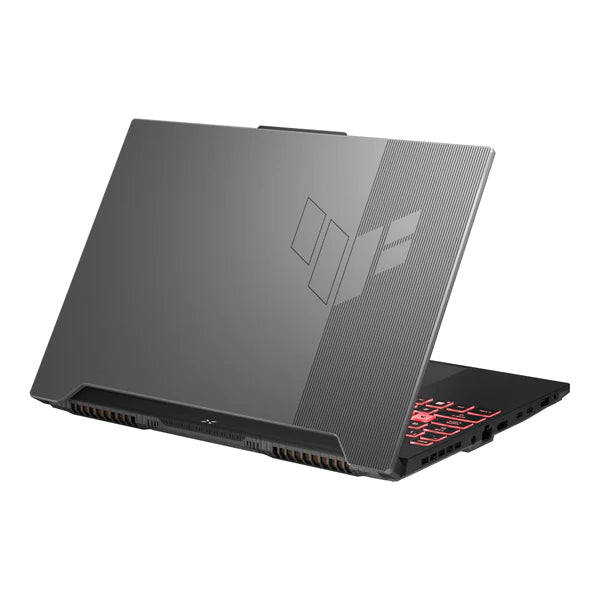

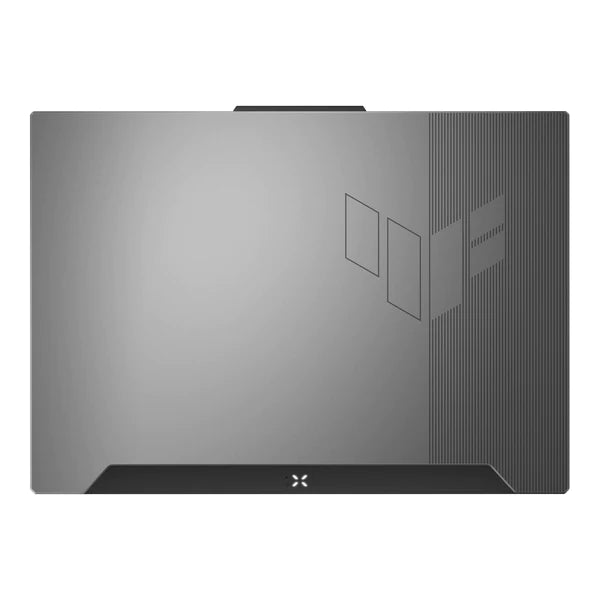

The Asus TUF Gaming A15 FA507RM-HF024W is built to deliver top-notch performance for gamers. With its 15.6" Full HD display and AMD Ryzen 7 6800HS processor, this laptop ensures smooth and responsive gameplay, providing an immersive gaming battle.
Experience a new level of gaming with Asus TUF Gaming A15, where every action and command feels instant and precise.
Lead the Charge, Own the Game.
| Quick Specs: |
• Processor - AMD Ryzen™ 7 6800HS
• Graphics - NVIDIA® GeForce® RTX™ 3060
• Memory - 16GB DDR5-4800 SO-DIMM
• Storage - 1TB PCIe® 3.0 NVMe™ M.2 SSD
• Resolution - FHD (1920 x 1080) 16:9
• Panel size - 15.6-inch, 300Hz
• Battery - 90WHrs, 4S1P, 4-cell Li-ion
|
Full Specs:
| Part No |
90NR09C2-M000V0 |
| Model Name |
FA507RM-HF024W |
| |
|
| EAN Code |
4711081647256 |
| UPC Code |
195553647250 |
| |
|
| Marketing Name |
ASUS TUF Gaming A15 |
| Color |
Jaeger Gray |
| Dimension (W x D x H) |
35.4 x 25.1 x 2.24 ~ 2.49 cm |
| Weight |
2.20 Kg |
| Processor |
AMD Ryzen™ 7 6800HS Mobile Processor (8-core/16-thread, 20MB cache, up to 4.7 GHz max boost) |
| Chipset |
N/A |
| Discrete/Optimus |
MUX Switch + Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 3060 Laptop GPU |
| Graphic Wattage |
1752MHz* at 140W (1702MHz Boost Clock+50MHz OC,115W+25W Dynamic Boost) |
| Graphic Memory |
6GB GDDR6 |
| IGPU |
AMD Radeon™ Navi2 Graphics |
| Panel Size |
15.6-inch |
| Resolution |
FHD (1920 x 1080) 16:9 |
| Refresh Rate |
300Hz |
| Viewing Angle |
170 |
| Panel Tech |
IPS-level |
| Brightness |
300nits |
| Contrast |
1000:1 |
| NTSC % |
72% |
| SRGB % |
100% |
| Adobe % |
75.35% |
| Anti glare |
Anti-glare display |
| Adaptive-Sync technology |
Adaptive-Sync |
| Pantone |
N/A |
| On board memory |
N/A |
| DIMM Memory |
8GB DDR5-4800 SO-DIMM *2 |
| Total System Memory |
DDR5 16GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
32GB |
| Multi-channel memory technology |
Support dual channel memory |
| How to upgrade memory |
Upgradable |
| System Storage Installed |
1TB PCIe® 3.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
M.2 512GB PCIe SSD
M.2 1TB PCIe SSD |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots |
| LAN |
10/100/1000 Mbps |
| Wi-Fi/Bluetooth |
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x RJ45 LAN port
1x USB 3.2 Gen 1 Type-C
1x USB 3.2 Gen 1 Type-C support DisplayPort™ / G-SYNC
2x USB 3.2 Gen 1 Type-A |
| Display output |
1x HDMI 2.1 TMDS |
| Audio |
1x 3.5mm Combo Audio Jack |
| Webcam |
720P HD camera |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| NumberPad |
N/A |
| Aura Sync |
N/A |
| Speakers |
2-speaker system |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification |
| Operating System |
Windows 11 Home |
|
|
|
|
| Security |
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Power |
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
|
|
|
|
| Reparability Index (for FR) |
7.3 |
