Description

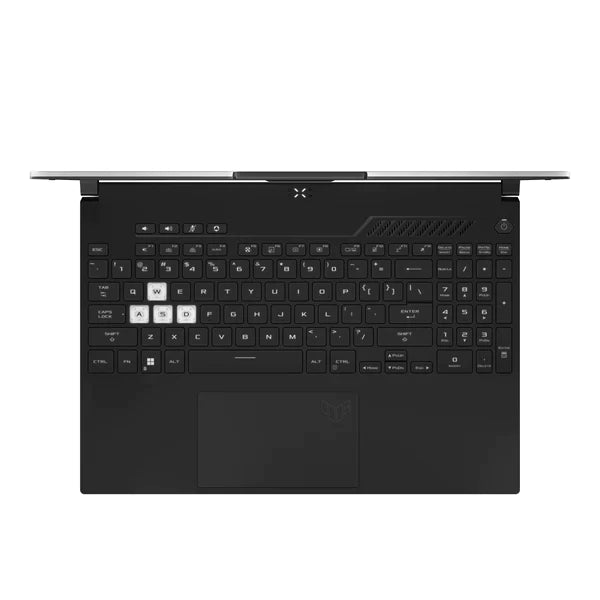

Power up your gameplay with the Asus TUF Dash F15. Its Intel Core i5-12450H processor and NVIDIA GeForce RTX 3060 GPU ensure smooth, high-quality visuals that keep you in action.
When immersed in the game, this laptop stays cool and responsive, so you stay focused on every move. It supports your gaming journey, helping you quickly achieve victory.
Push Limits, Defeat Boundaries.
| Quick Specs: | • Processor - Intel® Core™ i5-12450H Processor 2 GHz • Graphics - NVIDIA® GeForce® RTX™ 3060 Laptop GPU • Memory - 8GB DDR5-4800 SO-DIMM • Storage - 1TB PCIe® 3.0 NVMe™ M.2 SSD • Resolution - WQHD (2560 x 1440) 16:9 • Panel size - 15.6-inch • Battery - 76WHrs, 4S1P, 4-cell Li-ion |
||
Full Specs:
| Part No | 90NR09Q3-M002H0 |
| Model Name | FX517ZM-HQ061W |
| EAN Code | 4711081737704 |
| UPC Code | 195553737708 |
| Marketing Name | ASUS TUF Dash F15 |
| Color | Off Black |
| Dimension (W x D x H) | 35.4 x 25.1 x 1.99 ~ 2.07 cm |
| Weight | 2.00 Kg |
| Processor | 12th Gen Intel® Core™ i5-12450H Processor 2 GHz (12M Cache, up to 4.4 GHz, 8 cores: 4 P-cores and 4 E-cores) |
| Chipset | N/A |
| Discrete/Optimus | MUX Switch + Optimus |
| Graphic | NVIDIA® GeForce RTX™ 3060 Laptop GPU |
| Graphic Wattage | 1452MHz* at 105W (1402MHz Boost Clock+50MHz OC, 80W+25W Dynamic Boost) |
| Graphic Memory | 6GB GDDR6 |
| IGPU | Intel® Iris Xᵉ Graphics |
| Panel Size | 15.6-inch |
| Resolution | WQHD (2560 x 1440) 16:9 |
| Refresh Rate | 165Hz |
| Response Time (G2G) | 3ms |
| Viewing Angle | 85/85/85/85 |
| Panel Tech | IPS-level |
| Brightness | 300 |
| Contrast | 1000:1 |
| DCI-P3 % | 100% |
| Anti glare | anti-glare display |
| Adaptive-Sync technology | Adaptive-Sync |
| Pantone | N/A |
| Support Dolby Vision HDR | N/A |
| Total System Memory | 8GB DDR5-4800 SO-DIMM |
| On board memory | N/A |
| Memory Slot | 2x SO-DIMM slots |
| DIMM Memory | 8GB DDR5-4800 SO-DIMM |
| Memory Max. | 32GB |
| Multi-channel memory technology | Support dual channel memory |
| System Storage Installed | 1TB PCIe® 3.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe | 2 |
| M.2 SSD Support List | support PCIE Gen4x4 & Gen3x4 |
| How to upgrade memory | Upgradable dedicate Memory door on Bottom side |
| Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots |
| LAN | 10/100/1000 Mbps |
| Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 (*BT version may change with OS version different.) |
| I/O Ports | 1x RJ45 LAN port 1x Thunderbolt™ 4 support DisplayPort™ 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A |
| Display output | 1x HDMI 2.0b |
| Audio | 1x 3.5mm Combo Audio Jack |
| Webcam | 720P HD camera |
| Mic | Built-in array microphone |
| Keyboard Type | Backlit Chiclet Keyboard Single Light |
| NumberPad | N/A |
| Aura Sync | Yes |
| Speakers | 2-speaker system |
| Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification |
| Operating System | Windows 11 Home |
| Security | Kensington Security Slot™ Trusted Platform Module (Firmware TPM) |
| Battery | 76WHrs, 4S1P, 4-cell Li-ion |
| Power | ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal |
| Reparability Index (for FR) | 7.2 |
