| Model |
GU605CP / 90NR0MM1-M00270 |
| Marketing Name |

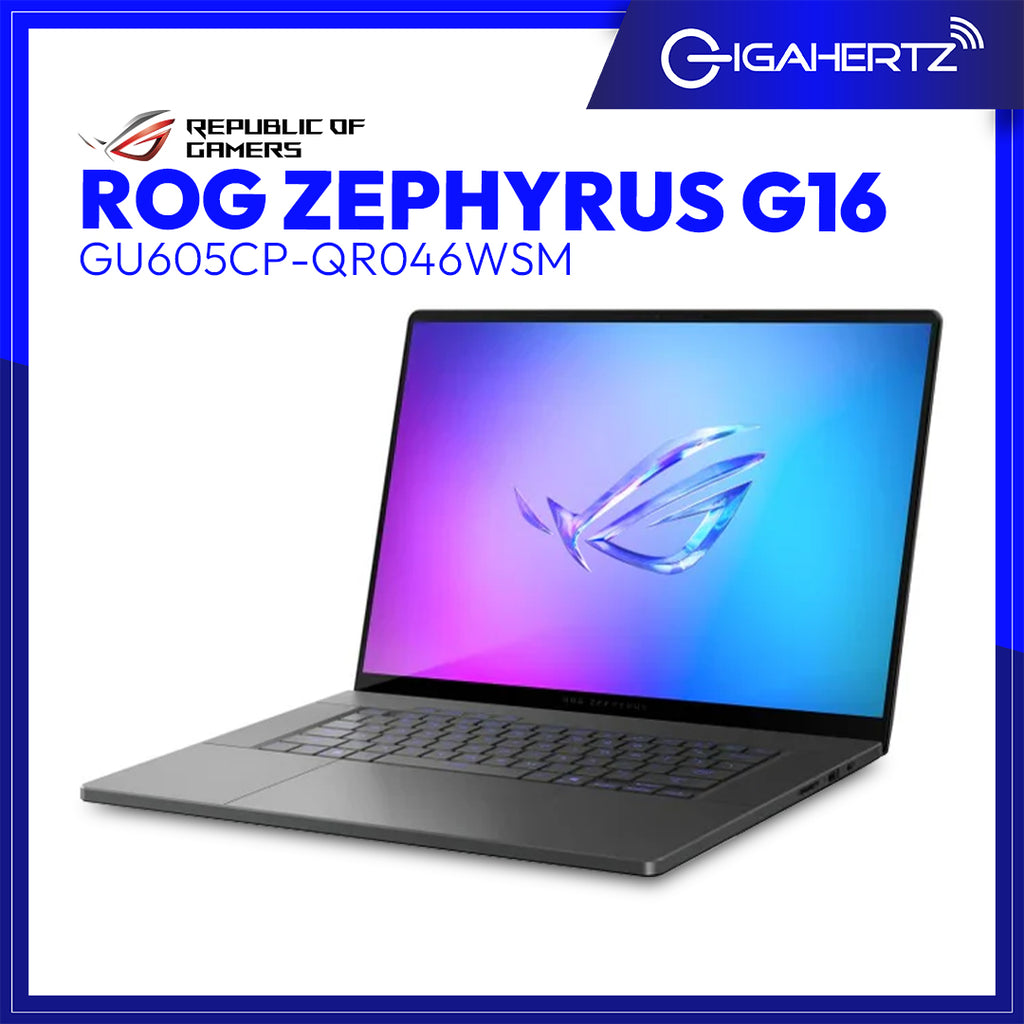

ROG Zephyrus G16 |
| Operating System |
Windows 11 Home |
| Office |
Microsoft Office Home 2024 + Microsoft 365 Basic |
| Color |
Eclipse Gray |
| Dimension (W x D x H) |
35.4 x 24.6 x 1.49 ~ 1.64 cm (13.94" x 9.69" x 0.59" ~ 0.65") |
| Weight |
1.85 Kg (4.08 lbs) |
| Processor |
Intel® Core™ Ultra 9 Processor 285H 2.9 GHz (24MB Cache, up to 5.4 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13TOPS |
| Chipset |
N/A |
| Integrated GPU |
Intel® Arc™ Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphics |
NVIDIA® GeForce RTX™ 5070 Laptop GPU |
| Graphics Wattage |
ROG Boost: 1595MHz* at 105W (1545MHz Boost Clock+50MHz OC, 90W+15W Dynamic Boost) |
| Graphics Memory |
8GB GDDR7 |
| Neural Processor |
Intel® AI Boost NPU up to 13TOPS |
| Panel Size |
16-inch |
| Resolution |
2.5K (2560 x 1600, WQXGA) OLED 16:10 aspect ratio |
| Refresh Rate |
240Hz |
| Viewing Angle |
89/89/89/89 |
| Panel Tech |
OLED |
| Brightness |
500 nits (Peak) |
| Contrast Ratio |
1,000,000:1 |
| DCI-P3 % |
100% |
| Glare |
Glossy display |
| Adaptive-Sync Technology |
G-Sync |
| Pantone |
Pantone Validated |
| Nebula Display |
ROG Nebula Display |
| Support Dolby Vision HDR |
Yes |
| On Board Memory |
32GB LPDDR5X 7467 on board (Actual memory speeds may vary by CPU configuration.) |
| Total System Memory |
LPDDR5X 32GB |
| Memory Slot |
No expansion possible |
| Memory Max. |
32GB |
| Multi-channel Memory Technology |
Support dual channel memory technology |
| Storage |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 Slots Support |
2 (Supports either SATA or NVMe) |
| M.2 SSD Support List |
- 1TB M.2 NVMe™ PCIe® G4x4 Performance SSD (ACC/TW only)- 2TB M.2 NVMe™ PCIe® G4x4 Performance SSD (ACC/TW only)- 1TB / 2TB G4x4 Value SSD |
| Expansion Slot |
2x M.2 PCIe |
| LAN |
N/A |
| Wireless |
Wi-Fi 7 (802.11be) (Triple band) 2×2 + Bluetooth® 5.4 Wireless Card(*Bluetooth® version may change with OS version) |
| I/O Ports |
- 1x Thunderbolt™ 4 (DisplayPort™ / power delivery, 40Gbps)- 1x USB 3.2 Gen 2 Type-C (DisplayPort™ / power delivery / G-SYNC, 10Gbps)- 2x USB 3.2 Gen 2 Type-A- 1x HDMI 2.1 FRL- 1x card reader (SD, UHS-II, 312MB/s) |
| Camera |
1080P FHD IR Camera for Windows Hello |
| Microphone |
Built-in 3-microphone array |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| Aura Sync |
Yes |
| Touchpad |
Touchpad |
| Speakers |
4-speaker (dual-force woofer) system with Smart Amplifier Technology, 2 Tweeters |
| Audio Jack |
1x 3.5mm Combo Audio Jack |
| Audio Technology |
- AI noise-canceling technology- Dolby Atmos- Hi-Res certification (for headphone)- Smart Amp Technology |
| Security |
- BIOS Administrator Password and User Password Protection- Trusted Platform Module (Firmware TPM) |
| Antivirus |
McAfee® 30 days free trial |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast Charging |
Recharge from 0-50% in 30 minutes |
| Power Adapter |
Rectangle Conn, 200W AC AdapterOutput: 20V DC, 10A, 200WInput: 100–240V AC, 50/60Hz universal |
| Required Charging Power |
Min: 45%WMax: 100%W |
| Xbox Game Pass |
Xbox Game Pass for PC – 3 months (*Terms and exclusions apply. Offer only available in eligible markets. Game catalog varies.) |
| Included in the Box |
- ROG Impact Gaming Mouse- TYPE-C, 100W AC Adapter- ROG Zephyrus G16 Sleeve (2024) |
| Ecolabels & Compliances |
N/A |
| Reparability Index (France) |
9.3 |
