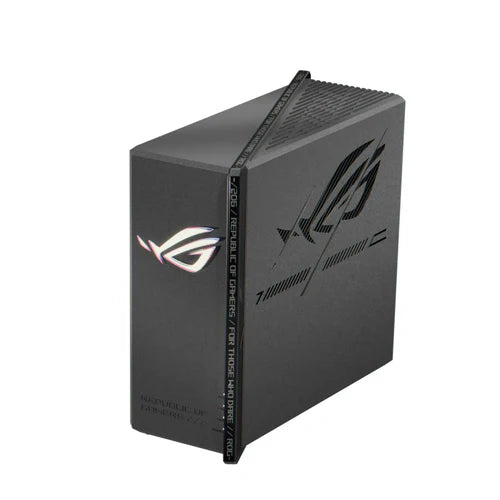

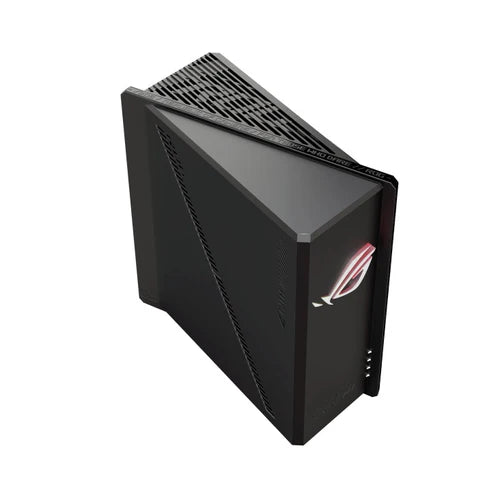

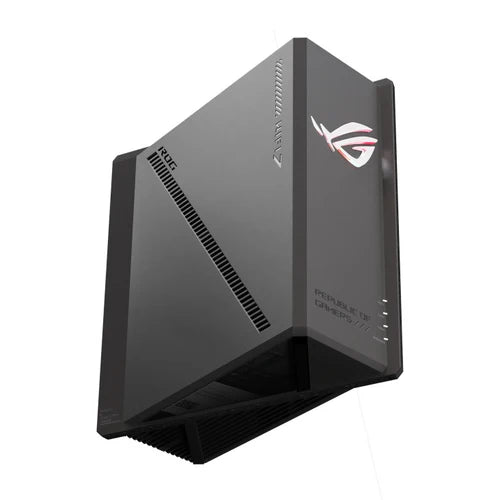

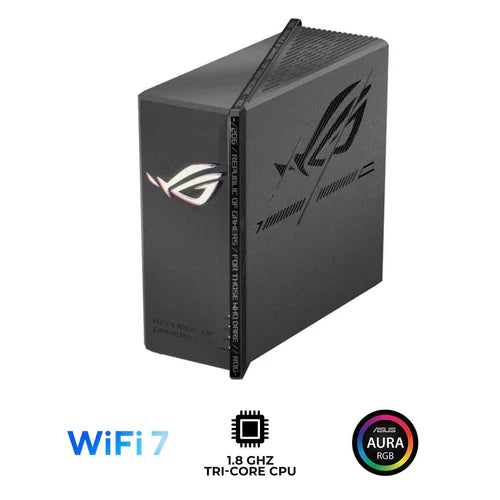

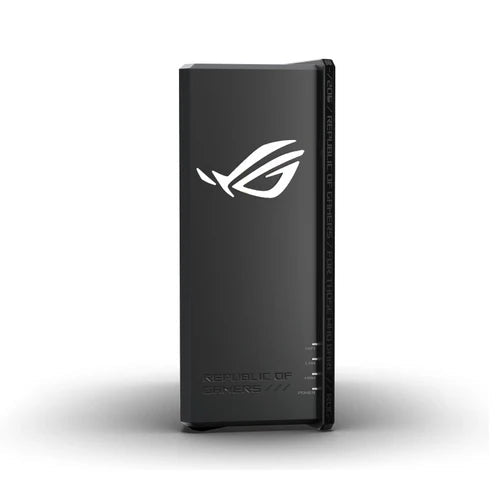

Asus ROG Strix GS-BE7200X Dual-band WiFi 7 Gaming Router

Model

ROG Strix GS-BE7200X

Model Name

GS-BE7200X

Network Standard

• WiFi 7 (802.11be)
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IEEE 802.11be
• IPv4
• IPv6

Product Segment

BE7200 ultimate BE performance : 1376+5764 Mbps

WiFi Data Rate

• 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
• 5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps

Antenna

internal antenna x 8

Transmit / Receive

• 2.4GHz 4x4
• 5GHz 4x4

Processor

1.8GHz Tri-core processor

Memory

• 128 MB Flash
• DDR4 1 GB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4GHz and 5GHz
• 2.4 GHz
• 5 GHz

Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode
• Media Bridge Mode
• Repeater Mode

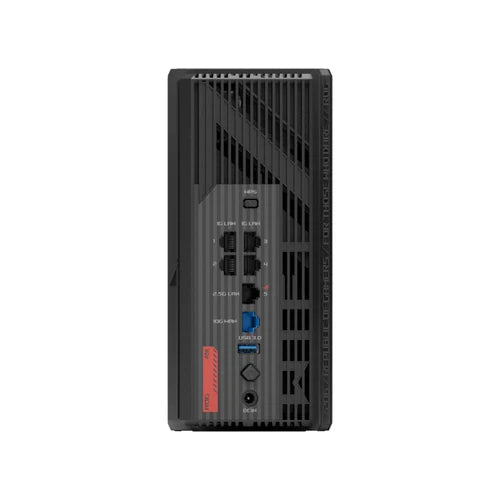

I/O Ports

• 1 x 10G for WAN
• 1 x 2.5G for LAN
• 4 x 1G for LAN
• USB 3.2 Gen1 x1

Buttons

• Power, WPS, Reset

LED Indicator

• Internet (WAN)
• WiFi
• LAN
• Power

Power Supply

• AC Input : 110V~240V (50~60Hz)
• DC Output : 12V with max. 3A current

Package Content

• WiFi7 Dual-Band router
• ROG RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight (g)

811

Product Dimensions

225 x 90 x 225

AiMesh

• Primary AiMesh Router
• AiMesh Node

Game

• Game Boost / Acceleration
• Mobile Game Mode
• Gear Accelerator
• UU boost
• ROG_First
• OpenNAT (Game Profile)
• Gaming Port
• Gaming Network

Parental Control

• Allow you to block access to unwanted websites and apps.
• Time Scheduling
• Reward
• Parental Control Customized Internet Schedule
• Maximum Parental Control Profile : 64

Guest Network

• The Guest Network provides Internet connection for guests but restricts access to your local network.
• Support Guest Network
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3
• Guest Network Connection time limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal

Security

• AiProtection
• VPN
• WiFi Encryption : WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3

• Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

• Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec
• 4G / 5G Auto Mobile Tethering
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-

Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE Relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
• Wake on LAN (WOL)

Wireless

MU-MIMO

USB Application

• 4G / 5G Auto Mobile Tethering
• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS Router APP

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
