| SPECIFICATIONS |
| |
| Display |
| Panel Size: Wide Screen 24.5"(62.23cm) 16:9 |
| Panel Backlight / Type : TN |
| True Resolution : 1920x1080 * |
| Display Viewing Area(HxV) : 543.7 x 302.6 mm |
| Display SurfaceNon-glare |
| Pixel Pitch : 0.2832 x 0.2802mm |
| Brightness(Max) : 400 cd/㎡ |
| Contrast Ratio (Max) : 1000:1 |
| Viewing Angle (CR≧10) : 170°(H)/160°(V) |
| Response Time : 1ms (Gray to Gray),0.5ms (Gray to Gray, Min) |
| Display Colors : 16.7M |
| Flicker free |

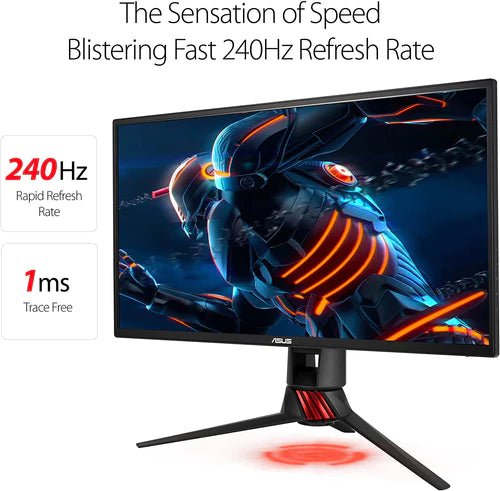

| Refresh Rate(max) : 240Hz |
| |
| Video Feature |
|
Trace Free Technology : Yes
|
| Color Temperature Selection : 4 Modes |
| GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter/Display Alignment) |
| Low Blue Light : Yes |
| HDCP support : Yes |
| GameVisual :8 Modes(Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes/MOBA Mode/User Mode) |
| G-Sync compatible |
| FreeSync™ technology supported |
| Display Widget |
| Extreme Low Motion Blur |
| GameFast Input technology |
| |
| Convenient Hotkey |
| GamePlus |

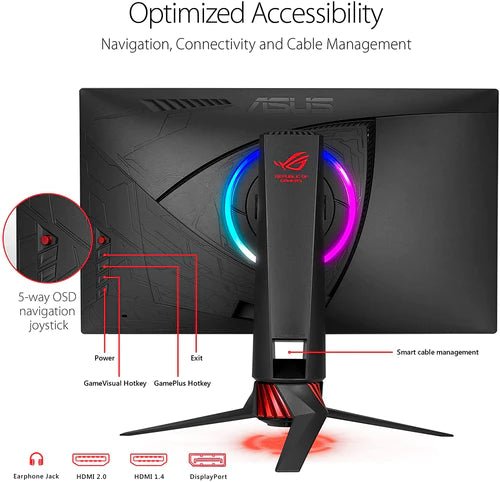

| 5-way OSD Navigation Joystick |
| GameVisual |
| |
| I/O Ports |
| |
|
Signal Input : HDMI(v2.0), DisplayPort, HDMI(v1.4)
|
| |
| Signal Frequency |
| Digital Signal Frequency : DisplayPort：255 ~255 KHz (H) /48 ~240 Hz(V) |
| Power Consumption |
|
Power ON mode: <65W**
|
| Power Saving/Off mode: <0.5W |
| Voltage: 100-240V, 50/60Hz |
| |
| Mechanical Design |
|
Chassis Colors : Dark gray, Red
|

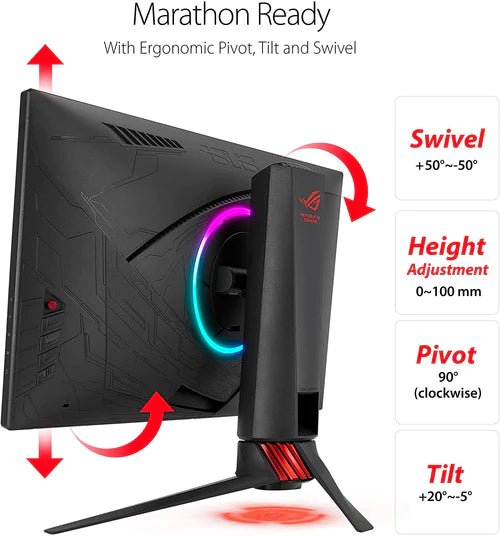

| Tilt : +20°~-5° |
| Swivel : +50°~-50° |
| Pivot : 0°~+90° |
| Height Adjustment : 0~100 mm |
| VESA Wall Mounting : 100x100mm |
| Super Narrow Bezel Design : Yes |
| Aura RGB lighting effect |
| |
| Dimensions |
|
Phys. Dimension with Stand(WxHxD):564.2x(383.7 ~ 503.7)x 253.7 mm
|
| Phys. Dimension without Stand(WxHxD):564.2x330.6x73.7 mm |
| Box Dimension(WxHxD):661x443x239 mm |
| |
| Weight |
| Net Weight(Esti.):5.5kg |
| Net Weight without Stand :3.0 kg |
| Gross Weight(Esti.):8.2kg |
