Description
| Quick Specs: | • Processor - AMD Ryzen™ 7 6800H • Graphics - NVIDIA® GeForce® RTX™ 3060 Laptop GPU • Memory - 16GB DDR4-4800 SO-DIMM • Storage - 512GB PCIe® 4.0 NVMe™ M.2 SSD • Resolution - FHD (1920 x 1080) 16:9 • Panel size - 15.6-inch • Battery - 90WHrs, 4S1P, 4-cell Li-ion |
||
Full Specs:
| Part No | 90NR0845-M00F40 |
| Model Name | G513RM-HF287W |
| EAN Code | 4711081813415 |
| UPC Code | 195553813419 |

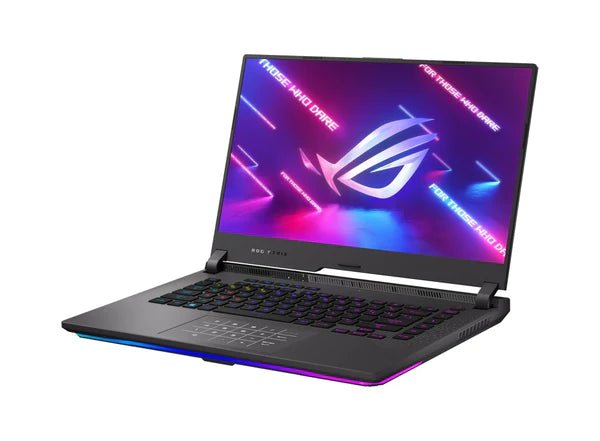

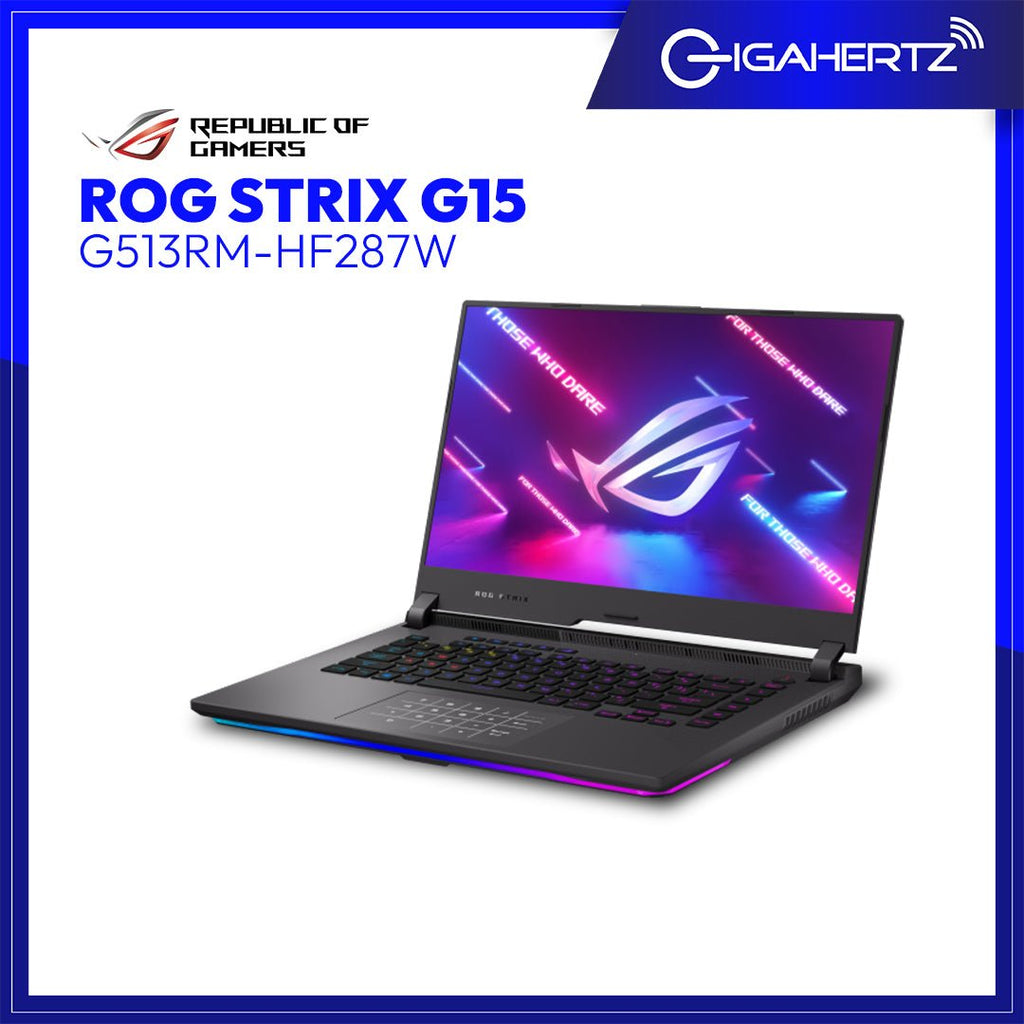

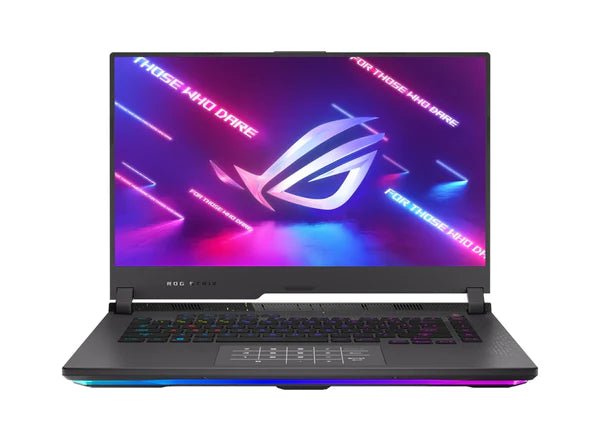

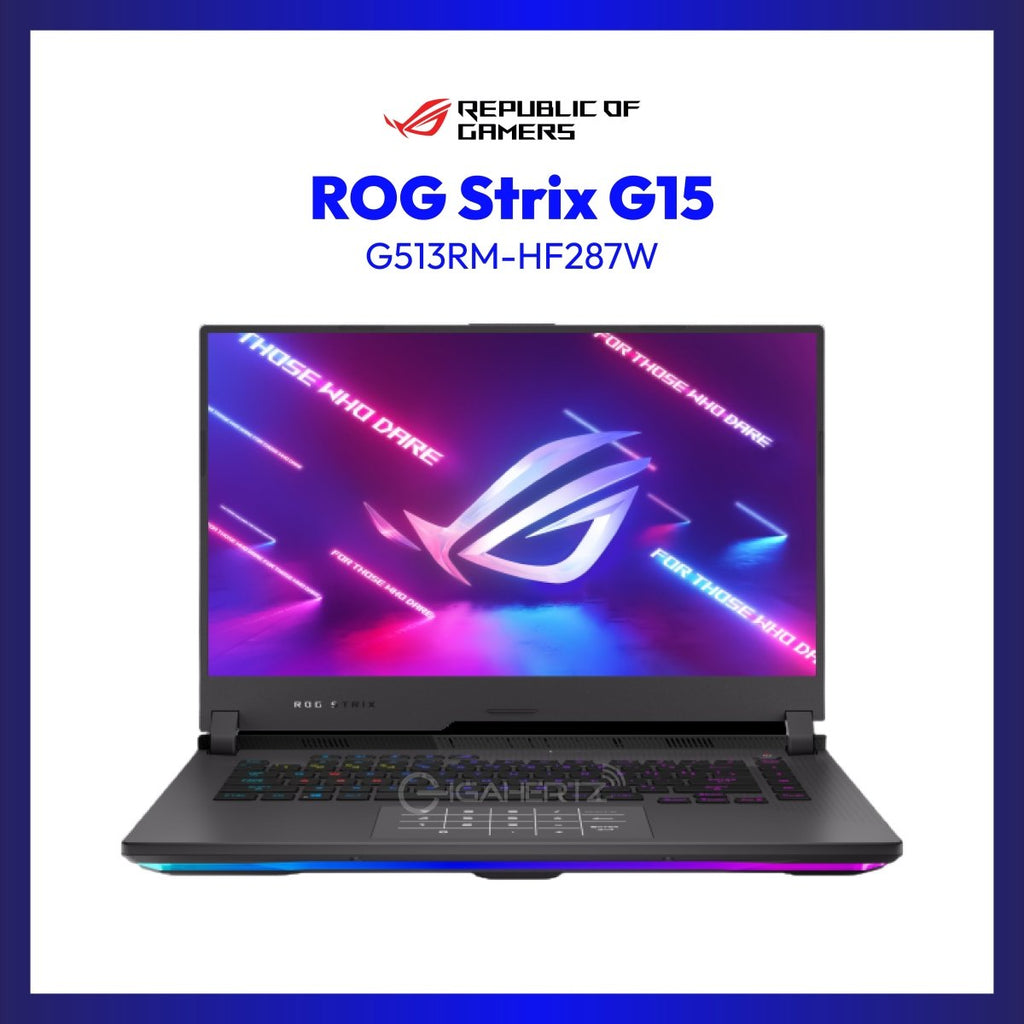

| Marketing Name | ROG Strix G15 |
| Color | Eclipse Gray |
| Dimension (W x D x H) | 35.4 x 25.9 x 2.26 ~ 2.72 cm (13.94" x 10.20" x 0.89" ~ 1.07") |
| Weight | 2.30 Kg ( lbs) |
| Processor | AMD Ryzen™ 7 6800H Mobile Processor (8-core/16-thread, 20MB cache, up to 4.7 GHz max boost) |
| Chipset | N/A |
| Discrete/Optimus | MUX Switch + Optimus |
| Graphic | NVIDIA® GeForce RTX™ 3060 Laptop GPU |
| Graphic Wattage | ROG Boost: 1752MHz* at 140W (1702MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) |
| Graphic Memory | 6GB GDDR6 |
| IGPU | AMD Radeon™ Graphics |
| Panel Size | 15.6-inch |
| Resolution | FHD (1920 x 1080) 16:9 |
| Refresh Rate | 300Hz |
| Response Time (G2G) | 3ms |
| Viewing Angle | 170 |
| Panel Tech | IPS-level |
| Brightness | 300nits |
| Contrast | 1:1000 |
| NTSC % | 72% |
| SRGB % | 100.00% |
| Adobe % | 75.35% |
| Anti glare | Anti-glare display |
| Adaptive-Sync technology | Adaptive-Sync |
| Pantone | N/A |
| Support Dolby Vision HDR | Yes |
| On board memory | N/A |
| DIMM Memory | 8GB DDR5-4800 SO-DIMM *2 |
| Total System Memory | DDR5 16GB |
| Memory Slot | 2x SO-DIMM slots |
| Memory Max. | 32GB |
| Multi-channel memory technology | Support dual channel memory |
| System Storage Installed | 512GB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe | 2 |
| M.2 SSD Support List | M.2 512GB PCIe M.2 1TB PCIe |
| Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots 2x PCIe |
| LAN | 10/100/1000/2500 Mbps |
| Wi-Fi/Bluetooth | Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) -RangeBoost |
| I/O Ports | 1x RJ45 LAN port 1x USB 3.2 Gen 2 Type-C 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A |
| Display output | 1x HDMI 2.0b |
| Audio | 1x 3.5mm Combo Audio Jack |
| Webcam | N/A |
| Mic | Built-in array microphone |

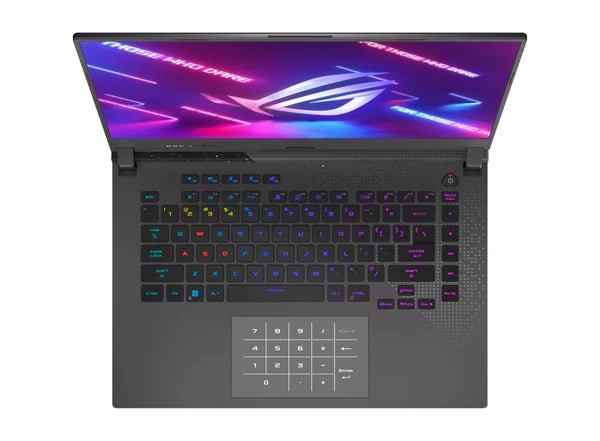

| Keyboard Type | Backlit Chiclet Keyboard Per-Key RGB |
| NumberPad | Support NumberPad |
| Aura Sync | Yes |
| Speakers | 2-speaker system with Smart Amplifier Technology |
| Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification Smart Amp Technology |
| Operating System | Windows 11 Home |
| Antivirus | MCAFEE_30D |
| Xbox Game Pass | Xbox Game Pass for PC_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Security | BIOS Administrator Password and User Password Protection Trusted Platform Module (Firmware TPM) |
| Battery | 90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging | Recharge from 0-50% in 30 minutes |
| Power | ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
| Bundled Peripherals | ROG backpack |
| Additional Accessories | ROG Impact Gaming Mouse TYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal |
| Reparability Index (for FR) | 7.3 |
