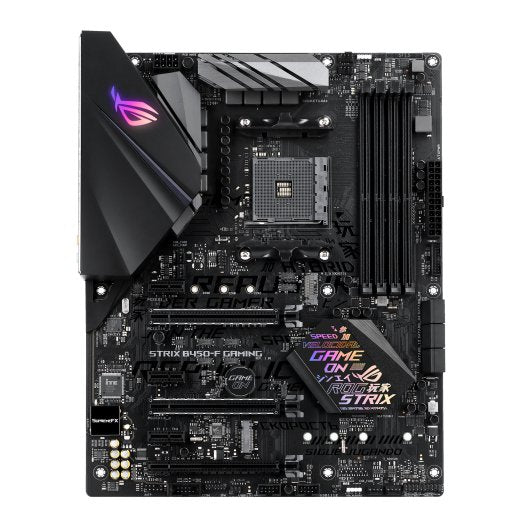

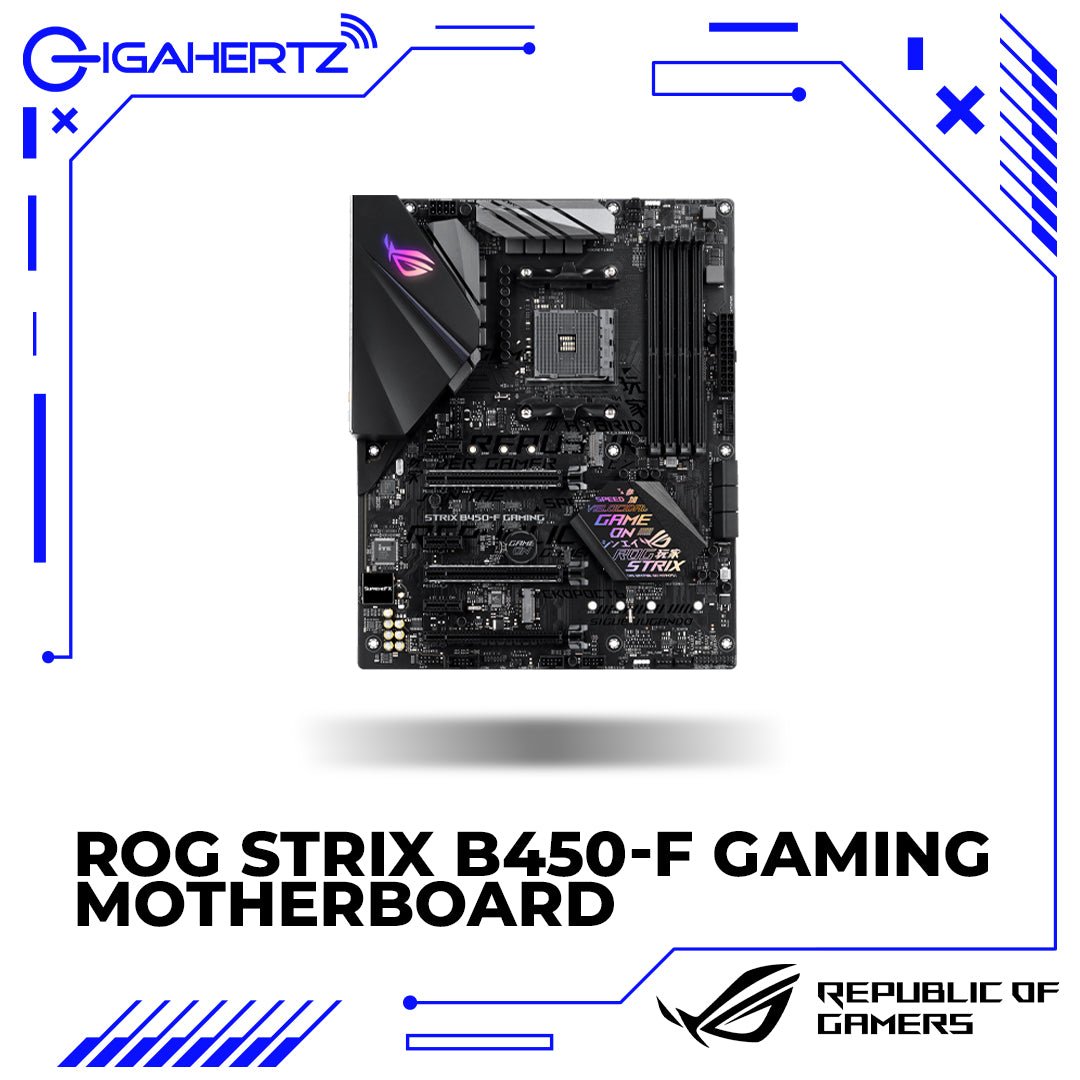

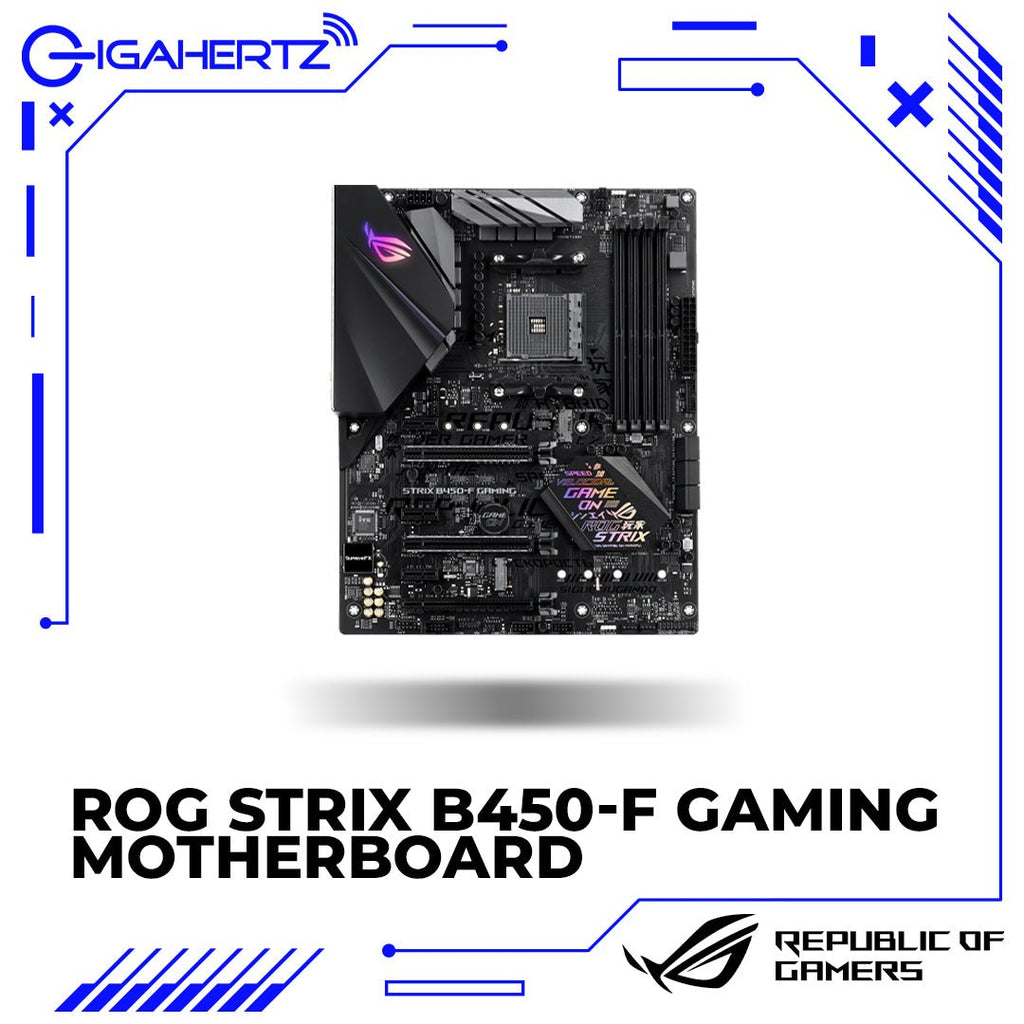

Description
Key Features
- ATX Form Factor
- AMD B450 Chipset
- Socket AM4
- 4 x Dual-Channel DDR4-3200 (OC)
- 6 x SATA III, 2 x M.2 Slots
- 2 x PCIe 3.0 x16 Slots
- 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1 Slots
- SupremeFX S1220A 8-Channel HD Audio
- Intel I211-AT Gigabit LAN
- Asus Aura Sync RGB Lighting
Full Specifications:
| Component | Specification |
|---|---|
| General | |
| Chipset | AMD B450 |
| CPU Socket | AM4 |
| Back Panel I/O | |
| USB | 2x USB-A (USB 3.1/3.2 Gen 2) |
| 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) | |
| 1x USB-C (USB 3.0 / 3.1/3.2 Gen 1) | |
| 2x USB-A (USB 2.0) | |
| Display | 1x HDMI 2.0a |
| 1x DisplayPort 1.2 | |
| Audio | 1x S/PDIF |
| 5x 1/8" / 3.5 mm | |
| Ethernet / Controller | 1x Intel I211-AT Gigabit |
| PS/2 | 1x Combo |
| Memory | |
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200 MHz |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| Storage Expansion | |
| SATA | 6x SATA III |
| M.2 | 1x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| 1x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) | |
| U.2 | No |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 10 |
| Internal I/O | |
| Expansion Slots | 2x PCIe 3.0 x16 |
| 1x PCIe 2.0 x16 | |
| 3x PCIe 2.0 x1 | |
| USB | 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) |
| 2x USB 2.0 Header (Supports 4 USB-A Port) | |
| Multi-GPU Support | 3-Way AMD CrossFireX |
| Air Cooling | 1x 4-Pin CPU |
| 1x 4-Pin Assistant | |
| 3x 4-Pin System | |
| 1x Thermal Sensor | |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard |
| 1x 8-Pin CPU | |
| Security | TPM Module |
| LED Header | 2x RGB |
| Audio | No |
| Diagnostics | Clear CMOS |
| Legacy | 1x Serial |
| BIOS | |
| ROM | 128 Mb |
| Front Panel I/O | |
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1 |
| Audio | SupremeFX S1220A (8-Channel) |
| Software | |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Windows 8/8.1 (64-Bit) | |
| Physical | |
| Form Factor | ATX |
| Dimensions | 12 x 9.6" / 304.80 x 243.84 mm |
| Packaging Info | |
| Package Weight | 3.4 lb |
| Box Dimensions (LxWxH) | 13.4 x 10.95 x 2.75" |
