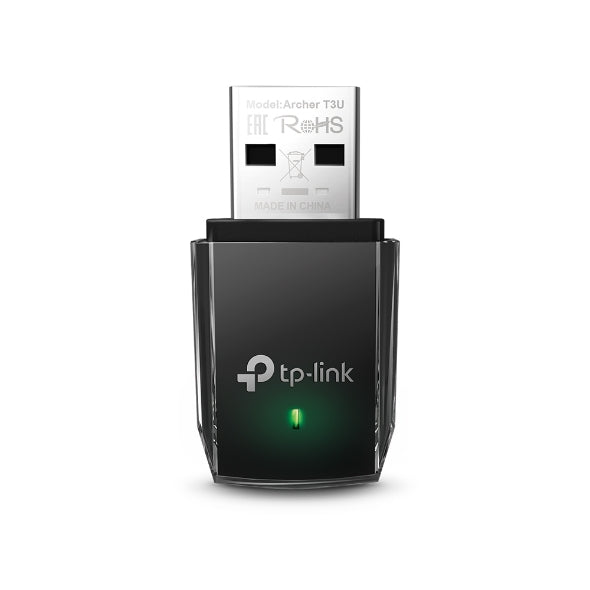

The TP-Link Archer T3U is an AC1300 dual-band USB Wi-Fi adapter designed to upgrade desktops and laptops with faster and more stable wireless connectivity. It supports speeds of up to 867Mbps on the 5GHz band and 400Mbps on the 2.4GHz band, making it suitable for HD streaming, online gaming, video calls, and everyday browsing.
Its compact mini design allows for convenient plug-and-leave portability, while the USB 3.0 interface delivers faster data transfer speeds compared to USB 2.0. The adapter also features MU-MIMO technology for improved network efficiency and supports WPA/WPA2 encryption for secure wireless connections.
SPECIFICATION:
|
HARDWARE FEATURES
|
|
|
Interface
|
USB 3.0
|
|
Dimensions ( W x D x H )
|
1.59 × 0.78 × 0.41in. (40.5 × 19.72 × 10.29mm)
|
|
Antenna
|
Omni Directional
|
|
WIRELESS FEATURES
|
|
|
Wireless Standards
|
• IEEE 802.11ac, IEEE 802.11a,
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
|
Frequency
|
• 5GHz
• 2.4GHz
|
|
Signal Rate
|
• 5GHz
• 11ac: Up to 867Mbps(dynamic)
• 11n: Up to 300Mbps(dynamic)
• 11a: Up to 54Mbps(dynamic)
• 2.4GHz
• 11n: Up to 400Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
|
|
Reception Sensitivity
|
• 5GHz：
• 11a 6Mbps: -91dBm
• 11a 54Mbps: -76dBm
• 11n HT20：-71dBm
• 11n HT40：-70dBm
• 11ac HT20: -68dBm
• 11ac HT40: -64dBm
• 11ac HT80: -62dBm
• 2.4GHz:
• 11b 11Mbps: -86dBm
• 11g 54Mbps: -73dBm
• 11n HT20: -71dBm
• 11n HT40: -70dBm
|
|
Wireless Modes
|
Ad-Hoc / Infrastructure Mode
|
|
Wireless Security
|
Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
|
Modulation Technology
|
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
|
|
Transmission Power
|
<23dBm (EIRP)
|
|
OTHERS
|
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Content
|

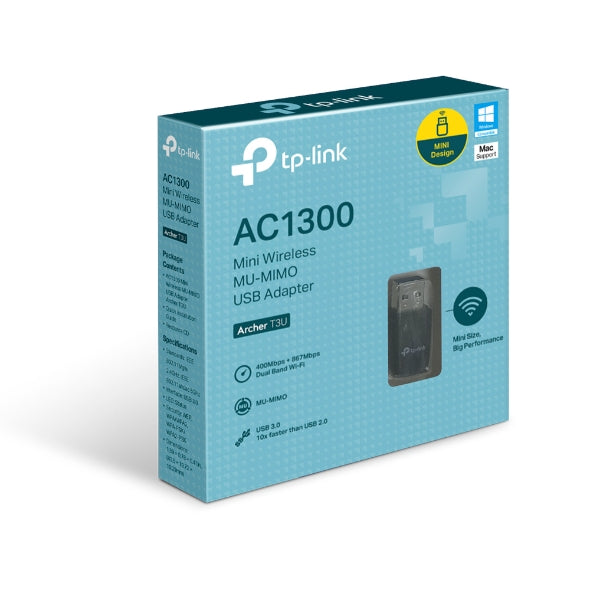

• AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U
• Quick Installation Guide
• Resource CD
|
|
System Requirements
|
Windows10/8.1/8/7/XP, Mac OS X 10.9-10.13
|
|
Environment
|
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
|
