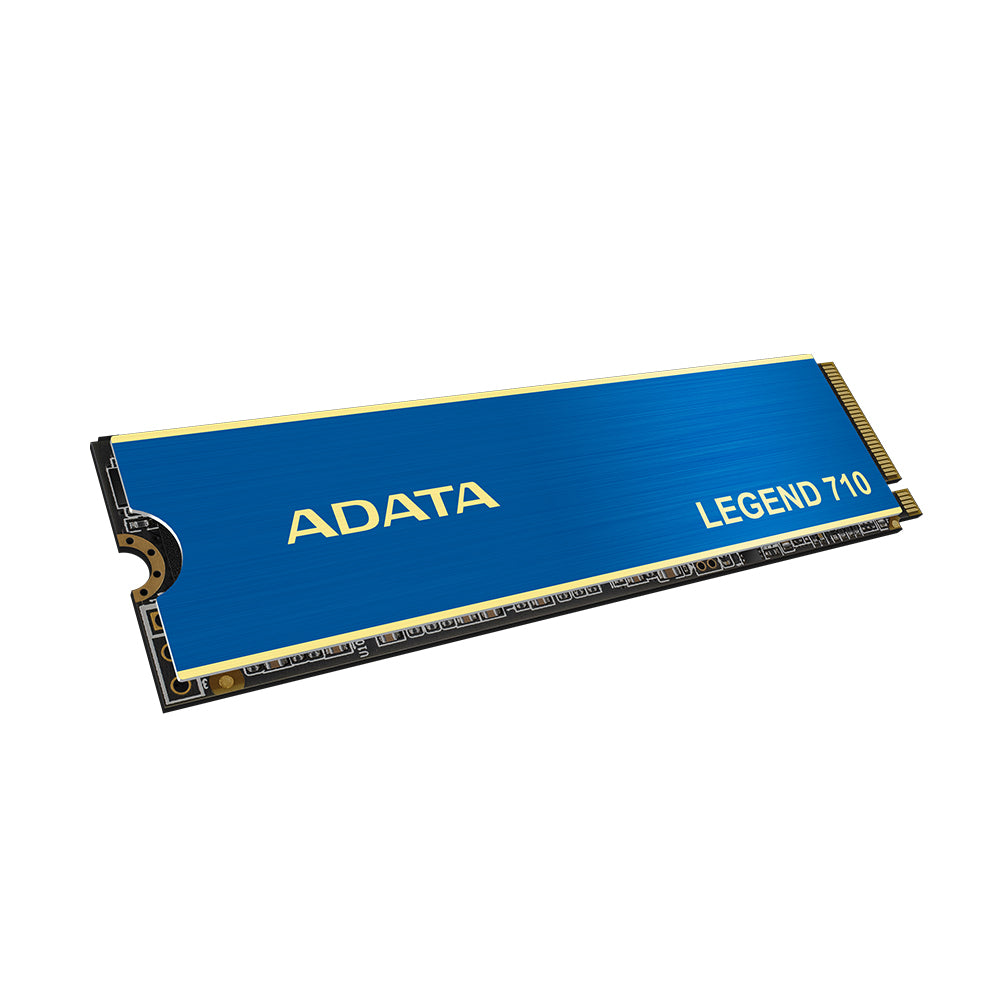

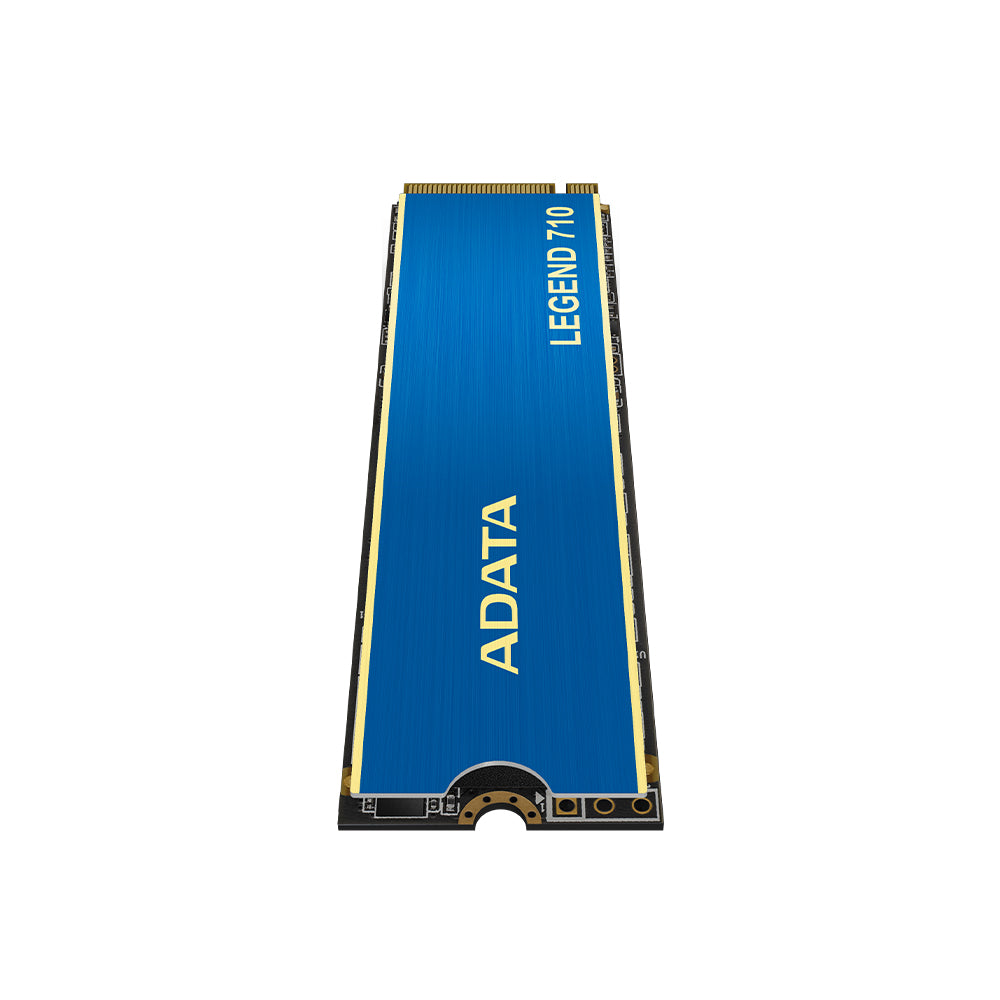

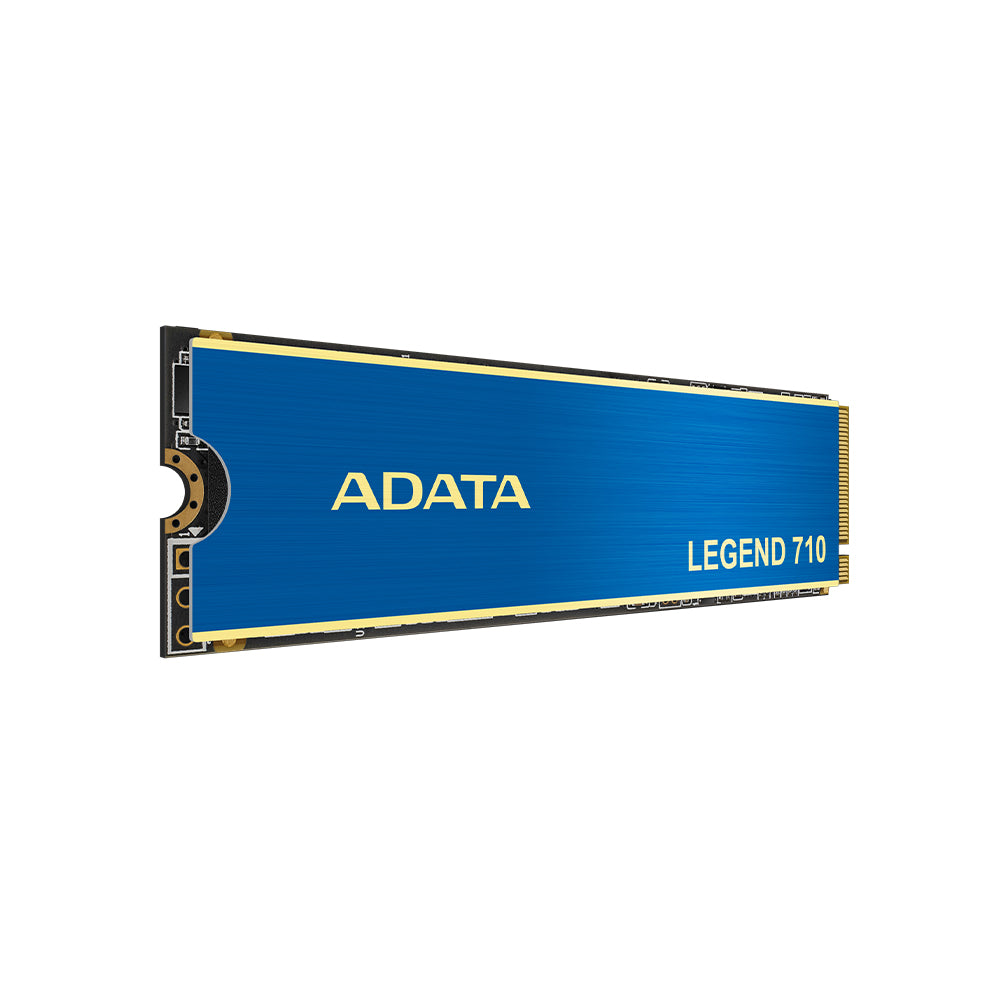

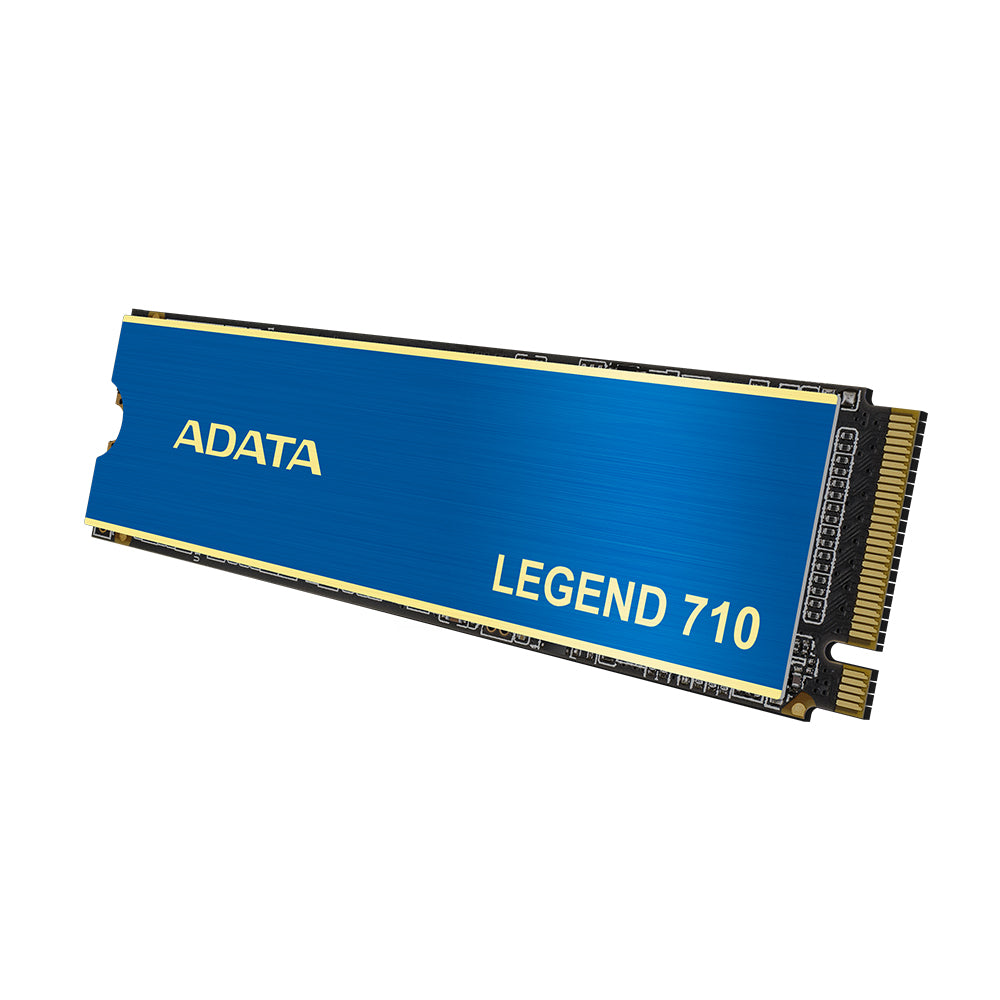

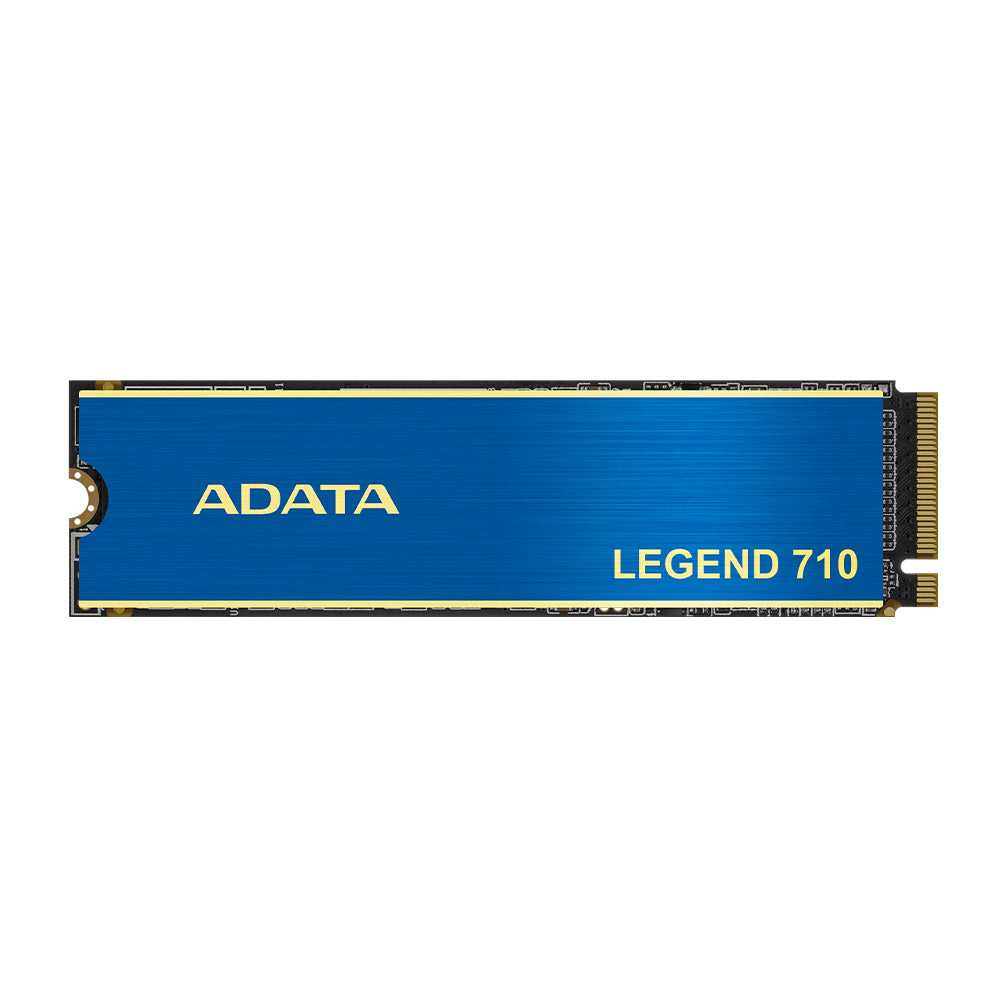

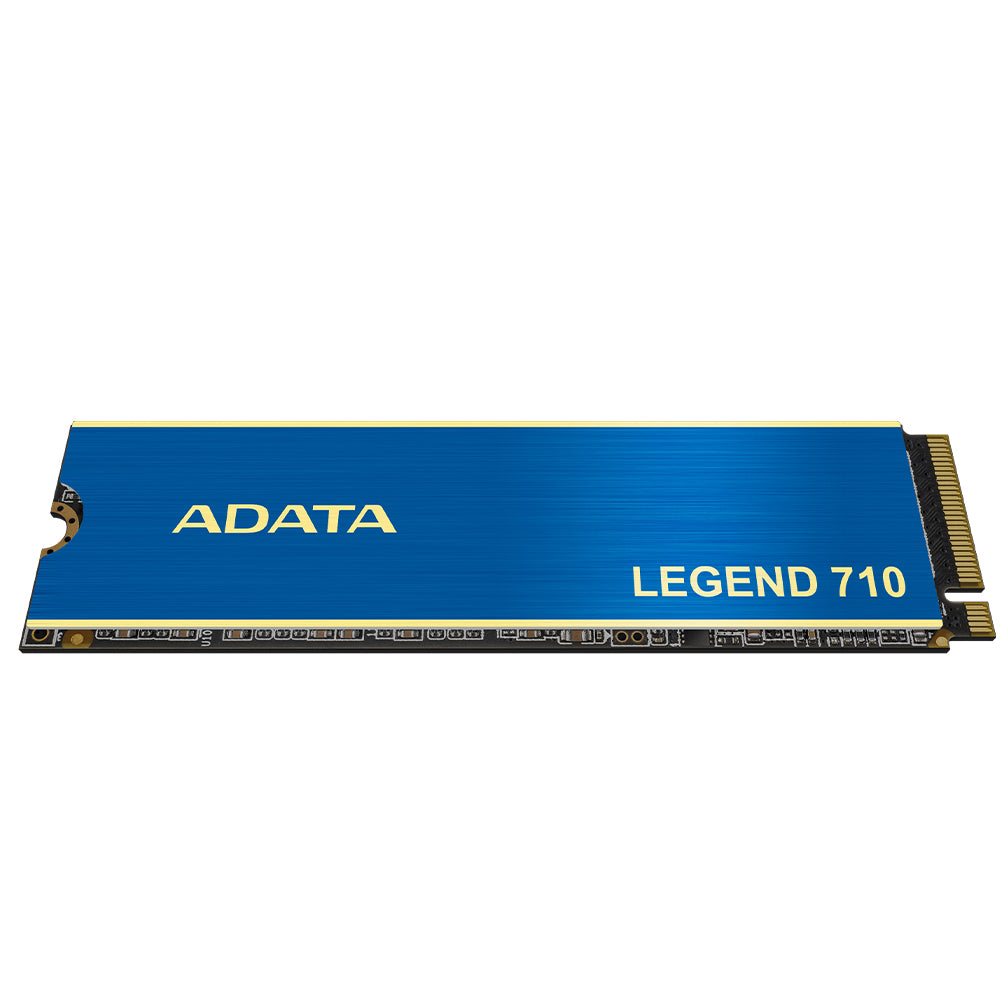

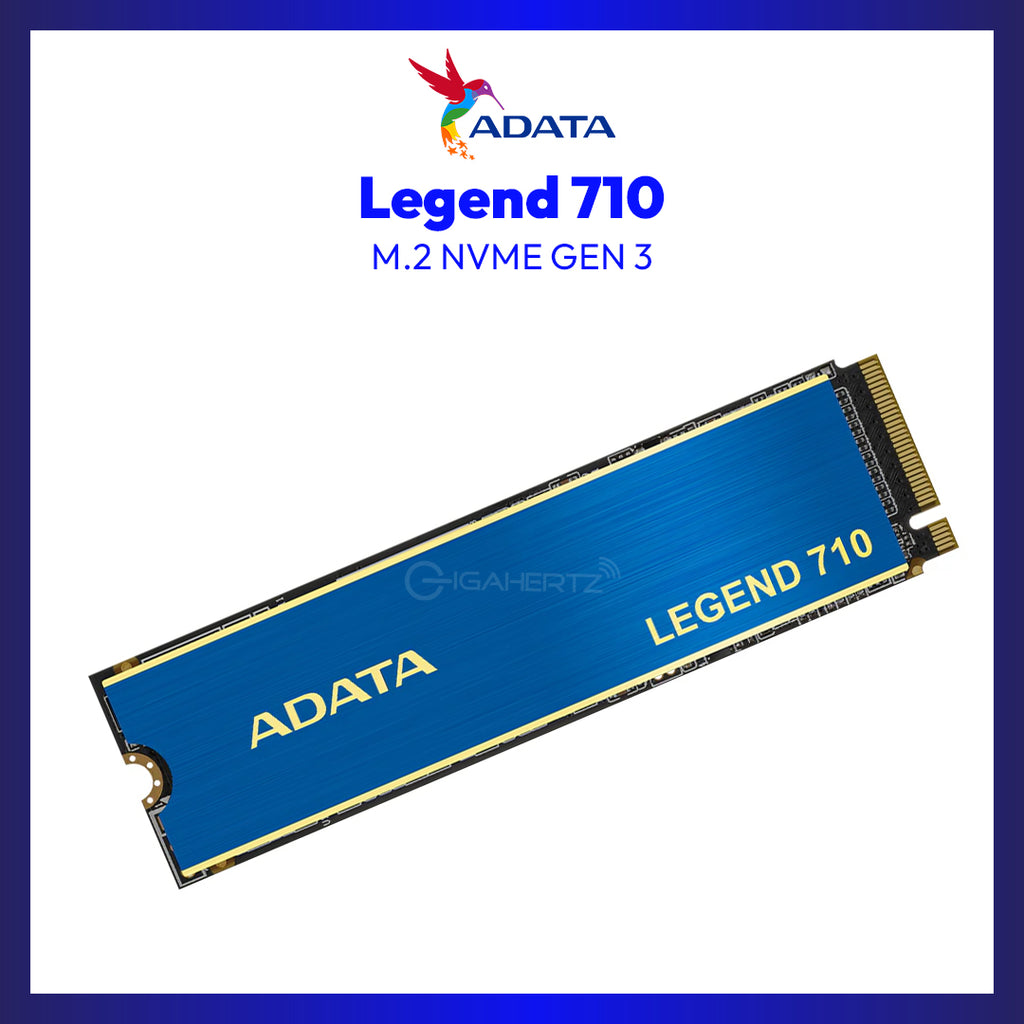

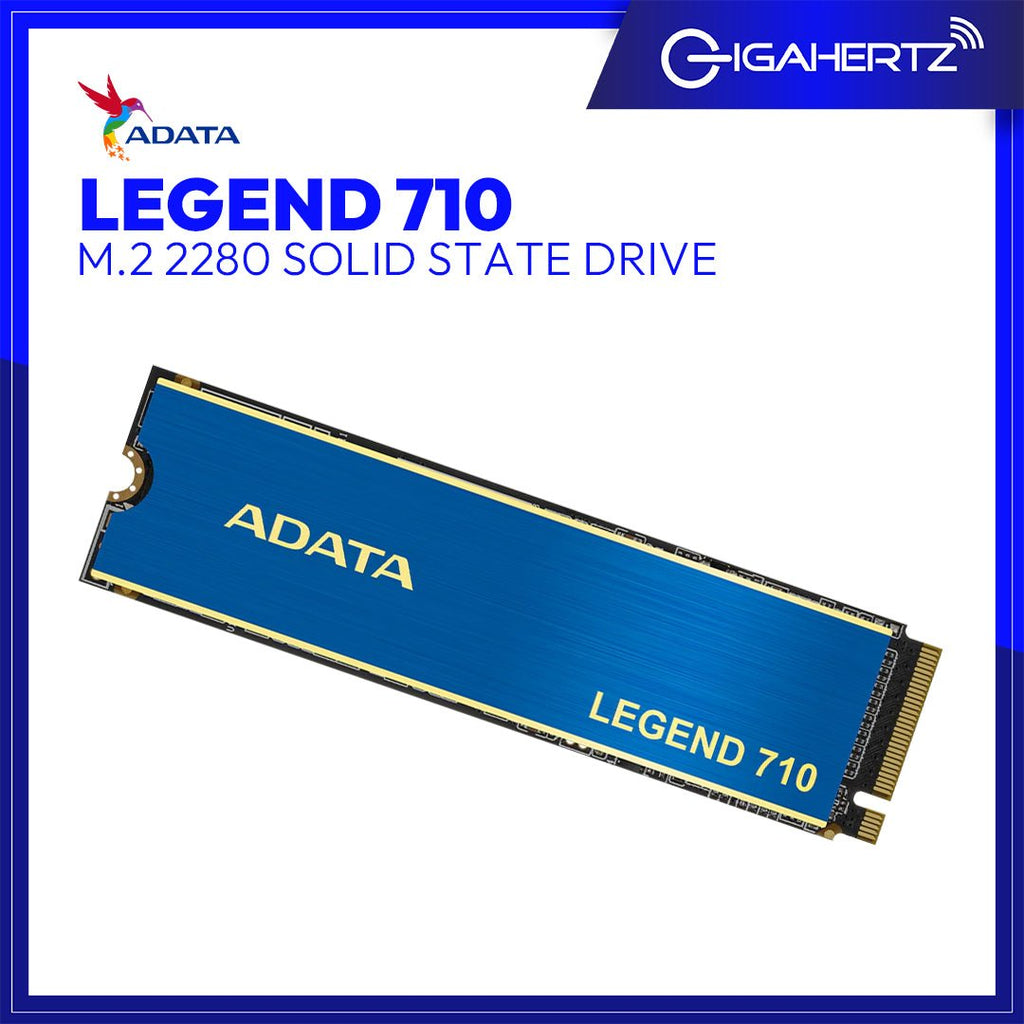

ADATA LEGEND 710 PCIe Gen3 x4 M.2 2280 Solid State Drive

Capacity

1TB

Form Factor

M.2 2280

NAND Flash

3D NAND

Controller

RTS5766DL

Dimensions (L x W x H)

• 80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)

• 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)

Weight

• 9g / 0.32oz (with heat sink)

• 6.2g / 0.22oz (without heat sink)

Interface

PCIe Gen3 x4

Sequential Read (Max)

Up to 2,400MB/s*

Sequential Write (Max)

Up to 1,800MB/s*

4KB Random Read IOPS(Max)

Up to 200K*

4KB Random Write IOPS(Max)

Up to 150K*

Operating temperature

0°C - 70°C

Storage temperature

-40°C - 85°C

Shock resistance

1500G/0.5ms

MTBF

1,500,000 hours

Terabytes Written (TBW)

520TB**
