Description

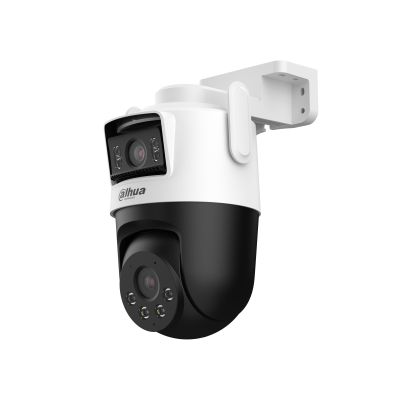

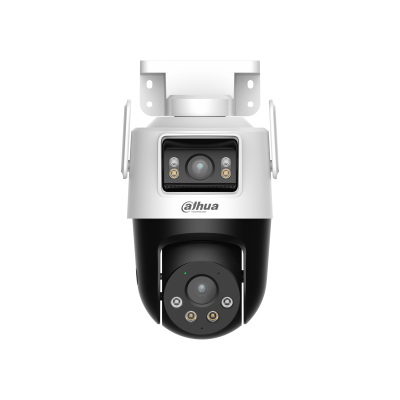

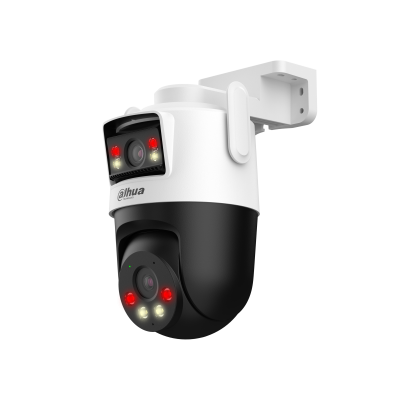

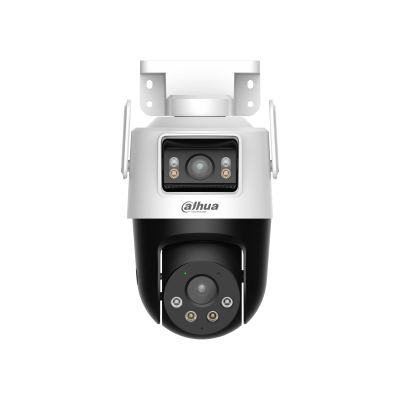

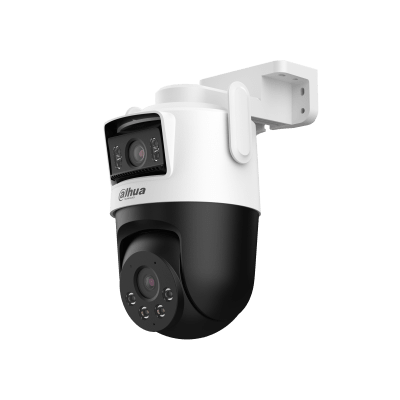

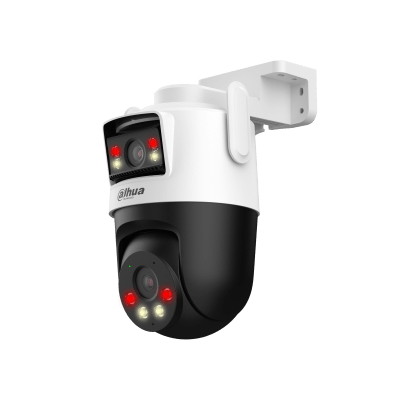

The Dahua P3D-3F-PV is a smart outdoor dual-lens pan-and-tilt security camera designed to deliver wide 360° coverage, intelligent AI monitoring, and clear 3MP + 3MP video surveillance for homes and businesses. Featuring a combination of fixed and PT lenses, automatic target tracking, full-color night vision, and smart human and vehicle detection, it provides detailed monitoring with fewer blind spots and more accurate alerts. Its built-in microphone and speaker support two-way audio communication, while sound and light alarms help actively deter intruders. With Wi-Fi 6 connectivity, IP66 weatherproof protection, H.265 video compression, and support for microSD storage up to 256GB, the P3D-3F-PV offers a reliable and flexible solution for monitoring driveways, entrances, parking areas, and outdoor spaces day and night.
|
Camera（2.8 mm +6 mm） |
|
|
Fixed Lens |
|
|
Image Sensor |
1/2.8" CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm light) |
|
Illuminator Number |
2 (IR LED); 2 (Warm light) |
|
Angle Adjustment |
-10° to 15° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
2.8 mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 95°; V: 53°; D: 110° |
|
PT Lens |
|
|
Image Sensor |
1/2.8" CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
|
Illuminator Number |
2 (IR LED); 2 (Warm light) |
|
Angle Adjustment |
Pan: 0° to 352°; Tilt: 0° to 90° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
6 mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 53°; V: 29°; D: 62° |
|
Camera (3.6 mm+3.6 mm) |
|
|
Fixed Lens |
|
|
Image Sensor |
1/2.8" CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 30 m (98.43 f) (IR) Up to 30 m (98.43 f) (Warm light) |
|
Illuminator Number |
2 (IR LED); 2 (Warm light) |
|
Angle Adjustment |
-10° to 15° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
3.6mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 86°; V: 46°; D: 103° |
|
|
|
|
PT Lens |
|
|
Image Sensor |
1/2.8" CMOS |
|
Max. Resolution |
2304 (H) × 1296 (V) |
|
Illumination Distance |
Up to 30 m (98.43 f) (IR) Up to 30 m (98.43 f) (Warm light) |
|
Illuminator Number |
2 (IR LED); 2 (Warm light) |
|
Angle Adjustment |
Pan: 0° to 352°; Tilt: 0° to 90° |
|
Lens Type |
Fixed-focal |
|
Focal Length |
3.6mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 86°; V: 46°; D: 103° |
|
Intelligence |
|
|
Human Detection |
Yes |
|
Vehicle Detection |
Yes |
|
Audio and Video |
|
|
Video Compression |
H.265 |
|
Video Frame Rate |
Main stream: 2304 × 1296@15 fps |
|
Video Bit Rate |
H.265: 512 kbps–4096 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
WDR |
DWDR |
|
Motion Detection |
Yes |
|
Image Rotation |
0°/180° |
|
Built-in MIC |
Yes, built-in Mic |
|
Built-in Speaker |
Yes, built-in speaker |
|
Audio Compression |
G.711a |
|
Network |
|
|
Network Port |
RJ-45 (10/100 Base-T) |
|
Wi-Fi |
IEEE 802.11b/g/n/ax 2.4000~2.4835 GHz, 2.4G,≤20dBm |
|
Wi-Fi Pairing |
Bluetooth pairing |
|
Storage |
Micro SD card (support max. 256 GB) |
|
Management Software |
DMSS |
|
Mobile Client |
iOS;Android |
|
General |
|
|
Certifications |
CE |
|
Power Supply |
12 VDC |
|
Power Consumption |
Basic: 2.3 W Max.: 10 W (pulling stream+ IR + siren and light active deterrence) |
|
Operating Temperature |
–30 °C to +50 °C (–22 °F to +122 °F) |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Protection |
IP66 |
|
Casing Material |
Plastic |
|
Product Dimensions |
159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H) |
|
Net Weight |
585 g (1.29 lb) |
